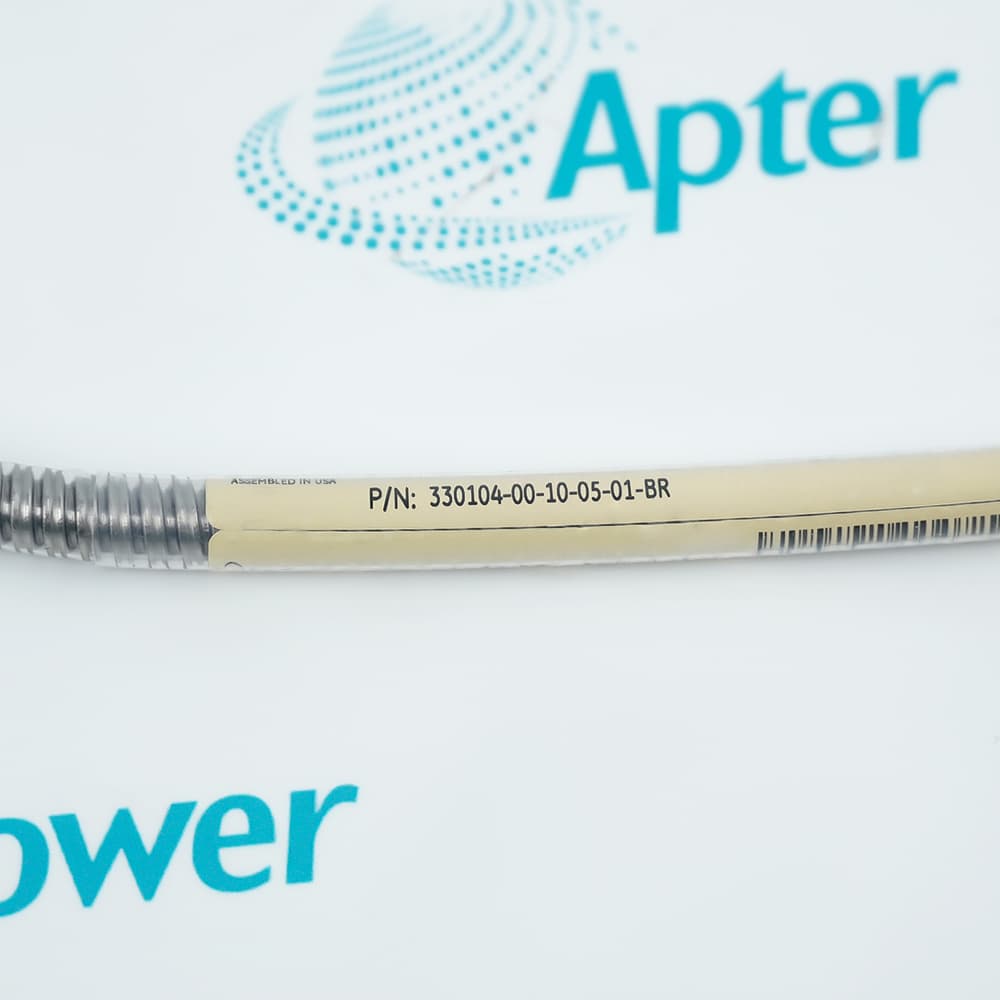

Features:

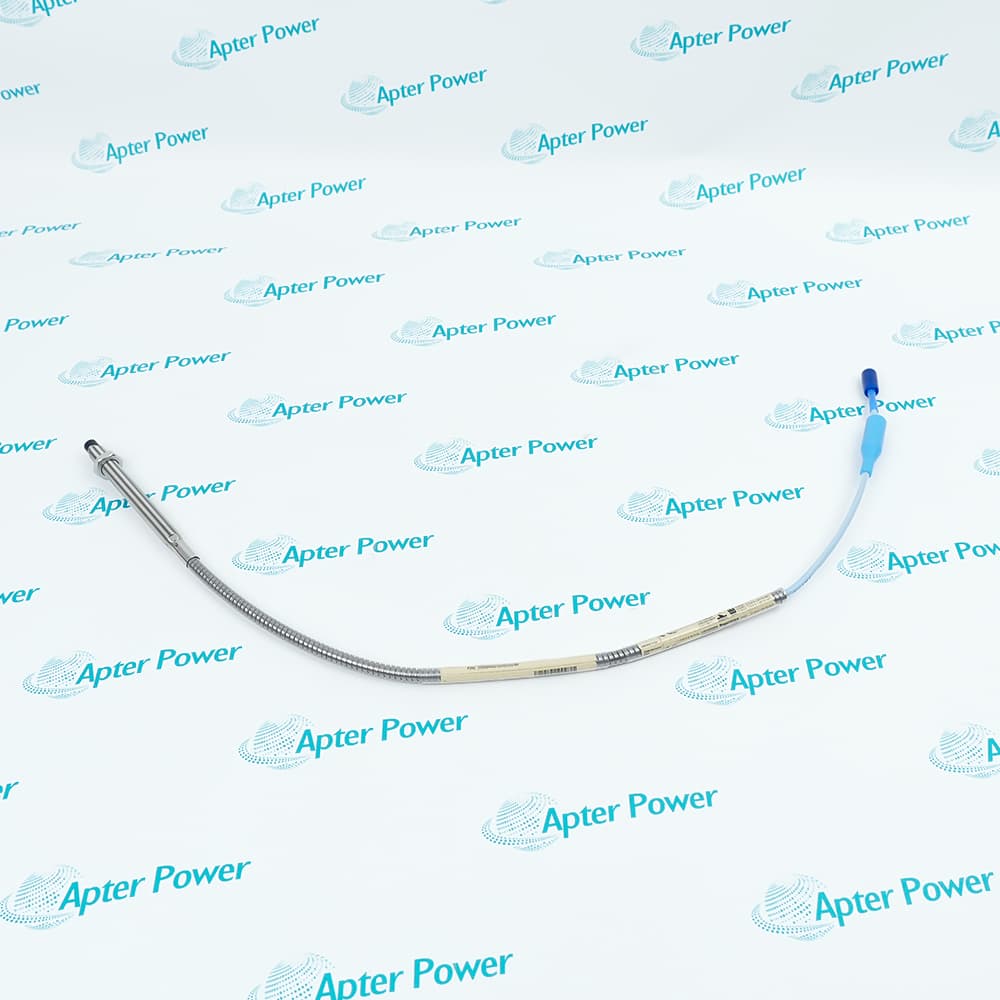

- 330104-00-10-05-01-BR combines M10x1 metric thread with full armor and a protective connector protector.
- Zero unthreaded length paired with 100mm case satisfies 20mm differential rule for metric mounting.
- Short 0.5-meter total length suits tight installations where Proximitor mounts close to probe.
The 330104-00-10-05-01-BR is specifically configured for applications requiring minimal cable length between the probe and Proximitor sensor. With a total length of only 0.5 meters (1.6 feet), this probe is designed to pair exclusively with 0.5-meter Proximitor sensors such as the 330180-10 (panel mount), 330180-11 (DIN mount), or 330180-12 (no mounting hardware). The short length is ideal for compact machinery, small bearing housings, or installations where the Proximitor sensor must be mounted very close to the probe. This configuration reduces signal attenuation and minimizes cable routing complexity.
The 330104-00-10-05-01-BR features zero unthreaded length, meaning the M10 x 1 threads begin immediately at the probe tip without any smooth cylindrical section before threading. This configuration is useful when the probe must be mounted close to the target surface with minimal standoff distance. The overall case length is 100 mm (10 × 10 mm increments), providing a compact probe body suitable for shallow mounting holes.
The 330104-00-10-05-01-BR includes a "BR" suffix that indicates a special modification beyond the standard ordering options listed in the datasheet. While the exact nature of this modification is not specified in the standard documentation, Bently Nevada commonly uses such suffixes to denote customer-specific requirements such as specialized connector orientation, extended temperature range calibration, custom labeling, non-standard target material calibration, or special coating for corrosive environments. The "BR" modification may also indicate a particular mounting bracket requirement or cable exit direction tailored to a specific machine design. When ordering probes with special modifications, users should consult their Bently Nevada representative to understand the exact specifications of the "BR" variant.
The 330104-00-10-05-01-BR Bently Nevada Proximity Probe may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-00-10-05-01-BR Proximity Probe Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Bently Nevada 330104-00-10-05-01-BR Proximity Probe Specs
General
- Manufacturer Bently Nevada
- Model 330104-00-10-05-01-BR
- Condition New Original ready stock
- Product Family
330104-00-18-10-02-00,330104-00-06-05-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Radial Vibration: Installed in pairs at a 90° orthogonal layout (X-Y axes) around fluid-film hydrodynamic bearings to monitor dynamic shaft vibration, eccentric runout, and shaft orbit profiles.
- Keyphasor & Speed Measurement: Oriented towards a keyway, notch, or projection on the rotating shaft to provide a once-per-revolution pulse signal, essential for tracking precise RPM and measuring dynamic phase angles during vibration analysis.
- ypical Driven Equipment: Extensively mounted inside the bearing housings of utility steam turbines, industrial gas turbines, high-pressure centrifugal compressors, large pumps, industrial motors, and heavy-duty gearboxes.
- ClickLoc™ Gold-Plated Connectors: The junction between the probe cable and the extension cable features corrosion-resistant, gold-plated ClickLoc coaxial connectors. They require only finger-tightening, giving an audible click when locked, ensuring they cannot vibrate loose under extreme frequency conditions.
- Proximitor Sensor Conditioning: The extension cable routes back to a 3300 XL Proximitor Sensor. The sensor drives a high-frequency RF signal down the tip and demodulates the changing field gaps into a clean, proportional analog voltage signal. The system operates at a standardized sensitivity of 7.87 V/mm (200 mV/mil) over a 2.0 mm linear range.
- Upstream Integration: The Proximitor transmits this analog voltage to a Bently Nevada 3500 Monitoring Rack (typically a 3500/42M Proximitor Seismic Monitor card) or directly into standard PLC/DCS analog input cards using standard shielded three-wire cable up to a maximum length of 305 meters (1,000 feet).
- Intrinsic Safety & Explosion Protection:The -BR suffix designates that the sensor complies explicitly with Brazilian INMETRO hazardous area standards (aligned with global ATEX / IECEx directives).
- Probe Tip: Formed from Polyphenylene Sulfide (PPS), a high-performance polymer engineered to resist degradation from hot synthetic lubricants, moisture, acids, and alkalis.
- Operating Temperatures: The probe head and field cabling are fully rated to withstand extreme process temperatures ranging from -35°C to +200°C (-31°F to +392°F).
