        Bently Nevada 330104-04-09-10-01-05
        Bently Nevada 330104-04-09-10-01-05
        Bently Nevada 330104-04-09-10-01-05
        Bently Nevada 330104-04-09-10-01-05
        Bently Nevada 330104-04-09-10-01-05
        Bently Nevada 330104-04-09-10-01-05
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Active / Available
          Apter Power stocks genuine Bently Nevada sensors for critical rotating machinery protection.

        330104-04-09-10-01-05

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

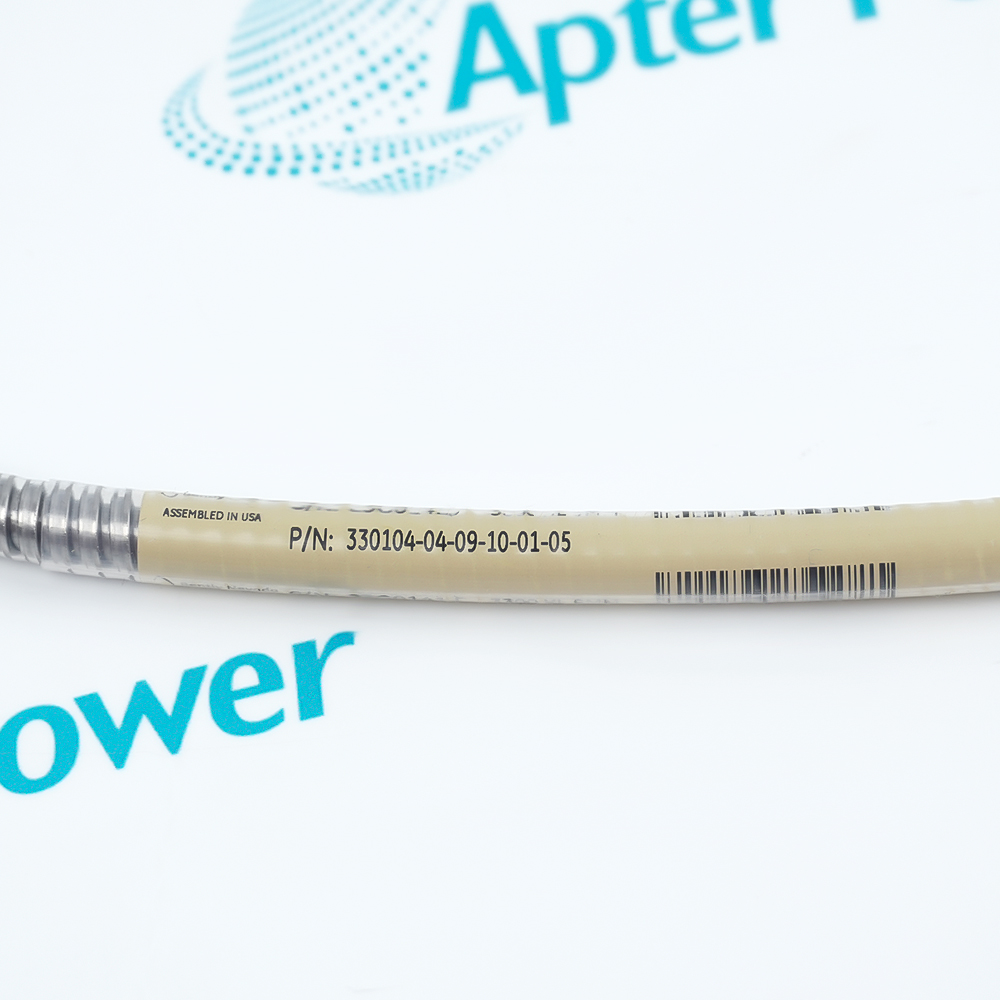

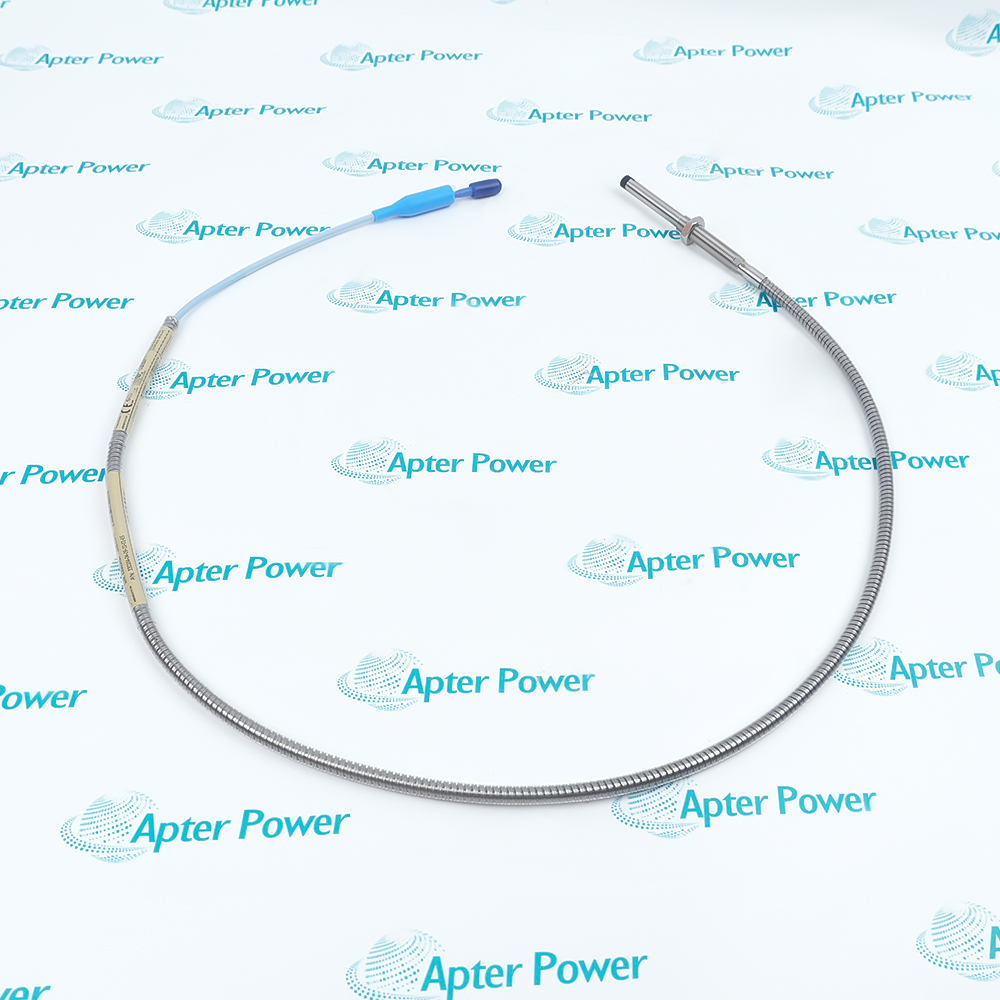

        Bently Nevada 330104-04-09-10-01-05 is an armored 3300 XL 8 mm proximity probe for measuring shaft vibration, position, speed, and Keyphasor reference signals on fluid-film bearing machines.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 330104-04-09-10-01-05
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 330104-04-09-10-01-05

        • Manufacturer:
          Bently Nevada
        • Part Number:
          330104-04-09-10-01-05
        • Product Family:
          3300 XL 8 mm Probe
        • Product Type:
          3300 XL 8 mm Proximity Probe
        • Stock:
          1
        • Thread Size:
          M10 × 1
        • Cable Protection:
          Armored
        • Unthreaded Length Option:
          40 mm
        • Overall Case Length Option:
          90 mm
        • Total Length Option:
          1.0 meter (3.3 feet)
        • Connector and Cable-Type Option:
          Miniature coaxial ClickLoc connector with connector protector, standard cable
        • Agency Approval Option:
          CSA, ATEX, IECEx Approvals
        • Nominal Probe DC Resistance:
          7.59 ± 0.50 Ω
        • Cable Armor:
          Flexible AISI 302 or 304 stainless steel
        • Armor Outer Jacket:
          FEP
        • Probe Tip Material:
          Polyphenylene sulfide (PPS)
        • Probe Case Material:
          AISI 303 or 304 stainless steel
        • Probe Cable Construction:
          75 Ω triaxial, FEP-insulated cable
        • Maximum Case-to-Lead Tensile Strength:
          330 N (75 lbf)
        • Recommended Probe Case Torque:
          11.2 N·m (100 in·lbf)
        • Maximum Rated Probe Case Torque:
          33.9 N·m (300 in·lbf)
        • Operating and Storage Temperature:
          -52°C to +177°C (-62°F to +350°F)
        • Weight:
          0.1 kg
        • Estimated shipping dimensions:
          1.8x1.5x68cm
        • Tariff Code:
          8476900090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Diagnosis Protection Application Scenarios

        Features:

        • Converts changes in distance from a conductive target into signals for vibration, position, speed, and phase-reference monitoring.
        • Combines an M10 × 1 mounting thread, stainless steel case, Viton sealing, and armored cable protection.
        • Uses a miniature coaxial ClickLoc connector with a connector protector for secure integration into the transducer chain.
        Rotating machinery reliability depends on detecting changes in shaft behavior before mechanical damage develops. Bently Nevada 330104-04-09-10-01-05 supports condition monitoring programs by providing a non-contact measurement point near the rotating shaft. Maintenance teams can use the resulting information to observe vibration trends, shaft movement, and rotational reference behavior. Early recognition of abnormal movement can support planned maintenance rather than unexpected shutdowns. Such monitoring is especially important for turbines, compressors, pumps, and other machines using fluid-film bearings.

        Installation conditions often expose sensor wiring to vibration, movement, and accidental mechanical contact. Bently Nevada 330104-04-09-10-01-05 addresses such environments through armored cable construction and a stainless steel probe body. Metric threading supports machinery or housings prepared for M10 × 1 mounting. The defined unthreaded section and case length help engineers verify physical fit before installation. A protected coaxial connection also helps preserve the signal path between the probe and extension cable.

        Machine protection systems require each sensing component to operate as part of a coordinated measurement chain. Bently Nevada 330104-04-09-10-01-05 forms the front-end sensing element together with a 3300 XL extension cable and Proximitor Sensor. The completed arrangement can supply continuous information for monitoring systems, shutdown logic, diagnostic analysis, or maintenance inspection. Agency approvals broaden suitability for facilities operating under CSA, ATEX, or IECEx requirements. Industrial users can apply the probe wherever dependable non-contact shaft measurement is required.

        The 330104-04-09-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 330104-04-09-10-01-05 3300 XL 8 mm Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 330104-04-09-10-01-05 3300 XL 8 mm Proximity Probe Specs

        General

        • Manufacturer Bently Nevada
        • Model 330104-04-09-10-01-05
        • Condition New Original ready stock
        • Product Family 330104-04-09-10-01-00,330104-04-09-10-02-05,330104-04-09-05-01-05
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Shaft Vibration Monitoring: Precisely acquires the dynamic vibration amplitude of the rotor, providing data support for early imbalance and misalignment in large rotating machinery.
        • Axial Position Monitoring: Dynamically tracks changes in thrust bearing clearance, diagnoses rotor axial movement in real time, and prevents accidental rubbing between moving and stationary parts.
        • Key Phase and Speed ​​Measurement: Uses Keyphasor markings to identify trigger points, enabling precise phase diagnosis, order analysis, and speed waveform capture.
        • Unit Interlock Shutdown: When the vibration intensity exceeds the safety limit, a protection signal is directly sent to the monitor to trigger an emergency trip.
        • Withstands Extreme Temperatures: The probe head is encapsulated in PPS engineering plastic, maintaining stable protection in harsh oil mist and high-temperature environments ranging from -52°C to +177°C.
        • Metal Armor for Scratch Protection: The outer layer features a built-in stainless steel armored flexible hose, effectively protecting the internal coaxial cable from mechanical friction, cuts, or pressure from hard objects.
        • Steam Turbine Generator Sets: Installed in the bearing housing of high-power steam turbines in power plants to continuously monitor the radial vibration and eccentricity of high-speed main shafts.
        • Large Industrial Fans: Integrated into the bearing housing of blast furnace induced draft fans in steel plants, effectively preventing catastrophic shaft breakage accidents caused by unbalanced blade ash accumulation.
        • High-Risk Explosion-Proof Areas: Widely used in critical petrochemical pump sets in oil refineries, ensuring safety in flammable and explosive environments with certifications from multiple countries such as ATEX and IECEx.
        Description
        Operating as the sensing element of a 3300 XL proximity transducer system, Bently Nevada 330104-04-09-10-01-05 produces a signal related directly to the distance between the probe tip and a conductive target surface. The resulting measurement can represent static shaft position or dynamic vibration. When combined with a compatible 3300 XL extension cable and 3300 XL Proximitor Sensor, the probe supports continuous machinery condition monitoring and protection applications.

        Mechanical construction allows Bently Nevada 330104-04-09-10-01-05 to fit metric mounting arrangements requiring an M10 × 1 thread. The configuration has a 40 mm unthreaded length, a 90 mm overall case length, and a total cable length of 1.0 meter, equivalent to approximately 3.3 feet. Stainless steel construction using AISI 303 or AISI 304 provides a durable probe case, while a Viton O-ring forms the probe seal. Armored cable protection adds mechanical defense for wiring routed through industrial machinery areas.

        Signal connection for Bently Nevada 330104-04-09-10-01-05 uses a miniature coaxial ClickLoc connector supplied with a connector protector and standard cable. Nominal probe DC resistance is 7.59 ± 0.50 Ω, providing an important reference for installation checks and troubleshooting. CSA, ATEX, and IECEx approvals support use in installations subject to the corresponding agency requirements. Common measurement duties include radial vibration, axial position, Keyphasor phase reference, and rotational speed monitoring on machines equipped with fluid-film bearings.
        Alternative Names
        33O1O4-O4-O9-1O-O1-O5 330I04-04-09-I0-0I-05 3301040409100105 330104-04-09-10-01-00 330104-04-09-10-01-BR 330104-04-09-10-01-RU 330104-04-09-10-01-CN 330104-04-09-10-11-05
        Technical notes
        Bently Nevada 330104-04-09-10-01-05 supports interchangeable 3300 XL components without bench calibration. Its PPS tip and armored lead suit demanding machinery environments.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What measurements can Bently Nevada 330104-04-09-10-01-05 perform?
        Bently Nevada 330104-04-09-10-01-05 supports static position and dynamic vibration measurement by sensing the distance between the probe tip and a conductive surface. Keyphasor reference and speed measurements are also supported in a complete transducer system.
        How does Bently Nevada 330104-04-09-10-01-05 generate a machinery signal?
        The probe works with an extension cable and Proximitor Sensor to produce an output voltage proportional to probe-tip gap. Changes in shaft position or vibration cause corresponding changes in the system output.
        Which mounting thread applies to Bently Nevada 330104-04-09-10-01-05?
        An M10 × 1 metric thread is provided. The configuration also includes a 40 mm unthreaded section and a 90 mm overall probe case length.
        Can Bently Nevada 330104-04-09-10-01-05 be used on fluid-film bearing machines?
        Yes. Primary applications include vibration and position monitoring on fluid-film bearing machinery, along with speed and Keyphasor reference measurements.
        Does Bently Nevada 330104-04-09-10-01-05 include armored cable protection?
        Armored protection surrounds the probe cable and provides added resistance against mechanical damage in industrial installations. Total probe and cable length is 1.0 meter.
        Which measurement duties can Bently Nevada 330104-04-09-10-01-05 support?
        Within a complete matched system, the probe can support shaft-vibration, shaft-position, Keyphasor reference and rotational-speed measurements.
