    Ensure continuous equipment protection with this high-precision Bently Nevada sensor, sourced by Apter Power to deliver exact OEM specifications and reliable field performance.

330104-07-14-05-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

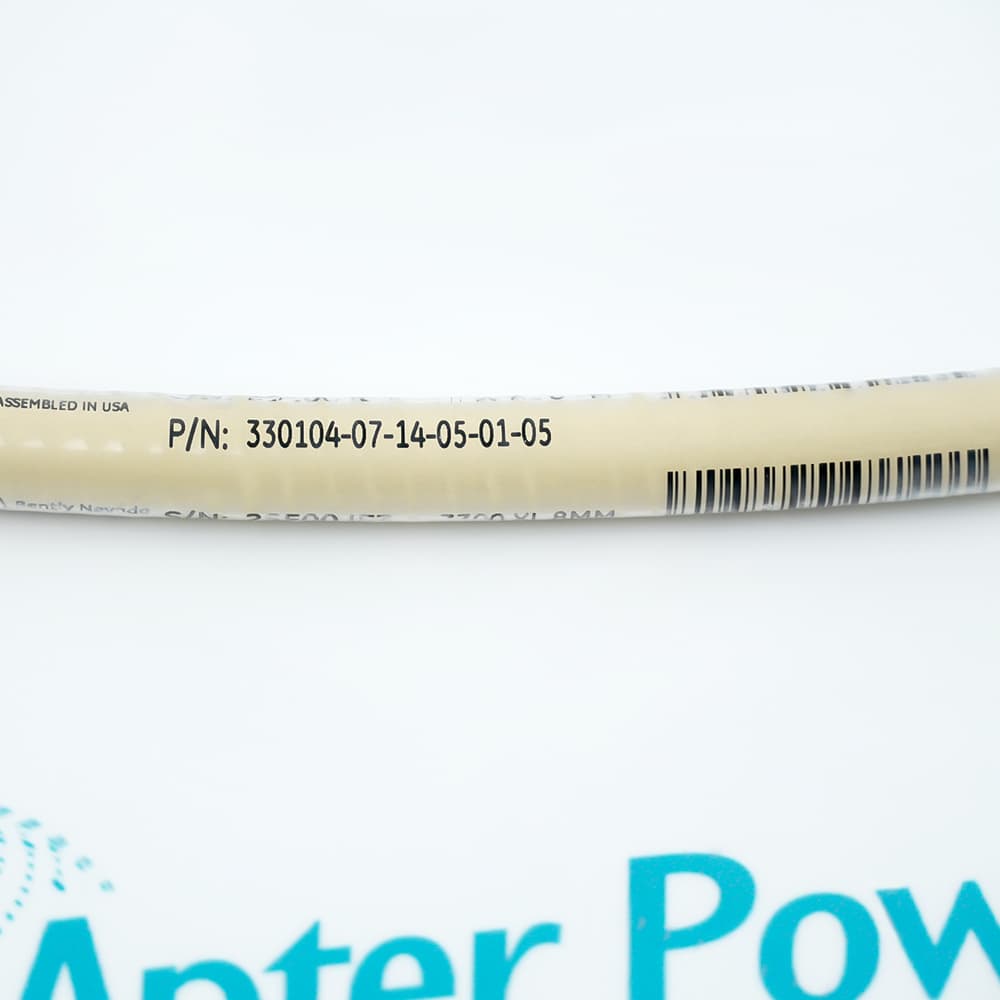

The 330104-07-14-05-01-05 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 metric thread with armor protection. This model includes a 0.5 meter (1.6 feet) total length with an unthreaded length of 70 mm and overall case length of 140 mm.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330104-07-14-05-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330104-07-14-05-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330104-07-14-05-01-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm Proximity Probes
  • Stock:
    1
  • Thread Type:
    M10 x 1 (with armor)
  • Total Length:
    0.5 meter (1.6 feet)
  • Unthreaded Length:
    70 mm
  • Overall Case Length:
    140 mm
  • Connector Type:
    Miniature coaxial ClickLoc™ with connector protector
  • Cable Type:
    Standard cable
  • Agency Approvals:
    CSA, ATEX, IECEx
  • Key Benefit:
    Delivers a balanced reach for thick-wall applications—70 mm unthreaded section handles varying casing thicknesses without extra length that interferes. Armor protects during conduit pulls, and triple approvals cover hazardous areas globally.
  • Weight:
    0.14 kg
  • Estimated shipping dimensions:
    1.8x1.5x112cm
  • Tariff Code:
    9030900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Connection Structure Safety

Features:

  • Armor protection guards the cable during conduit pulls and rough field handling, preventing damage.
  • 140 mm case with 70 mm unthreaded section provides balanced reach for thick-wall applications without excess length that interferes.
  • CSA, ATEX, and IECEx approvals cover hazardous areas across North America, Europe, and international sites.
The 330104-07-14-05-01-05 is built for installations where the casing is thick but you don’t need the maximum reach of longer models. Its 140 mm overall case gets the tip past standard compressor walls and insulation layers, while the 70 mm unthreaded section gives you flexibility to handle varying wall thicknesses without custom threads.

The armor on the 330104-07-14-05-01-05 earns its keep when cables have to snake through restrictive conduit or past sharp edges. It takes the scrapes and impacts that would otherwise cut into standard cable jackets, protecting the internal wiring from damage that could show up as intermittent signals months later.

With CSA, ATEX, and IECEx approvals, the 330104-07-14-05-01-05 covers the hazardous area requirements for most industrial regions. A single part number serves a refinery in Texas, a chemical plant in Germany, or an offshore platform in the North Sea. This simplifies procurement for multinational projects and keeps spare parts inventory lean.

The 330104-07-14-05-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-07-14-05-01-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330104-07-14-05-01-05 3300 XL 8 mm Proximity Probes Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330104-07-14-05-01-05
  • Condition New Original ready stock
  • Product Family 330104-07-14-05-02-05,330104-07-14-05-12-05,330104-07-14-05-01-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Reverse Installation Scenarios: Specifically designed for reverse-mounted probe brackets. Technicians can adjust the clearance between the probe and the shaft from outside the machine, making it particularly suitable for bearing housings where space is limited or the cover cannot be removed.
  • Radial Vibration: Monitors dynamic vibration of the bearing's inner shaft to assess imbalance or misalignment.
  • Axial Position: Monitors the longitudinal displacement of the rotor to prevent thrust bearing damage.
  • Probe End: 3/8-24 UNF Imperial Thread (07 represents threadless length 0.7 inches, 14 represents total length 1.4 inches).
  • Connector: Uses ClickLoc mini coaxial connector with an anti-loosening locking mechanism; only requires finger tightening.
  • Cable Protection (-01): Uses 75-ohm coaxial cable with FluidLoc seal (oil impermeable), but without metal armor.
  • ATEX/IECEx/NEPSI: Complies with major global explosion protection standards, allowing use in explosive gas environments such as Zone 0, 1, and 2.
  • Intrinsic Safety: When used with appropriate safety barriers or intrinsically safe input modules, ensures that no sparks that could trigger an explosion will be generated in hazardous areas.
  • Functional Safety: As a member of the 3300 XL series, this probe supports SIL 2 (Safety Integrity Level) Industrial Safety Instrumented Systems (SIS).
Description
The 330104-07-14-05-01-05 strikes a balance between reach and manageability—140 mm case with a 70 mm unthreaded section. The armor wrap takes the abuse when pulling through conduit or snaking past sharp edges. M10 x 1 threads drop into standard metric ports, while the pre-installed connector protector saves a field sealing step. Triple agency approvals let this probe travel from a North American refinery to a European chemical plant without swapping part numbers.

When the measurement target sits behind thick walls but you don’t need the longest option, the 330104-07-14-05-01-05 fits the gap. The 70 mm unthreaded span handles varying casing thicknesses—you thread until the shoulder seats, and the unthreaded length takes care of the rest. For compressors, turbines, or gearboxes where access is tight but not extreme, this configuration cuts installation time without leaving extra length that might interfere.

Built on the 8 mm platform, the 330104-07-14-05-01-05 gives you thicker PPS encapsulation around the coil than 5 mm probes, so it survives accidental tool strikes. The larger body diameter adds stiffness, helping it hold calibration when the machine vibrates. For jobs where oil wicking through the cable is a concern, an optional FluidLoc cable can swap in without changing the rest of the setup.

This probe backs into existing 3300 series systems without hassle—it replaces non-XL 5 mm probes in ports that accept the larger 8 mm body. The 330104-07-14-05-01-05 puts a rugged, hazardous-area-rated probe into deep-well applications with a balanced reach that fits most thick-wall installations without extra length that gets in the way.
Alternative Names
330104-07-14-05-02-05 330104-07-14-05-12-05 330104-07-14-05-11-05 330104-07-14-05-01-00 330104-07-14-05-01-BR 3301O4-O7-14-O5-O1-O5 330I04-07-I4-05-0I-05 3301040714050105
Technical notes
The Bently Nevada 330104-07-14-05-01-05 proximity probe features a specialized M10x1 metric thread with a 70mm unthreaded length and 140mm overall case length. Operating on a precise 200 mV/mil (7.87 V/mm) scale factor, this 8 mm sensor delivers industry-standard accuracy for continuous rotating machinery protection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does Bently Nevada 330104-07-14-05-01-05 feature an armored M10 × 1 thread?
The armored M10 × 1 threaded construction provides secure installation while offering additional protection for the probe cable in demanding industrial environments.
How does Bently Nevada 330104-07-14-05-01-05 connect to a monitoring system?
The probe is supplied with a miniature coaxial ClickLoc™ connector and connector protector, allowing a reliable connection with compatible extension cables and monitoring components.
Can Bently Nevada 330104-07-14-05-01-05 be installed in hazardous locations?
Yes. Bently Nevada 330104-07-14-05-01-05 carries CSA, ATEX, and IECEx agency approvals, making it suitable for applications requiring certified equipment.
Which cable configuration comes with Bently Nevada 330104-07-14-05-01-05?
The model includes a 0.5 meter (1.6 feet) standard cable with a miniature coaxial ClickLoc™ connector and connector protector.
