330105-02-12-15-02-05

/ 4.9
1001 reviews | Need a Specific Revision?

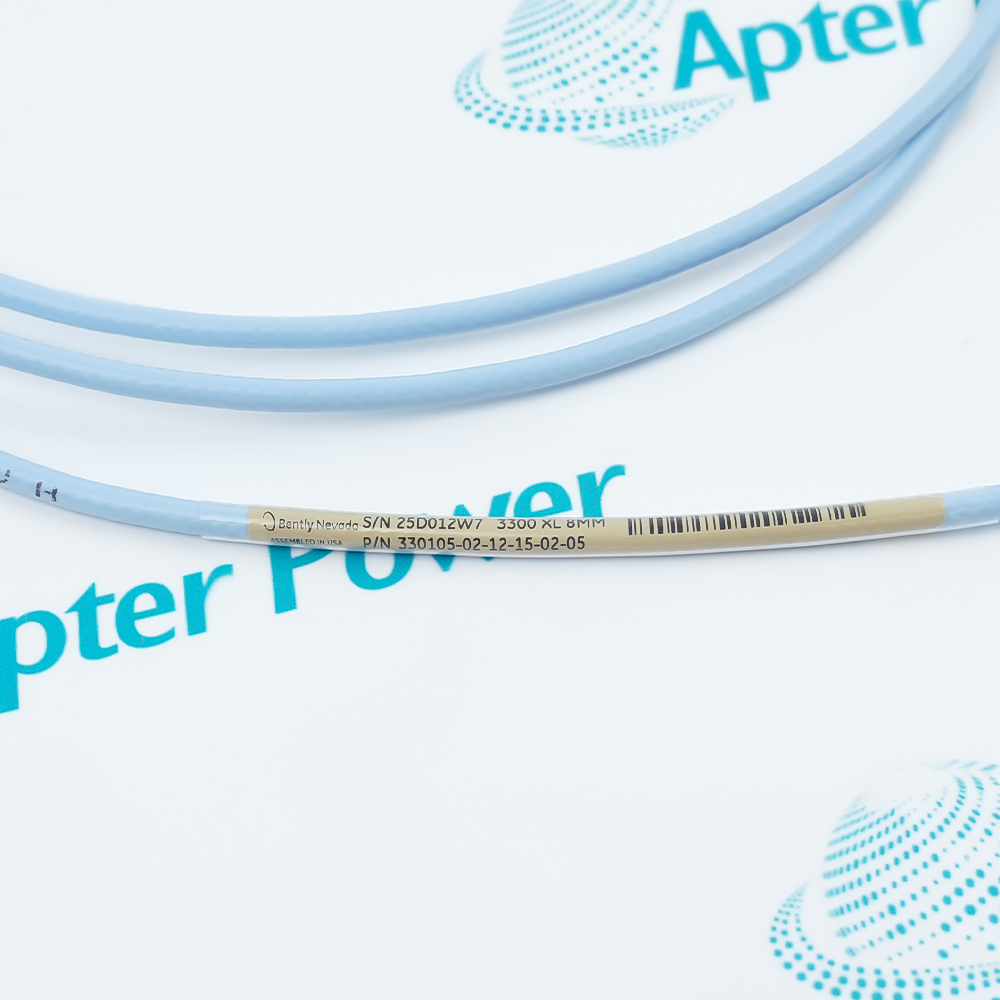

Bently Nevada 330105-02-12-15-02-05 is a reverse-mount 3300 XL 8 mm proximity probe with a 1.5 m standard cable and ClickLoc connector.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330105-02-12-15-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330105-02-12-15-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330105-02-12-15-02-05
  • Product Family:
    3300 XL 8 mm Probe
  • Product Type:
    3300 XL 8 mm reverse-mount proximity probe
  • Stock:
    1
  • System family:
    3300 XL 8 mm
  • Component:
    Reverse-mount proximity probe
  • Mounting thread:
    3/8-24 UNF
  • Probe cable length:
    1.5 m
  • Cable type:
    Standard
  • Connector:
    Miniature ClickLoc
  • Connector protector:
    ClickLoc sleeve
  • Approval option:
    CSA, ATEX and IECEx ordering option
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    21 x 21 x 1 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Probe Configuration Cable & Connector System Matching Product Applications

Features:

  • Reverse-mount construction: The probe is secured from the rear for brackets designed around the 330105 format.
  • Configured lead: A 1.5 m standard cable terminates in a miniature ClickLoc connector.
  • 3300 XL system component: The probe forms one part of the 8 mm transducer chain with an extension cable and Proximitor sensor.
Mounting decision: The 3/8-24 UNF reverse-mount body should agree with the bracket and available service access.

Connection decision: The miniature ClickLoc end requires the matching extension-cable connector rather than a generic coaxial lead.

System decision: Probe configuration and total electrical length must be considered with the companion cable and electronics.

Apter Power supports Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm reverse-mount proximity probe sourcing with quotations, technical documentation and configuration review.
Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm reverse-mount proximity probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Construction: The 330105 base model identifies a reverse-mount 3300 XL 8 mm probe.
  • Thread form: The probe body uses 3/8-24 UNF mounting geometry.
  • Cable length code: The selected order block provides a 1.5 m integral lead.
  • Approval code: Suffix 05 selects the specified agency-approval package.
  • Cable construction: This order code uses the standard probe cable.
  • Connector style: A miniature ClickLoc termination provides the detachable system connection.
  • Protector option: The ClickLoc protective sleeve is included by the connector code.
  • Fluid barrier boundary: The lead is not the FluidLoc cable construction.
  • Three-part chain: The probe operates with an extension cable and Proximitor sensor.
  • Length planning: Probe and extension cable lengths combine to form the selected transducer-system length.
  • Family boundary: Mixing XL and non-XL parts limits the channel to non-XL performance.
  • Purchase identity: The complete order code preserves mounting, lead, connector and approval choices.
  • Radial vibration channels: The probe can serve shaft-relative vibration measurement in a matched 3300 XL 8 mm system.
  • Shaft position channels: The transducer family supports relative position measurement within its installed system.
  • Reverse-access brackets: The construction suits machinery where the probe is retained from behind the mounting surface.
  • Service replacement: The exact configured code supports like-for-like sourcing for an existing 330105 installation.
Description
Designed for installations that secure the probe from behind the mounting surface, the Bently Nevada 330105-02-12-15-02-05 is the reverse-mount version of the 3300 XL 8 mm proximity probe. Its 3/8-24 UNF body lets a machine builder identify the required mounting style before selecting the rest of the transducer system.

The ordering code gives 330105-02-12-15-02-05 a 1.5 m standard cable and miniature ClickLoc connector with its protective sleeve. That configuration suits a defined connector and routing arrangement; it should not be confused with FluidLoc cable or a conventional connector option simply because both belong to the 3300 XL family.

As one element of a complete eddy-current measurement chain, 330105-02-12-15-02-05 works with a matched extension cable and Proximitor sensor. The cable combination and electronics determine the system length and performance, so the full ordering code is more useful than the probe-family name when a service spare is chosen.
Alternative Names
3301050212150205 330105 02 12 15 02 05 330105-02-12-15-02-O5 330105-02-12-15-O2-05 330105-02-12-I5-02-05 330105-02-12-15-02-OS 330105 reverse mount probe 3300 XL 8 mm 330105
Technical notes
A 3300 XL 8 mm channel reaches its specified system length through the probe and extension cable together, not through 330105-02-12-15-02-05 alone. Matching the installed extension lead and Proximitor sensor to the required total length prevents an electrically complete but incorrectly scaled measurement chain.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is 330105-02-12-15-02-05 the right choice when the probe must be secured from the rear of the bracket?
Yes. This order code belongs to the reverse-mount 330105 construction and uses a 3/8-24 UNF body. It is a better fit than a standard threaded-body probe when the machine bracket and access route are designed for rear retention.
Can 330105-02-12-15-02-05 be connected as a FluidLoc probe in an oil-exposed cable run?
This configuration uses standard cable, not the FluidLoc cable option. Where fluid ingress through the cable is a design concern, the probe order code should be reselected rather than assuming the standard lead provides the same barrier.
What mating connection should a technician expect on 330105-02-12-15-02-05?
The probe uses the miniature ClickLoc connector and includes the related protective sleeve option. The extension cable should therefore have the matching connector style; a conventional connector cannot be assumed to mate directly.
Does the approval suffix on 330105-02-12-15-02-05 authorize installation in every hazardous area?
The 05 suffix selects the listed CSA, ATEX and IECEx approval option, but site authorization still depends on the complete certification, area classification and installation practice. Treat the suffix as a procurement attribute rather than universal location approval.
Can 330105-02-12-15-02-05 be mixed with a non-XL 8 mm system component?
Bently Nevada allows component mixing in defined 5 m and 9 m systems, but the result is limited to the non-XL transducer-system specifications. Keeping all three components in the XL family preserves the published XL performance basis.
What should purchasing retain when requesting 330105-02-12-15-02-05?
Use the complete six-block order code and identify it as a reverse-mount 3300 XL 8 mm probe. That information separates the cable, connector and approval choices from other 330105 configurations that share the same base model.
