Features:
- Signal Bridge Between the Proximity Probe and Proximitor Sensor
- Delivers 7.5-Meter Low-Loss Transmission with High Environmental Resistance
- Functions in Harmony with 3300 XL and Legacy 3300 Monitoring Systems

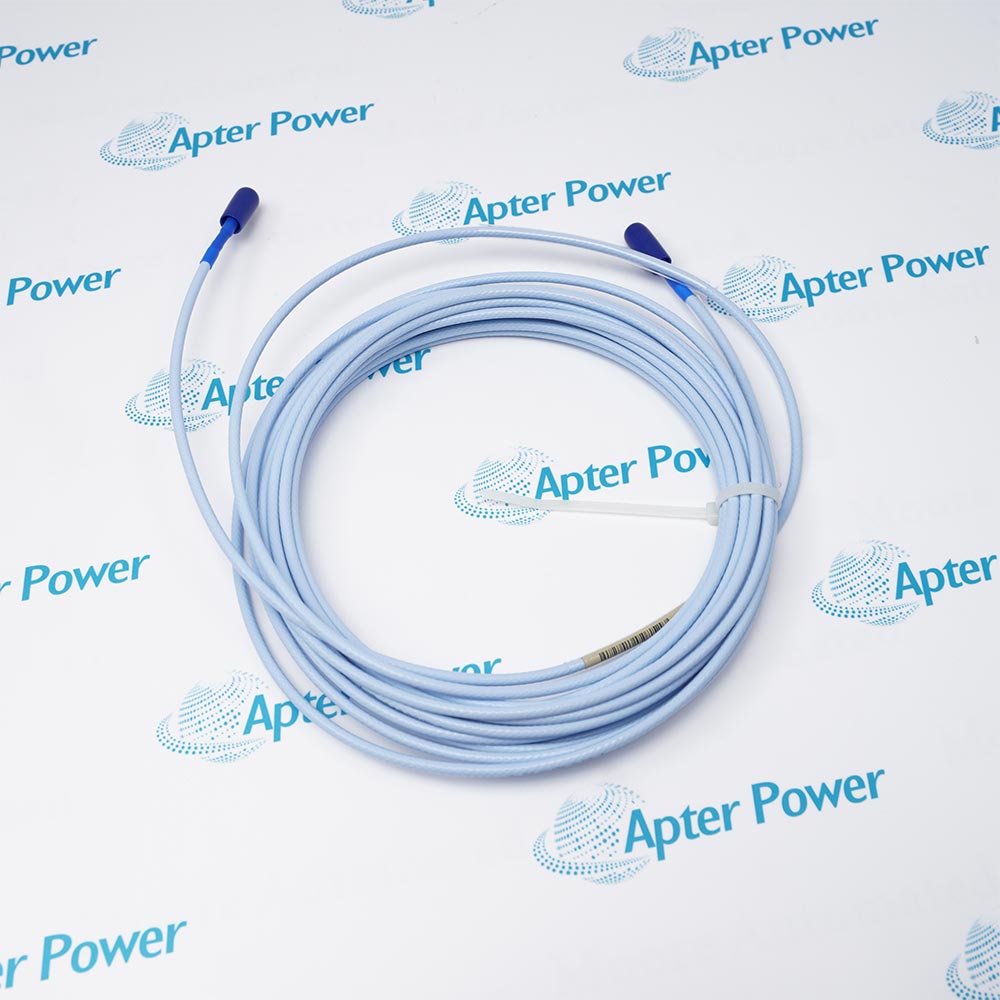

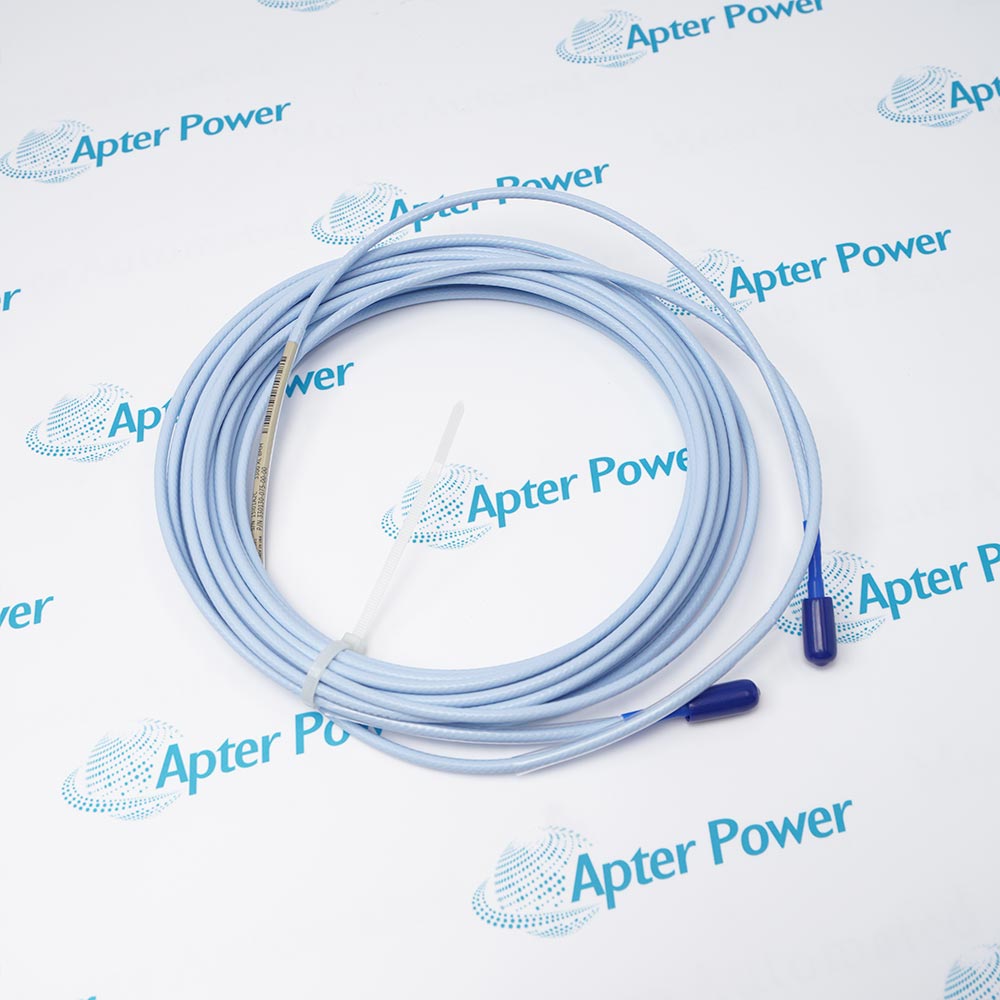

The Bently Nevada 330130-075-00-00 functions as a 7.5-meter (24.6 feet) Standard Extension Cable in a 3300 XL Proximity Transducer System, delivering reliable dynamic signal transfer to the system's Proximitor sensor. It continuously carries the raw high-frequency eddy-current signal through its 75 Ω triaxial structure and maintains a regulated, typical capacitance of 69.9 pF/m to support steady-state performance for vibration monitors and modules. Precise physical connection is standard with the 330130, utilizing integrated ClickLoc coaxial connectors that allow seamless, finger-tight coupling without requiring specialized installation tools.
This 330130-075-00-00 extension cable provides essential signal routing functions common to the entire transducer loop and is a critical component of the machinery protection path, directly affecting the proper, normal operation of the overall monitoring system. Exactly one extension cable is required per transducer system loop depending on the desired target length (typically yielding a combined 5-meter or 9-meter system total). The 330130-075-00-00 occupies zero mounting footprint on its own, functioning instead as a flexible inline run typically routed through protective conduit back to the sensor location.
For standard system installations, the 3300 XL Transducer System requires a compatible proximity probe and Proximitor sensor calibrated to the total length of the cable run. In addition to 3300 XL single-series setups, the versatile cable configuration also performs with excellent cross-system interchangeability. The 3300 XL hardware executes backward compatibility using physical dimensions specified in legacy Bently Nevada product designs, letting it match older 3300-series 5 mm and 8 mm components.
The 330130-075-00-00 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-075-00-00 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-075-00-00 3300 XL Standard Extension Cable Specs
General
- Manufacturer Bently Nevada
- Model 330130-075-00-00
- Condition New Original ready stock
- Product Family 330130-075-00-05,330130-075-00-CN
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Fluid-Film Bearing Monitoring: Measuring radial vibration and axial (thrust) position of shafts in high-speed turbines, compressors, and pumps.
- Phase Reference Tracking: Providing precise timing signals back to the monitoring rack via Keyphasor sensors for speed measurement and phase analysis.
- Harsh Industrial Environments: Operating reliably inside steam turbines, gas turbines, hydro-generation units, and large electric motors within power plants, petrochemical facilities, and refineries.
- 3300 XL 8 mm System: It is a core component of the standard 3300 XL 8 mm transducer loop. It is fully interchangeable with all standard 3300 XL 8 mm probes and Proximitor sensors without requiring manual recalibration.
- Legacy System Support: It offers complete backward compatibility with non-XL Bently Nevada 3300-series 5 mm and 8 mm system components, allowing plants to upgrade loops incrementally.
- System Length Matching: As a 7.5-meter cable, it must be properly matched with the correct probe and Proximitor sensor configuration. It is typically paired with a 1.0-meter probe to form a calibrated 9.0-meter overall system length.
- ClickLoc Coaxial Connectors: The cable features gold-plated ClickLoc connectors that provide a secure, "finger-tight" connection. The unique mechanism locks into place with an audible click, preventing the connection from loosening due to machine vibration.
- Minimum Bend Radius: To protect the internal coaxial structure from crimping or signal loss, a minimum bend radius of 25.4 mm (1.0 inch) must be strictly maintained during routing.
- Environmental Routing: While the industrial-grade PVC jacket withstands extreme temperatures from -35°C to +177°C, this unarmored version (-00 option) should ideally be routed through dedicated conduit or cable trays to protect it from sharp physical impacts, moisture pools, or caustic chemical spills.
