    Furnishing genuine Bently Nevada vibration monitoring hardware, Apter Power delivers dependable sensor accessories.

330130-085-02-00

/ 4.9
1001 reviews | Need a Specific Revision?

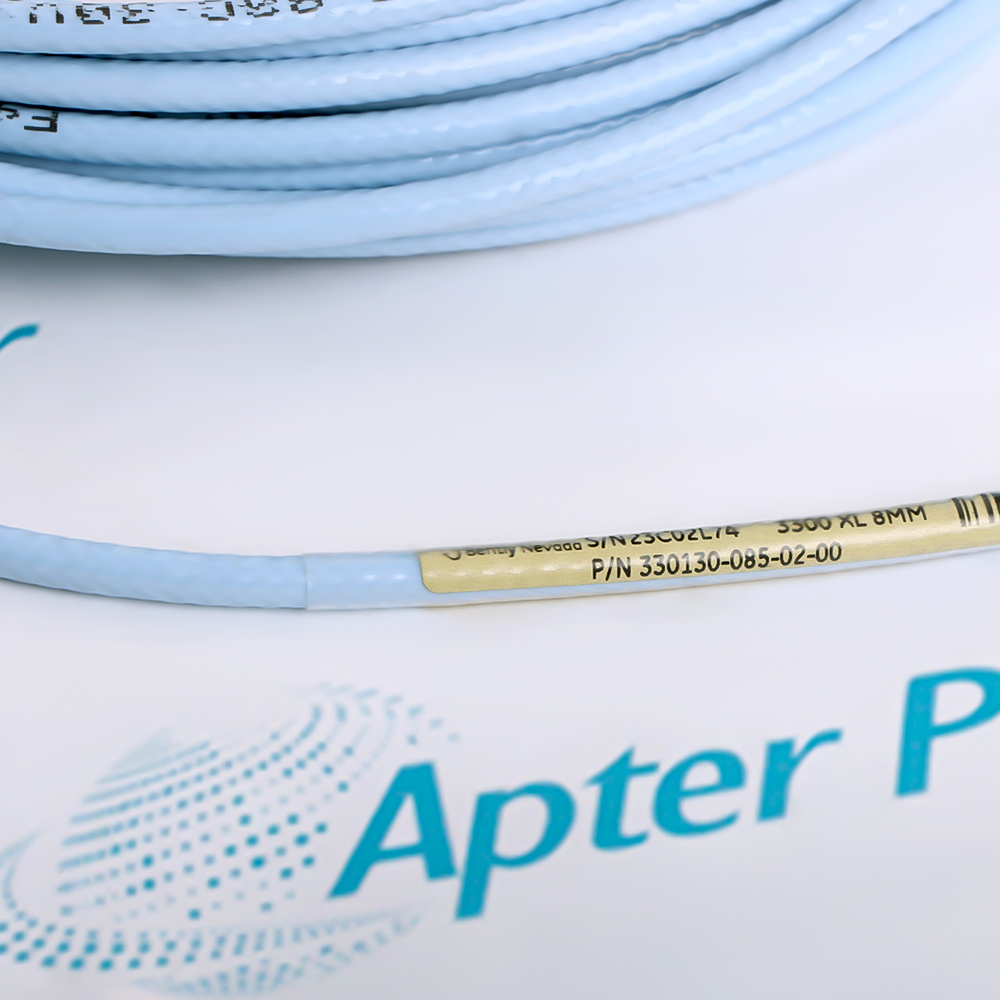

The 330130-085-02-00 is an 8.5-meter standard extension cable for the 3300 XL 8 mm Proximity Transducer System. It features a built-in connector protector, includes silicone tape for environmental sealing.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-085-02-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-085-02-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-085-02-00
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    3300 XL Standard Extension Cable
  • Stock:
    1
  • Cable Length:
    8.5 meters (27.9 feet)
  • Cable Type:
    Standard Cable
  • Connector Protection:
    With Connector Protector
  • Included Sealing:
    Silicone Tape
  • Agency Approval:
    Not Required
  • Nominal DC Resistance:
    1.87 +/- 0.28 ohms (Center Conductor to Center Conductor)
  • Nominal DC Resistance:
    0.56 +/- 0.11 ohms (Outer Conductor to Outer Conductor)
  • Capacitance:
    69.9 pF/m (21.3 pF/ft) typical
  • Cable Material:
    75 ohm triaxial, fluoroethylene propylene (FEP) insulated cable
  • Connector Material:
    Gold-plated brass or gold-plated beryllium copper
  • Connector Type:
    ClickLoc gold-plated connectors (finger tight)
  • Minimum Cable Bend Radius:
    25.4 mm (1.0 in)
  • Tensile Strength:
    270 N (60 lbf) maximum rated at probe lead to extension cable connectors
  • Operating & Storage Temperature:
    -52°C to +177°C (-62°F to +350°F)
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    20x20x2.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Connection Application Scenarios

Features:

  • Provides an 8.5-meter connection between a 3300 XL proximity probe and a compatible Proximitor Sensor.
  • Withstands temperatures up to 177°C, supporting demanding machinery monitoring environments.
  • Includes connector protection and silicone sealing tape for secure installation and improved connection reliability.
Bently Nevada 330130-085-02-00 supports dependable signal transmission within machinery condition monitoring systems. The 8.5-meter length provides flexibility when the sensor electronics must be installed away from the measurement point. Industrial plants can use the cable around turbines, compressors, pumps, motors, and other rotating equipment. Connector protection helps reduce installation-related damage in crowded machinery areas. The cable is suitable for both new monitoring projects and maintenance replacements.

In continuous-process facilities, reliable cabling plays an important role in maintaining stable vibration and shaft-position data. Bently Nevada 330130-085-02-00 connects the probe circuit without adding unnecessary installation complexity. The high-temperature rating makes the cable practical near hot bearing housings and machine casings. Maintenance personnel can route the cable through equipment enclosures or protective conduit according to site requirements. Silicone tape provides additional sealing support around the connection.

Bently Nevada 330130-085-02-00 can help plants standardize spare parts for compatible 3300 XL monitoring installations. A standardized cable configuration simplifies replacement planning and reduces machinery downtime during scheduled maintenance. The protected connector supports secure handling during installation and inspection. Applications include petroleum refining, power generation, petrochemical processing, steel production, and offshore equipment. Correct system-length selection remains important for maintaining the intended transducer performance.

The 330130-085-02-00 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-085-02-00 3300 XL Standard Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-085-02-00 3300 XL Standard Extension Cable Specs

General

  • Manufacturer Bently Nevada
  • Model 330130-085-02-00
  • Condition New Original ready stock
  • Product Family 330130-085-00-00,330130-085-01-00,330130-080-02-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Maintain a minimum cable bend radius of 25.4 mm (1.0 in) during installation to prevent internal conductor damage and signal loss.
  • Ensure the 8.5-meter extension cable (330130-085-02-00) is paired with a 0.5-meter lead probe so the total system length equals 9.0 meters, matching the 9.0-meter Proximitor Sensor calibration.
  • Route the cable through protective conduit or cable trays without exceeding the maximum rated tensile strength of 270 N (60 lbf) at the probe lead junction.
  • Features ClickLoc™ gold-plated brass or gold-plated beryllium copper triaxial connectors for high corrosion resistance and reliable signal stability.
  • Designed for finger-tight connection with an internal locking mechanism that engages with a tactile "click", requiring no special installation tools.
  • Equipped with a factory-installed Connector Protector to seal the junction against moisture, oil, dust, and environmental contamination.
  • Deployed on critical rotating machinery with fluid-film bearings, including steam turbines, gas turbines, hydro turbines, and industrial centrifugal compressors.
  • Provides continuous signal transmission for measuring dynamic shaft vibration and static axial shaft displacement (position).
  • Utilized in speed measurement and Keyphasor® phase timing reference systems for phase angle analysis.
Description
The 330130-085-02-00 is a long-length extension cable central to the high-performance 3300 XL 8 mm Proximity Transducer System. Measuring 8.5 meters (27.9 feet), this cable, identified as 330130-085-02-00, is designed to bridge the distance between the proximity probe and the Proximitor sensor in extensive machinery installations.

Integrating the 330130-085-02-00 into a monitoring setup contributes to a system recognized for its advanced capabilities and strict compliance.

The complete 3300 XL 8 mm system, utilizing components like the 330130-085-02-00 cable, fully complies with the American Petroleum Institute's (API) 670 Standard regarding mechanical configuration, linear range, accuracy, and temperature stability.

The 330130-085-02-00 while a cable, is part of a product line that embodies significant design improvements over previous generations. The probes it connects to utilize a patented TipLoc molding method for a more robust bond between the tip and body.

For applications involving elevated temperatures, it is important to understand the specifications of the 330130-085-02-00. This is a standard extension cable with a maximum temperature rating of 177°C (350°F).
Alternative Names
330130-085-02-00 330130 085 02 00 330I30-085-02-00 BN 330130-085-02-00 330130-085-02-05 3301300850200 Bently Nevada 3300 XL 8.5m extension cable 33O13O-O85-O2-OO
Technical notes
The Bently Nevada 330130-085-02-00 is fully electrically and physically interchangeable; during installation, ensure that the sum of the probe length and the extension cable length strictly matches the total system length required by the Proximitor Sensor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How long is Bently Nevada 330130-085-02-00?
Bently Nevada 330130-085-02-00 has a cable length of 8.5 meters, equivalent to approximately 27.9 feet.
Can Bently Nevada 330130-085-02-00 operate near high-temperature equipment?
Yes. Bently Nevada 330130-085-02-00 has a maximum temperature rating of 177°C, subject to correct installation and compatible system components.
Does Bently Nevada 330130-085-02-00 include connector protection?
Yes. A connector protector and silicone sealing tape are supplied with Bently Nevada 330130-085-02-00.
Which cable configuration does Bently Nevada 330130-085-02-00 use?
Bently Nevada 330130-085-02-00 uses the standard cable configuration and does not specify the optional FluidLoc cable design.
What are the replacement requirements when installing 330130-085-02-00?
When replacing with 330130-085-02-00, ensure the combined length of the probe lead and this 8.5-meter extension cable equals the total system length specified on the Proximitor Sensor (e.g., 9.0 meters total).
Is special tooling required to connect or disconnect 330130-085-02-00?
No special tools are required. The ClickLoc™ connectors are designed for finger-tight installation and removal. Pliers or wrenches should not be used on the connectors to prevent damaging the threads and gold plating.
