    Apter Power provides the genuine Bently Nevada 330130-080-01-00 extension cable, essential for maintaining precise vibration data transmission in your machinery protection loops.

330130-080-01-00

/ 4.9
1001 reviews | Need a Specific Revision?

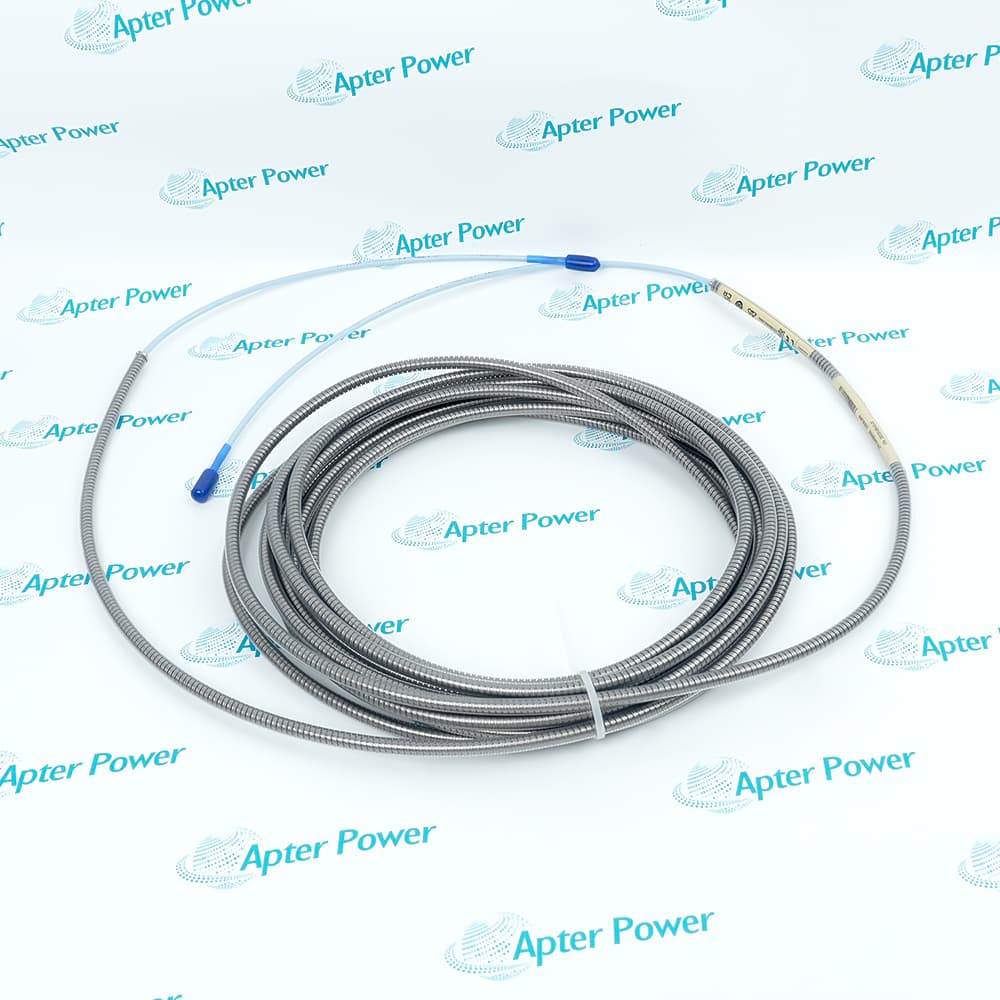

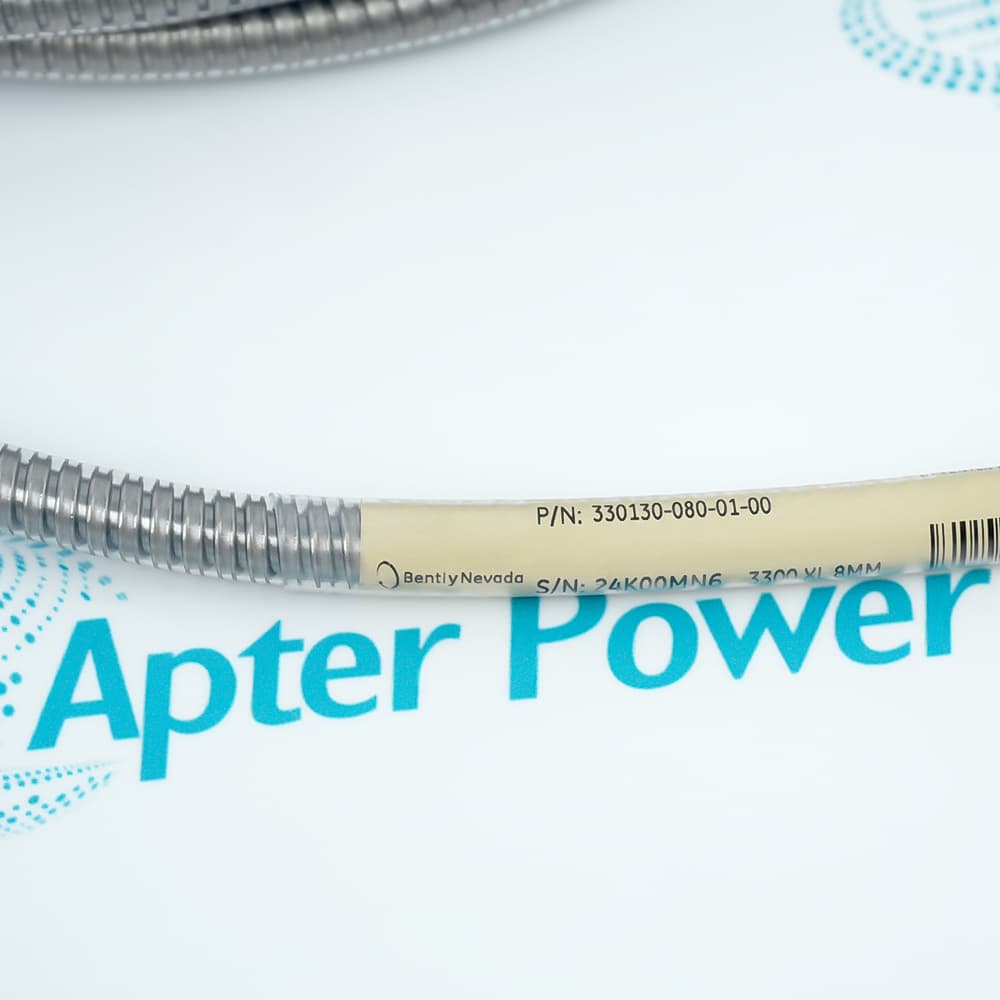

The 330130-080-01-00 cable is 8.0 meters (26.2 feet) long, equipped with a connector protector, and features an armored cable design that effectively protects the cable from mechanical damage in industrial environments.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330130-080-01-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330130-080-01-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330130-080-01-00
  • Product Family:
    3300 XL Extension Cable
  • Product Type:
    Cable
  • Stock:
    1
  • Cable Length:
    8.0 meters (26.2 feet)
  • Connector Protector and Cable:
    Armored cable
  • Agency Approval:
    Not required
  • Load:
    10 kΩ.
  • Probe Gap:
    1.27 mm (50 mils).
  • Performance Applicability:
    Specifications apply only to full 3300 XL 8 mm systems.
  • Cable Role:
    Maintains electrical and environmental compatibility within the 3300 XL system; no independent performance specs.
  • Weight:
    0.84 kg
  • Estimated shipping dimensions:
    31x30x3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Installation Compatibility

Features:

  • Provides armored cable construction with connector protection for stable electrical connection within the system architecture.
  • Supports a defined load of 10 kΩ and maintains a probe gap specification of 1.27 mm (50 mils) within the 3300 XL framework.
  • Fully integrated into the 3300 XL Extension Cable family with an 8.0 meter cable length configuration.
The Bently Nevada 330130-080-01-00 is designed as part of the 3300 XL 8 mm proximity transducer system architecture, forming a standardized extension cable element within the full measurement chain. The Bently Nevada 330130-080-01-00 operates as a system-linked component supporting electrical continuity between probe and monitoring modules without independent performance specifications. Within the Bently Nevada 330130-080-01-00 configuration, system compatibility is maintained as part of the complete 3300 XL 8 mm system structure.

The 330130-080-01-00 is used in conjunction with the system’s probe, extension cable, and proximitor sensor arrangement, where all elements operate as a unified measurement chain. The 330130-080-01-00 supports system-level electrical and environmental compatibility as defined within the 3300 XL architecture. The Bently Nevada 330130-080-01-00 is integrated into a standardized system design that ensures consistent connection across components.

The Bently Nevada 330130-080-01-00 is part of a system that provides output voltage proportional to probe-to-target distance, supporting both static and dynamic measurement functions. The 330130-080-01-00 operates within a measurement system used for vibration, position, Keyphasor reference, and speed measurement functions in coordinated system configuration. The Bently Nevada 330130-080-01-00 remains fully aligned with the 3300 XL system structure, ensuring consistent integration across all system components.

The 330130-080-01-00 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-080-01-00 3300 XL Standard Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330130-080-01-00 3300 XL Standard Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330130-080-01-00
  • Condition New Original ready stock
  • Product Family 330130-080-01-05,330130-080-02-00,330130-080-00-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Monitoring: Used for measuring journal vibration in steam turbines and centrifugal compressors.
  • Axial Position Measurement: Installed near thrust bearings to monitor rotor axial displacement.
  • Speed ​​and Key Phase Reference: Captures keyway signals from the shaft, providing accurate phase reference.
  • Oil-Lubricated Environment Applications: With stainless steel armor protection, suitable for installation in sealed bearing housings.
  • Connector Locking: Employs patented ClickLoc technology; tighten by hand until a "click" is heard to lock.
  • Armor Physical Protection: Flexible armor protects the cable from compression and abrasion.
  • Bending Radius Limitation: Bending radius not less than 25.4 mm to maintain signal linearity.
  • Connector Environmental Sealing: Uses the included silicone tape for environmental sealing in the field.
  • System Electrical Matching: 8-meter length requires pairing with a specific probe to meet preamplifier calibration.
  • Hardware Interchangeability: Belongs to the 3300 XL series; backward compatible with non-XL version components.
  • Industry Standard Compliance: Complies with API 670 Fourth Edition standard after configuration.
  • Flexible probe combination: It can be used in combination with 5mm or 8mm 3300 series probes.
Description
The 330130-080-01-00 is a 3300 XL Standard Extension Cable, designed for use within 3300 XL proximity measurement systems. It serves as the connection link between the proximity probe and the Proximitor sensor, ensuring reliable signal transmission across the system.

The 330130-080-01-00 features a cable length of 8.0 meters (26.2 feet), providing sufficient distance for typical installations between field-mounted probes and panel-mounted instrumentation. This standardized length supports consistent system configuration and helps maintain overall measurement performance.

In terms of construction, the 330130-080-01-00 is supplied with a connector protector and an armored cable design. The armored structure enhances mechanical protection, making the cable suitable for industrial environments where resistance to physical damage and external interference is required.

For regulatory considerations, the 330130-080-01-00 does not require agency approval, as it functions as a passive extension component within the monitoring system. This simplifies selection and deployment while maintaining compatibility with approved 3300 XL system components.
Alternative Names
330130 080 01 00 330130-080-01-05 330130-080-01-CN 330130-080-01-BR 330130-080-01-RU 330130-080-03-00 330130-075-00-05
Technical notes
The Bently Nevada 330130-080-01-00 is a 3300 XL standard extension cable with an 8.0 meters (26.2 feet) cable length and armored cable with connector protector. The Bently Nevada 330130-080-01-00 is designed for use within the 3300 XL Extension Cable family, with no agency approval required and a load specification of 10 kΩ, supporting a probe gap of 1.27 mm (50 mils), and intended for use in full 3300 XL 8 mm systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Within which product line must this 330130-080-01-00 be used?
This extension cable is specifically designed for use with 3300 XL 8 mm Proximitor/Probe systems only and should not be used with other products.
Can the Bently Nevada 330130-080-01-00 be used with non-XL 3300 series probes?
Yes, the Bently Nevada 330130-080-01-00 is backward compatible; however, mixing XL and non-XL components will limit the system's performance to the specifications of the non-XL 3300 series.
How does the Bently Nevada 330130-080-01-00 impact total system length calibration?
The system is calibrated as a complete set. When installing the Bently Nevada 330130-080-01-00, the sum of the probe length and the extension cable length must exactly match the total calibrated length of the Proximitor sensor (e.g., 9 meters).
Does the Bently Nevada 330130-080-01-00 require specialized tools for connection?
No, the Bently Nevada 330130-080-01-00 utilizes ClickLoc™ connectors that are designed for finger-tight installation; using tools may damage the connector or the gold-plating.
Can I use the Bently Nevada 330130-080-01-00 in high-temperature turbine oil environments?
Yes, but it is highly recommended to use connector protectors with the Bently Nevada 330130-080-01-00 to prevent oil ingress; silicone tape is not recommended for oil exposure.
