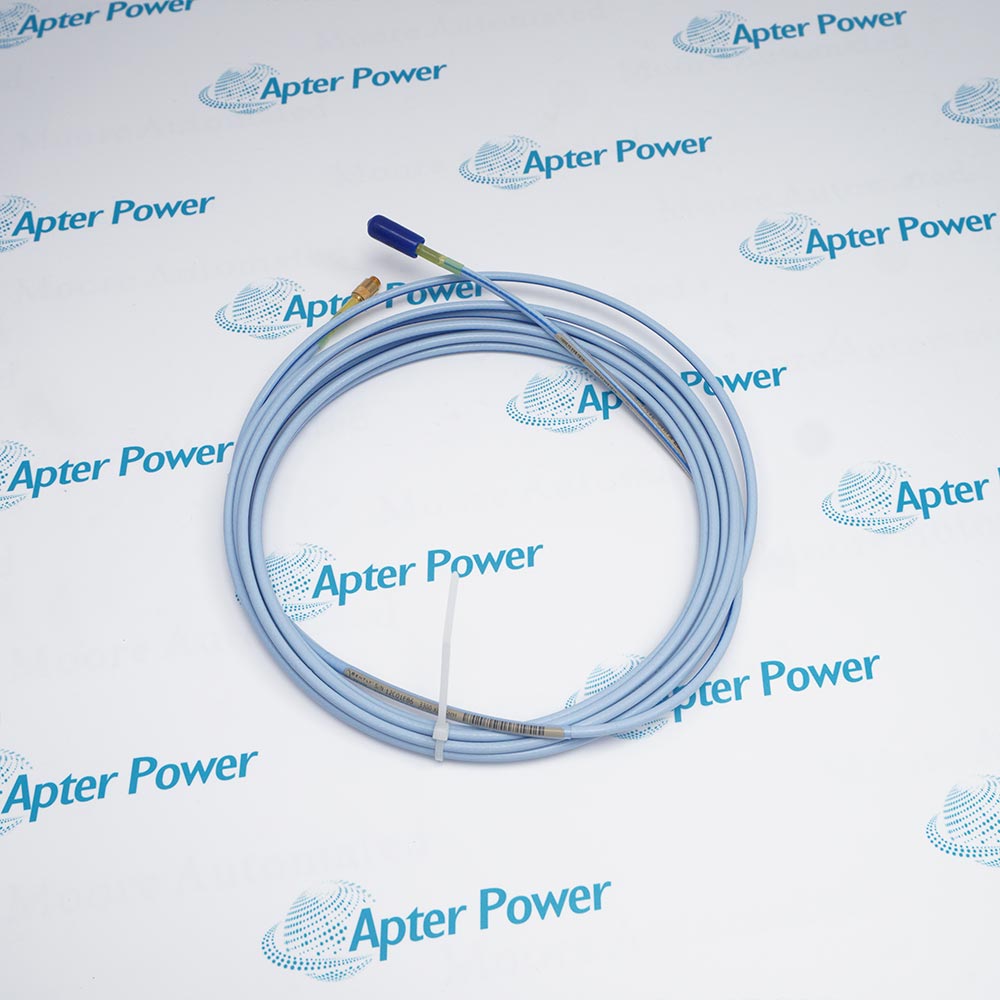

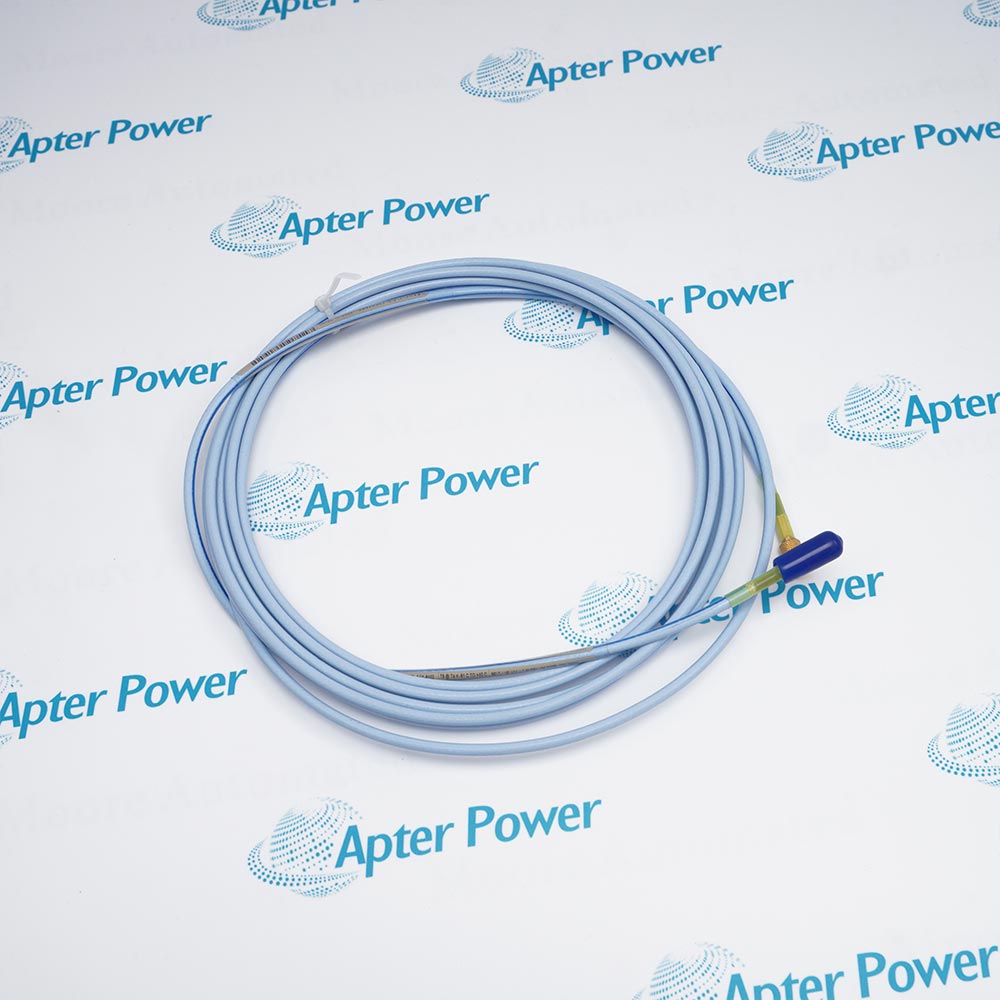

The Bently Nevada 330354-040-24-05 3300 XL 25mm Extension Cable is a high-reliability cable designed for differential expansion (DE) measurements in large steam turbine generators, providing robust signal transmission for the 3300 XL Proximity Transducer System.
Get a quick price for 330354-040-24-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330354-040-24-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330354-040-24-05
  • Product Family:
    3300 XL Extension Cable
  • Cable length options:
    4.0m (13.1ft)
  • Armor and Cable Option:
    High Temperature FluidLoc cable
  • Agency Approval Option:
    Multiple Approvals
  • Operating and Storage Temperature:
    -35°C to +200°C (-31°F to +392°F)
  • Extension Cable:
    45 g/m (0.5 oz/ft)
  • Extension Cable Armor:
    Flexible AISI 302 SST with PFA outer jacket.
  • Extension Cable Material:
    75 Ω triaxial, perfluoroalkoxyethylene (PFA) insulated FluidLoc cable.
  • Extension cable capacitance:
    69.9 pF/m (21.3 pF/ft) typical
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    28x28x3cm
  • Tariff Code:
    9032900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Installation Application

Features:

  • High-Temperature FluidLoc Construction Ensures Reliable Operation In Steam Turbine Environments
  • Flexible AISI 302 SST Armor With PFA Jacket Provides Mechanical Protection And Ease Of Routing
  • Optimized 75 Ω Triaxial Cable Maintains Signal Integrity For 3300 XL 25mm Proximity Transducer System
The Bently Nevada 330354-040-24-05 3300 XL 25mm Extension Cable is a specialized accessory for the 3300 XL Proximity Transducer System, designed to transmit displacement signals accurately from sensors installed on steam turbine generators. Its high-temperature PFA-insulated construction ensures consistent performance even under extreme thermal conditions.

Engineered with flexible stainless-steel armor, the cable balances durability with ease of installation, allowing precise routing around complex turbine assemblies. Its electrical characteristics, including a typical capacitance of 69.9 pF/m, maintain high-fidelity signal transmission for differential expansion measurements.

Widely used in industrial turbine monitoring, the 330354-040-24-05 supports predictive maintenance and early fault detection. By providing reliable, long-term performance and seamless integration with the 3300 XL 25mm Proximity Transducer System, this extension cable is an essential component for protecting rotating machinery and optimizing operational safety.

The 330354-040-24-05 Bently Nevada 3300 XL 25mm Extension Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330354-040-24-05 3300 XL 25mm Extension Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330354-040-24-05 3300 XL 25mm Extension Cable Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330354-040-24-05
  • Condition New Original ready stock
  • Product Family 330854-040-25-CN,330354-040-25-05,330354-080-24-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Continuity Check: Use a multimeter to measure the center conductor and shield. An open circuit usually indicates that the cable has been overstretched or that the connector is internally broken.
  • Insulation Resistance: Check the impedance between the shield and the armor. A reading below 10 MΩ may indicate damage to the cable sheath and internal moisture.
  • Connector Inspection: Inspect the ClickLoc gold-plated connectors for corrosion, grease, or metal shavings. Dirt can cause signal attenuation or produce spurious noise.
  • Physical Inspection: Focus on inspecting the armor for severe indentations, kinks, or excessive bending. These physical damages can change the cable impedance (75 Ω), causing system linearity deviations.
  • Clean Connectors: Before connecting, always clean the connectors with anhydrous alcohol swabs to ensure they are free of dust and grease.
  • Tighten to Spec: Tighten only with your fingers; a "click" sound should be heard when locked. Never use pliers or adjustable wrenches to force tighten, as this may damage the seal.
  • Connector Protectors: In humid or oily environments, transparent connector protectors must be installed at the connection points to prevent oil seepage.
  • Bend Radius Required: Maintain a minimum bending radius of 25.4 mm (1.0 in). Never bend at right angles, as this may damage the internal insulation.
  • Armor Grounding: The armor of the extension cable is typically grounded at a single point at the Proximitor sensor end to avoid ground loops.
  • Differential Expansion in Steam Turbines: The most critical application scenario, used to measure the relative thermal expansion between the rotor and casing of large steam turbines.
  • Long Stroke Position Monitoring: With a linear range of 12.7 mm, the 25mm system is commonly used for monitoring the position of turbine guide vanes or the stroke of industrial valves.
  • High Oil Contamination Environments (FluidLoc Performance): This model, suffixed -24, features FluidLoc sealing technology, specifically designed for scenarios where cables may come into contact with oil and to prevent oil seepage along the cable's interior.
  • Harsh Environments: The stainless steel (SST) armor and PFA sheath make it suitable for locations such as chemical plants and power plants with weak acid or alkali corrosion or continuous vibration.
Description
The Bently Nevada 330354-040-24-05 is an essential accessory of the 3300 XL 25mm Proximity Transducer System, engineered to maintain signal integrity in high-temperature, industrial environments. With a 4.0 m (13.1 ft) length and a 75 Ω triaxial PFA-insulated FluidLoc cable, it ensures accurate and stable transmission of displacement signals from the sensor to the monitoring system.

Its Flexible AISI 302 SST armor with PFA outer jacket provides exceptional mechanical protection while maintaining flexibility, making it suitable for complex routing and installation around large rotating machinery. The cable weighs 45 g/m (0.5 oz/ft), balancing durability with manageable handling during installation.

Certified with multiple agency approvals, the 330354-040-24-05 supports rigorous industrial standards. It operates reliably within a temperature range of -35°C to +200°C (-31°F to +392°F), ensuring stability in steam turbine environments where extreme thermal variation occurs. The typical cable capacitance of 69.9 pF/m (21.3 pF/ft) is optimized to minimize signal loss and maintain high-fidelity measurement data.

As part of the 3300 XL Proximity Transducer System, the 330354-040-24-05 enables precise differential expansion monitoring, critical for protecting turbine shafts and detecting early signs of mechanical stress. Its integration with the system simplifies installation while enhancing measurement accuracy.
Alternative Names
330354-050-24-05 330354-080-24-05 330354-110-24-05 330354-040-25-05 330854-040-24-CN
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the 330354-040-24-05 cable protected mechanically?
The Flexible AISI 302 SST armor with PFA outer jacket provides resistance to abrasion, chemical exposure, and mechanical stress.
What is the typical capacitance of this extension cable?
It is 69.9 pF/m (21.3 pF/ft), which minimizes signal loss and maintains high-fidelity vibration measurements.
How long is the standard cable?
The standard length is 4.0 m (13.1 ft), suitable for most DE measurement setups. Longer lengths may require system adjustments to maintain signal quality.
