    Apter Power supplies top-grade Bently Nevada 330180-12-05 replacement hardware, offering industrial facilities a trusted source for critical automation components to maintain continuous and efficient plant operations.

330180-12-05

/ 4.9
1001 reviews | Need a Specific Revision?

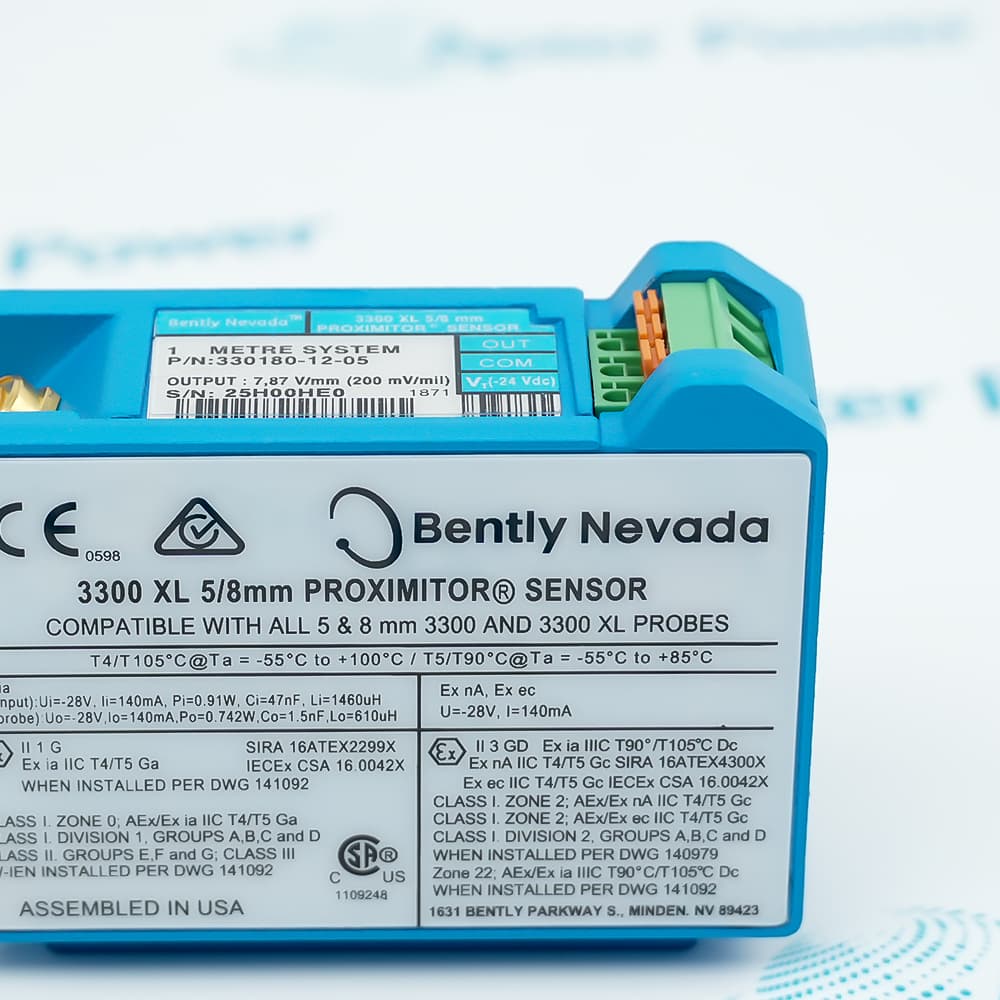

The Bently Nevada 330180-12-05 is a 3300 XL Proximitor Sensor designed for the 3300 XL 8 mm Proximity Transducer System, featuring 1.0 meter (3.3 feet) system length with no mounting hardware included.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330180-12-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330180-12-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330180-12-05
  • Product Family:
    3300 XL Proximitor Sensor
  • Product Type:
    Proximitor Sensor
  • Stock:
    1
  • System Length:
    1.0 meter (3.3 feet)
  • Mounting Hardware:
    Not included
  • Agency Approvals:
    CSA, ATEX, IECEx
  • Standard Compliance:
    API 670
  • Mounting Options:
    High-density DIN-rail or panel mount
  • RFI/EMI Immunity:
    Improved, satisfies CE mark
  • Compatibility:
    Complete interchangeability
  • Key Feature:
    Electrical isolation in mounting base
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    8.3x3.4x7cm
  • Tariff Code:
    9031809090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Installation Guidelines System Integration Upgrade Recommendations

Features:

  • 3300 XL Proximitor Sensor with 1.0-meter system length for 8 mm proximity transducer systems
  • CSA, ATEX, and IECEx hazardous area certified with integrated electrical isolation in mounting base
  • Superior RFI/EMI immunity eliminating shielded conduit requirements and supporting DIN-rail or panel mounting
The 330180-12-05 provides essential signal conditioning functions critical to the entire monitoring path, serving as the vital link between proximity probes and monitoring systems, directly affecting the proper, normal operation of the overall protection system. One 330180-12-05 Proximitor Sensor is required per measurement point, installed using either high-density DIN-rail mounting or traditional panel mount configuration with the identical 4-hole footprint that maintains backward compatibility with older designs.

For applications requiring hazardous area compliance, the 330180-12-05 carries CSA, ATEX, and IECEx approvals for use in potentially explosive atmospheres worldwide. In addition to standard signal conditioning, the superior RFI/EMI immunity of the 330180-12-05 satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs.

The 330180-12-05's advanced design ensures reliable operation in demanding industrial environments. Using improved RFI/EMI immunity technology, the sensor maintains signal integrity where electromagnetic interference would corrupt measurements from standard devices. The flexible mounting options of the 330180-12-05 accommodate both high-density DIN-rail installations in modern control cabinets and traditional panel mount configurations for retrofit applications. The 330180-12-05 is fully compliant with API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability, meeting rigorous petroleum and chemical processing industry requirements.

The 330180-12-05 Bently Nevada 3300 XL Proximitor Sensor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330180-12-05 3300 XL Proximitor Sensor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330180-12-05 3300 XL Proximitor Sensor Specs

General

  • Manufacturer Bently Nevada
  • Model 330180-12-05
  • Condition New Original ready stock
  • Product Family 330180-12-00,330180-50-05,330180-51-05,330180-52-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Physical Installation:DIN Rail or Panel Mounting: The 3300 XL series features a high-density package design, supporting standard DIN rail mounting and is fully compatible with the 4-hole mounting holes of older Proximitor models.
  • Electrical Isolation: The mounting base has built-in electrical isolation, preventing ground circuit interference without the need for an additional isolation plate.
  • Probe Gapping: The gap voltage within the standard linear range is typically set between -9V and -11V DC.
  • To prevent cross-talk: To avoid electromagnetic interference between probes, it is recommended that the probe tip spacing be at least 40 mm (1.6 in) (axial) or 38 mm (1.5 in) (radial).
  • Wiring Specifications:3-core shielded triplet cable (16 to 24 AWG) is recommended.
  • Tool-free wiring: Equipped with SpringLoc terminal blocks, a secure connection can be achieved without special tools, avoiding the risk of loose screws.
  • Environmental Protection: Although this model is ATEX/IECEx explosion-proof certified, it is recommended to install it in a dedicated protective enclosure in harsh environments to isolate it from corrosive gases and severe vibrations.
  • Backward Compatibility: The 3300 XL Proximitor is interchangeable with some components from non-3300 XL series systems (such as the 3300 RAM).
  • Full System Replacement: If upgrading from a very old 7200 series system, you must replace the probes, extension cables, and Proximitor, and update the software configuration of the 3500 monitoring system.
  • Special Application Alternatives:If you have limited installation space or experience side metal interference, consider upgrading to the 3300 XL NSv (Narrow Side View) system.
Description
The Model 330180-12-05 is a 3300 XL Proximitor Sensor engineered for the 3300 XL 8 mm Proximity Transducer System, delivering advanced performance with 1.0 meter system length. This sensor carries CSA, ATEX, and IECEx hazardous area approvals for global deployment. The 330180-12-05 fully complies with API 670 Standard for critical machinery monitoring applications.

The 330180-12-05 incorporates numerous improvements over previous designs, including physical packaging that allows high-density DIN-rail installations. The mounting base provides electrical isolation, eliminating separate isolator plates. The 330180-12-05 supports traditional panel mount configurations with identical 4-hole footprint to older designs.

Enhanced RFI/EMI immunity is a key feature of the 330180-12-05, satisfying European CE mark approvals without requiring special shielded conduit or metallic housings. This allows installation in fiberglass housings without adverse effects from nearby radio frequency signals. The 330180-12-05 reduces installation costs and complexity.

Complete interchangeability is supported by the 330180-12-05, eliminating the need to match or bench calibrate individual components with probes and extension cables. The 330180-12-05 delivers reliable performance for critical machinery protection applications worldwide.
Alternative Names
330180 12 05 330180-12-00 330180-12-CN 330180-10-05 330180-11-05 330180-52-05 330180-92-05
Technical notes
The Bently Nevada 330180-12-05 is designed for harsh industrial environments, featuring robust, tool-free SpringLoc terminal blocks to prevent loosening due to vibration; corrosion-resistant gold-plated ClickLoc coaxial connectors; and excellent inherent RFI/EMI immunity, allowing for installation in a fiberglass housing without special shielding.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the difference between the 330180-12-05 and older Proximitor Sensor designs?
The 330180-12-05 features integrated electrical isolation in the mounting base, eliminating separate isolator plates required by older designs. It offers superior RFI/EMI immunity satisfying CE marks without shielded conduit, while maintaining identical 4-hole mounting footprint for backward compatibility. The 330180-12-05 also supports high-density DIN-rail installations where older designs could not, providing greater flexibility for modern control cabinets.
How to identify a reliable supplier for the 330180-12-05?
A reliable supplier should provide documented traceability of CSA, ATEX, and IECEx certifications, verify API 670 compliance, and demonstrate knowledge of the integrated electrical isolation benefits. They must explain the RFI/EMI advantages and provide genuine packaging. Look for suppliers who can advise on proper mounting configuration (DIN-rail vs panel) based on your application. Avoid suppliers who cannot explain the elimination of shielded conduit requirements or lack understanding of the 330180-12-05's interchangeability features.
What certifications are required when exporting the 330180-12-05 to the United States?
The 330180-12-05 carries CSA certification which is accepted in the US through CSA/US mutual recognition, along with ATEX and IECEx for international acceptance. Export documentation must include country of origin, product value declaration, and HTS classification. The improved RFI/EMI immunity satisfies FCC requirements without additional testing. No special shielded conduit certifications are needed due to the 330180-12-05's superior interference immunity design.
Why do Proximitor Sensors fail in industrial environments while the 330180-12-05 survives?
Standard sensors fail from ground loops requiring separate isolator plates, RFI interference necessitating shielded conduit, and installation damage from rigid mounting requirements. The 330180-12-05 survives with integrated electrical isolation eliminating ground loop failures, superior RFI/EMI immunity allowing fiberglass housing installation without signal degradation, and flexible mounting options (DIN-rail or panel) preventing installation stress. The CSA/ATEX/IECEx certifications ensure materials withstand environmental conditions where non-certified sensors degrade.
