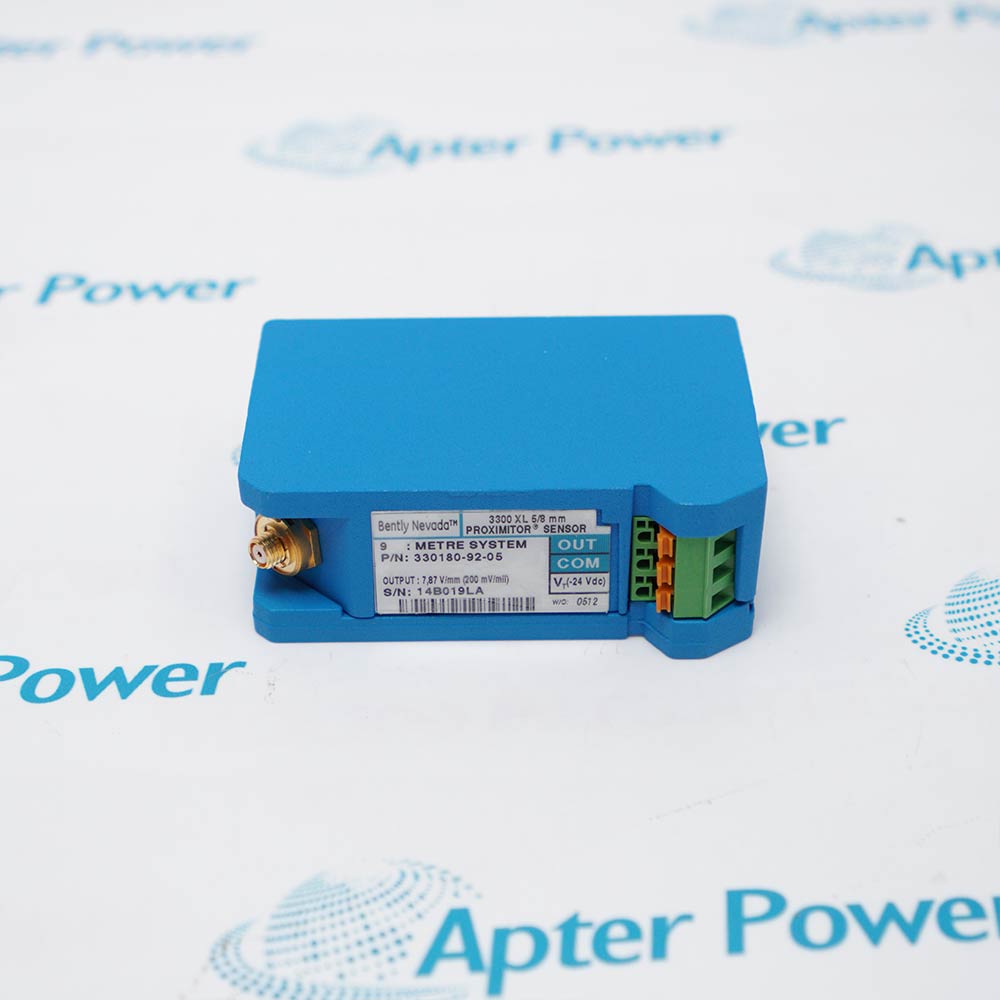

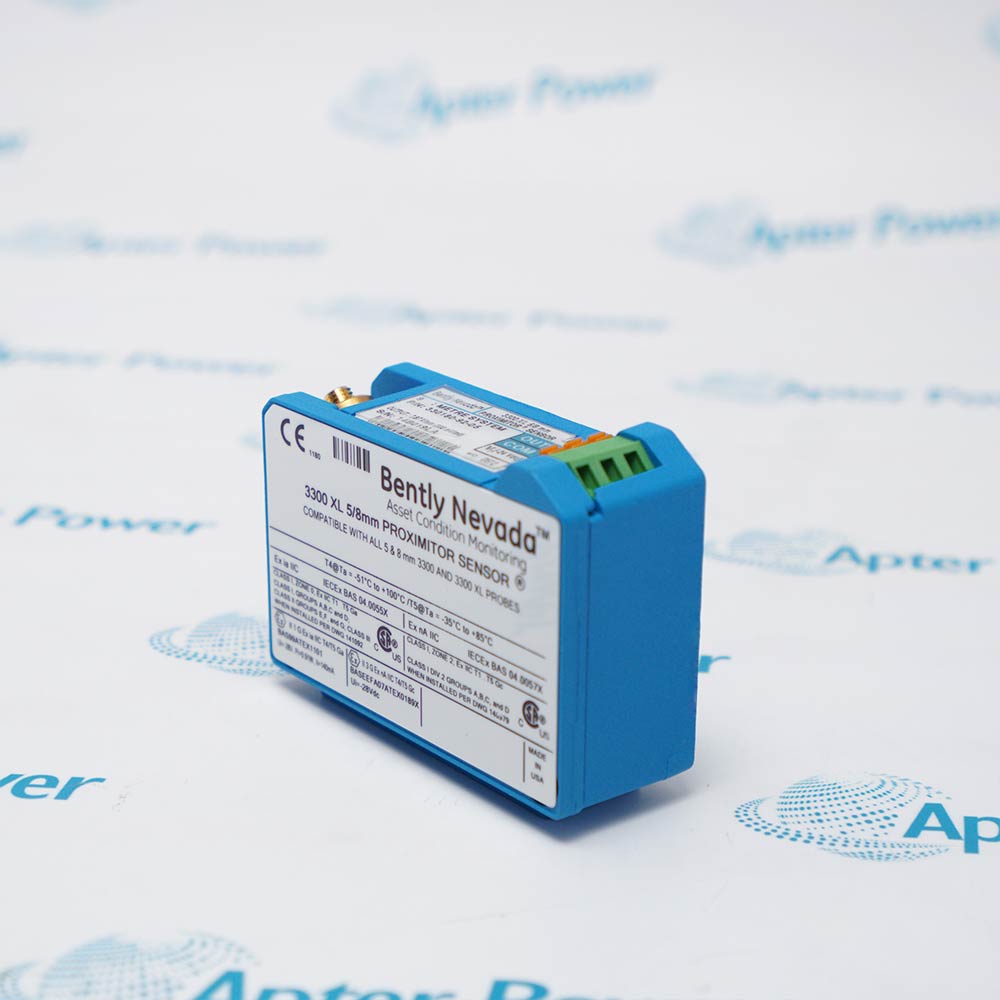

Bently Nevada 330180-92-05 3300 XL proximitor sensor provides precise position and vibration measurements with a 9.0-meter system length and robust industrial compatibility.
Discover how Apter Power helps customers source hard-to-find automation parts,overcome delivery challenges and keep production moving.VIEW OUR SUCCESS STORIES >>
Technical specifications for 330180-92-05
Manufacturer:
Bently Nevada
Part Number:
330180-92-05
Product Family:
3300 XL Proximitor Sensor
Total Length and Mounting Option:
9.0 meters (29.5 feet) system length, no mounting hardware
Agency Approval Option:
CSA, ATEX, IECEx Approvals
Proximitor Sensor Input:
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable.
Maximum Altitude:
2000 meters.
Power Supply:
-24 Vdc.
Load Resistance:
10 kΩ.
Weight:
0.24 kg
Estimated shipping dimensions:
8x6x6.3cm
Tariff Code:
8537101190
Country of origin:
USA
Place of shipment:
Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
The Bently Nevada 330180-92-05 3300 XL Proximitor Sensor system includes one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. Designed for both static position and dynamic vibration measurement, the system delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface. Its primary applications include vibration monitoring on fluid-film bearing machines, Keyphasor reference, and speed measurement.
This 3300 XL 8 mm system offers a total length of 9.0 meters (29.5 feet) with no mounting hardware included. It accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe with extension cable, making it highly compatible with existing 3300-series components. The system operates reliably at altitudes up to 2000 meters with a -24 Vdc power supply and 10 kΩ load resistance.
The 330180-92-05 features industry-standard approvals, including CSA, ATEX, and IECEx, ensuring compliance with global safety regulations. Its design supports accurate measurement in demanding industrial environments while maintaining straightforward integration and operation.
Engineered for reliability, the 3300 XL Proximitor Sensor provides repeatable, precise monitoring for critical machinery. Its simple system configuration, combined with robust performance and regulatory compliance, makes it ideal for predictive maintenance and high-precision industrial applications.
