330930-040-00-05

/ 4.9
1001 reviews | Need a Specific Revision?

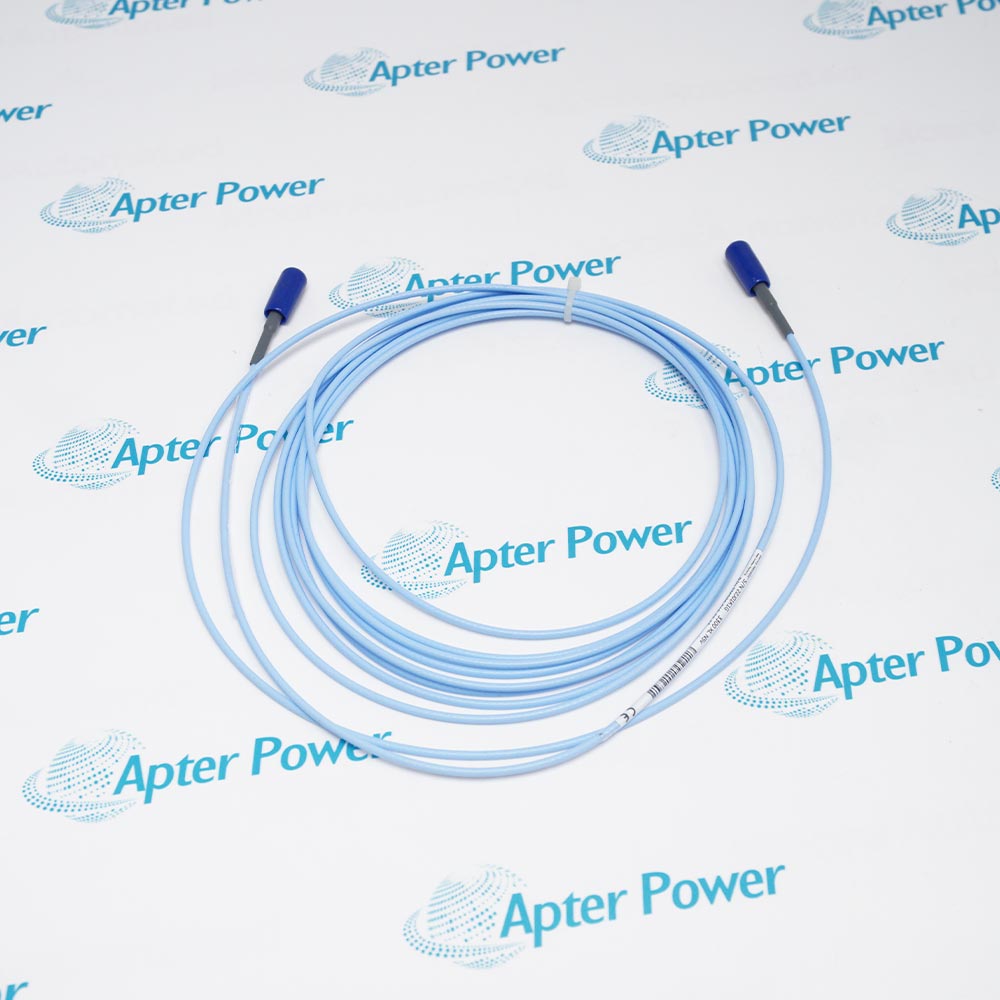

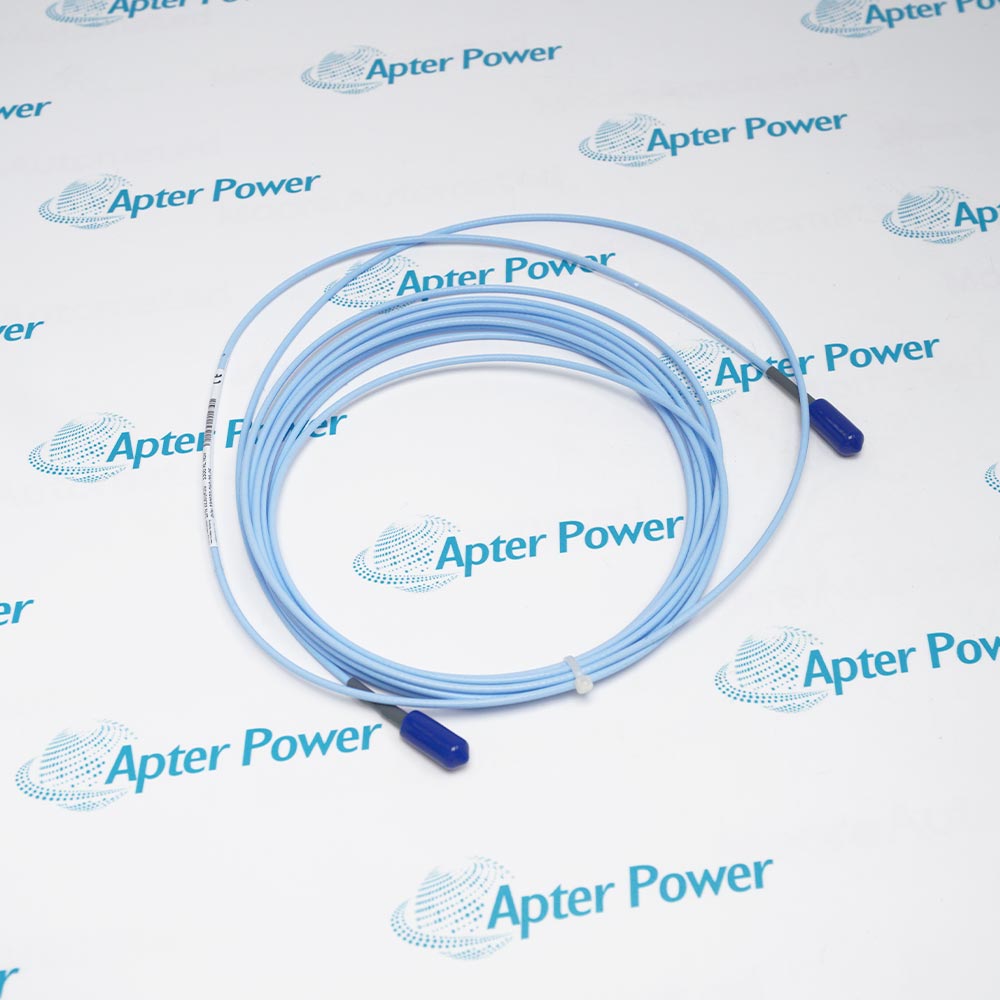

Engineered for precision signal transmission in machinery monitoring systems, the Bently Nevada 330930-040-00-05 is a 4.0-meter (13.1-foot) extension cable within the 3300 XL NSv Proximity Transducer System.
Get a quick price for 330930-040-00-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330930-040-00-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330930-040-00-05
  • Product Family:
    NSV Extension Cable
  • Component Classification:
    Extension Cable Assembly
  • Physical Dimensions:
    Length: 4.0 meters (13.1 feet)
  • Electrical Characteristics:
    DC Resistance (Center Conductor) 0.220 Ω/m (0.067 Ω/ft)
  • Certification Status:
    Multiple Agency Approvals
  • Recommended Accessory:
    Connector Protectors
  • Temperature Range:
    0°C to +45°C
  • Weight:
    0.08 kg
  • Estimated shipping dimensions:
    18x18x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
As a specialized signal transmission component in Bently Nevada's monitoring ecosystem, the 330930-040-00-05 extension cable provides 4.0 meters (13.1 feet) of reliable connectivity between proximity probes and Proximitor Sensors. Designed without stainless steel armor for standard industrial applications, this cable has obtained multiple agency certifications that validate its compliance with rigorous international standards.

The 330930-040-00-05 demonstrates optimized electrical performance with precisely controlled parameters: a center conductor DC resistance of 0.220 Ω/m (0.067 Ω/ft) and typical capacitance of 69.9 pF/m (21.3 pF/ft), ensuring minimal signal degradation across its length.The 330930-040-00-05 serves a crucial function in system modernization pathways, particularly when transitioning from legacy monitoring platforms.

While upgrades from 3300 RAM systems may utilize existing cabling infrastructure, implementations replacing 3000-series or 7000-series 190 Transducer Systems require complete component replacement, making the 330930-040-00-05 an essential element in such upgrades.Connection reliability represents a cornerstone of the 330930-040-00-05 design philosophy.

Both cable terminations incorporate gold-plated brass ClickLoc connectors that feature an audible locking mechanism, creating vibration-resistant interfaces critical in rotating machinery environments. Performance validation for systems incorporating the 330930-040-00-05 occurs under defined reference conditions encompassing an operational temperature spectrum of 0°C to +45°C (+32°F to +113°F) at altitudes not exceeding 2000 meters.

These specifications assume system configuration with a -24 Vdc power supply, 10 kΩ load impedance, and proper calibration against Bently Nevada-supplied AISI 4140 steel targets measuring at least 31 mm (1.2 inches) in diameter, with probes gapped at 1.0 mm (40 mils).
Alternative Names
330930-045-00-05 330930-060-03-05 330930-065-04-05 330930-040-05-05
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What electrical and physical characteristics define the 330930-040-00-05 extension cable?
The 330930-040-00-05 presents specific electrical properties including a center conductor DC resistance of 0.220 Ω/m and typical capacitance of 69.9 pF/m, engineered to preserve signal integrity across its 4.0-meter (13.1-foot) length. Physically configured without stainless steel armor, this cable carries multiple international agency approvals validating its compliance with global operational standards.
How does the 330930-040-00-05 support transitions from older monitoring systems?
When implementing upgrades from 3000-series or 7000-series 190 Transducer Systems, the 330930-040-00-05 becomes essential as these transitions require complete replacement of field components. The cable maintains full mechanical and electrical interchangeability with legacy 3300 RAM extension cables, providing versatile integration options while enabling preservation of compatible existing infrastructure elements.
What features ensure connection integrity for the 330930-040-00-05 in vibrational environments?
Connection security for the 330930-040-00-05 derives from its gold-plated brass ClickLoc connectors that incorporate a positive locking mechanism. This design creates vibration-resistant interfaces crucial for reliable operation adjacent to rotating machinery. Implementation of connector protectors at both termination points is advised to establish environmental seals against industrial contaminants.
What reference parameters govern the performance specifications of systems using the 330930-040-00-05?
Validated performance for systems incorporating the 330930-040-00-05 requires operation within an ambient temperature range of 0°C to +45°C at altitudes below 2000 meters, utilizing a -24 Vdc power supply with 10 kΩ load impedance. Calibration must reference Bently Nevada-supplied AISI 4140 steel targets (minimum 31 mm diameter) with probes positioned at a 1.0 mm (40 mil) gap, as these conditions establish the baseline for guaranteed accuracy and interchangeability specifications.
