330930-060-00-05

/ 4.9
1001 reviews | Need a Specific Revision?

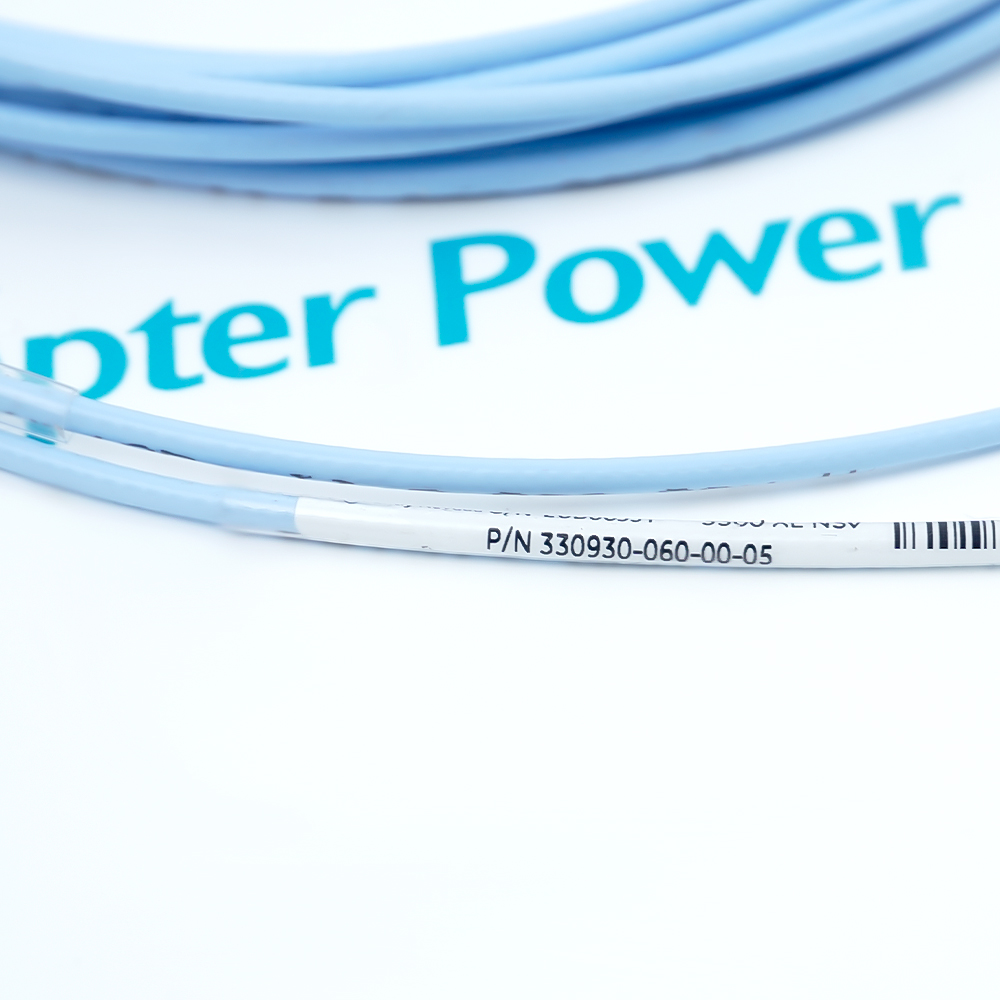

Bently Nevada 330930-060-00-05 is a 6.0 m 3300 NSv extension cable, without stainless steel armor and with the multiple-approvals option.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330930-060-00-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330930-060-00-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330930-060-00-05
  • Product Family:
    NSV Extension Cable
  • Product Type:
    Extension Cable
  • Stock:
    1
  • Cable Length:
    6.0 meters (19.7 feet)
  • Connector and Cable Option:
    Without stainless steel armor
  • Agency Approval:
    Multiple Approvals
  • Center conductor resistance:
    0.220 Ω/m
  • Shield resistance:
    0.066 Ω/m
  • Extension cable capacitance:
    69.9 pF/m typical
  • Cable construction:
    75 Ω coaxial, FEP insulated
  • Minimum bend radius:
    25.4 mm
  • Cable temperature range:
    -52 °C to +177 °C (operating and storage)
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    18x18x1.5cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Cable Length Cable Construction Connector Care Product Applications

Features:

  • NSv cable: Extension component for a 3300 XL NSv proximity transducer chain.
  • Specified length: The 060 option supplies 6.0 m of extension cable.
  • Ordered construction: The 00 option is supplied without stainless steel armor.
The cable links an NSv probe to its Proximitor Sensor within the defined system length.

Its connector and cable options are part of the complete ordering code, not interchangeable descriptions of all NSv cables.

The final approval option should be checked against the site documentation before the spare is installed.

Apter Power can provide a quotation and product documentation for the Bently Nevada 330930-060-00-05 NSv Extension Cable.
Bently Nevada 330930-060-00-05 NSv Extension Cable Manuals,Datasheets,Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • 060 option: 6.0 m extension-cable length in the manufacturer’s ordering matrix.
  • System total: Probe lead and extension cable lengths together must equal the Proximitor system length.
  • Illustrated arrangement: A 1 m probe with this 6 m extension corresponds to a 7 m NSv system.
  • 00 option: Cable without stainless steel armor.
  • Armored alternatives: Other codes specify stainless steel armor and optional FEP jacket.
  • FluidLoc alternatives: FluidLoc cable uses a separate set of connector-and-cable options.
  • NSv terminations: The manufacturer’s 3300 NSv connector kit is specified for NSv probes and extension cables and contains male and female ClickLoc connectors.
  • Protector choice: Cable option 00 is unarmored; option 03 separately specifies an unarmored cable with a connector protector.
  • Protective kit: Accessory 40113-03 provides connector protectors and installation tools for NSv probes and extension cables.
  • Tape boundary: The listed self-fusing silicone tape protects connectors, but the manufacturer does not recommend it inside a machine casing.
  • Tight-clearance machinery: 3300 XL NSv measurement points on machines with restricted probe access.
  • Shaft monitoring: NSv systems used for radial vibration or position measurement.
  • Axial monitoring: NSv systems used for thrust-position measurement.
Description
In a 3300 XL NSv proximity transducer chain, 330930-060-00-05 is the 6.0 m extension cable between the NSv probe and Proximitor Sensor. It carries the probe connection without acting as the sensor or power supply.

The 330930-060-00-05 ordering code specifies a cable without stainless steel armor and the manufacturer’s multiple-approvals option. These options distinguish it from armored and FluidLoc cables in the same NSv family.

For an installed measurement point, 330930-060-00-05 must be matched to the probe lead so their combined length equals the specified Proximitor system length. Apter Power can help compare the existing part label and system configuration before quoting.
Alternative Names
Bently Nevada 330930-060-00-05 330930 060 00 05 330930/060/00/05 330930-060-00-05 NSv extension cable 3300 NSv 330930-060-00-05 3309300600005
Technical notes
For 330930-060-00-05, maintain a cable bend radius of at least 25.4 mm at cabinet and machine entries. This minimum applies to NSv extension cables with or without stainless steel armor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does 330930-060-00-05 fit a 7 m NSv measurement chain?
Its 6 m extension-cable length can combine with a 1 m NSv probe lead to match a 7 m Proximitor system. Verify the installed probe and Proximitor labels before ordering.
Is 330930-060-00-05 supplied with stainless steel armor?
No. The 00 connector-and-cable option specifies a cable without stainless steel armor; armored and FluidLoc versions use different option codes.
What does the final 05 mean in 330930-060-00-05?
Bently Nevada defines 05 as the multiple-approvals option for this extension cable. Check the required site approval against the exact product documentation.
Can 330930-060-00-05 be used with an older 3300 RAM probe lead?
Bently Nevada states that NSv probes and extension cables are mechanically and electrically compatible with earlier 3300 RAM components. Match the full system length and installed hardware before use.
What should I provide when requesting 330930-060-00-05?
Send Apter Power the full cable number, the installed probe lead length, and the Proximitor system length so the requested spare can be checked against the installed chain.
Does 330930-060-00-05 need its own -24 V DC supply?
No. Bently Nevada assigns the supply requirement to the 3300 XL NSv Proximitor Sensor, not to the extension cable. Check power at the Proximitor, not on this cable.
