    Apter Power offers genuine Bently Nevada 330902-00-95-05-02-05 probes, providing reliable hardware solutions to protect your critical industrial assets from unexpected failures.

330902-00-95-05-02-05

/ 4.9
1001 reviews | Need a Specific Revision?
The 330902-00-95-05-02-05 is equipped with a Miniature coaxial ClickLoc connector to ensure the stability and reliability of signal transmission. The use of standard cables guarantees system compatibility.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330902-00-95-05-02-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330902-00-95-05-02-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330902-00-95-05-02-05
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv Proximity Probe
  • Stock:
    1
  • Unthreaded Length:
    0.0 in
  • Overall Case Length:
    9.5 in
  • Total Length:
    0.5 meter (20 in)
  • Connector -Type:
    Miniature coaxial ClickLoc connector
  • Cable-Type:
    standard cable
  • Probe Cable Insulation:
    Fluoroethylene propylene (FEP)
  • Probe Cable Type:
    75 Ω coaxial cable
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    62x1x1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Monitoring Installation

Features:

  • Provides 0.0 in unthreaded length configuration with 9.5 in case length and 0.5 m (20 in) total length design.
  • Utilizes 75 Ω coaxial probe cable with fluoroethylene propylene (FEP) insulation for structured cable construction.
  • Incorporates miniature coaxial ClickLoc connector with standard cable configuration for system integration.
The Bently Nevada 330902-00-95-05-02-05 is designed as part of the NSV Probe system architecture, providing structured signal transmission within compact installation environments. The Bently Nevada 330902-00-95-05-02-05 operates as a probe element within the 3300 XL NSv Proximity Transducer system framework. Within the Bently Nevada 330902-00-95-05-02-05 configuration, defined dimensional parameters support standardized system assembly.

The 330902-00-95-05-02-05 is part of a system intended for use in centrifugal air compressors, refrigeration compressors, and process gas compressors. The Bently Nevada 330902-00-95-05-02-05 operates within a system designed for tight installation requirements where space restrictions are present. The 330902-00-95-05-02-05 supports structured probe integration within NSV system architecture.

The Bently Nevada 330902-00-95-05-02-05 is integrated into the 3300 XL NSv system designed to support radial vibration, axial position, tachometer, and phase reference measurements. The 330902-00-95-05-02-05 is applicable in environments where counter bore, sideview, or rearview limitations restrict standard probe systems. The Bently Nevada 330902-00-95-05-02-05 remains aligned with NSV system configuration supporting compact mechanical installation requirements.

The 330902-00-95-05-02-05 Bently Nevada 3300 NSv Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330902-00-95-05-02-05 3300 NSv Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330902-00-95-05-02-05 3300 NSv Proximity Probe Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330902-00-95-05-02-05
  • Condition New Original ready stock
  • Product Family 330902-00-95-05-02-00,330902-00-95-05-01-05,330902-00-95-05-12-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Centrifugal Compressors: Installed on the high-speed rotating shaft end of the compressor to monitor radial vibration and axial displacement of the shaft, ensuring stable aerodynamic performance.
  • Industrial Centrifugal Pumps: Widely used in small and medium-sized pump sets in the petrochemical industry, providing high-precision non-contact displacement measurement within confined bearing housings.
  • Small Steam Turbines: Used in small steam turbines for power generation or drive applications for critical shaft condition monitoring to prevent rotor misalignment.
  • Gearbox Axial Monitoring: Deployed on the input/output shaft side of high-speed gearboxes to detect bearing clearance and axial movement caused by load fluctuations.
  • Shaft Radial Displacement:Real-time capture of minute positional changes in the journal within the bearing, preventing bearing friction or mechanical failure through continuous monitoring.
  • Bearing Condition Tracking:Continuous monitoring of dynamic signals within the bearing housing provides trend data to the equipment management system, assisting in determining the bearing's service life.
  • Speed ​​and Zero-Speed ​​Sensing: Can supplement keyphase or speed sensors to monitor rotor rotation status and ensure correct logic during startup and shutdown.
  • Thermal Expansion Displacement Compensation: Continuously provides feedback on rotor axial or radial positional misalignment caused by thermal effects during machine speed-up and temperature rise.
  • Narrow Space Adaptation:Its compact probe design is particularly suitable for installation in mechanical structures with limited internal space, solving the problem of measurement points that conventional probes cannot reach.
  • Reverse Mount Compatibility:Supports deployment via a reverse mounting housing, allowing technicians to adjust and maintain the probe from the outside without disassembling large housings.
  • Precise Gap Adjustment:Utilizing the threaded structure of the probe housing, micron-level precision setting of the electrical clearance (Gap) between the sensor head and the measured shaft surface is possible.
  • Cable Protection and Sealing:When used with a specialized pressure-sealing connector, cable leakage of machine oil or process gases is prevented when wiring through the housing.
Description

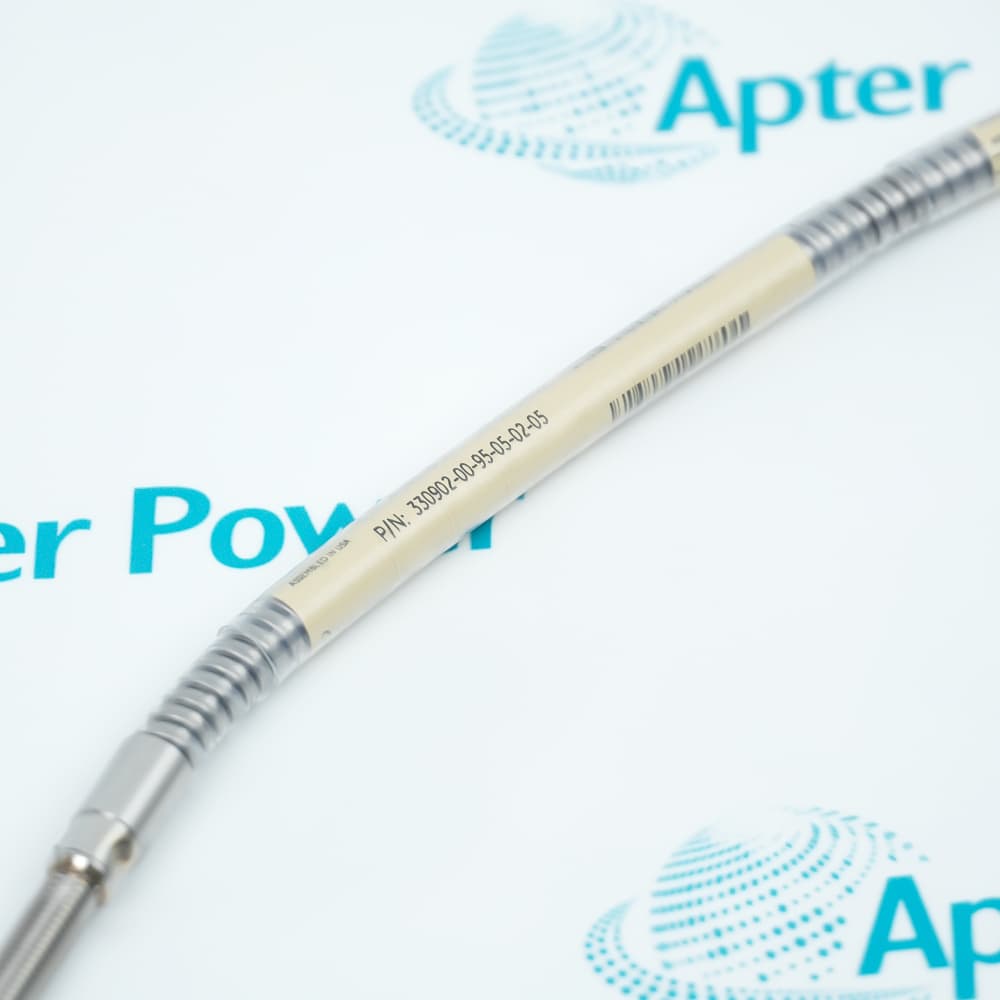

The 3300 NSv Proximity Probe is a non-contact displacement sensor designed for rotating machinery monitoring, enabling reliable measurement of shaft vibration and shaft displacement. This specific configuration is the 3300 NSv Probe, 1/4-28 UNF thread, with armor, identified by the full part number 330902-00-95-05-02-05, and is intended for applications that require increased probe length combined with enhanced mechanical protection.

The probe features a 1/4-28 UNF threaded mounting arrangement and is supplied with protective armor, improving durability in industrial environments. It has an unthreaded length of 0.0 in and an overall case length of 9.5 in, making it suitable for installations where extended probe reach is necessary.

For cabling, the 330902-00-95-05-02-05 is equipped with a standard cable with a total length of 0.5 meter (20 in), supporting short-distance connections within compact system layouts. The probe end is fitted with a miniature coaxial ClickLoc connector, ensuring a secure and stable connection while allowing efficient installation and maintenance.

In addition, this 3300 NSv Proximity Probe carries multiple agency approvals, complying with a range of industrial standards and enabling deployment across different regions and applications. Overall, the 330902-00-95-05-02-05 reflects the consistent and standardized design of the 3300 NSv probe series, combining defined mechanical dimensions, armored construction, and reliable connectivity for dependable proximity monitoring performance.
Alternative Names
330902 00 95 05 02 05 330902-00-95-05-02-00 330902-00-95-05-02-CN 33O9O2-OO-95-O5-O2-O5 330902-00-95-05-02-BR 330902-00-95-05-02-RU 330902-00-38-05-02-05
Technical notes
The Bently Nevada 330902-00-95-05-02-05 is an NSV probe within the NSV Probe product family, featuring 0.0 in unthreaded length, 9.5 in overall case length, and 0.5 meter (20 in) total length. The Bently Nevada 330902-00-95-05-02-05 is equipped with a miniature coaxial ClickLoc connector, standard cable type, and probe cable insulation of fluoroethylene propylene (FEP) with 75 Ω coaxial cable construction.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which transducer system is this Bently Nevada 330902-00-95-05-02-05 designed for?
This probe is specifically designed for use with the 3300 XL NSv Proximitor Sensor system, which includes the extension cable and the probe itself, forming a complete monitoring solution.
What is the primary function of the Bently Nevada 330902-00-95-05-02-05 when integrated into small rotating machinery?
The Bently Nevada 330902-00-95-05-02-05 is primarily deployed to measure radial vibration, axial thrust position, and speed on fluid-filmed bearing machines featuring small shafts (under 51 mm or 2 in) or restrictive counterbores where standard 8mm probes cannot fit.
How does the Bently Nevada 330902-00-95-05-02-05 interface with existing Proximitor sensors and monitoring systems?
The Bently Nevada 330902-00-95-05-02-05 connects via a miniature coaxial ClickLoc connector to a matching 3300 XL NSv Proximitor Sensor and extension cable system, maintaining a strict 78.7 V/mm system scaling standard.
What are the electrical DC resistance characteristics and scaling factors associated with the Bently Nevada 330902-00-95-05-02-05?
The Bently Nevada 330902-00-95-05-02-05 features a probe-section center-conductor DC resistance of 4.0 ± 0.5 ohms and yields a nominal incremental scale factor of 7.87 V/mm (200 mV/mil) over its linear measurement range.
What specific parameters should engineers look out for regarding thread engagement and torque limits for the Bently Nevada 330902-00-95-05-02-05?
Engineers must restrict thread engagement to a maximum of 0.375 inches using a 1/4-28 UNF thread profile, and apply a recommended tightening torque of exactly 5.1 N·m (45 in·lb) to avoid structural damage.
