330908-00-30-10-01-05

/ 4.9
1001 reviews | Need a Specific Revision?

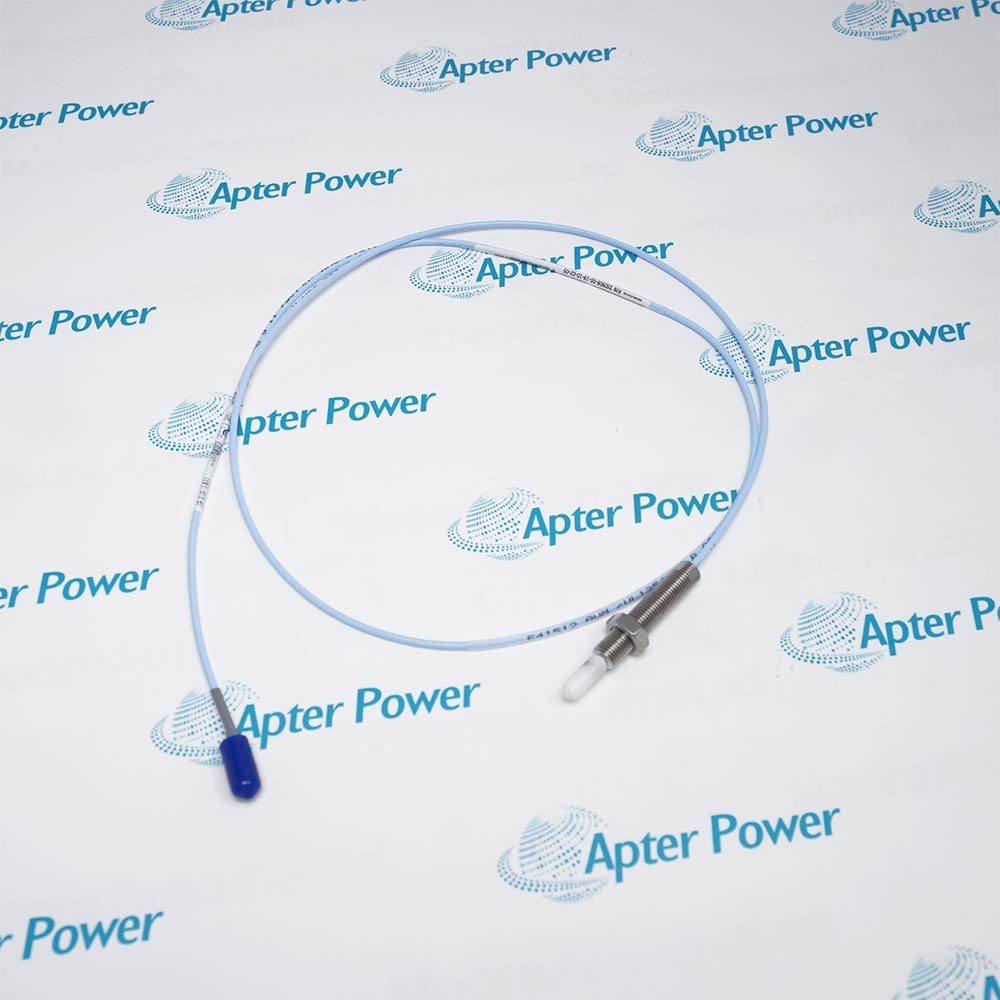

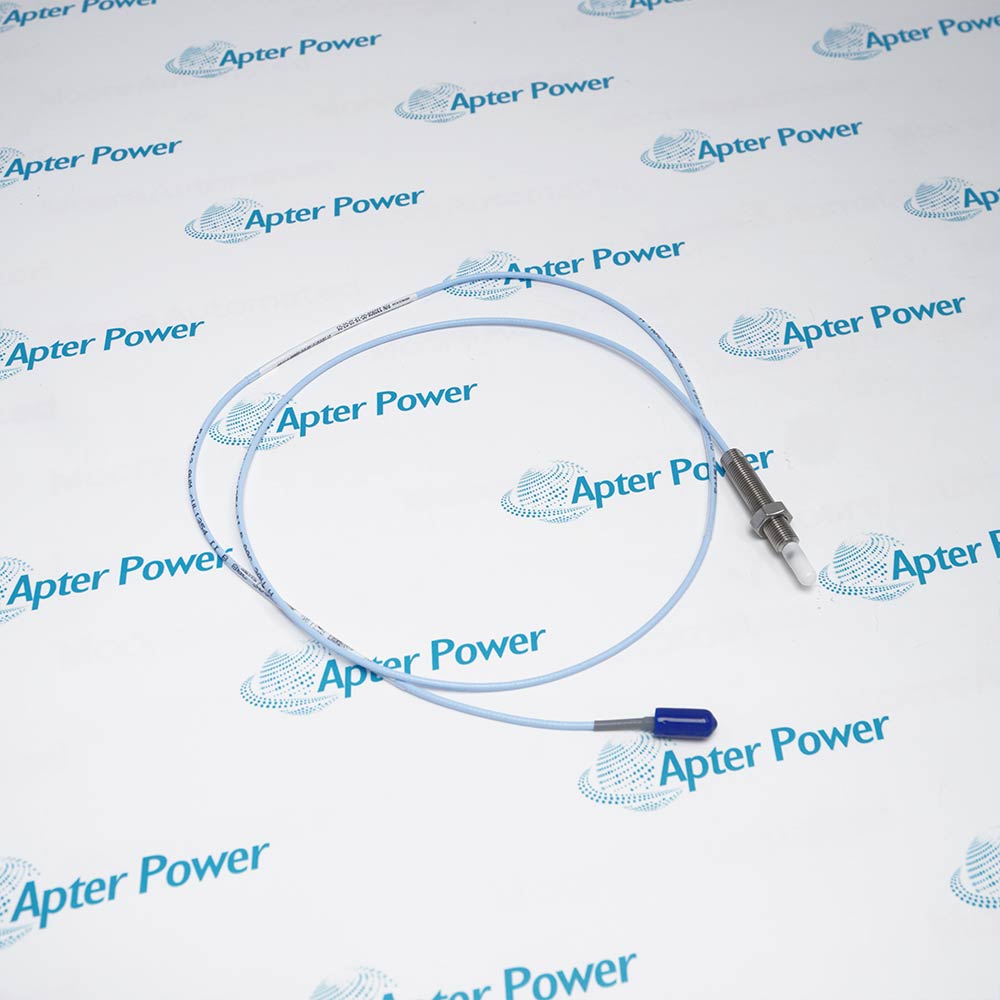

The 330908-00-30-10-01-05 is a 3300 NSv Proximity Probe featuring a 3/8-24 UNF thread without armor. This model includes a 1.0 meter (39 inch) total length with an overall case length of 3.0 inches and unthreaded length of 0.0 inches.
Get a quick price for 330908-00-30-10-01-05
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330908-00-30-10-01-05

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330908-00-30-10-01-05
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv Proximity Probe
  • Thread Type:
    3/8-24 UNF (without armor)
  • Total Length:
    1.0 meter (39 inches)
  • Unthreaded Length:
    0.0 inches
  • Overall Case Length:
    3.0 inches
  • Connector Type:
    Miniature coaxial ClickLoc™ with connector protector
  • Connector Material:
    Gold-plated brass
  • Cable Type:
    Standard cable
  • Agency Approvals:
    Multiple Approvals
  • Key Benefit:
    Model 330908-00-30-10-01-05 addresses measurement accuracy challenges in confined spaces with superior side-view characteristics versus 3000-series 190 probes.
  • Weight:
    0.05 kg
  • Estimated shipping dimensions:
    1.5x1.3x69cm
  • Tariff Code:
    9030900090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Connection Safety

Features:

  • 3/8-24 UNF thread with 3.0-inch overall case length provides standard English mounting with balanced reach for typical machine casings.
  • Increased chemical resistance compared to 3300 RAM probes enables reliable operation in process compressor applications with exposure to aggressive media.
  • Superior side-view characteristics versus 3000-series 190 probes allow accurate measurements in confined spaces where optimal probe orientation is limited.
The 330908-00-30-10-01-05 is designed for installations where a balanced reach is needed—neither too short to miss the target nor so long that it interferes with adjacent components. Its 3.0-inch overall case length provides adequate reach for standard machine casings while maintaining a compact profile that fits in most mounting ports.

The 330908-00-30-10-01-05 offers significantly increased chemical resistance compared to previous 3300 RAM probe designs, making it ideally suited for process compressor applications where exposure to aggressive media is a daily reality. In environments such as natural gas compression, chemical processing, and refinery operations, probes are routinely exposed to sour gas, corrosive vapors, and lubricating oils that can degrade standard materials over time.

The 330908-00-30-10-01-05 delivers superior side-view characteristics compared to the 3000-series 190 probe when gapping at the same distance from the probe target—a critical advantage in applications where space constraints limit optimal probe orientation. In tightly packed machinery such as centrifugal compressors, steam turbines, and gearboxes, achieving perfect perpendicular alignment between probe and target is often physically impossible.

The 330908-00-30-10-01-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330908-00-30-10-01-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330908-00-30-10-01-05 3300 NSv Proximity Probes Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330908-00-30-10-01-05
  • Condition New Original ready stock
  • Product Family 330908-00-30-10-02-05,330908-00-30-10-12-05,330908-00-30-10-01-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Small Rotating Machinery: Such as small centrifugal compressors, high-speed gearboxes, hollow shaft motors, or small pumps.
  • Narrow Space Monitoring: When radial space is limited at the installation location, or the counterbore is very small, the NSV probe can reduce interference from side-viewing effects.
  • Precision Bearing Monitoring: Used to measure shaft vibration and displacement in hydrostatic or hydrodynamic bearings.
  • Preamplifier: Must be connected to the 3300 XL NSV Proximitor (330980), otherwise linearity will be significantly reduced.
  • Signal Transmission: The high-frequency electromagnetic field signal is transmitted to the preamplifier via coaxial cable. The preamplifier then converts it into a -200 mV/mil (7.87 V/mm) voltage signal, which can be connected to the 3500 monitoring system or portable diagnostic instrument.
  • Intrinsic Safety: When used with safety barriers, meets ATEX/IECEx Zone 0/1 intrinsic safety requirements.
  • Mechanical Safety (API 670): Designed to meet API 670 standards, ensuring mechanical strength, electrical isolation, and signal repeatability in industrial environments.
  • Environmental Compliance: Complies with the RoHS Directive, restricting the use of hazardous substances. Its FEP cable sheath has good chemical stability, preventing monitoring failure due to cable damage.
Description
The 330908-00-30-10-01-05 features a 3/8-24 UNF thread configuration without armor, providing installation flexibility for applications requiring standard UNF mounting threads with a 3.0-inch overall case length. This model includes a 1.0 meter (39 inch) total length with an integrated connector protector for enhanced environmental sealing.

The 330908-00-30-10-01-05 is mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe designs. This NSv probe features increased chemical resistance compared to the 3300 RAM probe, allowing its use in many process compressor applications where exposure to aggressive media is common.

The side-view characteristics of the 330908-00-30-10-01-05 are superior to those of the 3000-series 190 probe when gapping at the same distance from the probe target. This improved performance enables more accurate measurements in confined spaces and applications where probe orientation presents challenges.

The 330908-00-30-10-01-05 represents a complete solution for applications requiring 3/8-24 UNF mounting threads with enhanced chemical resistance and superior side-view characteristics. This NSv probe delivers reliable vibration and position monitoring while maintaining compatibility with legacy systems and providing significant performance improvements for process compressor environments.
Alternative Names
330908-00-30-10-02-05 330908-00-30-10-12-05 330908-00-30-10-11-05 330908-00-30-10-01-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What types of applications benefit from the increased chemical resistance of the 330908-00-30-10-01-05?
Process compressor applications where exposure to aggressive media such as sour gas, chemical vapors, and lubricating oils is common benefit from the enhanced chemical resistance over 3300 RAM designs.
How does the 3.0-inch overall case length benefit installation?
The 3.0-inch case length provides adequate reach for standard machine casings while maintaining a compact profile that fits in most mounting ports without excessive protrusion.
What makes the side-view characteristics of the 330908-00-30-10-01-05 superior to 3000-series 190 probes?
Improved side-view response allows accurate gapping at the same distance as 190-series probes, enabling reliable measurements in confined spaces where optimal probe orientation cannot be achieved.
Can the 330908-00-30-10-01-05 replace existing 3300 RAM probes?
Yes, it is mechanically and electrically interchangeable with 3300 RAM probes, enabling seamless upgrades while gaining improved chemical resistance and side-view performance.
