    Apter Power stocks genuine Bently Nevada NSv vibration sensors, providing trustworthy replacement hardware for specialized turbomachinery protection loops.

330910-00-05-10-02-00

/ 4.9
1001 reviews | Need a Specific Revision?

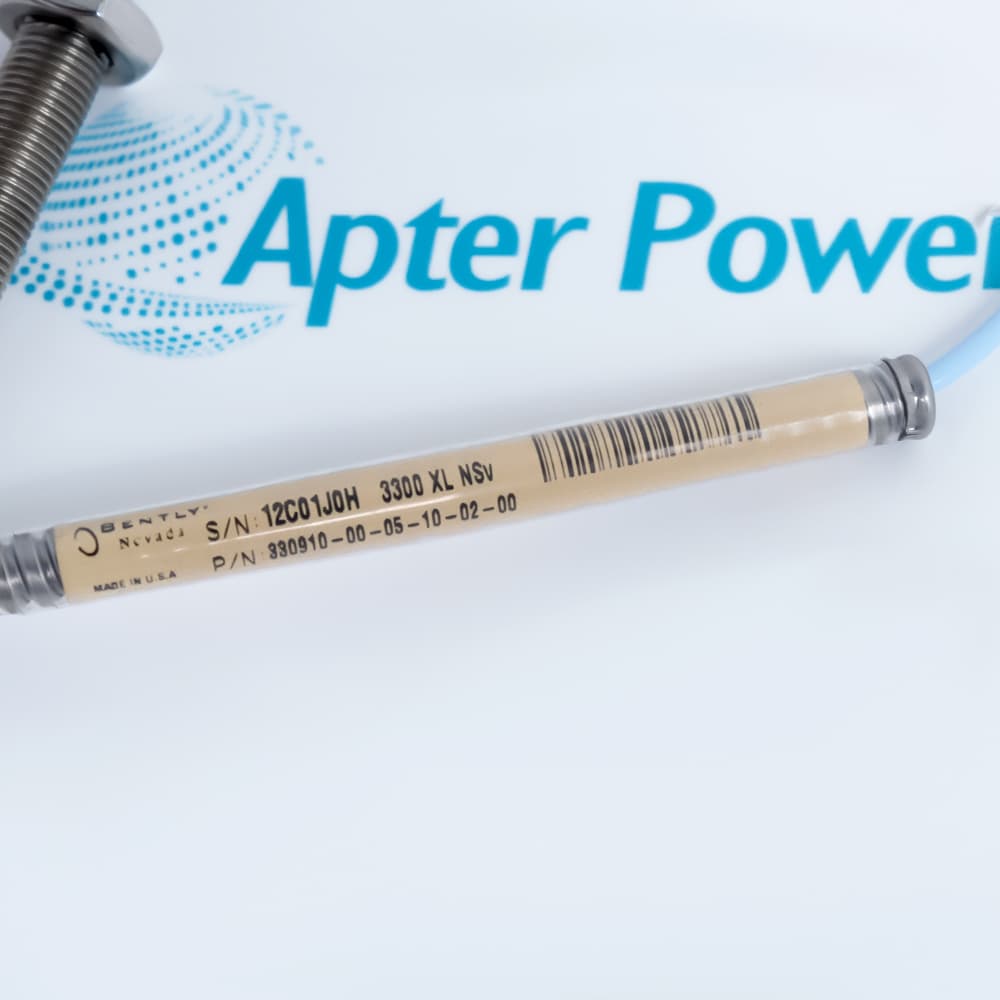

Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe offers robust vibration and position measurement with enhanced chemical resistance for process compressors and critical machinery.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330910-00-05-10-02-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330910-00-05-10-02-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330910-00-05-10-02-00
  • Product Family:
    NSV Probe
  • Product Type:
    3300 NSv Proximity Probe
  • Stock:
    1
  • Unthreaded Length Option:
    00=00 mm
  • Overall Case Length Option:
    05=50 mm
  • Total Length Option:
    10=1.0 meter (39 in)
  • Connector and Cable-Type Option:
    02=Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval Option:
    00= Not required
  • Maximum Altitude:
    2000 m
  • Storage Temperature:
    -52°C to +177°C (-62°F to +351°F)
  • Weight:
    0.1 kg
  • Estimated shipping dimensions:
    1x1x114cm
  • Tariff Code:
    8479899990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics Compatibility Application Scenarios

Features:

  • Compact design supports radial, axial, speed, and Keyphasor measurements.
  • TipLoc, CableLoc, and ClickLoc designs improve connection reliability.
  • Chemical resistance supports demanding compressor applications.
Accurate shaft-motion data helps maintenance teams identify developing mechanical problems before compressor performance declines. Bently Nevada 330910-00-05-10-02-00 supports radial vibration and radial position monitoring on fluid-film-bearing machinery. Axial thrust position can also be measured when movement along the shaft axis must be observed. Stable proximity measurements give operators useful information for condition assessment, maintenance planning, and machinery diagnostics.

Bently Nevada 330910-00-05-10-02-00 forms part of a complete 3300 XL NSv Proximity Transducer System with an NSv extension cable and a 3300 XL NSv Proximitor Sensor. The complete system provides an average scale factor of 7.87 V/mm (200 mV/mil). A linear measurement range of 1.5 mm exceeds the range available from the earlier 3000-series 190 system. The resulting signal can be processed by compatible monitoring equipment for continuous machine-condition evaluation.

Beyond displacement monitoring, Bently Nevada 330910-00-05-10-02-00 can support tachometer, zero-speed, and Keyphasor phase-reference applications. Such flexibility allows one probe family to serve several measurement requirements across a rotating-equipment monitoring program. Small-target capability is particularly useful when standard 5 mm or 8 mm transducer systems cannot be installed. Condition-monitoring engineers can therefore obtain essential speed, phase, and shaft-position information from machinery with restricted sensing locations.

The 330910-00-05-10-02-00 Bently Nevada 3300 NSv Proximity Probe may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe Specs

General

  • Manufacturer Bently Nevada
  • Model 330910-00-05-10-02-00
  • Condition New Original ready stock
  • Product Family 330910-00-05-10-12-00,330910-00-05-05-02-00,330910-00-05-10-11-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Sensor Physical Diagnosis: Supports rapid determination of probe operating status by measuring the DC voltage of the circuit (e.g., nominal -9 Vdc to -11 Vdc gap voltage).
  • Cable Integrity Monitoring: Real-time detection of open circuits, short circuits, or poor connector contact in probe cables via the system preamplifier (Proximitor).
  • Signal Quality Diagnosis: Capable of capturing high-frequency vibrations and subtle displacements, assisting in the diagnosis of mechanical faults such as rotor imbalance, misalignment, and bearing wear.
  • Temperature Drift Self-Compensation: The probe's internal design features excellent temperature stability, minimizing false alarms caused by environmental temperature differences.
  • Preamplifier Compatibility: Must be used with a dedicated 3300 NSv preamplifier (Proximitor); cannot be directly used with the standard 3300 XL preamplifier.
  • Cable Length Matching: This model number (-05) represents a 0.5-meter (20-inch) probe cable length and requires a system with a total length of 5.0 meters or 7.0 meters.
  • Thread Specification Matching: Uses 3/8-24 UNF imperial thread (-00 no reverse thread), requiring strict matching with the corresponding mechanical mounting bracket or threaded hole.
  • Unit Monitoring System Compatibility: Its output signal is perfectly compatible with Bently Nevada 3500/42M or older 3300 series vibration monitors.
  • Small Shaft Diameter Machinery Monitoring: Specifically designed for fluid diaphragm bearing machinery with shaft diameters less than 50 mm (2 inches), solving the lateral clearance limitation problem of traditional probes.
  • Confined Space Installation: Due to its small probe head diameter (typically in the 5mm range), it is ideal for bearing housings with extremely limited internal space.
  • Centrifugal Compressors: Widely used for radial vibration measurement of high-speed, small-sized industrial centrifugal air or gas compressors.
  • Steam Turbines and Pumps: Suitable for axial displacement (thrust) and speed/keyphasor signal acquisition of small industrial steam turbines and multi-stage high-pressure water pumps.
Description
The Bently Nevada 330910-00-05-10-02-00 3300 NSv Proximity Probe is fully compatible and interchangeable with legacy 3300 RAM proximity probes and extension cables, allowing seamless upgrades without replacing the entire system. Its improved chemical resistance makes it ideal for use in demanding process compressor applications, extending reliability in harsh operating environments. The side-view probe design also provides superior gapping performance compared to the older 3000-series 190 probes, ensuring accurate displacement measurements.

The Bently Nevada 330910-00-05-10-02-00 is available in multiple probe case configurations, including armored and unarmored threads such as 1/4-28, 3/8-24, M8X1, and M10X1. Reverse mount versions come standard with either 3/8-24 or M10X1 threads. All connectors use gold-plated brass ClickLoc technology, which securely locks in place and prevents loosening, while the patented TipLoc molding ensures a strong bond between the probe tip and body.

The probe cable incorporates Bently Nevada's CableLoc design, providing 220 N (50 lb) of pull strength and secure attachment to the probe tip. Connector protectors are recommended to safeguard the ClickLoc connections from liquids, preserving electrical signal integrity. The miniature coaxial ClickLoc connector comes with a standard cable, an overall case length of 50 mm, an unthreaded length of 0 mm, and a total cable length of 1.0 meter (39 inches).

Designed for industrial and power generation applications, the 330910-00-05-10-02-00 3300 NSv probe can operate at altitudes up to 2000 m and withstand storage temperatures from -52°C to +177°C (-62°F to +351°F). Its reliable design makes it suitable for critical rotating machinery, including turbines, compressors, and generators, where high-precision vibration monitoring is required.
Alternative Names
33O91O-OO-O5-1O-O2-OO 3309I0-00-05-I0-02-00 3309100005100200 330910-00-05-10-02-05 330910-00-05-10-02-CN 330910-00-05-10-02-BR 330910-00-05-10-02-RU 330910-00-05-10-01-00
Technical notes
Built to optimize small-machinery protection, the Bently Nevada 330910-00-05-10-02-00 probe complies with fluid-film bearing constraints and offers a 1.0-meter total length option through extensions. Its robust construction ensures high-fidelity radial vibration and axial position tracking, making it an essential replacement component for critical industrial compressors.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is Bently Nevada 330910-00-05-10-02-00 configured?
The configuration provides no unthreaded length, a 50 mm overall case, a 1.0 m standard cable, and a miniature coaxial ClickLoc connector.
Can Bently Nevada 330910-00-05-10-02-00 measure small shafts and targets?
Yes. Suitable applications include radial measurements on shafts smaller than 51 mm and axial-position measurements on flat targets smaller than 15 mm.
Which environmental limits apply to Bently Nevada 330910-00-05-10-02-00?
Storage temperatures range from −52°C to +177°C, and installations are rated for a maximum altitude of 2,000 m.
What applications support Bently Nevada 330910-00-05-10-02-00?
Bently Nevada 330910-00-05-10-02-00 supports radial vibration, radial position, axial thrust position, tachometer, zero-speed, and Keyphasor phase-reference measurements.
