Features:
- DC/DC Voltage Conversion from 24 Vdc Input to Isolated 30 Vdc / 1 A Output for FTA Power Distribution
- Integrates Isolated Power Supply Capability with Local LED Indication and Read-Back Relay Alarm Functions
- Works in Conjunction with Analog Input FTA Modules Including FTA-T-14, FS-TSAI1620m, FS-TSHART-1620m, and Active Analog Input FTA-T-16

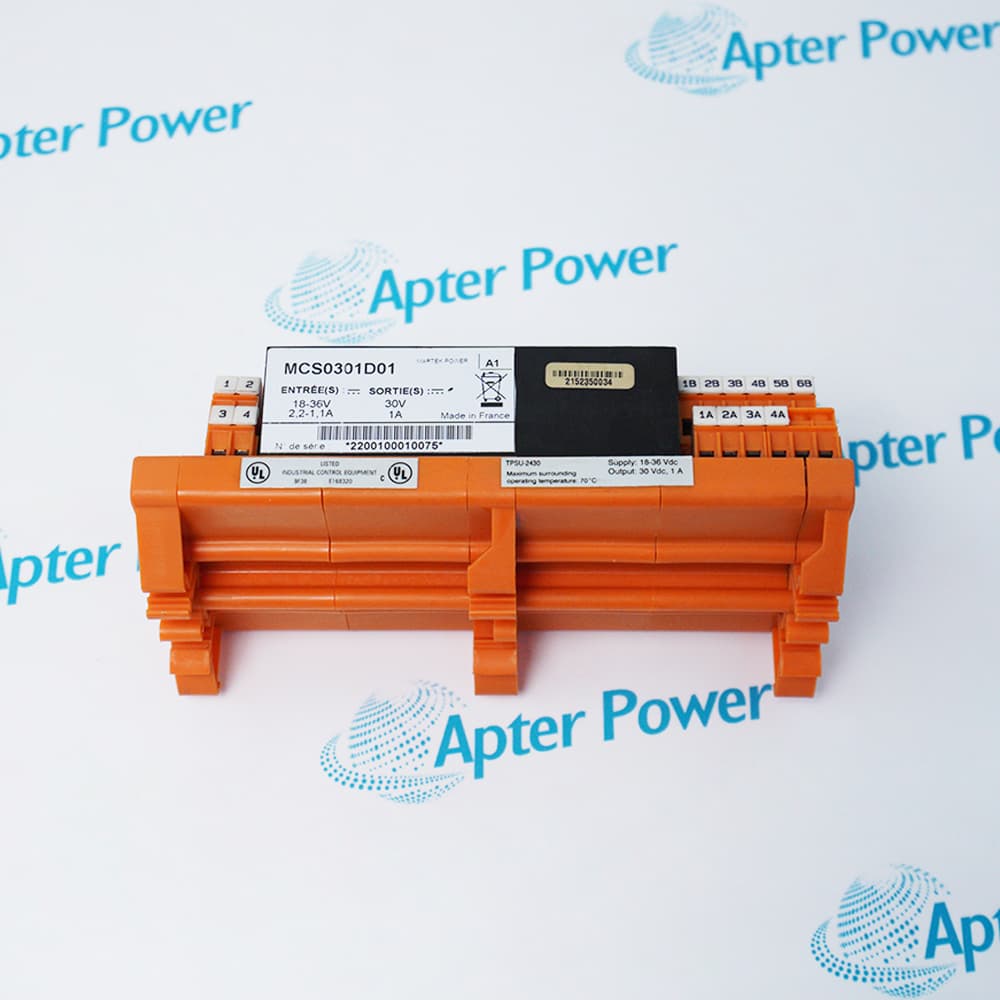

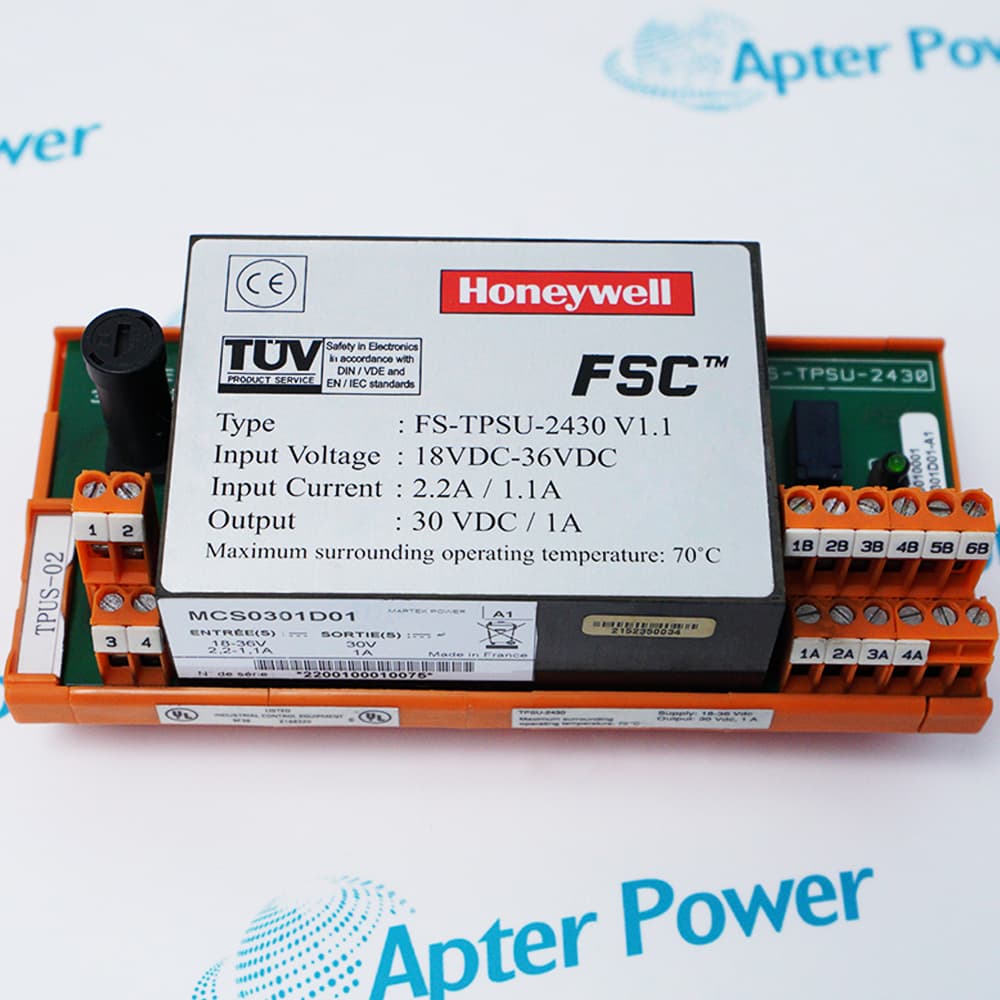

The FS-TPSU-2430 V1.1 operates as the dedicated DC/DC converter module within Honeywell's field termination assembly architecture, providing reliable isolated 30 Vdc / 1 A power to connected FTA modules. It continuously converts incoming 24 Vdc power to regulated 30 Vdc output and distributes this isolated power through dedicated connections to support steady state operation of analog input FTAs such as the FTA-T-14, FS-TSAI1620m, FS-TSHART-1620m, and the active analog input FTA module FTA-T-16. Real-time voltage monitoring is standard with the FS-TPSU-2430 V1.1, with local LED indication providing immediate visual status feedback to operators and maintenance personnel. Additionally, the FS-TPSU-2430 V1.1 incorporates alarm functionality via a read-back relay contact, ensuring that the system receives prompt notification when the local DC/DC output voltage requires attention.
The FS-TPSU-2430 V1.1 provides essential power conversion and monitoring functions critical to the proper operation of the field termination assembly network, directly affecting the reliability and accuracy of analog signal processing across the system. One FS-TPSU-2430 V1.1 module is typically deployed per FTA power distribution point, depending on the specific configuration and power requirements of the connected termination assemblies. The FS-TPSU-2430 V1.1 is designed for direct integration into the FTA power architecture, serving as a compact and efficient power conversion solution that delivers consistent isolated output while maintaining minimal installation footprint within the control system cabinet.
For comprehensive power supervision applications, the FS-TPSU-2430 V1.1 employs integrated voltage monitoring circuitry that continuously evaluates the health of the DC/DC output. The module's diagnostic system actively tracks output voltage levels against established operational thresholds. If the FS-TPSU-2430 V1.1 detects that the local DC/DC output voltage has deviated from acceptable parameters (outside normal operating levels), the LED status indication will change accordingly and the read-back relay contact will transition to indicate the fault condition, enabling rapid fault identification and corrective action. Using this method, the FS-TPSU-2430 V1.1 ensures continuous power quality assurance and provides clear diagnostic feedback essential for maintaining uninterrupted process monitoring operations.
The FS-TPSU-2430 V1.1 Honeywell Converter Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FS-TPSU-2430 V1.1 Converter module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell FS-TPSU-2430 V1.1 Converter module Specs
General
- Manufacturer Honeywell
- Model FS-TPSU-2430 V1.1
- Condition New Original ready stock
- Product Family FS-TPSU-2430,FTA-T-15
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Powering Analog Input FTAs: Specifically designed for modules like the TSAI-1620m and TSHART-1620m.
- Voltage Boosting: Used in systems with a standard 24 VDC supply that need to boost voltage to 30 VDC for specific sensors or actuators.
- Safety Production: Employed in large-scale petrochemical plants and industrial automation for complex safety control applications.
- Voltage Monitoring: Features real-time voltage status monitoring with a local LED indicator (LED on = Output OK).
- Alarm Functions: Provides an integrated read-back relay contact that closes when output voltage is healthy and opens to signal a fault.
- Electrical Protection: Equipped with undervoltage detection, overvoltage protection, and a short-circuit current limit of < 3.3 A.
- Isolation: Provides 1500 VDC isolation to separate input and output circuits, reducing noise and improving safety.
- Safety Integrity: Rated up to SIL3 (Safety Integrity Level 3) according to IEC 61508 and IEC 61511.
- Global Approvals: CE, TUV, UL, CSA, and FM certified for use in hazardous and regulated environments.
- Reliability: Boasts an MTBF (Mean Time Between Failures) of approximately 400,000 hours.
