330980-71-BR

/ 4.9
1001 reviews | Need a Specific Revision?

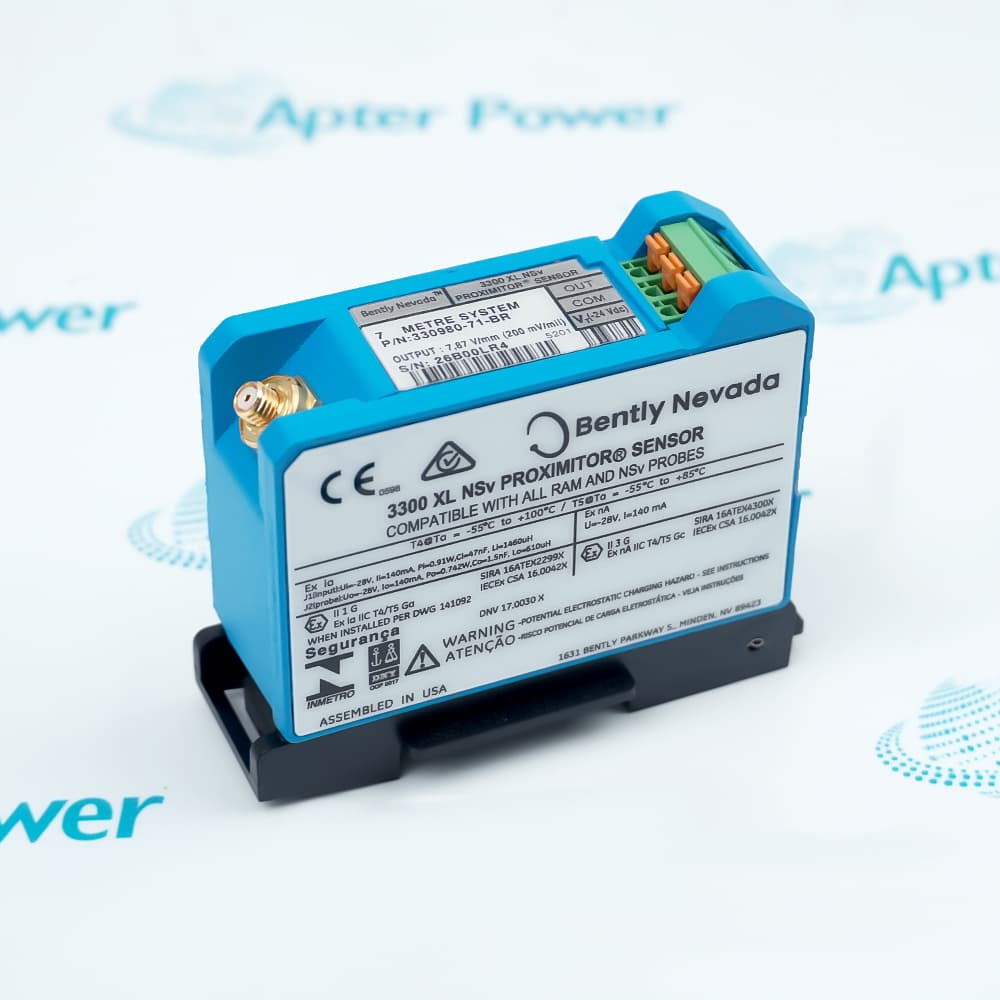

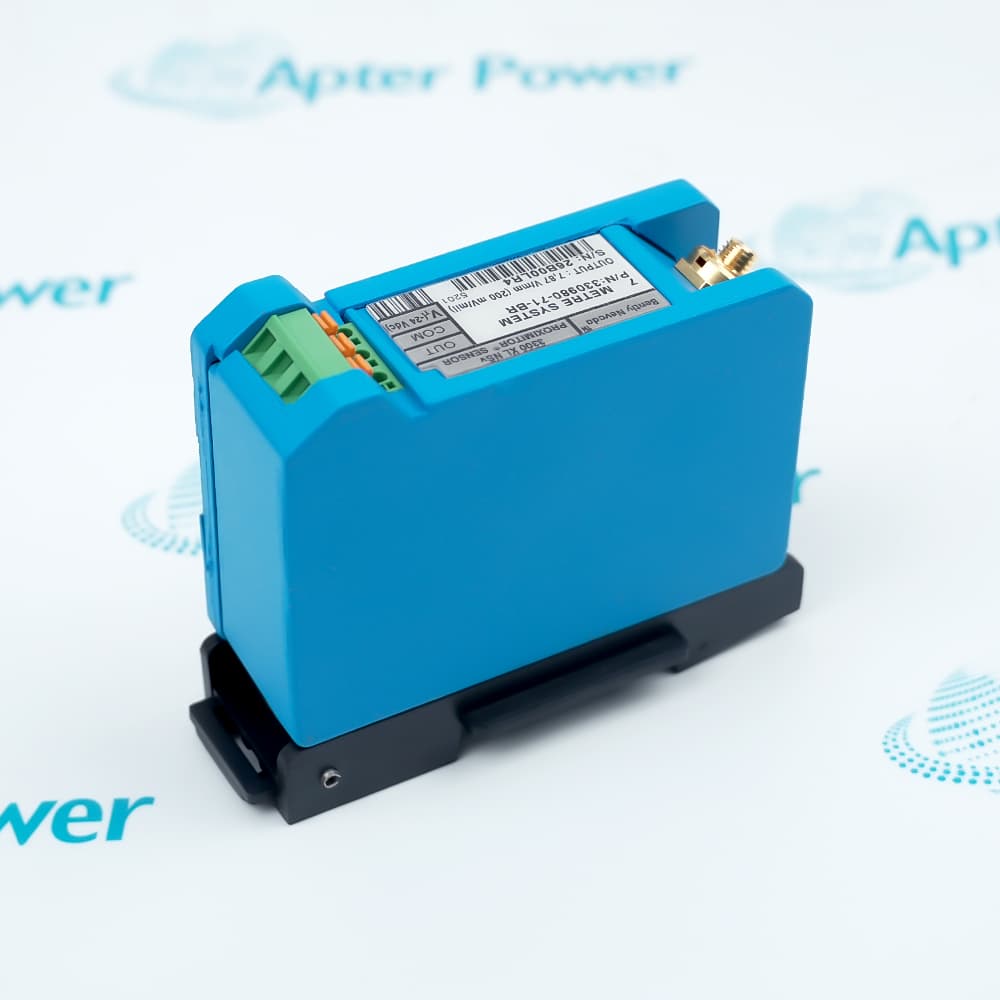

Bently Nevada 330980-71-BR 3300 XL NSv Proximitor Sensor for a 7.0 m transducer system, DIN-rail mounting and the BR Brazil country-specific approval option.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 330980-71-BR
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330980-71-BR

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330980-71-BR
  • Product Family:
    NSV Proximitor Sensor
  • Product Type:
    NSV Proximitor Sensor
  • Stock:
    1
  • Transducer System:
    3300 XL NSv Proximity Transducer System
  • Component Type:
    3300 XL NSv Proximitor Sensor
  • System Length:
    7.0 m (23.0 ft), including probe and extension cable
  • Mounting Option:
    DIN-rail mount
  • Approval Option:
    BR - Brazil country-specific ordering option
  • Sensor Input:
    Compatible 3300 RAM or 3300 NSv probe and extension cable
  • Power Requirement:
    -17.5 to -26 Vdc without barriers; 12 mA maximum
  • Output Resistance:
    50 ohm
  • Scale Factor:
    7.87 V/mm (200 mV/mil), +12.5%/-20%
  • Frequency Response:
    0 to 10 kHz, +0/-3 dB typical
  • Operating Temperature:
    -52 to +100 C (-62 to +212 F)
  • Weight:
    0.255 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    United States
  • Place of shipment:
    Ships within 3 working days after order confirmation.
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Safety & Compliance Performance & Efficiency Installation & Integration

Features:

  • Provides signal conditioning for eddy-current non-contact radial vibration, axial position, and speed measurements.
  • Compact, thin housing supports both high-density 35 mm DIN-rail mounting and traditional panel mount setups.
  • Enhanced RFI/EMI immunity prevents adjacent high-frequency radio interference without requiring special enclosures.
The Bently Nevada 330980-71-BR is currently supplied as a brand-new, original 3300 XL NSv Proximitor Sensor unit configured with DIN-rail mounting hardware.

Designed for installation in tight counterbore, sideview, or rearview spaces, this sensor performs precise dynamic gap and shaft displacement monitoring on high-speed turbomachinery.

System integration requires matching this 7.0-meter tuned sensor with a compatible 3300 NSv probe and extension cable combination to achieve a nominal 7.87 V/mm (200 mV/mil) scale factor.

The Bently Nevada 330980-71-BR 3300 XL NSv Proximitor Sensor is fully supported by the manufacturer (OEM).
Bently Nevada 330980-71-BR Manuals and Datasheets Important Notice: Probes, extension cables, monitors, barriers, isolators and mounting accessories are not included unless listed in the stock item description.
  • Centrifugal air, process gas, and industrial refrigeration compressor shaft monitoring.
  • Fluid-film bearing machinery with reduced side-view clearance or small shaft diameters.
  • Tachometer, zero-speed, and Phase Reference (Keyphasor) signal processing.
  • Certified with Multiple Agency Approvals (-BR) for international hazardous area installations.
  • Meets European EMC Directive 2014/30/EU standards including EN 61000-6-2 and EN 61000-6-4.
  • Holds SIL 2 (HFT=0) and SIL 3 (HFT=1) functional safety ratings for safety instrumented systems.
  • Delivers an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil) across a 1.5 mm linear range.
  • Maintains dynamic frequency response from 0 to 10 kHz (+0, -3 dB typical) over long field wiring runs.
  • Operates with minimal power consumption under a nominal power supply input of -17.5 Vdc to -26 Vdc.
  • Configured specifically for 7.0-meter (23.0 feet) total system electrical length tuning.
  • Equipped with 35 mm DIN-rail mounting hardware for compact panel enclosure installations.
  • Features toolless SpringLoc terminal strips for fast, secure three-conductor shielded wiring connections.
Description
Bently Nevada 330980-71-BR is a high-performance 3300 XL NSv Proximitor Sensor designed for non-contact radial vibration, axial thrust position, and speed measurements in critical industrial machinery. Engineered specifically for tight clearance installations, this sensor excels in applications with restricted counterbore, sideview, or small shaft geometries, such as centrifugal air compressors and refrigeration equipment.

This compact proximity module utilizes advanced eddy-current measurement technology to provide precise continuous machine condition monitoring with enhanced RFI/EMI immunity. Operating with a 7.0-meter total system length, the unit processes signal conditioning reliably across demanding operating environments while supporting high-density 35 mm DIN-rail mounting for streamlined cabinet integration.

Configured with multi-approval hazardous area certifications (-BR), the Bently Nevada 330980-71-BR complies with international safety standards including ATEX, IECEx, and INMETRO for Zone 2 and Division 2 field installations. The durable housing design ensures long-term performance stability and seamless connection within complete 3300 XL NSv transducer monitoring networks.
Alternative Names
Bently Nevada 330980-71-BR 3300 XL NSv Proximitor Sensor 330980-71-BR 330980 71 BR Proximity Sensor Driver 33098071BR DIN Rail Proximitor Bently Nevada 7 m NSv Proximitor Sensor Bently Nevada 330980 DIN Mount Sensor 330980-71-BR Brazil Approval Proximitor 3300 XL NSv 7 m DIN Mount Proximitor
Technical notes
The Bently Nevada 330980-71-BR is a 3300 XL NSv Proximitor sensor. It is designed for use with a 3300 NSv probe and extension cable (total length of 7.0 meters) and includes the necessary Brazilian approval documentation for installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Bently Nevada 330980-71-BR?
It is a 3300 XL NSv Proximitor Sensor configured for a 7.0 m transducer system, DIN-rail mounting and the BR country-specific approval option.
What does option 71 specify in 330980-71-BR?
Option 71 specifies a 7.0 m (23.0 ft) system length and DIN-rail mounting.
What does the BR approval code mean in 330980-71-BR?
BR is the Brazil country-specific approval ordering option listed for part family 330980 in the current Bently Nevada Approvals Quick Reference Guide.
Is 330980-71-BR a proximity probe?
No. It is the Proximitor Sensor that conditions the signal from a compatible 3300 RAM or 3300 NSv probe and extension cable.
Which transducer components can connect to 330980-71-BR?
It accepts a non-contacting 3300 RAM or 3300 NSv proximity probe with the matching extension cable.
What should be verified before installing 330980-71-BR?
Verify the matched 7.0 m loop, DIN-rail mounting space, Brazilian approval documentation, wiring, barrier or isolator arrangement and project requirements.
