Features:
- RS-232 and RS-485/RS-422 serial interfaces
- RS-485/RS-422 operation through 2 Mbaud
- 5 VDC supply with 500 mA maximum current
FC-DCOM-232/485 is the Honeywell catalog number, while FS-DCOM-232/485 is the corresponding identifier carried by the documented communication FTA.
The interface supports transparent, FM0, FM1, and Manchester transmission modes across the applicable RS-232 or RS-485/RS-422 connection to Safety Manager hardware.
Wiring preparation should verify interface selection, pin assignment, baud rate, pair polarity, shielding and grounding, 5 VDC supply capacity, and DIN-rail space.
Apter Power can quote the Honeywell FC-DCOM-232/485 FS-DCOM-232/485 DCOM-232/485 Communication Interface FTA and review serial wiring requirements.

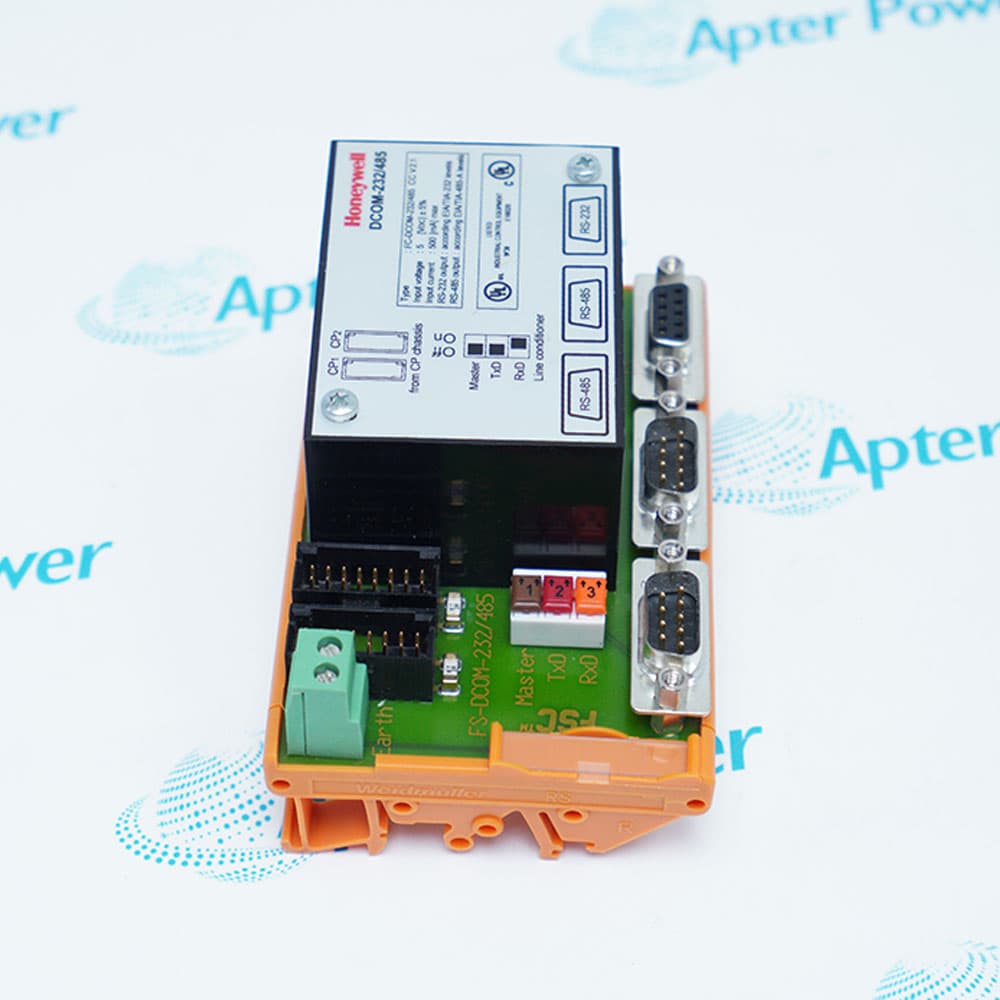

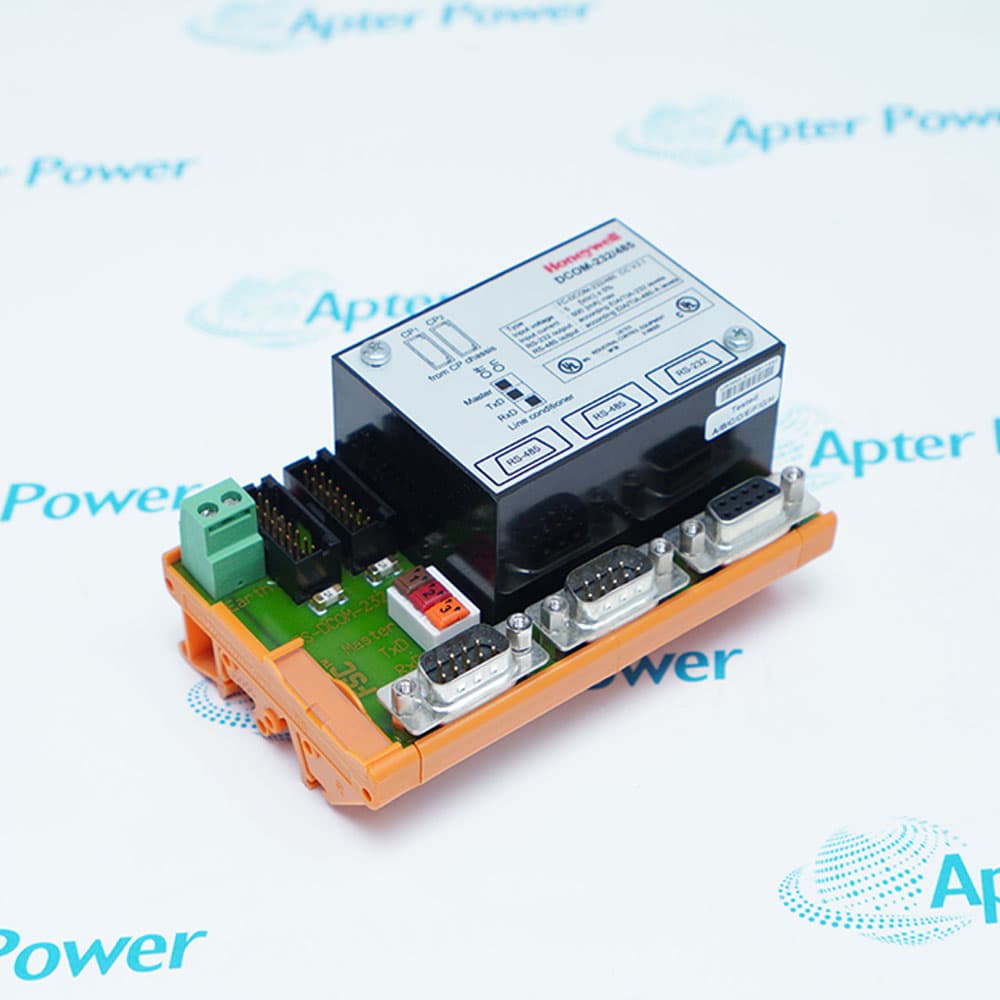

Honeywell FC-DCOM-232/485 FS-DCOM-232/485 DCOM-232/485 Communication Interface FTA Manuals, Datasheets, Links
Honeywell FC-DCOM-232/485 FS-DCOM-232/485 DCOM-232/485 Communication Interface FTA Specs
General
- Manufacturer Honeywell
- Model FC-DCOM-232/485 FS-DCOM-232/485
- Condition New and Original
- Product Family Safety Manager
- RS-232: The interface follows EIA/TIA-232 requirements.
- RS-485/422: The differential interface follows EIA/TIA-485-A requirements.
- RS-232 rate: The documented range extends through 250 kBaud.
- RS-485 rate: The documented range extends through 2 Mbaud.
- Supply: The module requires 5 VDC within +/-5%.
- Current: Maximum documented current consumption is 500 mA.
- Rail: Installation supports TS32 or TS35 x 7.5 DIN rail.
- Space: The module uses 117 mm of rail length.
- Identity: Compare FC-DCOM and FS-DCOM identifiers on records and hardware.
- Mode: Select transparent, FM0, FM1, or Manchester as documented.
- Polarity: Check serial conductor assignments and differential polarity.
- Grounding: Follow the Safety Manager grounding and cable-routing instructions.
