    Apter Power handles 330500-02-00 pricing, verified documentation, sourcing support, and integration guidance.

330500-02-00

/ 4.9
1001 reviews | Need a Specific Revision?

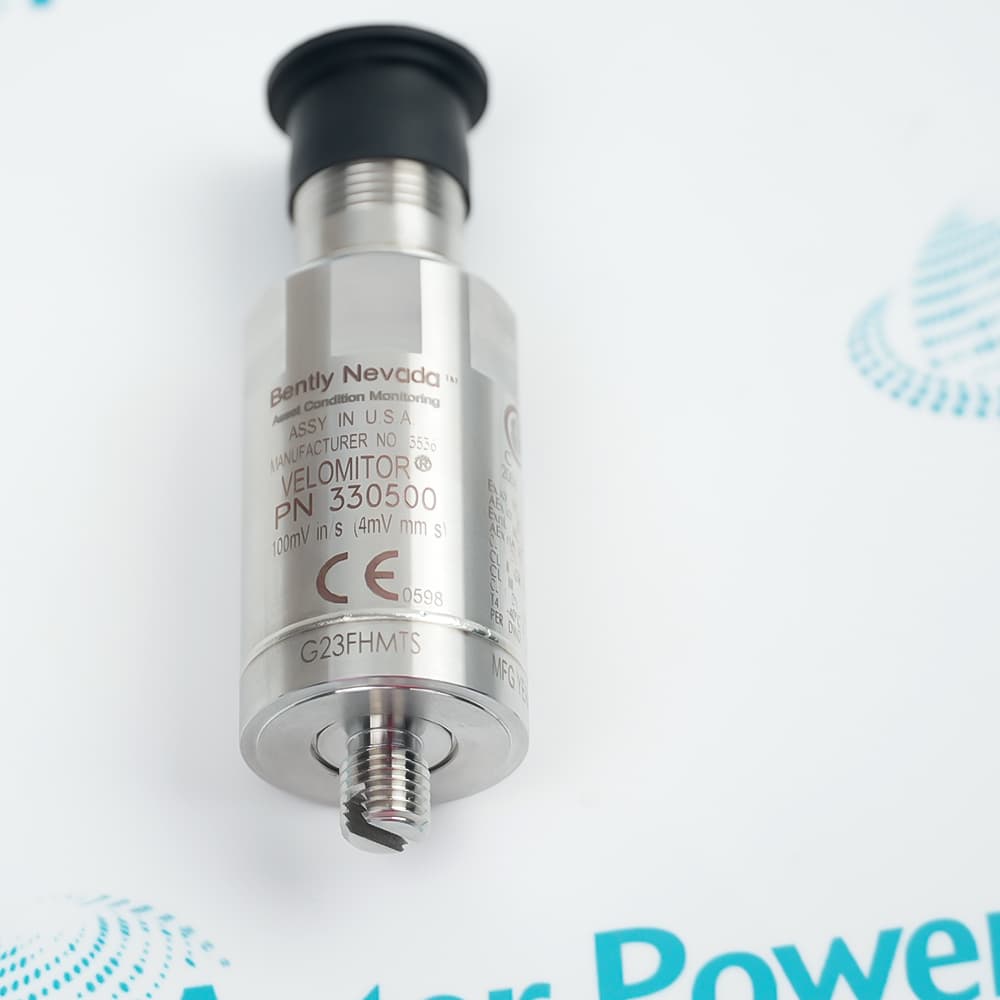

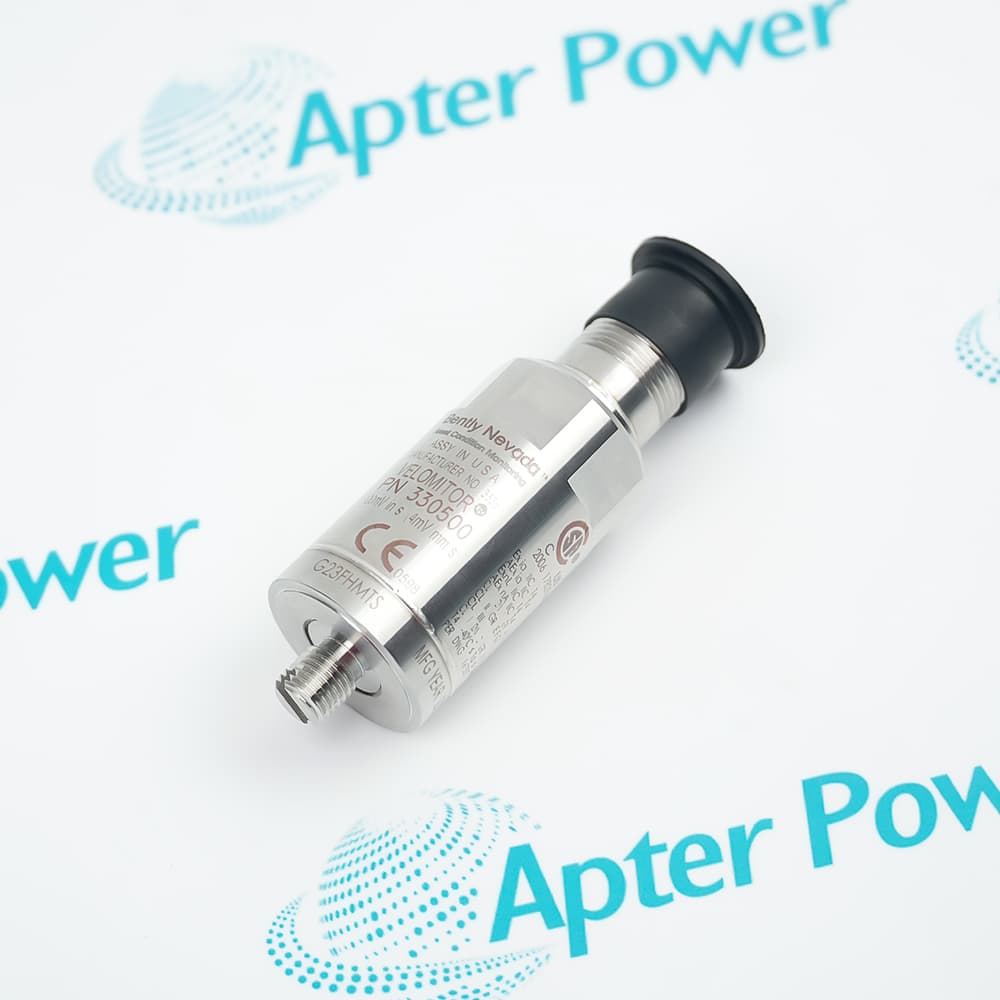

Bently Nevada 330500-02-00 is a 330500 Velomitor piezo-velocity sensor supplied with M8 x 1 adapter and agency approval not required.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 330500-02-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330500-02-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330500-02-00
  • Product Family:
    330500 Velomitor Piezo-velocity Sensor
  • Product Type:
    330500 Velomitor Piezo-velocity Sensor
  • Stock:
    1
  • Mounting Adapter:
    M8 x 1 adapter
  • Sensitivity:
    100 mV/in/s +/-5%
  • Frequency Response:
    4.5 Hz to 5 kHz +/-3.0 dB
  • Velocity Range:
    50 in/s peak
  • Connector:
    2-pin MIL-C-5015 hermetically sealed
  • Case Material:
    316L stainless steel
  • Operating Temperature:
    -55 to +121 deg C
  • Agency Approval:
    agency approval not required
  • Weight:
    142 g typical
  • Weight:
    0.142 kg
  • Estimated shipping dimensions:
    25.3 mm diameter x 63.2 mm height
  • Tariff Code:
    9031809090
  • Country of origin:
    United States
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications 00020031 Velocity Code 00020031 Monitor Fit 00020031 Adapter Checks

Product overview:

  • Mounting adapter: M8 x 1 adapter.
  • Velocity sensitivity: 100 mV/in/s.
  • Orientation: vertical, horizontal, or another suitable angle.

Bently Nevada 330500-02-00 is a 330500 Velomitor piezo-velocity sensor supplied with M8 x 1 adapter and agency approval not required.

Connect the sensor to a compatible machinery-monitor velocity input using the specified shielded interconnection cable.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Bently Nevada 330500-02-00 Specifications

General

  • ManufacturerBently Nevada
  • Model330500-02-00
  • ConditionNew and factory sealed
  • Product Family330500 Velomitor Piezo-velocity Sensor

Velomitor ordering fields

  • Adapter field: 02 specifies M8 x 1 adapter.
  • Approval field: 00 specifies agency approval not required.
  • Sensor family: 330500 solid-state Velomitor piezo-velocity sensor.

Retain the complete 330500-02-00 order code when requesting this configuration.

Velocity-channel compatibility

  • Monitor input: Use a compatible powered velocity-transducer channel.
  • Interconnection: Use the specified shielded cable and maintain connector sealing.
  • Signal polarity: Pin A becomes positive relative to Pin B for motion toward the connector.

Confirm the mating chain and application requirements for 330500-02-00 before commissioning.

Adapter installation checks

  • Mounting torque: 24 to 40 in-lb maximum range.
  • Mounting surface: Use a rigid prepared bearing-housing or casing location.
  • Cable route: Protect the connector and shielded cable from strain and interference.

Use the selected thread adapter, apply 24 to 40 in-lb mounting torque, protect the connector, and verify signal polarity.

Description

Bently Nevada 330500-02-00 is a 330500 Velomitor piezo-velocity sensor supplied with M8 x 1 adapter and agency approval not required.

The solid-state piezoelectric sensor measures absolute bearing-housing, casing, or structural vibration in any mounting orientation.

Connect the sensor to a compatible machinery-monitor velocity input using the specified shielded interconnection cable.

Alternative Names
Bently Nevada 330500-02-00 Baker Hughes Bently Nevada 330500-02-00 Bently 330500-02-00 330500-02-00 330500 Velomitor Piezo-velocity Sensor 3305000200 Bently Nevada part 330500-02-00 datasheet 330500-02-00 technical specifications 330500 Velomitor Piezo-velocity Sensor 330500-02-00
Technical notes
330500-02-00: Connect the sensor to a compatible machinery-monitor velocity input using the specified shielded interconnection cable. Use the selected thread adapter, apply 24 to 40 in-lb mounting torque, protect the connector, and verify signal polarity.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should a purchaser confirm for 330500-02-00?
Confirm the exact part number, approval option, mating components, and installation requirements for 330500-02-00.
What exact configuration does 330500-02-00 specify?
Bently Nevada 330500-02-00 is a 330500 Velomitor piezo-velocity sensor supplied with M8 x 1 adapter and agency approval not required.
How should engineers identify 330500-02-00 before ordering?
Use the complete order code 330500-02-00; its option fields define the supplied configuration.
Which published electrical characteristic applies to 330500-02-00?
Sensitivity: 100 mV/in/s +/-5%.
What mechanical detail matters when installing 330500-02-00?
Use the selected thread adapter, apply 24 to 40 in-lb mounting torque, protect the connector, and verify signal polarity.
Which system components must be checked with 330500-02-00?
Connect the sensor to a compatible machinery-monitor velocity input using the specified shielded interconnection cable.
What approval option is encoded in 330500-02-00?
agency approval not required
Where is 330500-02-00 normally applied?
It measures absolute bearing-housing, casing, or structural vibration for machinery monitoring.
