330525-00

/ 4.9
1001 reviews | Need a Specific Revision?

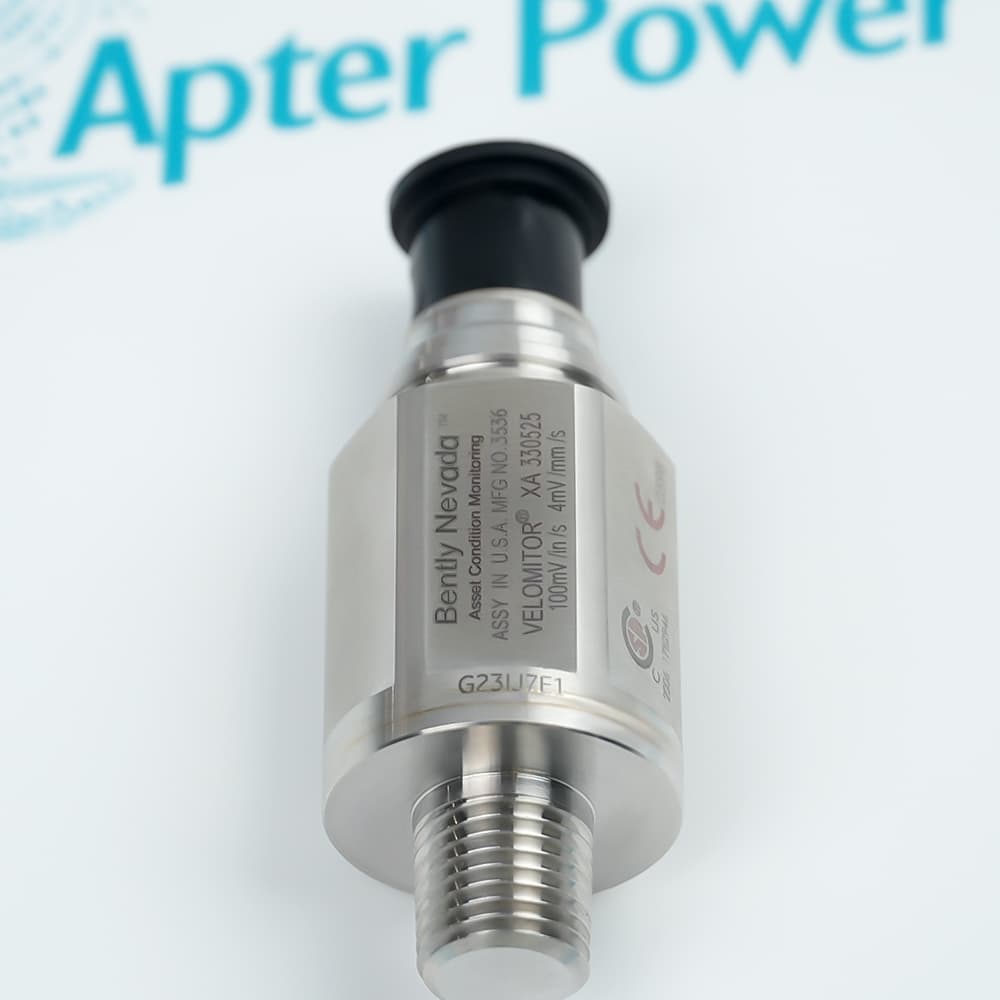

Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor with 1/4-18 NPT mounting, 100 mV/in/s sensitivity, and no agency approval.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for 330525-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330525-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330525-00
  • Product Family:
    330500 Velomitor Piezo-velocity Sensor
  • Product Type:
    Velomitor XA Piezo-velocity Sensor
  • Stock:
    1
  • Mounting Thread:
    1/4-18 NPT
  • Sensitivity:
    100 mV/in/s +/-5%
  • Frequency Response:
    4.5 to 2,000 Hz +/-3.0 dB
  • Velocity Range:
    50 in/s peak
  • Connector:
    2-pin MIL-C-26482 hermetically sealed
  • Case Material:
    316L stainless steel
  • Operating Temperature:
    -55 to +121 deg C
  • Agency Approval:
    None required
  • Weight:
    156 g typical
  • Weight:
    0.156 kg
  • Estimated shipping dimensions:
    28 mm diameter x 73.1 mm height
  • Tariff Code:
    9031809090
  • Country of origin:
    United States
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications 05250033 XA Code 05250033 Cable Match 05250033 Seal Checks

Product overview:

  • Velocity sensitivity: 100 mV/in/s.
  • Rugged interface: hermetically sealed MIL-C-26482 connector.
  • Mounting: 1/4-18 NPT for harsh-environment casing measurements.

Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor with 1/4-18 NPT mounting, 100 mV/in/s sensitivity, and no agency approval.

Use the specified two-conductor shielded interconnect cable and a compatible machinery-monitor velocity input.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

Bently Nevada 330525-00 Specifications

General

  • ManufacturerBently Nevada
  • Model330525-00
  • ConditionNew and factory sealed
  • Product Family330500 Velomitor Piezo-velocity Sensor

Velomitor XA ordering code

  • Model code: 330525 identifies the Velomitor XA ruggedized velocity sensor.
  • Approval field: 00 specifies that an agency approval is not required.
  • Mounting interface: 1/4-18 NPT integral mounting thread.

Retain the complete 330525-00 order code when requesting this configuration.

Cable and monitor matching

  • Cable type: Use the specified shielded Velomitor XA interconnect cable.
  • Monitor input: Connect to a compatible velocity channel with appropriate power and signal conditioning.
  • Signal polarity: Pin A becomes positive relative to Pin B for motion toward the connector.

Confirm the mating chain and application requirements for 330525-00 before commissioning.

Harsh-environment installation

  • Mounting torque: 45 N-m maximum.
  • Cable bend radius: 1.5 in minimum.
  • Connector protection: Maintain the splash-resistant boot and cable sealing where required.

Apply no more than 45 N-m mounting torque, keep at least a 1.5 in cable bend radius, and preserve connector sealing.

Description

Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor with 1/4-18 NPT mounting, 100 mV/in/s sensitivity, and no agency approval.

Its ruggedized 316L stainless-steel construction measures absolute bearing-housing, casing, or structural vibration.

Use the specified two-conductor shielded interconnect cable and a compatible machinery-monitor velocity input.

Alternative Names
Bently Nevada 330525-00 Baker Hughes Bently Nevada 330525-00 Bently 330525-00 330525-00 Velomitor XA Piezo-velocity Sensor 33052500 Bently Nevada part 330525-00 datasheet 330525-00 technical specifications 330500 Velomitor Piezo-velocity Sensor 330525-00
Technical notes
330525-00: Use the specified two-conductor shielded interconnect cable and a compatible machinery-monitor velocity input. Apply no more than 45 N-m mounting torque, keep at least a 1.5 in cable bend radius, and preserve connector sealing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should engineers identify 330525-00 before ordering?
Use the complete order code 330525-00; its option fields define the supplied configuration.
Which published electrical characteristic applies to 330525-00?
Sensitivity: 100 mV/in/s +/-5%.
What mechanical detail matters when installing 330525-00?
Apply no more than 45 N-m mounting torque, keep at least a 1.5 in cable bend radius, and preserve connector sealing.
Which system components must be checked with 330525-00?
Use the specified two-conductor shielded interconnect cable and a compatible machinery-monitor velocity input.
What approval option is encoded in 330525-00?
no agency approval
Where is 330525-00 normally applied?
It measures absolute bearing-housing, casing, or structural vibration in rugged machinery environments.
What should a purchaser confirm for 330525-00?
Confirm the exact part number, approval option, mating components, and installation requirements for 330525-00.
What exact configuration does 330525-00 specify?
Bently Nevada 330525-00 is a Velomitor XA piezo-velocity sensor with 1/4-18 NPT mounting, 100 mV/in/s sensitivity, and no agency approval.
