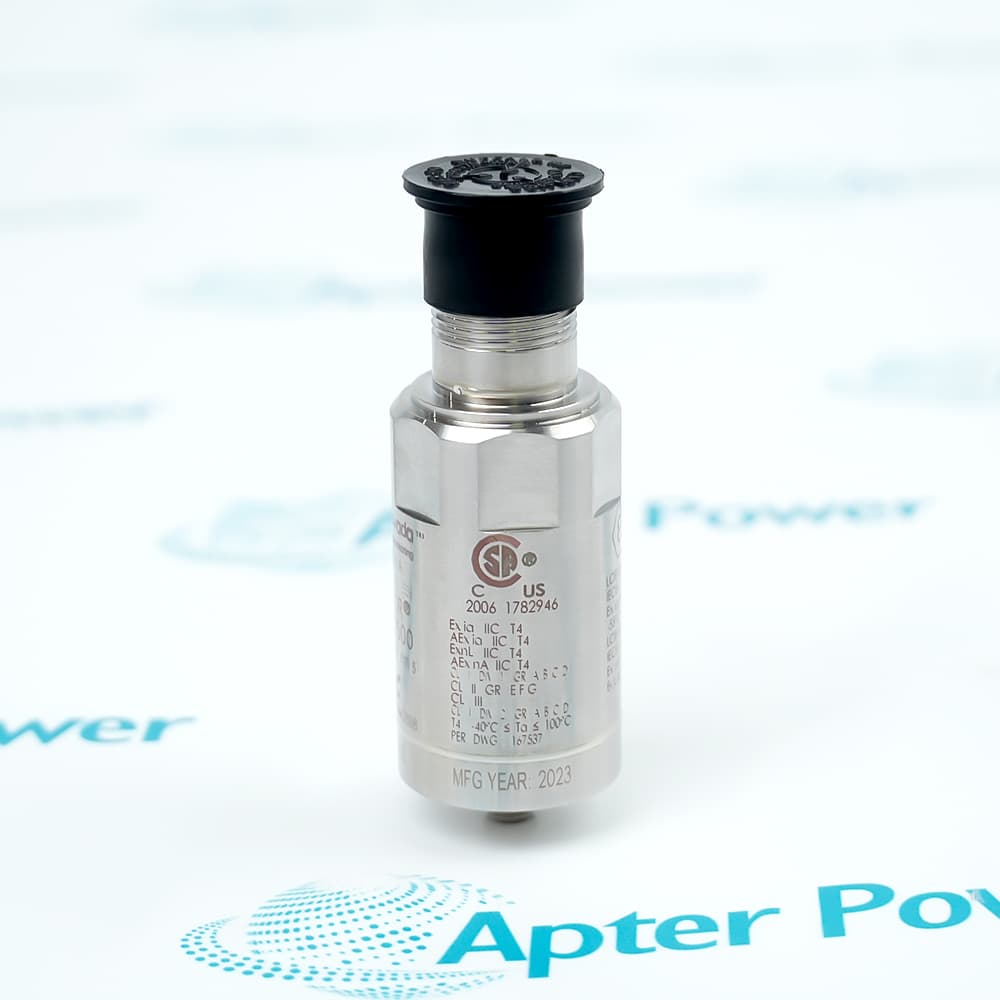

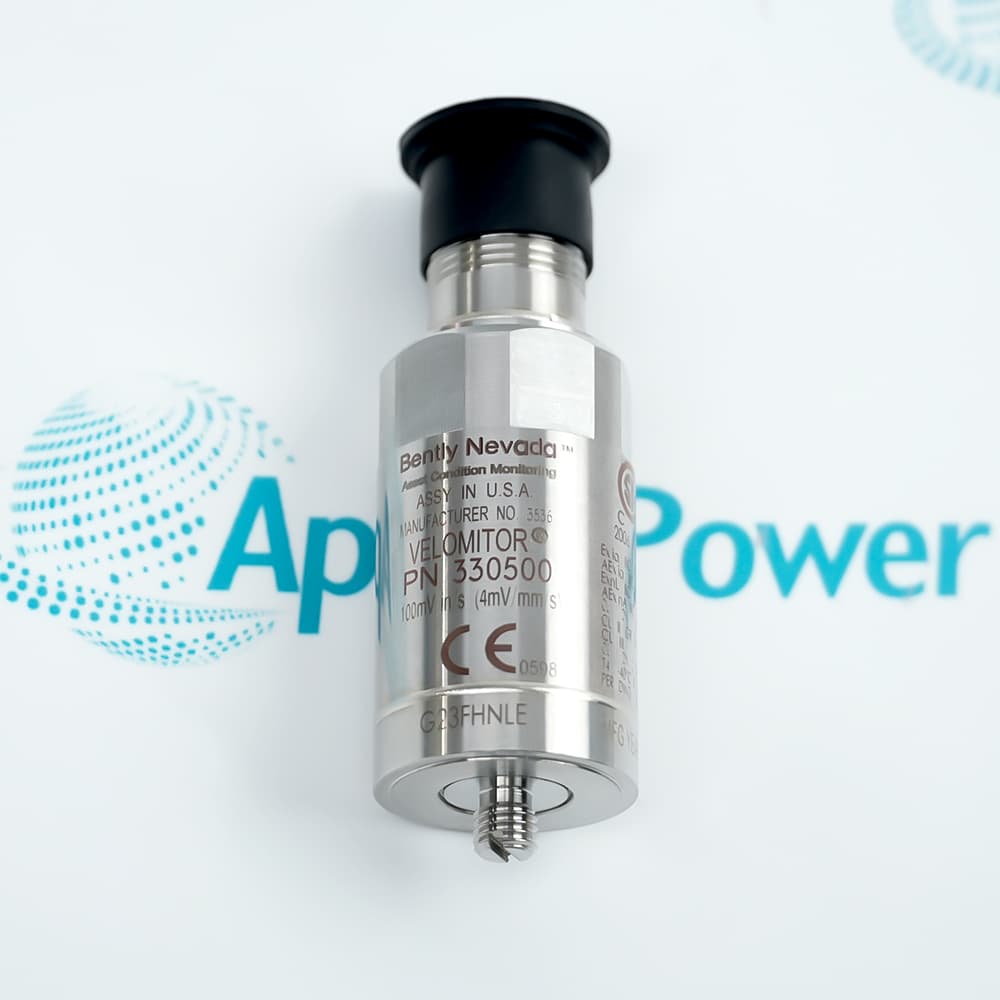

The Bently Nevada 330500-03-04 is a Velomitor Piezo-velocity Sensor with a 1/4-28 UNF mounting adapter and multiple approvals for absolute bearing-housing, casing and structural vibration measurement.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330500-03-04
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330500-03-04

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330500-03-04
  • Product Family:
    330500 Velomitor Piezo-velocity Sensor
  • Product Type:
    Velomitor Piezo-velocity Sensor
  • Stock:
    1
  • Sensitivity:
    3.94 mV/mm/s (100 mV/in/s), +/-5%
  • Frequency Response:
    4.5 Hz to 5 kHz, +/-3 dB
  • Velocity Range:
    1270 mm/s peak (50 in/s peak)
  • Operating Temperature:
    -55 to +121 degrees C
  • Connector:
    2-pin MIL-C-5015
  • Mounting Adapter:
    1/4-28 UNF
  • Housing:
    316L stainless steel
  • Approval Option:
    04 - Multiple Approvals
  • Weight:
    0.142 kg
  • Estimated shipping dimensions:
    6.32 x 2.53 x 2.53 cm
  • Tariff Code:
    90318090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance Construction Applications

Features:

  • Integrated piezoelectric velocity sensor
  • 100 mV/in/s nominal sensitivity
  • 1/4-28 UNF mounting adapter and two-pin MIL-C-5015 connector
The Bently Nevada 330500-03-04 is a Velomitor Piezo-velocity Sensor. Its solid-state piezoaccelerometer and embedded integration electronics produce a velocity signal. The sensor is intended for absolute bearing-housing, casing and structural vibration measurement. It is particularly suited to rolling-element-bearing machinery.

The 330500-03-04 has a nominal sensitivity of 3.94 mV/mm/s, equivalent to 100 mV/in/s. The documented tolerance is plus or minus 5 percent. Frequency response is 4.5 Hz to 5 kHz at plus or minus 3 dB. The peak velocity range is 1270 mm/s.

The 330500-03-04 uses a 316L stainless-steel housing and a two-pin MIL-C-5015 connector. Order option 03 provides a 1/4-28 UNF mounting-thread adapter. Option 04 identifies the multiple-approval configuration. Follow the official mounting and cabling requirements for the selected monitoring channel.

Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor is included in Baker Hughes current product and datasheet resources. Apter Power can provide quotation, sourcing assistance and application-document support; stock and lead time are subject to confirmation.
Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330500-03-04 Velomitor Piezo-velocity Sensor Specs

General

  • Manufacturer Bently Nevada
  • Model 330500-03-04
  • Condition New Original ready stock
  • Product Family 330500 Velomitor Piezo-velocity Sensor
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Performance:

  • Sensitivity is 3.94 mV/mm/s (100 mV/in/s), +/-5%
  • Frequency response is 4.5 Hz to 5 kHz, +/-3 dB
  • Peak velocity range is 1270 mm/s (50 in/s)

Construction:

  • 316L stainless-steel sensor housing
  • 25.3 mm diameter and 63.2 mm height
  • Typical sensor weight is 142 g

Applications:

  • Absolute vibration measurement on bearing housings
  • Casing and structural vibration monitoring
  • Use on compatible rolling-element-bearing machinery
Description
The 330500-03-04 is a Bently Nevada Velomitor Piezo-velocity Sensor that uses a solid-state piezoaccelerometer with embedded integration electronics. It measures absolute vibration of bearing housings, casings and machine structures. The 03 order option supplies a 1/4-28 UNF mounting-thread adapter, and option 04 identifies multiple approvals.

The 330500-03-04 has a nominal sensitivity of 3.94 mV/mm/s, equivalent to 100 mV/in/s, with a documented tolerance of plus or minus 5 percent. Its frequency response is 4.5 Hz to 5 kHz at plus or minus 3 dB, and the peak velocity range is 1270 mm/s. The official operating temperature range is -55 to +121 degrees C.

The 330500-03-04 uses a two-pin MIL-C-5015 connector and a 316L stainless-steel housing. The manufacturer lists a typical weight of 142 g, a diameter of 25.3 mm and a height of 63.2 mm. Select the installation location, mounting hardware and compatible monitoring channel from the official Velomitor documentation.
Alternative Names
330500 03 04 3305000304 Bently Nevada 330500-03-04 Bently-Nevada 330500-03-04 BN 330500-03-04 Velomitor 330500-03-04 Piezo-velocity Sensor 330500-03-04 100 mV/in/s Sensor 330500-03-04
Technical notes
Bently Nevada 330500-03-04 is a 100 mV/in/s Velomitor sensor with a 1/4-28 UNF mounting adapter, two-pin MIL-C-5015 connector and multiple approvals. It is intended for absolute casing, bearing-housing and structural vibration measurement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the product type of 330500-03-04?
Bently Nevada 330500-03-04 is a Velomitor Piezo-velocity Sensor for absolute bearing-housing, casing and structural vibration measurement.
What is the sensitivity of 330500-03-04?
Bently Nevada 330500-03-04 has a nominal sensitivity of 3.94 mV/mm/s, equivalent to 100 mV/in/s, with plus or minus 5 percent tolerance.
What mounting adapter is supplied with 330500-03-04?
Bently Nevada 330500-03-04 uses the 03 order option for a 1/4-28 UNF mounting-thread adapter.
What connector is fitted to 330500-03-04?
Bently Nevada 330500-03-04 uses a two-pin MIL-C-5015 connector.
What applications suit 330500-03-04?
Bently Nevada 330500-03-04 is intended for absolute vibration measurement on machine bearing housings, casings and structures, especially rolling-element-bearing machines.
Where is the official document for 330500-03-04?
The Manuals tab for Bently Nevada 330500-03-04 links to the locally hosted official Velomitor datasheet.
How can I request a quote for 330500-03-04?
Send the complete Bently Nevada 330500-03-04 model and quantity to Apter Power for stock, lead-time and application confirmation.
