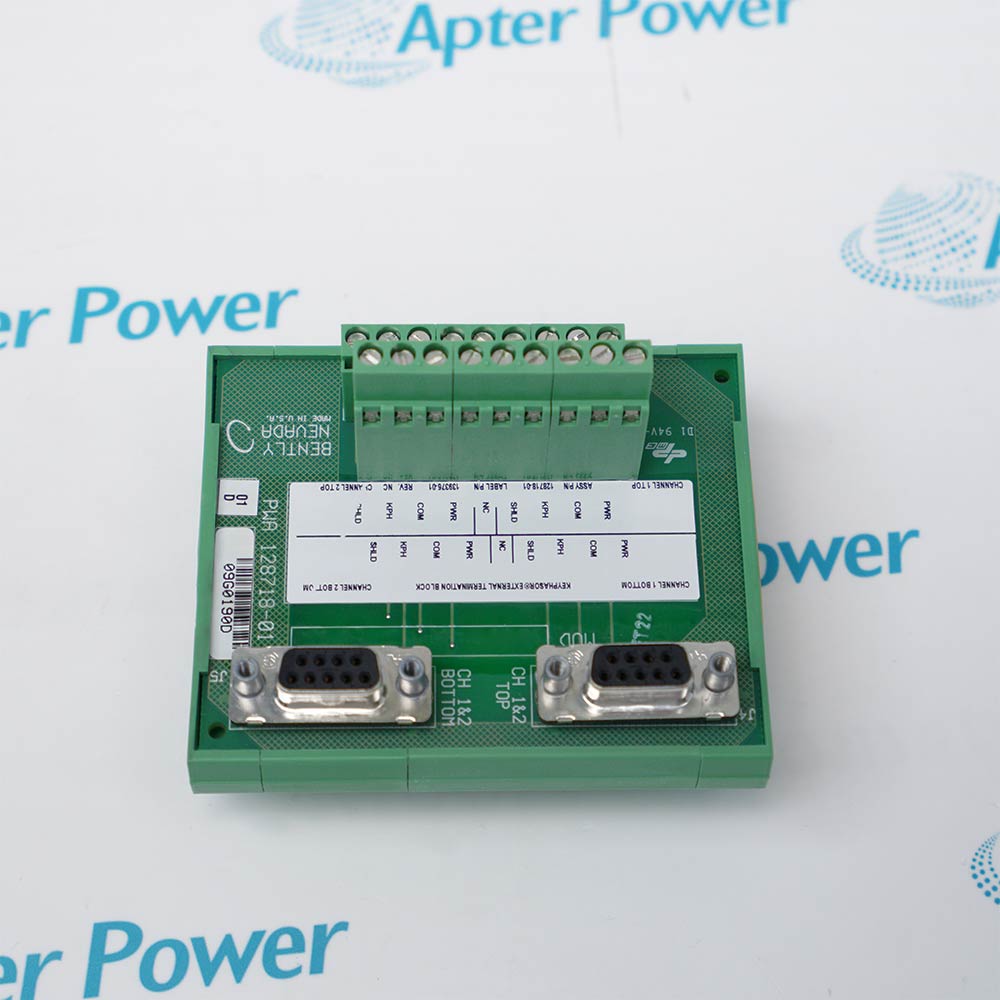

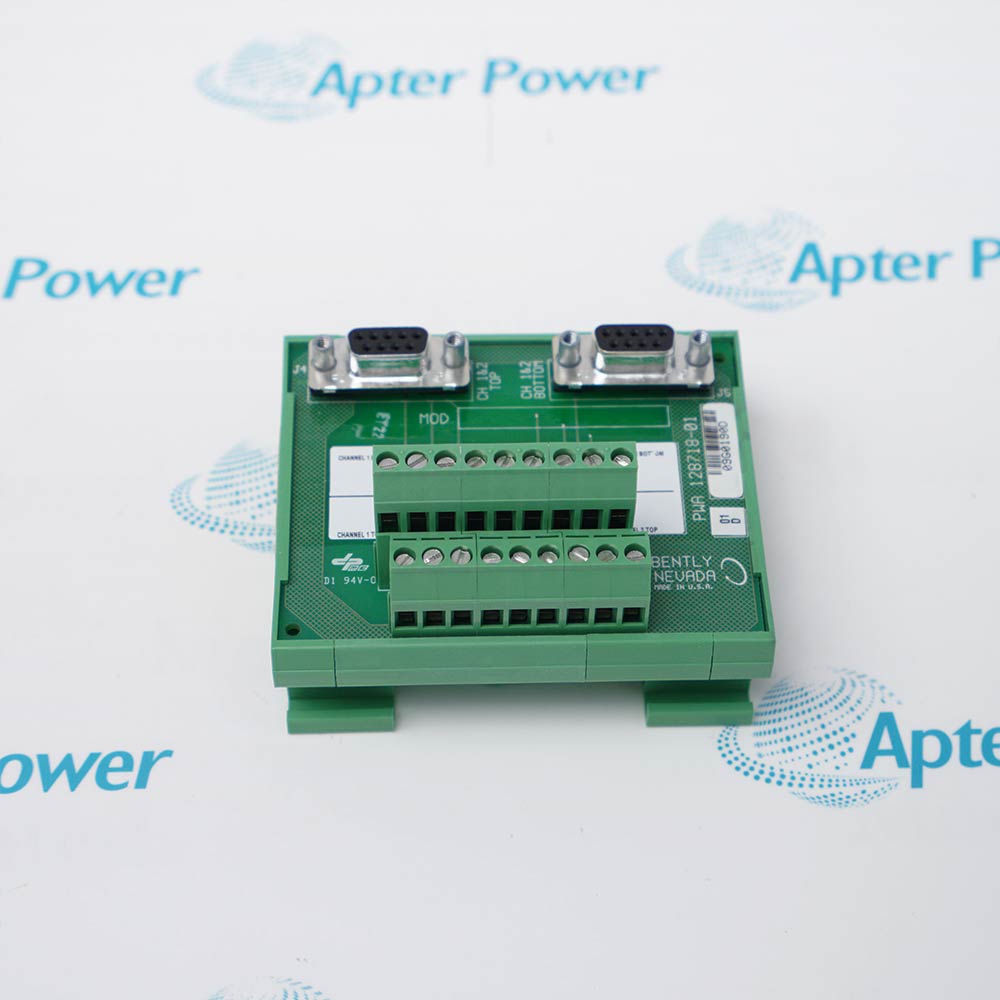

Bently Nevada 128718-01 is a Keyphasor external termination block with Euro-style connectors for the 3500/25 module's external-termination I/O configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 128718-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 128718-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    128718-01
  • Product Family:
    3500 System
  • Product Type:
    Keyphasor External Termination Block
  • Stock:
    1
  • Connector Style:
    Euro-style connectors
  • Associated Module:
    3500/25 Enhanced Keyphasor Module
  • Termination Arrangement:
    External termination
  • Required I/O Configuration:
    External-termination I/O module
  • Cable Requirement:
    Separate Keyphasor signal-to-ET-block cable
  • Ordering Scope:
    ET block and cable ordered separately
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    9x7.6x6cm
  • Tariff Code:
    8207300090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Termination Role I/O Match Cable Planning Product Applications

Features:

  • Euro-style external termination for 3500/25 Keyphasor I/O configurations.
  • Dedicated field-wiring point for the external-termination rear I/O option.
  • Separate termination hardware that keeps signal processing in the Keyphasor module.
128718-01 creates a clearly identified field-termination point for the specified external I/O arrangement.

The block keeps field connections separate from the rear I/O module, helping maintenance teams identify the correct service point.

Its Euro-style connector format distinguishes this item from terminal-strip termination-block versions during spare selection.

Apter Power supports sourcing and configuration review for the active Bently Nevada 128718-01 Keyphasor External Termination Block.
Bently Nevada 128718-01 Keyphasor External Termination Block Manuals and Resources Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Connects field Keyphasor wiring to the external-termination 3500/25 I/O arrangement.
  • Uses Euro-style connectors for the field-side landing point.
  • Acts as termination hardware while signal processing remains in the Keyphasor module.
  • Differs from the 128726-01 external block, which uses terminal-strip connectors.
  • Use with a 3500/25 I/O module ordered for external terminations.
  • Internal-termination I/O modules do not use an external termination block.
  • Match the rear I/O option before selecting the field termination hardware.
  • Retain the Euro-style connector arrangement when servicing an existing 128718-01 installation.
  • The termination block and its Keyphasor signal cable are ordered separately.
  • The 129530-AAAA-BB cable family links a Keyphasor signal to an external termination block.
  • Cable length and assembly options are selected from the installed route requirement.
  • Connector landing and cable routing should match the existing rack documentation before replacement.
  • External field termination for 3500/25 Enhanced Keyphasor module installations.
  • Termination of proximity-probe Keyphasor signals in machinery protection systems.
  • Termination of magnetic-pickup Keyphasor signals with the appropriate external I/O option.
  • Like-for-like service where the installed block is identified as 128718-01 with Euro-style connectors.
Description
The signal path for 128718-01 begins at a Euro-style field termination point rather than directly at the 3500/25 rack I/O module. The block provides the external connection point for Keyphasor transducer wiring in the specified external-termination arrangement.

Routine field wiring is separated from the rear I/O module by 128718-01, making cable termination easier to identify and service without confusing the termination block with the signal-processing module. This distinction supports clearer spare selection and more orderly maintenance work.

Selection of 128718-01 depends on a 3500/25 I/O configuration ordered for external terminations. Internal-termination I/O modules do not use this block, and the required termination cable is ordered separately, so the I/O option and cable route should match the installed rack design.
Alternative Names
Bently Nevada 128718 01 Baker Hughes 128718 01 12871801 128718-O1 128718-0I 128718-1 128718 01 ET Block Keyphasor ET Block 128718 01
Technical notes
128718-01 is the Euro-style external termination block for a 3500/25 external-termination I/O arrangement. It cannot be used with an internal-termination I/O module, and the connecting cable is a separate item. Matching the rear I/O type before quotation helps Apter Power supply the correct termination hardware for the installed rack.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can a maintenance engineer use 128718-01 with a 3500/25 external-termination I/O module?
Yes. 128718-01 is the Euro-style external termination block listed for the 3500/25 external-termination arrangement. Confirm that the rear I/O module is the external-termination version before placing the order.
Can an installer connect 128718-01 to a 3500/25 internal-termination I/O module?
No. External termination blocks are not used with internal-termination I/O modules. Selecting the matching rear I/O arrangement protects the project from receiving termination hardware that cannot be used in the installed rack.
Does a purchase of 128718-01 include the cable to the Keyphasor I/O module?
The termination cable is a separate ordering item. Include the installed cable length and assembly requirement in the RFQ so Apter Power can help identify the correct cable configuration.
How should a buyer distinguish 128718-01 from the terminal-strip version during a replacement?
Choose 128718-01 when the installed external termination block uses Euro-style connectors. The 128726-01 listing refers to terminal-strip connectors, so the connector style is a practical identification point before procurement.
What should a technician inspect before replacing an installed 128718-01?
Identify the rear I/O option, the Euro-style connector arrangement, and the separate signal cable route. These three details establish whether the existing installation uses the same external-termination configuration.
What information helps Apter Power quote 128718-01 for an existing rack?
Provide the 3500/25 rear I/O part identification, a clear view of the Euro-style termination block, and the cable length or route. This information supports a more precise quotation without assuming that a visually similar block is interchangeable.
