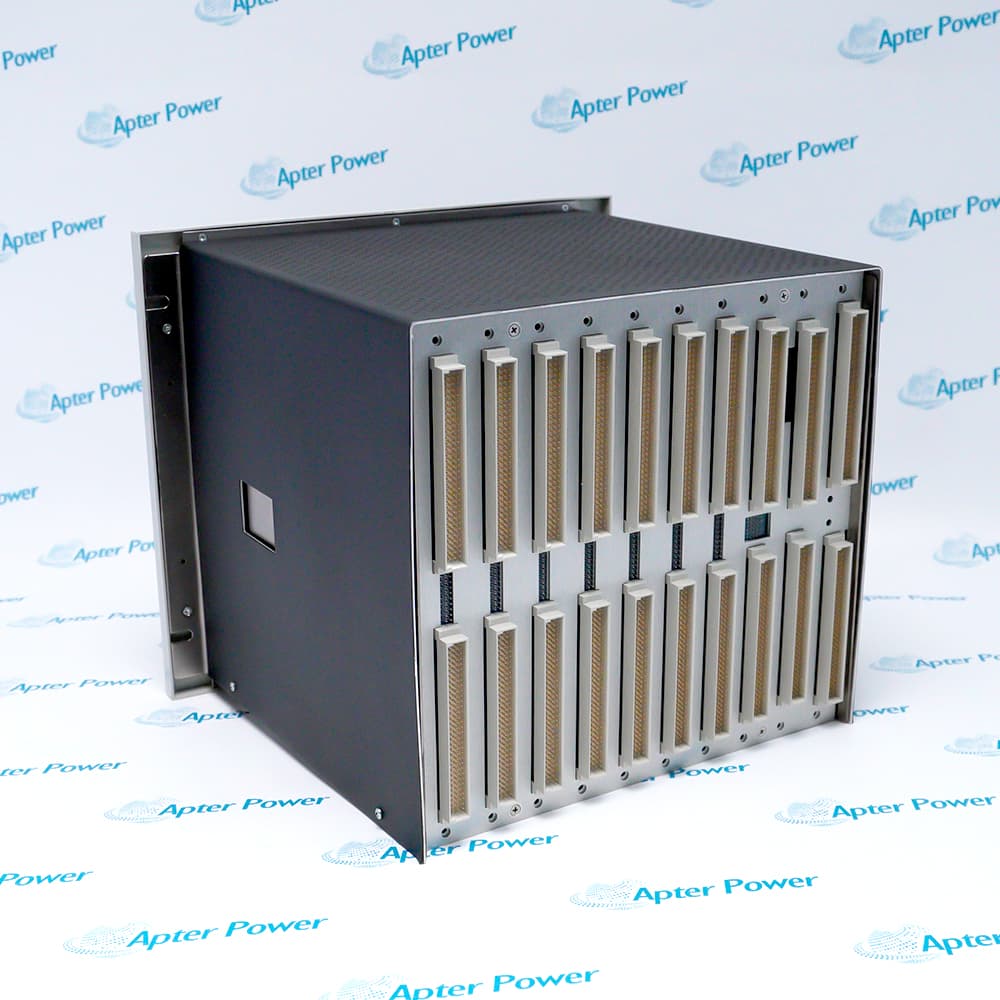

Bently Nevada 3500/05-02-04-01-00-00 system rack, showing internal module slots, guide rails, and backplane structure

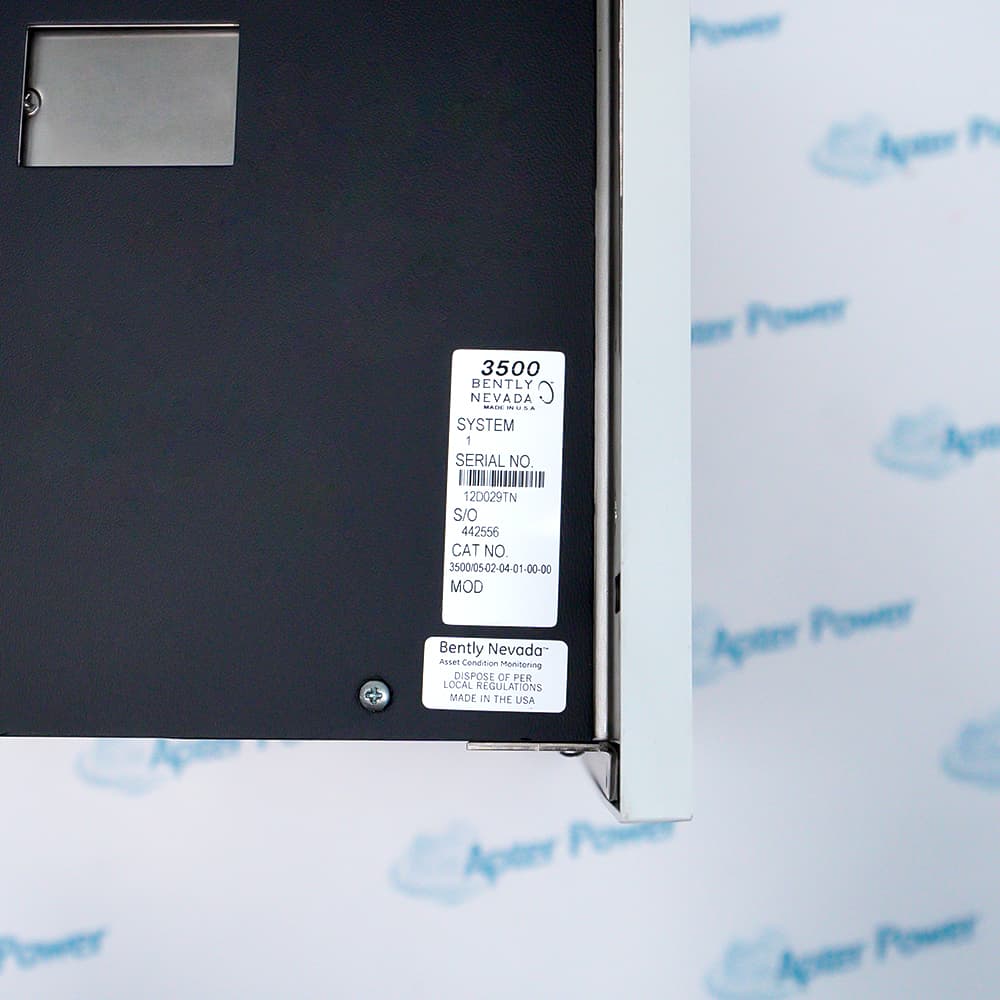

Bently Nevada 3500/05-02-04-01-00-00 industrial monitoring rack with rear connectors and rack-mount chassis details
Bently Nevada 3500/05-02-04-01-00-00 machinery protection system rack with modular card cage and metal housing
Bently Nevada 3500/05-02-04-01-00-00 system rack, showing internal module slots, guide rails, and backplane structure
Bently Nevada 3500/05-02-04-01-00-00 industrial monitoring rack with rear connectors and rack-mount chassis details
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power delivers brand-new Bently Nevada 3500/05 rack hardware, granting engineering teams a high-reliability supply channel for current-generation equipment to build out or expand critical plant diagnostics.

3500/05-02-04-01-00-00

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada 3500/05-02-04-01-00-00 is a specialized 3500 System Mini-Rack configured explicitly with a 12-inch frame size containing seven available module slots.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/05-02-04-01-00-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/05-02-04-01-00-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/05-02-04-01-00-00
  • Product Family:
    3500 System
  • Product Type:
    Rack
  • Stock:
    2
  • Rack Size:
    12-inch Mini-Rack (7 module slots)
  • Mounting Option:
    Panel Mount Option, Mini-Rack
  • Agency Approval:
    CSA/NRTL/C (Class 1, Division 2)
  • Reserved:
    None
  • Wiring & I/O Access:
    Rear accessibility
  • Installation Method:
    Secures to rectangular panel cutouts using supplied clamps
  • Weight:
    5.15 kg
  • Estimated shipping dimensions:
    30.5x26.5x26.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Certifications & Standards Configuration & Programming Applications

Features:

  • Mounting Platform for All 3500 Monitor Modules and Power Supplies
  • Compact 12-inch Mini-Rack Configuration with Seven Available Module Slots
  • Panel Mount Design with Rear-Accessible Wiring and I/O Connections
The Bently Nevada 3500/05-02-04-01-00-00 Rack serves as the foundational mounting structure in a 3500 system, providing the necessary physical infrastructure to securely position all monitor modules and power supplies within the rack. It continuously enables close proximity placement of 3500 modules, allowing them to easily communicate across the backplane while accommodating the power supplies required to distribute power to each module. The 3500/05-02-04-01-00-00 Rack is configured specifically as a 12-inch Mini-Rack with seven available module slots, offering a space-efficient solution for installations where footprint reduction is essential without sacrificing monitoring capability. CSA/NRTL/C agency approval for Class 1, Division 2 environments is standard with the 3500/05-02-04-01-00-00 Rack, ensuring safe deployment in hazardous industrial locations where explosion protection certification is mandatory.

The 3500/05-02-04-01-00-00 Rack provides the essential mechanical and electrical backbone common to the entire monitoring system, and is a critical component of the installation architecture, directly affecting the proper, normal operation of the overall monitor system. One 3500/05-02-04-01-00-00 Rack is required per 3500 system, and the power supplies together with the rack interface module must always occupy the far-left rack positions. The 3500/05-02-04-01-00-00 Rack occupies a standard 12-inch panel-mounted form factor and is supplied with clamps for securing to rectangular panel cutouts.

For space-constrained applications, the 3500/05-02-04-01-00-00 Rack delivers the Mini-Rack format with seven module slots, compared to the full-size 19-inch EIA rack alternative offering fourteen available slots. In addition to standard panel mount configuration, the 3500/05-02-04-01-00-00 Rack ensures wiring connections and I/O modules remain accessible from the rear of the rack. The 3500/05-02-04-01-00-00 Rack includes no reserved options, leaving all seven rack positions available for any combination of monitor modules based on specific application requirements. Using this method, the panel-mounted Mini-Rack continually supports the physical integration of monitoring components while maintaining CSA/NRTL/C certification for Class 1, Division 2 hazardous environments.

The 3500/05-02-04-01-00-00 Bently Nevada Rack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/05-02-04-01-00-00 Rack Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/05-02-04-01-00-00 Rack Specs

General

  • Manufacturer Bently Nevada
  • Model 3500/05-02-04-01-00-00
  • Condition New Original ready stock
  • Product Family 3500/05-02-04-01-00-01,3500/05-02-04-00-00-00,3500/05-02-04-02-00-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Machinery Protection: API 670 (American Petroleum Institute) compliant.
  • Functional Safety: SIL 1 / SIL 2 certified for Safety Instrumented Systems.
  • Explosive Atmospheres: ATEX / IECEx Zone 2 approvals.
  • North American Electrical Safety: CSA / NRTL / C Class 1, Division 2.
  • Electromagnetic Compatibility: EN 61000-6-2 (Immunity) / EN 61000-6-4 (Emissions).
  • Network Security: Achilles Level 1 communications certification.
  • Transient Data Interface: Requires a 3500/22M TDI module in the dedicated slot next to the power supplies.
  • Network Communications: The 3500/22M TDI serves as the primary Ethernet and USB bridge to external networks.
  • Configuration Software: Managed using the Windows-based Bently Nevada 3500 System Configuration Software utility.
  • Sensor Configuration: Selectable inputs for proximity probes, accelerometers, velocity transducers, and LVDTs.
  • Gas and Steam Turbines: Continuous monitoring of radial shaft vibration, axial thrust position, and casing expansion.
  • Centrifugal Compressors: High-speed protection against surge conditions, aerodynamic instability, and bearing wear.
  • Reciprocating Compressors: Specialized tracking of rod drop, crosshead vibration, cylinder pressure, and frame velocity.
  • Power Generation: Protection for main generator shafts, cooling tower fans, and high-pressure boiler feed pumps.
  • Process Industries: Deployed in oil refineries, chemical plants, offshore platforms, and gas pipeline stations.
Description
The Bently Nevada 3500/05-02-04-01-00-00 Rack is specifically designed to provide a centralized mounting platform for the 3500 monitoring system, solving the problem of organizing and interconnecting multiple monitor modules and power supplies in industrial machinery protection and condition monitoring applications. The 3500/05-02-04-01-00-00 Rack enables users to mount all 3500 monitor modules and power supplies in close proximity, allowing the modules to easily communicate with one another while accommodating the power supplies necessary to distribute power to each module.

The 3500/05-02-04-01-00-00 Rack is configured as a 12-inch Mini-Rack with seven available module slots, offering a compact solution for installations where space is at a premium but comprehensive monitoring capability remains essential. The 3500/05-02-04-01-00-00 Rack features the Panel Mount Option, which mounts to rectangular cutouts in panels and secures to the panel using clamps supplied with the rack, ensuring that wiring connections and I/O modules remain accessible from the rear of the rack.

The 3500/05-02-04-01-00-00 Rack carries CSA/NRTL/C agency approval rated for Class 1, Division 2 environments, making it suitable for deployment in hazardous industrial locations where safety certification is mandatory. In the 3500/05-02-04-01-00-00 Rack configuration, the power supplies and rack interface module must occupy the far-left rack positions, while the remaining five rack positions are available for any combination of monitor modules to address specific monitoring requirements. The 3500/05-02-04-01-00-00 Rack includes no reserved options, ensuring all seven slots are fully utilizable for system configuration.

While the 3500 rack family includes a full-size 19-inch EIA rack with 14 available module slots for larger-scale applications, the 3500/05-02-04-01-00-00 Rack delivers the Mini-rack format ideal for smaller systems. The 3500/05-02-04-01-00-00 Rack is available in the panel mount format; it is important to note that while rack mount and bulkhead mount formats exist within the 3500 series, the bulkhead mount option is not available for the Mini-Rack, and the 3500/05-02-04-01-00-00 Rack is specifically supplied as a panel-mounted Mini-Rack solution.
Alternative Names
3500/05-02-04-01-00-05 3500/05-02-04-01-00-CN 3500/05-02-04-01-00-RU 3500/05-02-04-01-00-BR 3500/05-01-04-01-00-00 3500/05 02 04 01 00 00 3500/O5-O2-O4-O1-OO-OO 3500/05-02-04-0I-00-00
Technical notes
By utilizing the 3500/05-02-04-01-00-00 hardware architecture, machinery protection systems can place critical components near one another, which successfully enables seamless, high-speed communication between modules while distributing vital power from the left-most slots to the rest of the system.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the function of the Bently Nevada 3500/05-02-04-01-00-00 in the 3500 system?
The rack serves as the central housing unit for the entire protection system. It supports communication between modules, distributes power, and provides secure mounting for system components.
For model Bently Nevada 3500/05-02-04-01-00-00, in which slots should the power module and interface module be installed?
The far-left slots are reserved for the power supply modules and the rack interface module. These positions are dedicated and are not used for monitoring channels.
What mounting method does this 3500/05-02-04-01-00-00 support?
The 3500/05-02-04-01-00-00 is configured for panel mounting. It is designed to fit into standard rectangular panel openings and is secured using dedicated mounting clamps.
Why is the 3500/05-02-04-01-00-00 mini-rack useful in compact cabinets?
Its reduced footprint makes it suitable for installations where a full-size rack cannot be accommodated. It allows essential machinery protection functions to be deployed in smaller control panels.
