Features:
- Interface Between the Universal AC Power Source and 3500 Rack
Backplane
- This model includes a 1.5 in standoff adapter and 3.5 in probe penetration for English unit applications.
- The 330880-28-15-035-00-02 eliminates the need for extension cables and separate Proximitor housings.
The 330880-28-15-035-00-02 provides essential monitoring functions common to the 31000/32000 housing designs, and is a critical component directly affecting the proper operation of the overall machinery protection system. Field wiring connects directly between monitors and the 330880-28-15-035-00-02, eliminating the need for a separate Proximitor housing. This streamlined design reduces installation complexity while maintaining the same adjustment advantages as traditional housings for accessing and externally adjusting proximity probes.
The 330880-28-15-035-00-02 includes no fittings but comes with two plugs and two washers for installation flexibility. It features a 3/4-14 NPT mounting thread, required when ordering the standoff adapter option. The 330880-28-15-035-00-02 offers the same adjustment capabilities as previous designs while incorporating modern materials and integrated sensor technology.
The 330880-28-15-035-00-02 represents a significant advancement in proximity monitoring, combining rugged construction with simplified installation for critical machinery protection applications. This self-contained system eliminates extension cable requirements and reduces potential failure points in the monitoring path. The 330880-28-15-035-00-02 delivers consistent, reliable performance with multiple approvals for global deployment.
The 330880-28-15-035-00-02 Bently Nevada PROXPAC XL Proximity Transducer, English may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330880-28-15-035-00-02 PROXPAC XL Proximity Transducer, English Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330880-28-15-035-00-02 PROXPAC XL Proximity Transducer, English Specs
General
- Manufacturer GE / Bently Nevada
- Model 330880-28-15-035-00-02
- Condition New Original ready stock
- Product Family
330880-00-15-035-00-02,330880-28-15-035-01-02,330880-28-15-035-02-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Machine Types: Widely used in steam turbines, compressors, pumps, fans, generators, and other large industrial rotating equipment.
- Radial Vibration: Measures the dynamic displacement of the shaft to assess machine health.
- Axial Position (Thrust): Monitors axial displacement to prevent internal impacts.
- Protection Rating: The enclosure is rated Type 4X and IP66, effectively protecting against moisture, dust, and corrosive gases.
- Enclosure Material: Utilizing polyphenylene sulfide (PPS) composite material, replacing earlier aluminum or stainless steel enclosures, offering superior chemical resistance and static charge dissipation.

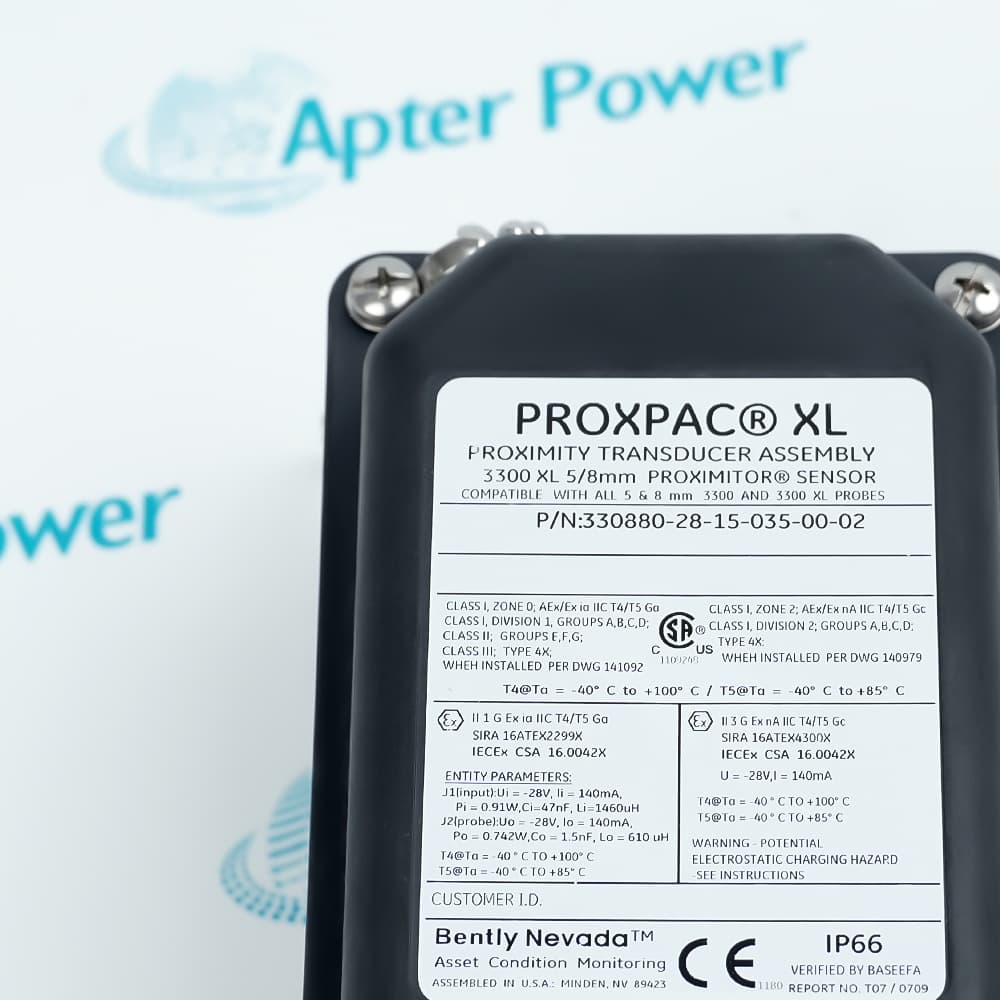

- explosion-proof certification: The code -28 in the model number indicates that the equipment has multiple international explosion-proof certifications, suitable for Hazardous Areas.
- Shielding Treatment: To ensure signal purity, the cable shield must be reliably grounded at the monitor (3500 frame) end and kept insulated at the PROXPAC XL probe end to prevent ground loops.
- Explosion-proof Connection: -28 in the model designation indicates multiple explosion-proof certifications. When installed in hazardous areas, connections must be made via a Zener barrier or isolation barrier to limit energy entering the hazardous area.
