    Apter Power guarantees premium quality Bently Nevada vibration monitoring hardware, offering a highly reliable source for critical machinery protection replacement parts.

330881-16-04-132-03-02

/ 4.9
1001 reviews | Need a Specific Revision?
The 330881-16-04-132-03-02 configuration emphasizes compact structure and practical installation, making it suitable for a wide range of rotating equipment environments where reliable proximity sensing is required.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 330881-16-04-132-03-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 330881-16-04-132-03-02

  • Manufacturer:
    Bently Nevada
  • Part Number:
    330881-16-04-132-03-02
  • Product Family:
    PROXPAC XL Proximity Transducer Assembly
  • Product Type:
    Proximity Transducer
  • Stock:
    2
  • Standoff Adapter:
    40 mm
  • Probe Penetration:
    132 mm
  • Fittings:
    One M20 fitting, two plugs
  • Mounting Thread:
    3/4-14 NP
  • Probe tip:
    PPS
  • Weight:
    1.35 kg
  • Estimated shipping dimensions:
    36.5x9x9.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China.
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Operating Environment Monitoring & Control

Features:

  • Integrates probe and Proximitor sensor in one PPS housing.
  • Durable thermoplastic with glass fibers for severe environment protection.
  • Ex ia IIC and IECEx certified for Zone 0/Division 1 explosive atmospheres.

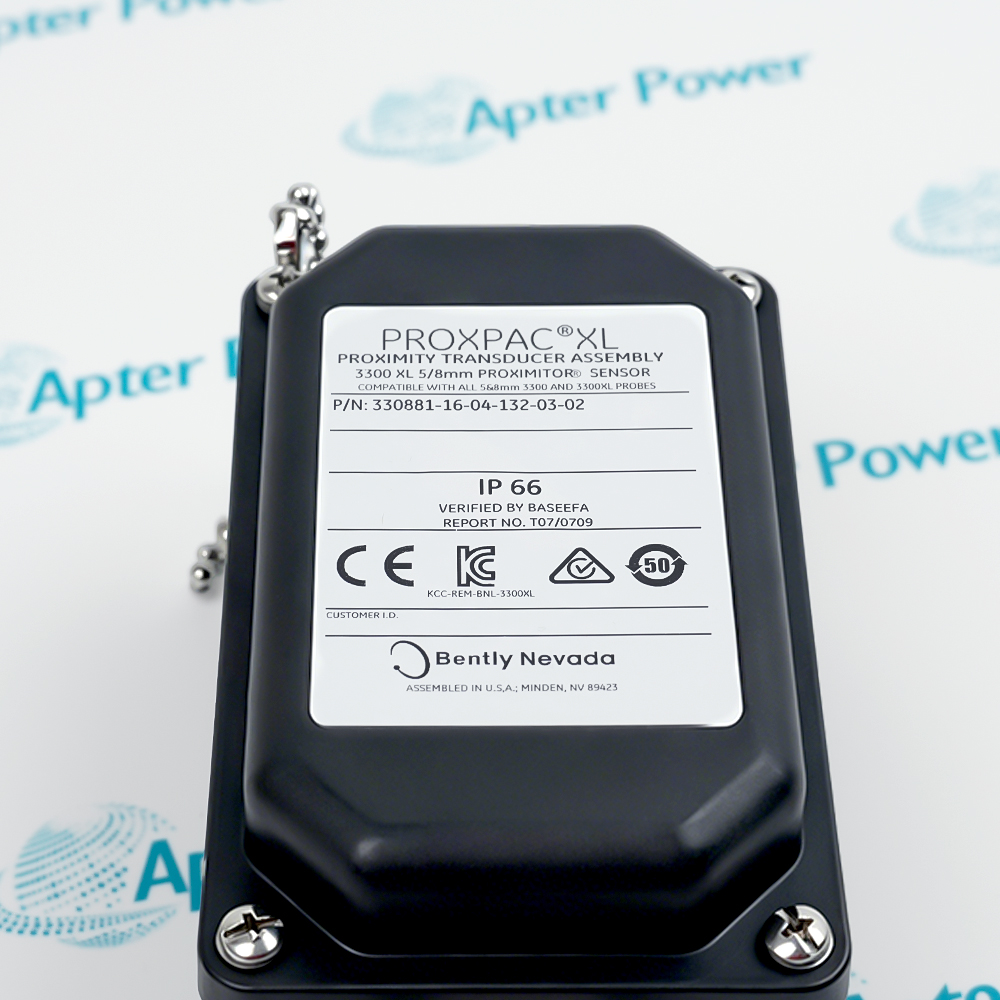

The 330881-16-04-132-03-02 is a PROXPAC XL Proximity Transducer Assembly that integrates the 3300 XL Proximitor sensor directly into the housing cover. This self-contained design eliminates the need for an extension cable between the probe and its associated Proximitor sensor, reducing potential connection points and improving system reliability. The 330881-16-04-132-03-02 also eliminates the need for a separate Proximitor housing, as field wiring connects directly between monitors and the PROXPAC XL assemblies. This simplifies installation and reduces maintenance complexity.

The 330881-16-04-132-03-02 features a housing made of Polyphenylene Sulfide (PPS), an advanced molded thermoplastic reinforced with glass and conductive fibers for enhanced strength and electrostatic charge dissipation. The housing is rated for Type 4X and IP66 environments, providing protection against hose-directed water, dust, and severe weather conditions. The 330881-16-04-132-03-02 includes a 3300 XL 8mm probe with connector protector (option 16) and a 13.2-inch sleeve length with M24 x 1.5 mounting threads and Neoprene O-ring for secure installation.

The 330881-16-04-132-03-02 carries extensive hazardous area certifications including North America Ex ia IIC T4/T5 (Class I Zone 0/Division 1), Europe EEx ia IIC T4/T5, and IECEx ia IIC certifications. The system has entity parameters of Ui=-28V, li=140mA, Pi=0.84W, and is temperature classified T1 through T5 depending on ambient conditions. These approvals make the 330881-16-04-132-03-02 suitable for installation in refineries, petrochemical plants, and other potentially explosive atmospheres.

The 330881-16-04-132-03-02 Bently Nevada Proximity Transducer may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330881-16-04-132-03-02 Proximity Transducer Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330881-16-04-132-03-02 Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 330881-16-04-132-03-02
  • Condition New Original ready stock
  • Product Family 330878-90-00,330878-50-00,330850-90-05
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Radial Vibration Measurements: It tracks high-speed dynamic shaft displacement (orbit analysis) to spot balance flaws, structural misalignment, or bearing stability issues.
  • Axial (Thrust) Position Monitoring: It calculates slow-moving axial drift of thrust collars to prevent devastating internal rotor-to-stator contact.
  • Tachometer & Keyphasor Timing: It acts as a high-precision phase-reference indicator to measure shaft rotational speed and pin down exact vibration phase angles.
  • Housing Material Matrix: The enclosure is molded from advanced Polyphenylene Sulfide (PPS) thermoplastic infused with glass and conductive fibers. This blend maximizes physical strength and actively dissipates electrostatic charges.
  • Environmental Ratings: The casing holds NEMA Type 4X and IP66 ratings, shielding internal electronics against high-pressure water jets, dust ingress, and harsh airborne chemicals.
  • Operating Range: Safe for continuous operation from -51 °C to +100 °C (-60 °F to +212 °F).
  • Storage Bounds: Can be stored from -51 °C to +105 °C (-60 °F to +221 °F).
  • Direct Signal Conversion: Operating on the eddy-current principle, the unit outputs a standard negative DC/AC voltage proportional to the distance from the target (calibrated for AISI 4140 steel), typically scaled at 200 mV/mil (7.87 V/mm).
  • Simplified Field Wiring: Because the Proximitor preamp is built into the housing cap, field wires connect straight from the asset to the monitoring room without intermediate terminal blocks.
  • Machinery Protection Hooks: The output feeds directly into protection machinery like the Bently Nevada 3500 Monitoring Rack. The rack processes these signals to trigger ALERT indicators for maintenance and DANGER relays to activate automatic emergency machine shutdowns (Trips).
  • Asset Condition Assessment: Beyond raw hardware loops, the dynamic signal streams directly into predictive maintenance software platforms, such as Bently Nevada System 1, allowing plant operators to view real-time orbits, trend lines, and spectrum plots.
Description
330881-16-04-132-03-02 is a PROXPAC XL Proximity Transducer, designed as an integrated proximity measurement solution for industrial machinery monitoring applications such as shaft vibration and displacement measurement. The 330881-16-04-132-03-02 configuration emphasizes compact structure and practical installation, making it suitable for a wide range of rotating equipment environments where reliable proximity sensing is required.

In terms of probe configuration, 330881-16-04-132-03-02 is supplied with a 3300 XL 8 mm probe without approvals, intended for standard industrial applications where certifications are not required. This probe type supports stable and accurate signal acquisition while maintaining compatibility with common monitoring systems.

The probe penetration of 330881-16-04-132-03-02 is 132 mm, allowing sufficient insertion depth to meet typical installation requirements. It is paired with a 40 mm standoff adapter, which helps accommodate different machine casing thicknesses and provides flexibility during field installation to achieve proper probe positioning.

For mechanical installation and cable management, 330881-16-04-132-03-02 includes one M20 fitting and two plugs, supporting secure wiring and effective sealing. The mounting thread specification is 3/4-14 NPT, aligning with widely used industrial mounting standards to ensure easy integration with existing equipment and consistent installation reliability.
Alternative Names
33O881-16-04-132-O3-02 33088I-I6-04-I32-03-02 330881 16 04 132 03 02 330878-90-00 330851-04-000-023-10-01-05 330878-50-00 330850-90-05 330850-50-05
Technical notes
The Bently Nevada 330881-16-04-132-03-02 is a PROXPAC XL Proximity Transducer Assembly that integrates the 3300 XL Proximitor sensor directly into the housing cover, forming a completely self-contained proximity probe system . It includes a 3300 XL 8mm probe with connector protector (option 16) and a 13.2-inch sleeve length (option 132) with M24 x 1.5 mounting threads (option 03) and Neoprene O-ring3.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the main difference between the PROXPAC XL and the 330881-16-04-132-03-02?
The PROXPAC XL integrates a 3300 XL Proximitor sensor inside its housing cover, forming a combined “probe + proximitor” assembly; extension cable and separate proximitor housing are no longer required.
What environmental protection rating does the 330881-16-04-132-03-02 carry?
NEMA Type 4X and IP66, suitable for severe industrial environments.
What performance benefits does 330881-16-04-132-03-02 provide?
It replaces traditional steel/aluminum for lighter weight, adds structural strength, and incorporates conductive fibers for improved electro-static discharge (ESD) dissipation.
