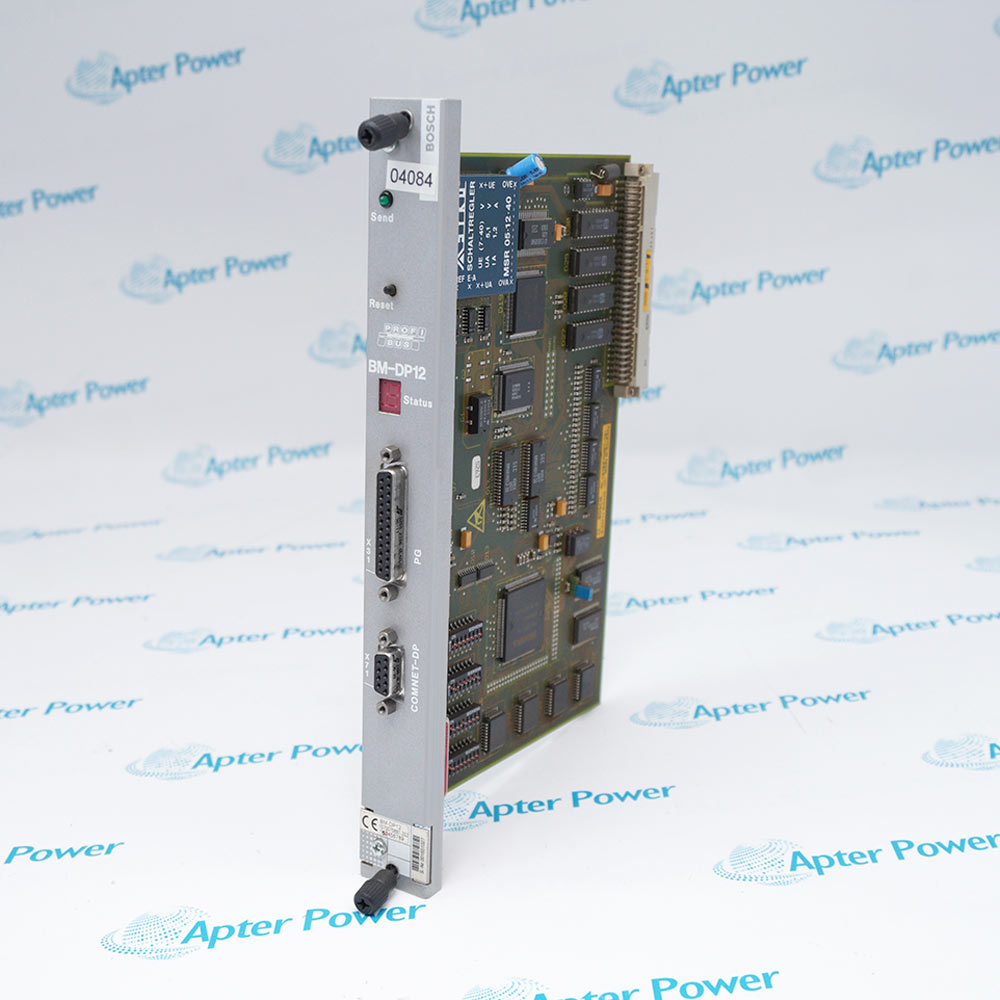

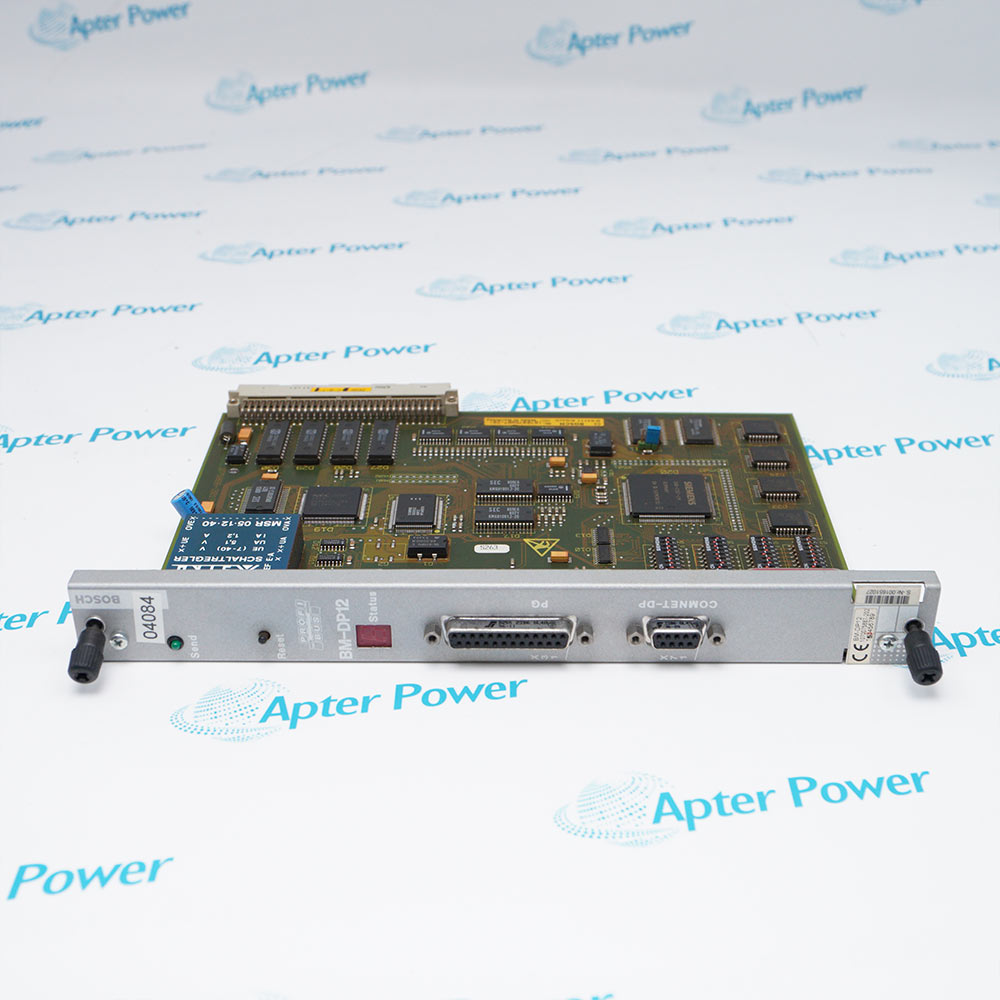

The Bosch BM-DP12 1070075887-202 is a COMNET-DP Class 1 PROFIBUS-DP bus master that connects Bosch CL and IAT controllers to decentralized field I/O stations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BM-DP12 1070075887-202
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BM-DP12 1070075887-202

  • Manufacturer:
    Bosch
  • Part Number:
    BM-DP12 1070075887-202
  • Product Family:
    Bosch
  • Product Type:
    COMNET-DP PROFIBUS-DP Bus Master Module
  • Stock:
    1
  • Device Class:
    DIN EN 50170 DP Master Class 1
  • Supported Controller Platforms:
    CL300, CL350, CL400, CL500 and IAT
  • Maximum Bus Stations:
    124
  • Maximum Inputs:
    4,048
  • Maximum Outputs:
    4,048
  • Fieldbus Interface:
    Electrically isolated RS-485
  • Isolated Interface Supply:
    ISO_5V and ISO_GND
  • Maximum Isolated Interface Load:
    60 mA
  • Programming Interface:
    V.24
  • Transfer Rate:
    9.6 Kbaud to 12 Mbaud
  • Cooling Requirement:
    Fan unit required in the module rack
  • Width:
    1 controller slot
  • Dimensions:
    3.1x19x26.6cm
  • Weight:
    0.32 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Capacity Interface Diagnostics Application
  • DIN EN 50170 PROFIBUS-DP Master Class 1
  • Supports up to 124 decentralized bus stations
  • Compatible with Bosch CL300, CL350, CL400, CL500 and IAT controllers

BM-DP12 1070075887-202 is a Bosch COMNET-DP bus master designed for decentralized expansion of supported CL and IAT control systems.

It coordinates cyclic field data through an isolated RS-485 interface, manages up to 4,048 inputs and 4,048 outputs, and supplies bus diagnostics to the host controller.

Before installation or replacement, verify the complete order suffix, controller slot, hardware level, rack fan, network configuration, slave list, cable shielding, polarity and end-of-line termination.

Availability, condition, price, and shipping time for BM-DP12 1070075887-202 are confirmed during quotation.

Bosch BM-DP12 1070075887-202 COMNET-DP PROFIBUS-DP Bus Master Module Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Addresses as many as 124 COMNET-DP bus stations
  • Handles up to 4,048 input points
  • Handles up to 4,048 output points
  • Uses an electrically isolated RS-485 fieldbus interface
  • Supports 9.6 Kbaud through 12 Mbaud transfer rates
  • Provides a separate V.24 programming-unit interface
  • Recognizes fieldbus and station faults for the host controller
  • Supports bus diagnostics for decentralized stations
  • Manages the bus-master configuration file used for network operation
  • Decentralized input and output expansion for Bosch CL and IAT controllers
  • Class 1 master control of COMNET-DP and PROFIBUS-DP field stations
  • Distributed positioning systems that use supported POS-LR modules on DP slaves
Description
BM-DP12 1070075887-202 is a Bosch COMNET-DP PROFIBUS-DP bus master module for CL300, CL350, CL400, CL500 and IAT controller systems.

The module operates as a DIN EN 50170 DP Master Class 1, supports up to 124 bus stations, transfers at 9.6 Kbaud to 12 Mbaud, and provides electrically isolated RS-485 plus a V.24 programming interface.

Before replacement, confirm the complete -202 suffix, host controller and slot, rack fan unit, PROFIBUS address and configuration, GSD or master data, slave inventory, cabling, termination, and hardware version.
Alternative Names
BM-DP12 1070075887-202 BM DP12 1070075887-202 BMDP12 1070075887-202 1070075887-202 1070 075 887-202 Bosch BM-DP12 1070075887-202 Bosch Rexroth BM-DP12 1070075887-202 COMNET-DP BM-DP12 1070075887-202
Technical notes
BM-DP12 1070075887-202 is a Bosch COMNET-DP master variant. Match the complete suffix, host rack, cooling fan, PROFIBUS project, station map, hardware version, connector condition, and termination before replacement.
