KJ2005X1-BK1 12P4688X052 SE3007

/ 4.9
1001 reviews | Need a Specific Revision?

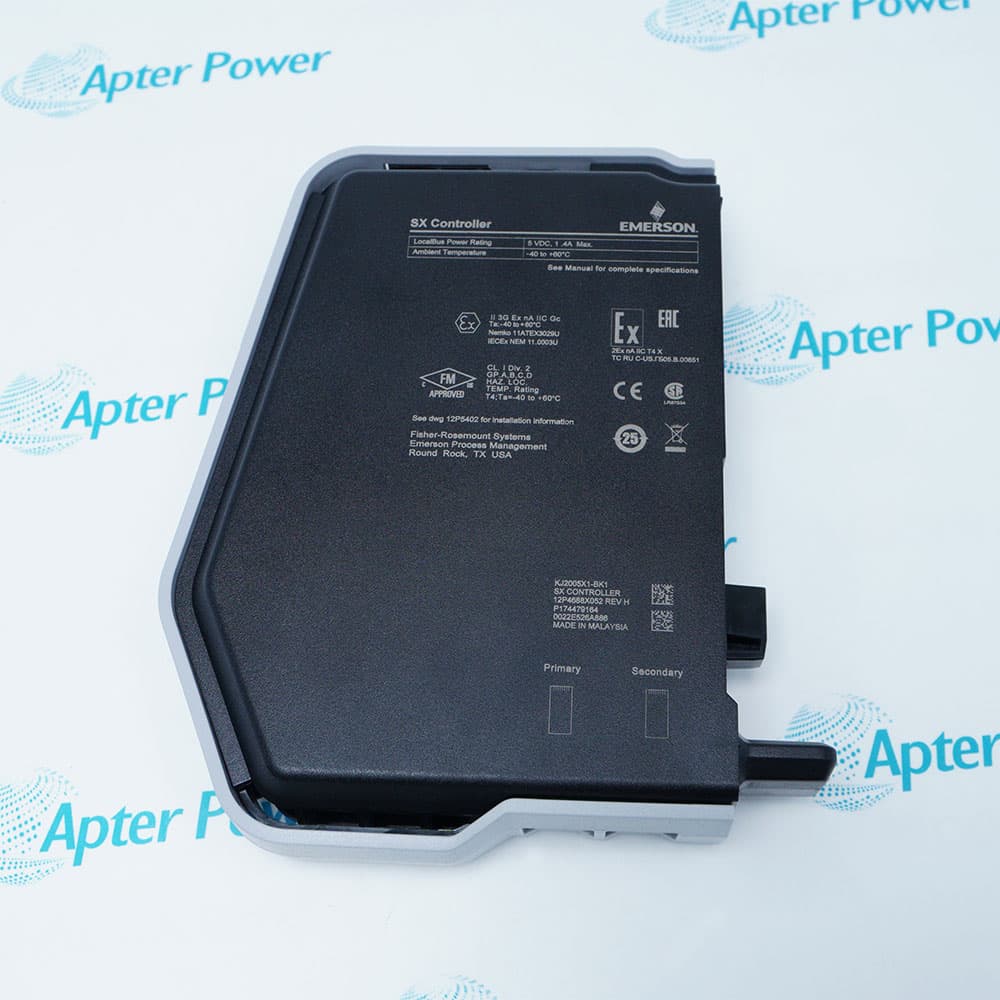

Emerson KJ2005X1-BK1 is a high-capacity DeltaV SX Controller for medium-to-large automation applications. It executes control strategies while integrating conventional, fieldbus and Ethernet-connected I/O resources.
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for KJ2005X1-BK1 12P4688X052 SE3007
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ2005X1-BK1 12P4688X052 SE3007

  • Manufacturer:
    Emerson
  • Part Number:
    KJ2005X1-BK1 12P4688X052 SE3007
  • Product Family:
    DeltaV
  • Product Type:
    high-capacity process automation controller
  • DST limit:
    1500
  • SCADA tags:
    3200
  • Maximum values sent:
    4000 per second
  • Maximum values received:
    500 per second
  • Maximum unsolicited client nodes:
    120
  • Module execution rates:
    100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 30 s and 60 s
  • User memory:
    96 MB
  • Internal fuse protection:
    3.0 A, non-replaceable
  • Typical power dissipation:
    5.0 W
  • Maximum power dissipation:
    7.0 W
  • Operating temperature:
    -40 to 60 °C
  • Storage temperature:
    -40 to 85 °C
  • Relative humidity:
    5-95%, non-condensing
  • Protection rating:
    IP20
  • Airborne contaminants:
    ISA-S71.04 Class G3, conformal coating
  • Shock:
    10 g half-sine wave for 11 ms
  • Vibration:
    1 mm peak-to-peak at 5-13.2 Hz; 0.7 g at 13.2-150 Hz
  • Primary network connector:
    8-pin RJ45
  • Redundant network connector:
    8-pin RJ45
  • CIOC capacity:
    Up to 16 over redundant Ethernet
  • Controller redundancy:
    One-to-one supported
  • Minimum DeltaV release:
    v11.3.1 or later
  • Security certification:
    Achilles Communications Certification Level 2
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    4.1x12.5x15.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance Connectivity Programming

Features:

  • Supports 1,500 device signal tags and 3,200 SCADA tags.
  • The SX platform schedules control modules from 100 ms to 60 seconds.
  • Supports Electronic Marshalling and optional one-to-one redundancy.
The current ordering configuration is KJ2005X1-BK1, which is the DeltaV SX Controller for medium-to-large automation applications that need higher DST, memory and transmitted-data capacity with distributed I/O integration.

Within the installed DeltaV SX Controller architecture, this configuration executes plant control modules, communicates with DeltaV control-network nodes and supports Traditional I/O and Electronic Marshalling.

Verify tag capacity, network topology, I/O interfaces, redundancy and software compatibility before replacing the controller.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for Emerson KJ2005X1-BK1:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerEmerson
  • ModelKJ2005X1-BK1
  • ConditionNew / Surplus / Refurbished
  • Product FamilyDeltaV SX Controller
  • Expanded processing resources support larger control databases and higher communication workloads.
  • Practical capacity is determined by strategy complexity, execution scheduling and distributed-I/O loading.
  • Size the controller from the complete project database and growth allowance rather than a single resource value.
  • Redundant network ports connect the controller to the engineered DeltaV control-network paths.
  • Traditional I/O and supported fieldbus resources remain available through the local-bus architecture.
  • Electronic Marshalling traffic uses the Ethernet-connected CHARM I/O arrangement defined for the project.
  • Strategies can combine IEC Function Blocks, Sequential Function Charts and Structured Text.
  • Auto-sense functions assist with controller and attached-I/O identification during configuration.
  • Migration from a lower-capacity controller requires validation of software, licensing and redundant operation.
Description
KJ2005X1-BK1 is a DeltaV SX Controller for medium-to-large process applications requiring expanded strategy, communication and distributed-I/O resources.

It executes continuous, logical and sequential control while coordinating Traditional I/O, supported fieldbus interfaces and Ethernet-connected CHARM I/O Cards.

Migration planning must validate software prerequisites, strategy loading, network topology, attached I/O, redundancy and the engineered controller carrier and power supply.
Alternative Names
KJ2005X1-BK1 Emerson KJ2005X1-BK1 KJ2005X1BK1 KJ2005X1-BK1 high-capacity process automation controller DeltaV SX Controller KJ2005X1-BK1 Emerson DeltaV SX Controller KJ2005X1-BK1 Emerson DeltaV SX Controller high-capacity process automation controller
Technical notes
Before energizing KJ2005X1-BK1, verify field wiring, power isolation and the validated DeltaV SX Controller configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When does the project profile justify choosing KJ2005X1-BK1?
Choose KJ2005X1-BK1 when the validated strategy, communications and distributed-I/O workload requires the SX controller's higher-capacity platform.
How does KJ2005X1-BK1 connect to the DeltaV network and marshalling hardware?
Primary and redundant RJ45 ports serve the control network, while the controller supports Traditional I/O and up to sixteen CIOCs over redundant Ethernet.
When is KJ2005X1-BK1 selected instead of a lower-capacity controller?
It is used for high-capacity DeltaV process-control projects that need larger strategy, communication and distributed-I/O resources.
Which project information is needed for a KJ2005X1-BK1 availability review?
Apter Power needs the controller count, software release, network ports, CIOC quantity, redundancy plan and required delivery date.
Can an existing lower-capacity controller be changed to KJ2005X1-BK1 without engineering?
No. The upgrade requires validation of licenses, strategies, firmware, network topology, I/O interfaces and redundant operation.
What should be checked in the KJ2005X1-BK1 Datasheet before requesting price?
Review capacity and compatibility in Manuals, then include the exact suffix, DeltaV version, I/O scale, redundancy, quantity and destination in the RFQ.
