KJ3002X1-BC1

/ 4.9
1001 reviews | Need a Specific Revision?

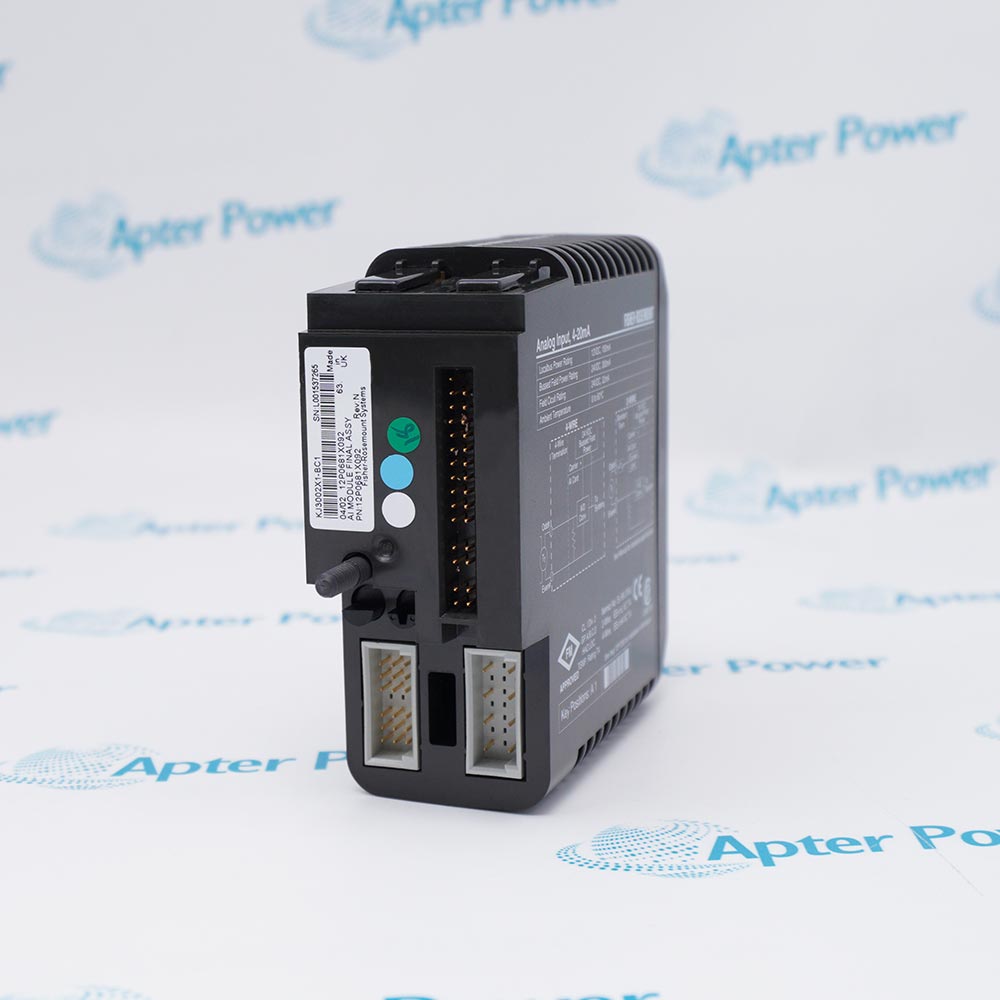

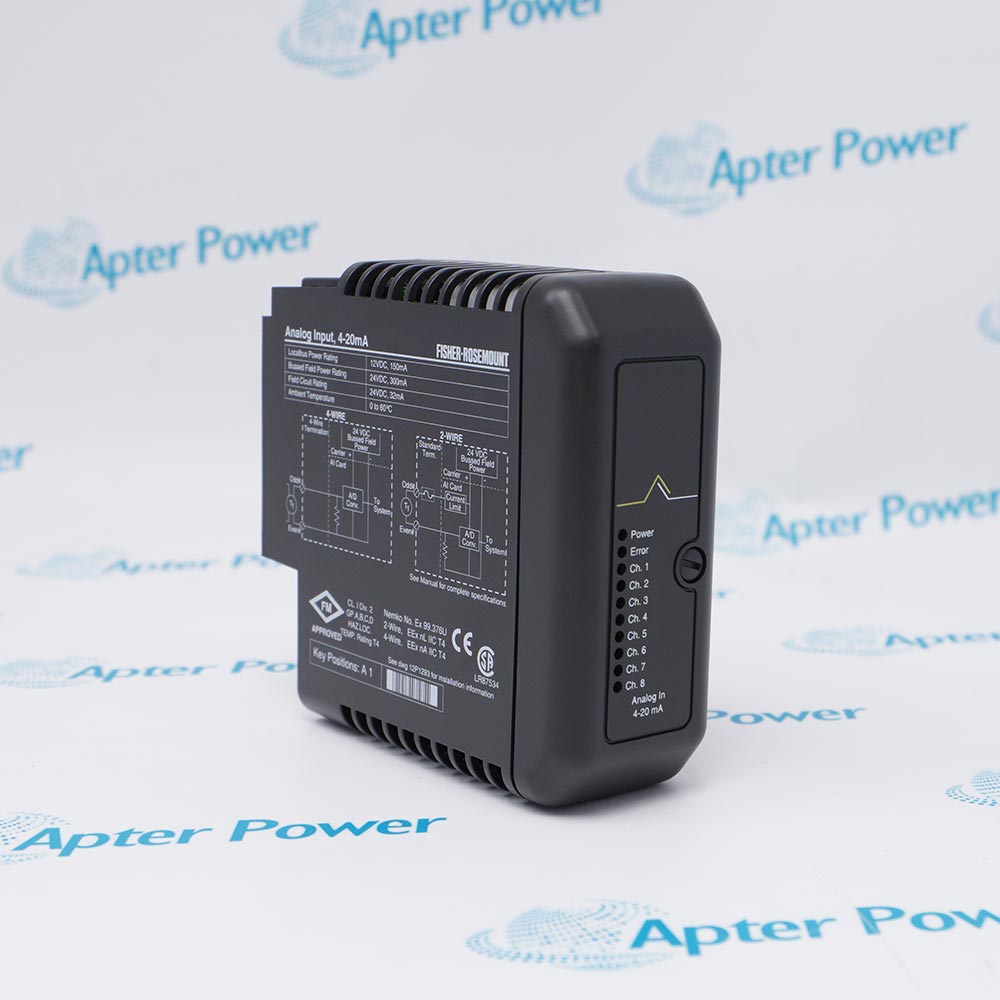

Emerson KJ3002X1-BC1 is an eight-channel 2-wire 4–20 mA analog input card for DeltaV M-series Traditional I/O.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for KJ3002X1-BC1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for KJ3002X1-BC1

  • Manufacturer:
    Emerson
  • Part Number:
    KJ3002X1-BC1
  • Product Family:
    DeltaV
  • Product Type:
    8-Channel 2-Wire 4–20 mA Analog Input Card
  • Stock:
    1
  • Channels:
    8
  • Input signal:
    2-wire 4–20 mA
  • LocalBus power:
    12 V DC at 150 mA
  • Bussed field power:
    12 V DC at 300 mA
  • Field circuit:
    24 V DC at 32 mA
  • Terminal key:
    A1
  • Operating temperature:
    0 to 60 °C
  • Protection:
    IP20
  • Dimensions:
    4.1 × 10.7 × 10.5 cm
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Wiring Compatibility Environment Application
  • Eight channels are designed for documented 2-wire 4–20 mA current loops
  • Separate LocalBus, bussed field-power, and field-circuit limits are defined for this card
  • A1 terminal keying identifies the compatible DeltaV termination arrangement

KJ3002X1-BC1 is an Emerson eight-channel 2-wire 4–20 mA analog input card designed for DeltaV M-series Traditional I/O.

The card accepts loop-current measurements while using the documented LocalBus and bussed field-power supplies for its DeltaV installation.

Before installation or replacement, verify A1 keying, 2-wire loop polarity, LocalBus and field-power limits, terminal hardware, carrier compatibility, and channel wiring.

Availability, condition, price, and shipping time for KJ3002X1-BC1 are confirmed during quotation.

Emerson KJ3002X1-BC1 8-Channel 2-Wire 4–20 mA Analog Input Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The card is documented for 2-wire 4–20 mA input loops
  • A1 keying identifies the compatible terminal arrangement
  • Loop polarity and the selected terminal hardware must match the installed field wiring
  • DeltaV M-series Traditional I/O hardware requires a compatible MQ, MX, or PK controller
  • The card must be installed on a compatible M-series horizontal or VerticalPlus I/O carrier
  • M-series horizontal I/O carriers are not physically compatible with S-series horizontal controller carriers
  • The documented ambient operating range is 0 to 60 °C
  • Relative humidity is 5 to 95% non-condensing
  • The card is IP20 and specified for ISA G3 airborne-contaminant service
  • Two-wire 4–20 mA process-transmitter acquisition in DeltaV systems
  • Eight-loop M-series Traditional I/O analog measurement
  • A1-keyed field installations using the documented bussed power arrangement
Description
KJ3002X1-BC1 is an Emerson eight-channel 2-wire 4–20 mA analog input card for the DeltaV M-series Traditional I/O platform.

The card uses A1-keyed termination and has separately documented LocalBus, bussed field-power, and 24 V DC field-circuit requirements.

Before installation or replacement, confirm the complete catalog number, A1-keyed terminal hardware, loop polarity, field power, carrier compatibility, and saved channel configuration.
Alternative Names
KJ3002X1-BC1 KJ3002X1BC1 KJ3002X1 BC1 Emerson KJ3002X1-BC1 DeltaV KJ3002X1-BC1 Emerson DeltaV KJ3002X1-BC1
Technical notes
KJ3002X1-BC1 requires A1 keying, 2-wire 4–20 mA loop wiring, LocalBus and field-power limits, and approved terminal hardware to be verified before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is Emerson KJ3002X1-BC1 a HART analog input card?
The exact KJ3002X1-BC1 documentation identifies it as a 2-wire 4–20 mA analog input card; do not add HART capability without exact-model evidence.
What terminal key is required for Emerson KJ3002X1-BC1?
The documented terminal key is A1. Match the installed terminal block and carrier before fitting the card.
What power supplies are required by Emerson KJ3002X1-BC1?
The card documentation lists 12 V DC at 150 mA LocalBus power, 12 V DC at 300 mA bussed field power, and a 24 V DC at 32 mA field circuit.
How many loops does Emerson KJ3002X1-BC1 support?
It provides eight 2-wire 4–20 mA analog input channels.
Can Emerson KJ3002X1-BC1 replace KJ3002X1-BA1 directly?
Not automatically. BC1 is specifically documented as the 2-wire 4–20 mA type; verify terminal hardware, field power, channel configuration, and required HART functionality.
What environment is documented for Emerson KJ3002X1-BC1?
The exact card sheet lists 0 to 60 °C operation, 5 to 95% non-condensing humidity, ISA G3 airborne-contaminant service, and IP20 protection.
What should be checked before ordering Emerson KJ3002X1-BC1?
Confirm the full catalog number, A1 keying, 2-wire loop design, LocalBus and field-power capacity, carrier type, and saved DeltaV configuration.
