PR6426-010-140

/ 4.9
1001 reviews | Need a Specific Revision?

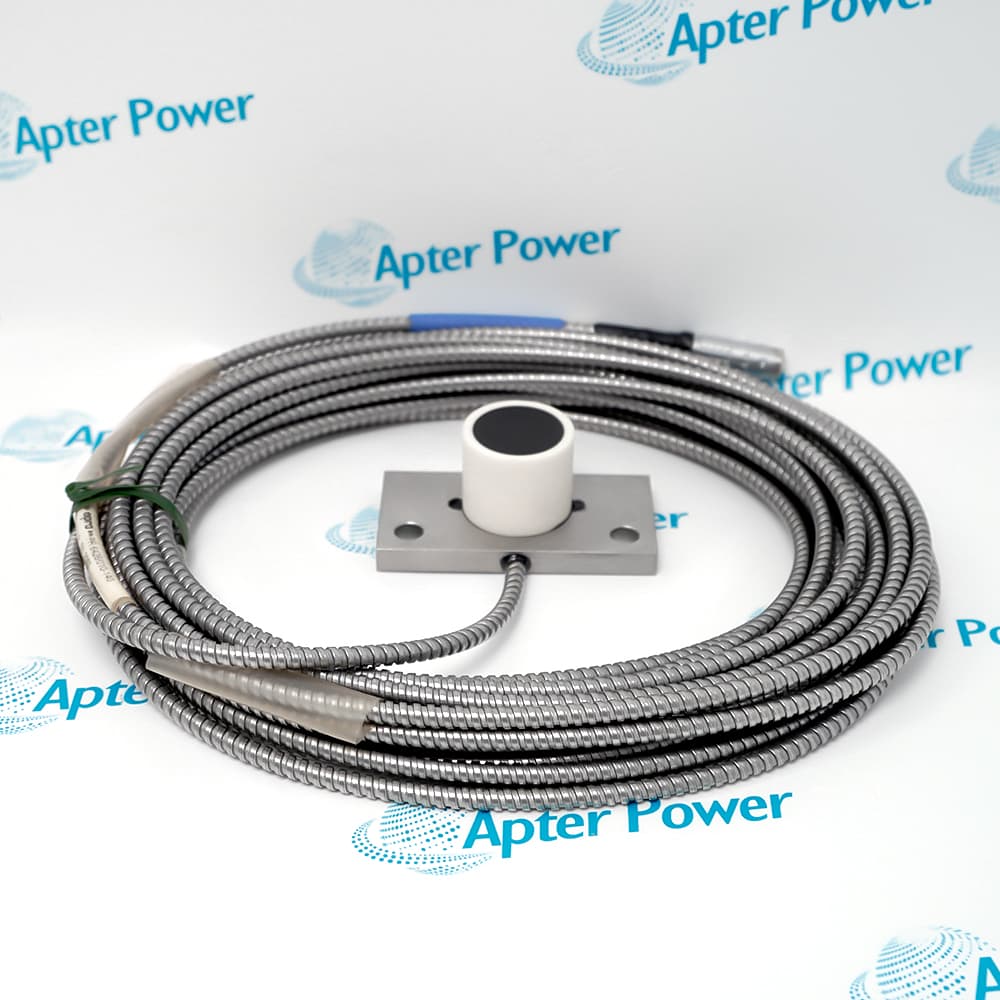

Emerson PR6426-010-140 is a 32 mm armored large-range eddy current sensor with an 80×40 mm mounting plate, continuous 10 m cable and LEMO end.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for PR6426-010-140
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PR6426-010-140

  • Manufacturer:
    Emerson
  • Part Number:
    PR6426-010-140
  • Product Family:
    Epro
  • Product Type:
    32 mm Armored Large-Range Eddy Current Sensor
  • Stock:
    1
  • Mounting plate:
    80 × 40 mm
  • Total cable length:
    10 m
  • Linear measuring range:
    8 mm
  • Nominal center gap:
    Approximately 5.5 mm
  • Sensitivity:
    2 V/mm
  • Reference target:
    42CrMo4 / AISI 4140 steel
  • Minimum shaft diameter:
    200 mm in the exact-family specifications sheet
  • Operating temperature:
    -35 to +175°C; up to +200°C short-term in the exact-family sheet
  • Protection class:
    IP66
  • Armored cable bend radius:
    35 mm
  • Tariff Code:
    9031809090
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Configuration Match Armor Routing Commissioning Application
  • Compare the exact armor, cable length and adapter code before replacement
  • Provide a rigid 80×40 mm plate and the required sensing-head clearance
  • Verify the complete converter pairing before trusting the displayed scale

Emerson PR6426-010-140 is an armored 32 mm eddy current sensor for large-range non-contact displacement measurement.

The official PR6426/010-140 code specifies an 80×40 mm mounting plate, armored cable, no intermediate adapter, 10 m continuous lead and LEMO end.

Before installation or replacement, verify plate geometry, target size and alloy, center gap and expected travel, armored-cable routing, bend radius, converter pairing and monitor configuration.

Availability, condition, price, and shipping time for PR6426-010-140 are confirmed during quotation.

Emerson PR6426-010-140 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Confirm code 010-140 rather than another PR6426 cable arrangement
  • Retain the continuous 10 m lead and LEMO termination
  • Do not substitute an adapter-based cable without recalibration review
  • Observe the 35 mm minimum bend radius
  • Support the heavy cable so it cannot load the sensing plate
  • Avoid rubbing, crushing and contact with hot moving structures
  • Set the operating gap with thermal movement included
  • Check the full channel scale against known mechanical travel
  • Restore alarm and trip logic only after controlled validation
  • Extended-range axial displacement on large turbomachinery
  • Differential-expansion or thermal-growth monitoring
  • Large-shaft position measurement where armored cable protection is required
Description
Emerson PR6426-010-140 is an armored 32 mm eddy current sensor for large-range non-contact displacement measurement.

The official PR6426/010-140 code specifies an 80×40 mm mounting plate, armored cable, no intermediate adapter, 10 m continuous lead and LEMO end.

Before installation or replacement, verify plate geometry, target size and alloy, center gap and expected travel, armored-cable routing, bend radius, converter pairing and monitor configuration.
Alternative Names
PR6426-010-140 PR6426/010-140 PR 6426-010-140 PR 6426/010-140 Emerson PR6426-010-140 Emerson PR6426/010-140 Emerson Epro PR6426-010-140 Emerson Epro PR6426/010-140 Epro PR6426-010-140 Epro PR6426/010-140
Technical notes

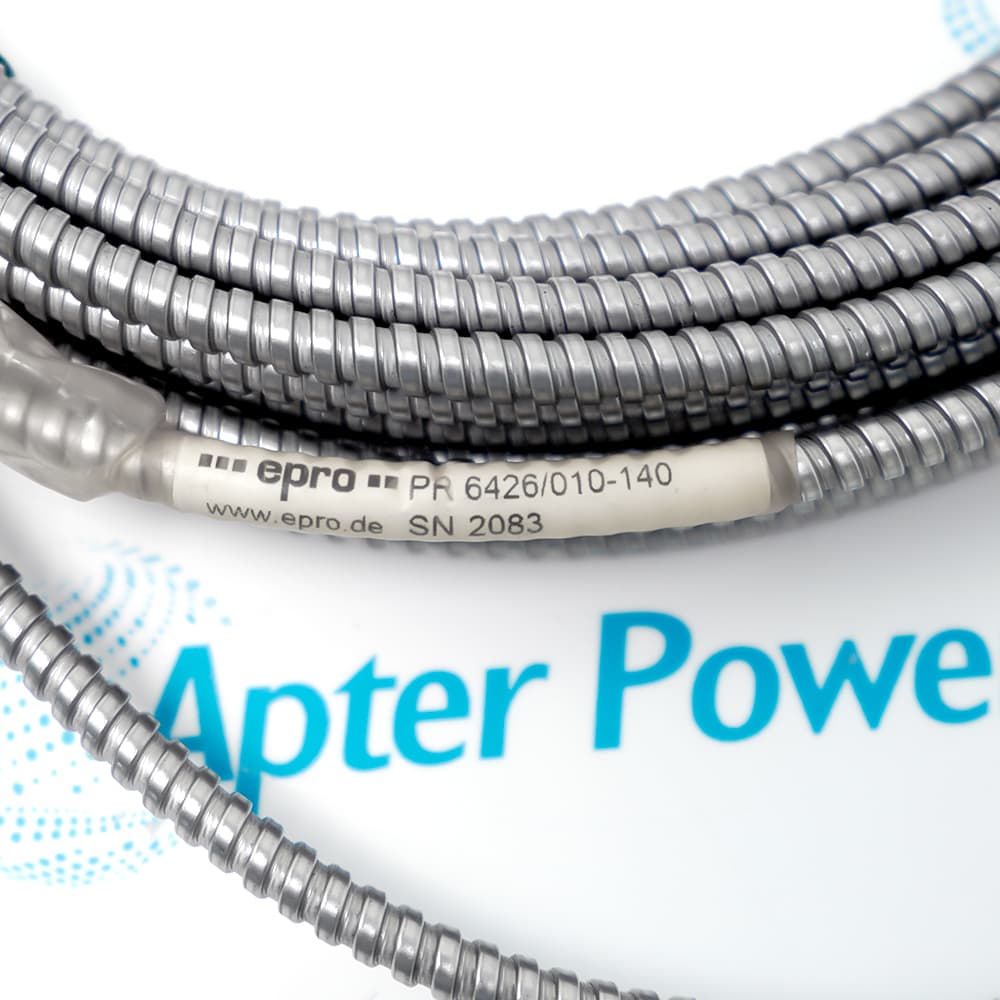

PR6426-010-140 has a continuous armored 10 m lead. The armor protects the cable mechanically but does not permit shortening, splicing, tight bends or unsupported routing.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What distinguishes Emerson PR6426-010-140 from PR6426-000-030?
This version has armored cable, a continuous 10 m lead and no intermediate adapter; the other configuration uses an unarmored 8 m lead with an adapter.
Can the 10 m armored lead on Emerson PR6426-010-140 be shortened?
No field shortening should be assumed. Cable length is part of the exact order configuration and the calibrated measuring chain.
What installation clearance is easily overlooked for Emerson PR6426-010-140?
The large head needs its published free metal area and a rigid 80×40 mm plate, while the 10 m armor needs a 35 mm minimum bend radius and strain relief.
Can Emerson PR6426-010-140 measure a small shaft accurately?
Do not assume so. The official PR6426 family specifies a large minimum shaft diameter and target area; smaller or curved targets change sensitivity and linearity.
Why can a correct-looking LEMO connection on Emerson PR6426-010-140 still give the wrong scale?
The attached converter may be calibrated for another probe family, serial number, sensitivity or cable arrangement. Verify the complete measuring-chain identity.
What should be checked if Emerson PR6426-010-140 drifts during a temperature cycle?
Inspect target growth, plate movement, cable strain, converter temperature and supply, then compare the cold and hot mechanical gap with the expected machine model.
What is a safe acceptance sequence for Emerson PR6426-010-140?
Confirm plate torque and clearance, move the target through a controlled portion of the range, verify polarity and scale, then test alarms with the machine protected and bypasses managed.
