IS210AEPSG1BCB

/ 4.9
1001 reviews | Need a Specific Revision?
The General Electric IS210AEPSG1BCB is a Alternative Energy Power Supply (AEPS) board engineered as a core power distribution component for the heavy-duty Mark VIe control system ecosystem.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS210AEPSG1BCB
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS210AEPSG1BCB

  • Manufacturer:
    General Electric
  • Part Number:
    IS210AEPSG1BCB
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Alternative Energy Power Supply Board
  • Stock:
    1
  • Output Voltage (Rated):
    24V DC
  • Output Protection:
    Factory-Calibrated 4A Electronic Fuses (Per Channel)
  • Voltage Regulation:
    ±1% under full load
  • Surge Immunity:
    ±2 kV differential
  • Isolation:
    1500V rms (Channel-to-Earth)
  • Operating Temperature:
    -40°C to +85°C (-40°F to +185°F)
  • Storage Temperature:
    -40°C to +85°C
  • Cooling:
    Natural Convection
  • Weight:
    0.62 kg
  • Estimated shipping dimensions:
    2x21x26.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Certifications & Standards

Features:

  • Rugged Nacelle-Ready Construction
  • Precision Power Regulation & Protection
  • Redundant Input Architecture
The General Electric IS210AEPSG1BCB features a heavy-duty conformal coating that protects sensitive circuitry from moisture, salt spray, and airborne contaminants in offshore wind farms. This ensures reliable operation in extreme temperature variations from -40°C to +85°C, preventing corrosion-related intermittent faults.

Equipped with factory-calibrated electronic fuses (4A) and ±1% voltage regulation, the General Electric IS210AEPSG1BCB delivers stable 24V DC power to critical pitch and yaw loads. Its ±2 kV differential surge immunity safeguards downstream controllers against lightning-induced transients and grid switching events commonly encountered in renewable energy installations.

The General Electric IS210AEPSG1BCB accepts dual 24V DC inputs from independent power supplies, enabling hot-standby redundancy. This architecture ensures continuous power delivery to turbine control functions, eliminating single-point failure risks during maintenance or supply faults in the field.

The IS210AEPSG1BCB General Electric Alternative Energy Power Supply Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS210AEPSG1BCB Alternative Energy Power Supply Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS210AEPSG1BCB Alternative Energy Power Supply Board

General

  • Manufacturer General Electric
  • Model IS210AEPSG1BCB
  • Condition New Original ready stock
  • Product Family IS210AEBIH3BEC,IS210AEAAH3BKE,IS210AEBIH3BED
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Wind Turbine Control & Optimization: Specifically deployed within the wind power generation architecture of the GE Mark VIe platform to regulate yaw control, pitch calibration, and main turbine safety parameters.
  • Thermal Power Plant Management: Extensively utilized across heavy-duty gas and steam turbine generator sets (such as the GE Frame 6, 7, and 9 series) to manage sub-system power distribution.
  • Critical Petrochemical Processes: Integrated into automated control loops within refineries and oil/gas pipeline compressor stations where power distribution to safety instrumented systems cannot tolerate interruption.
  • Heavy Industrial Automation Racks: Serves as a localized high-reliability auxiliary power distribution hub inside specialized DCS (Distributed Control System) cabinets managing continuous processing plants.
  • Extended Thermal Operating Range: Engineered to maintain functional stability and full rated output within extreme industrial thermal boundaries ranging from -40°C to +70°C (-40°F to 158°F).
  • High-Humidity Tolerance Performance: Capable of operating seamlessly across non-condensing relative humidity bands ranging from 5% up to 95%, protecting the board against condensation stresses during thermal cycling.
  • Corrosive Atmospheric Defense: Coated with a robust B-rated conformal protective finish that resists chemical degradation caused by airborne pollutants, salt-fog spray, and conductive particulate tracking.
  • Vibration and Shock Isolation: Structurally validated to withstand the persistent low-frequency mechanical vibrations and transient physical shocks typical of industrial heavy machinery platforms and turbine housings.
  • Functional Safety Standards (IEC 61508/61511): Fully certified for deployment in critical safety loops, supporting up to SIL 2 or SIL 3 configurations when arranged in triple modular redundant (TMR) setups within the Mark VIeS ecosystem.
  • Hazardous Area Classifications (ATEX/IECEx): Engineered to comply with ATEX and IECEx standards, permitting safe installation inside Class I, Division 2 / Zone 2 explosive or volatile gas environments when housed in an authorized enclosure.
  • Electromagnetic Compatibility (EMC/CE Directive): Adheres strictly to European CE directives for electromagnetic immunity and emission controls, ensuring the board neither disrupts nor is disrupted by adjacent heavy industrial switchgear.
  • Rigorous Reliability Metrology (MTBF Benchmarking): Formally validated to meet or exceed an MTBF calculation of 5,000,000 hours under standard reference operating parameters, ensuring long-term structural and economic value.
Description
At the heart of critical control operations, the General Electric IS210AEPSG1BCB serves as a vital backbone for deterministic power delivery. Specifically tailored for GE’s renowned Mark VIe and Speedtronic turbine management platforms, this power supply board regulates fluctuating inputs into clean, consistent voltage. By integrating advanced transformer arrays and multi-stage filter inductors, it eliminates systemic electrical noise and voltage ripples, effectively mitigating risk for downstream processors and sensitive I/O components.

Engineered to withstand the unforgiving environments typical of power generation plants and heavy industrial automation, the General Electric IS210AEPSG1BCB features heavy-duty industrial build quality. The assembly is treated with a premium B-rated revision conformal coating, providing superior insulation against high humidity, conductive dust, salinity, and airborne corrosive gases. This robust chemical barrier guarantees physical hardware longevity, drastically minimizing premature failures and unexpected downtime in remote field deployments.

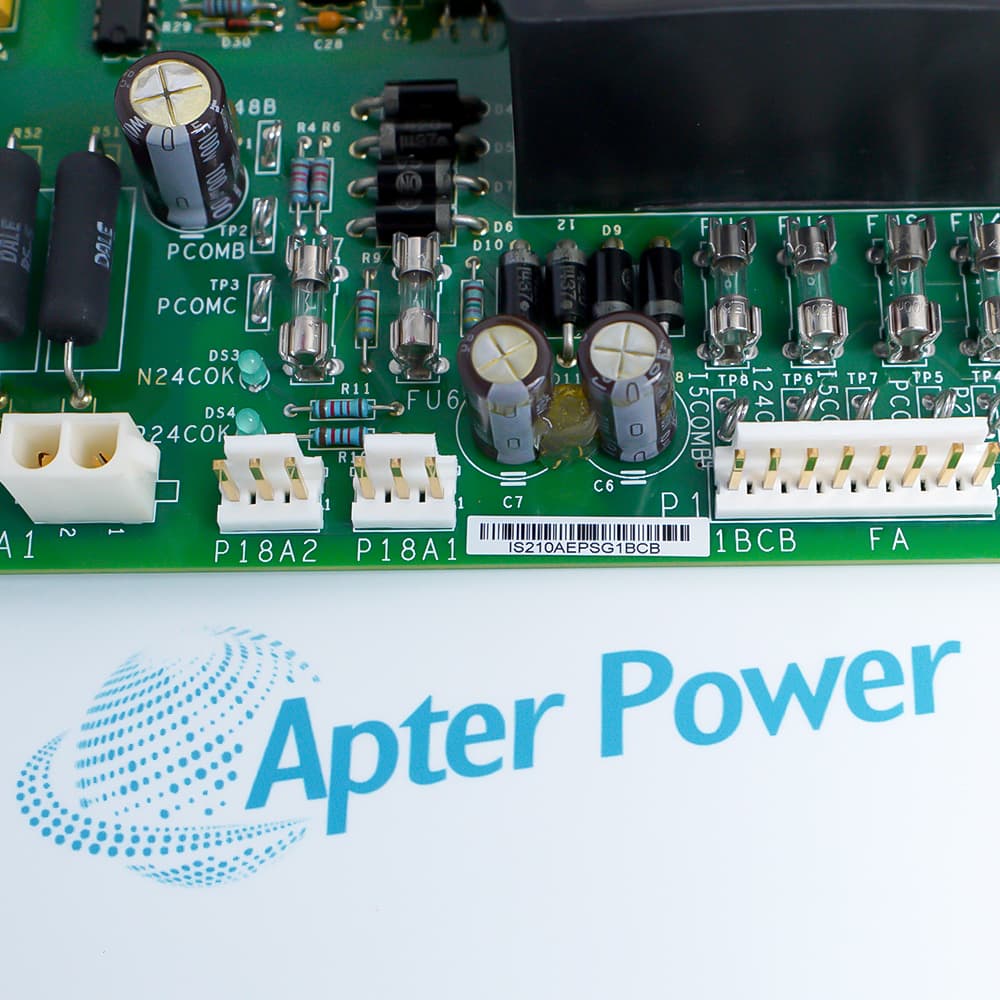

Operational transparency and safety are fundamental to the General Electric IS210AEPSG1BCB design philosophy. The board features an onboard array of high-visibility diagnostic LEDs and multiple strategically located test points (TP) that allow field technicians to perform real-time voltage tracking and signal monitoring. Equipped with 4 pairs of multi-specification protective fuses alongside 11 high-efficiency thermal dissipators, it manages onboard thermals effortlessly while acting as a reliable line of defense against catastrophic overcurrent and thermal runaway.
Revisions

Revision Part #

Also known as

IS210AEPSG1BCA
IS210AEPSG1BCA Series -BCA, Rev -BCA
IS210AEPSG1BCB
IS210AEPSG1BCB, Series -BCB, Rev -BCB
Alternative Names
1S210AEPSG1BCB IS2I0AEPSGIBCB IS21OAEPSG1BCB 1S2IOAEPSGIBCB IS210AEBIH3BEC IS210AEAAH3BKE IS210AEBIH3BED IS210AEDBH4AGD
Technical notes
The General Electric IS210AEPSG1BCB is an elite power management module designed to facilitate seamless energy distribution within high-density turbine controllers, requiring precise installation adherence to prevent field wiring ground faults. To guarantee system inter-compatibility and functional integrity, this board must be deployed using the appropriate ControlST and ToolboxST configuration suites aligned with the Mark VIe platform parameters.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the critical wiring rules for the General Electric IS210AEPSG1BCB?
The General Electric IS210AEPSG1BCB requires two separate 24V DC power supplies wired to its dual inputs to enable redundancy. The chassis ground wire must be terminated exclusively at the main cabinet busbar. Using daisy-chain grounding methods creates noise that disrupts 4-20mA signals and encoder feedback.
What firmware is required for the General Electric IS210AEPSG1BCB to work?
The General Electric IS210AEPSG1BCB requires Mark VIe controller firmware v5.2 or newer. Older firmware versions misidentify the board’s electronic fuse status, generating false “power fault” alarms and occasional communication drops. Always verify the firmware revision before installation.
What safety certifications does the General Electric IS210AEPSG1BCB hold?
The General Electric IS210AEPSG1BCB is certified for CE, UL, and meets IEC 60947-5-1 standards. It is also rated SIL 2 capable for functional safety applications, meaning it can be used in safety-related loops up to Safety Integrity Level 2 per IEC 61508.
What should I check during incoming inspection of a General Electric IS210AEPSG1BCB?
First, cross-check the serial number against GE’s OEM anti-counterfeit database. Physically inspect the General Electric IS210AEPSG1BCB for scratches on the conformal coating, corrosion on connectors, and cold solder joints. Verify that all electronic fuses are factory-original and undamaged.
