IS220PDIOH1A

/ 4.9
1001 reviews | Need a Specific Revision?

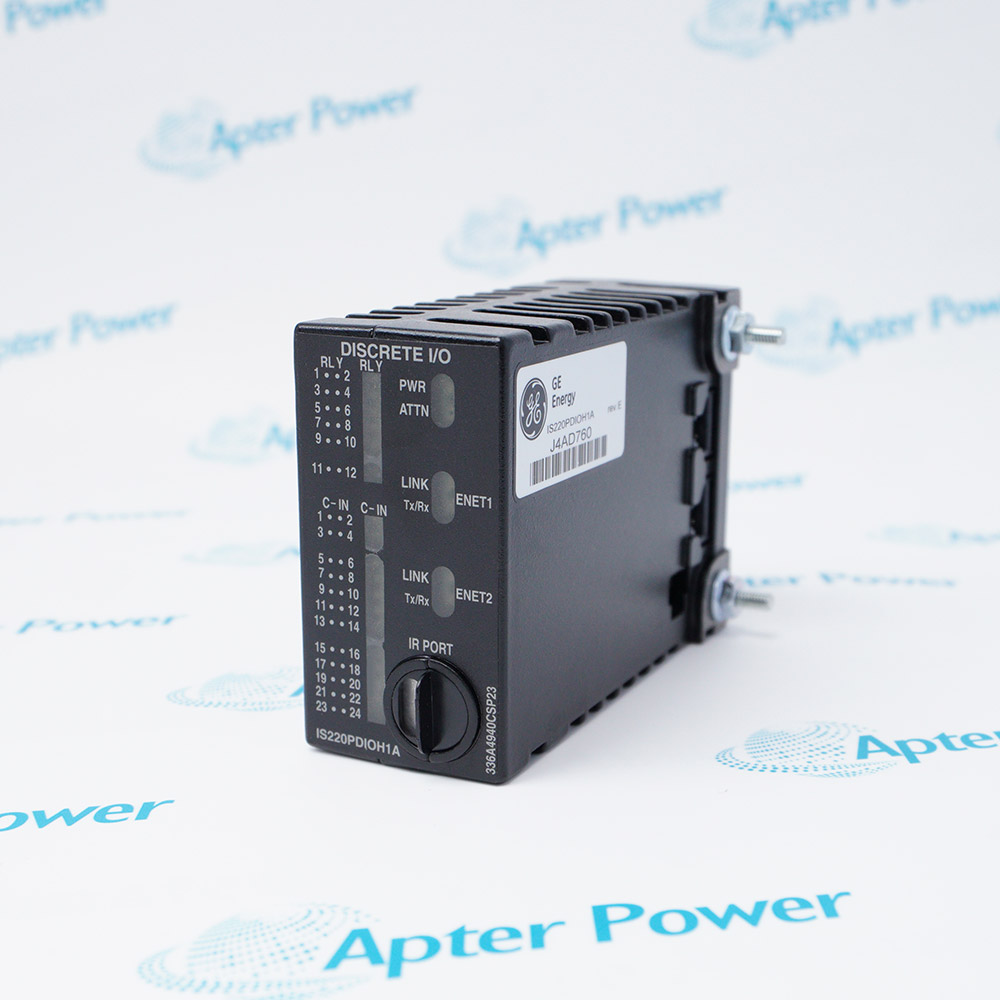

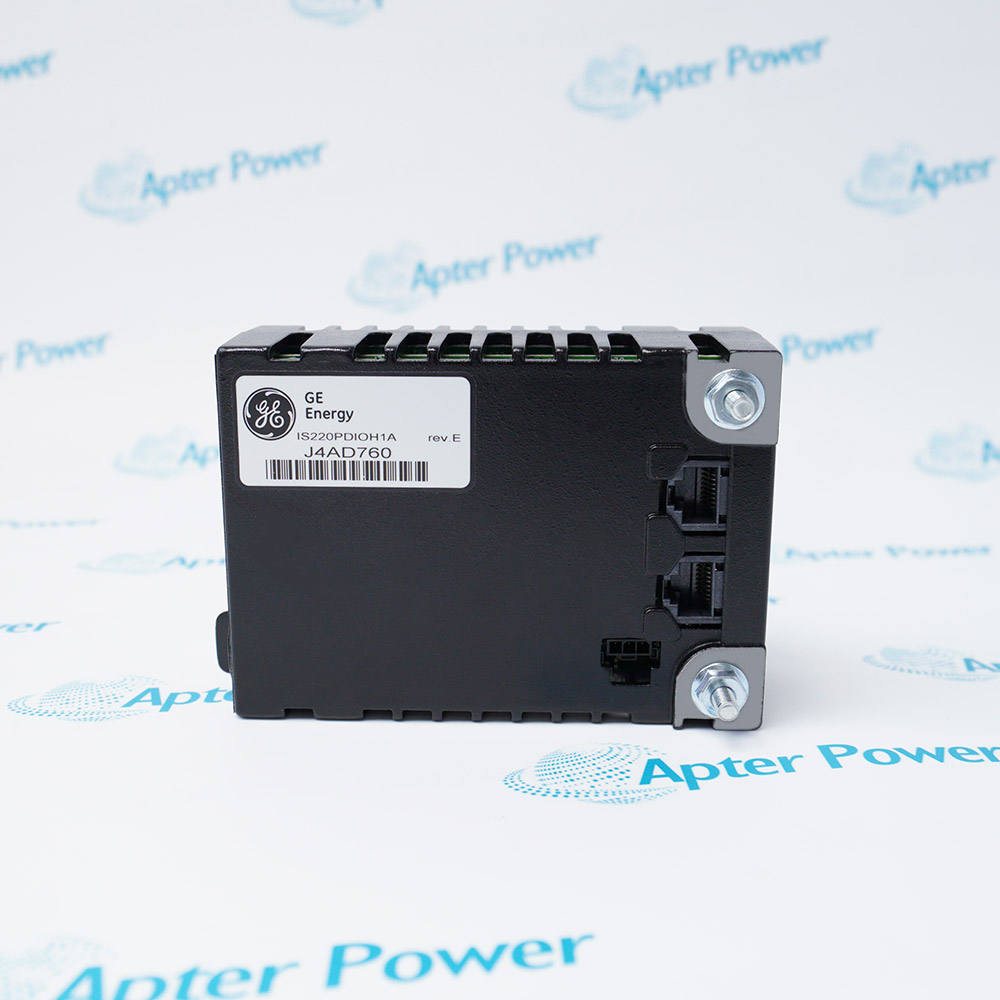

GE IS220PDIOH1A is a Mark VIe PDIO discrete I/O pack for documented TDBSH2A and TDBTH2A terminal-board applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS220PDIOH1A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS220PDIOH1A

  • Manufacturer:
    General Electric
  • Part Number:
    IS220PDIOH1A
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Mark VIe PDIO Discrete Input/Output I/O Pack
  • Stock:
    1
  • GE part number:
    IS220PDIOH1A
  • Control platform:
    Mark VIe
  • I/O role:
    Discrete input/output pack
  • Terminal boards:
    TDBSH2A and TDBTH2A
  • Nominal power:
    28 VDC
  • Weight:
    0.35 kg
  • Estimated shipping dimensions:
    6x12.8x8.3cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Terminal Match Power and Network Point Checkout Product Applications

Features:

  • Supported boards: official documentation identifies TDBSH2A and TDBTH2A.
  • Field role: the terminal-board selection defines the installed discrete I/O arrangement.
  • Connector check: inspect latches, pins and seating before power-up.
IS220PDIOH1A is the PDIO discrete input/output I/O pack in GE’s Mark VIe control platform.

A correct IS220PDIOH1A service match considers the terminal-board type, connector seating, 28 VDC power and installed control configuration together.

For IS220PDIOH1A replacement, Apter Power recommends recording the existing pack and terminal-board labels, then using Mark VIe diagnostics to verify communications and every affected point.

Apter Power supports documentation review, procurement planning and quotation for General Electric model IS220PDIOH1A, a Mark VIe PDIO Discrete Input/Output I/O Pack.
General Electric IS220PDIOH1A Mark VIe PDIO Discrete Input/Output I/O Pack Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Supported boards: official documentation identifies TDBSH2A and TDBTH2A.
  • Field role: the terminal-board selection defines the installed discrete I/O arrangement.
  • Connector check: inspect latches, pins and seating before power-up.
  • Label record: capture both I/O-pack and terminal-board identifiers.
  • Pack power: documentation specifies nominal 28 VDC operation.
  • Controller link: Ethernet communication connects the pack with the Mark VIe system.
  • Diagnostics: pack and controller status help isolate communication or field faults.
  • Temperature range: official material lists -30 to +65 C operation.
  • Configuration: confirm the pack and terminal board are assigned correctly.
  • Input proof: exercise each safe discrete input and verify host indication.
  • Output proof: command outputs through the approved site test.
  • Final review: clear diagnostics only after field behavior matches the control record.
  • Mark VIe discrete I/O: interfaces documented field points through supported terminal boards.
  • Turbine-control maintenance: restores an active PDIO pack without redesigning the field termination.
  • Planned outage support: enables exact-part preparation with approved technical data.
  • Diagnostic replacement: separates I/O-pack, terminal-board and field-wiring issues through structured checks.
Description
IS220PDIOH1A is the PDIO discrete input/output I/O pack in GE’s Mark VIe control platform. Official documentation associates the pack with TDBSH2A and TDBTH2A terminal boards, allowing one hardware family to serve documented discrete input and output arrangements.

A correct IS220PDIOH1A service match considers the terminal-board type, connector seating, 28 VDC power and installed control configuration together. This prevents an apparently similar I/O pack from being accepted without the terminal interface that defines the actual field function.

For IS220PDIOH1A replacement, Apter Power recommends recording the existing pack and terminal-board labels, then using Mark VIe diagnostics to verify communications and every affected point. This approach protects the host system while giving operators a clear path back to service.
Alternative Names
IS220 PDIOH1A IS220-PDIOH1A IS220PDIO H1A IS220PDIOHIA GE IS220PDIOH1A GE Mark VIe PDIO PDIOH1A I/O Pack IS220PDIOH1A PDIO
Technical notes
For IS220PDIOH1A support, Apter Power recommends preserving the complete label, installed interface and application record. These details help our engineering and commercial team provide a more accurate quotation and a smoother commissioning path.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which terminal boards are documented for IS220PDIOH1A?
GE documentation associates the PDIO pack with TDBSH2A and TDBTH2A terminal boards. The installed board should be included in every compatibility review.
What power supply does IS220PDIOH1A use?
Official Mark VIe documentation specifies nominal 28 VDC power for the pack. Please compare the cabinet supply and connector arrangement before commissioning.
Can IS220PDIOH1A be selected without checking the terminal board?
We strongly advise checking both items because the terminal board defines the actual discrete input and output arrangement connected to the pack.
What information helps diagnose an IS220PDIOH1A communication fault?
Pack indicators, controller diagnostics, Ethernet connection status, power measurement and terminal-board identity provide a useful starting set.
How should IS220PDIOH1A be tested after replacement?
Confirm Mark VIe communications first, then prove affected inputs and outputs through a controlled site test while monitoring diagnostics.
What support can Apter Power provide for IS220PDIOH1A?
We can assist with exact-model review, approved technical documentation, sourcing, logistics and quotation support for this active GE I/O pack.
