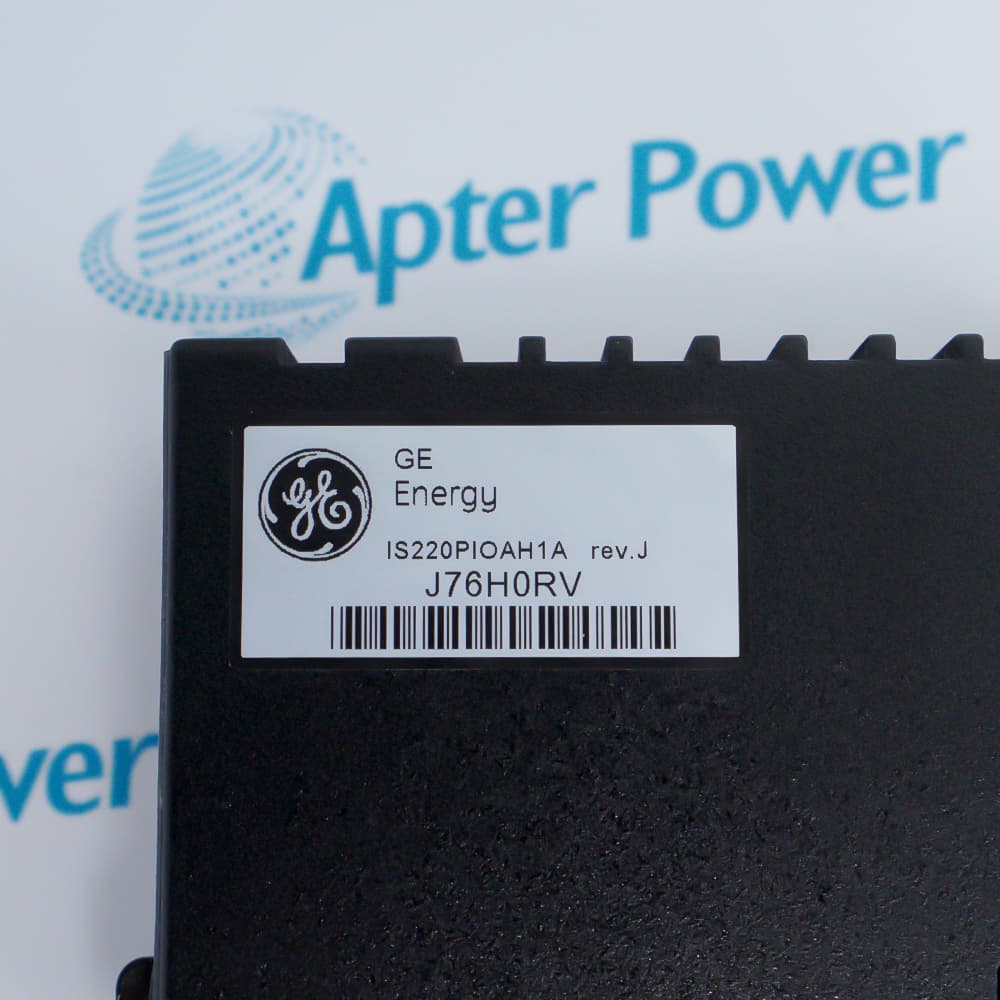

General Electric IS220PIOAH1A comm bridge I/O pack serves as an intelligent communication interface that manages data exchange between field devices and control networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS220PIOAH1A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS220PIOAH1A

  • Manufacturer:
    General Electric
  • Part Number:
    IS220PIOAH1A
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Comm Bridge I/O Pack
  • Stock:
    1
  • Microprocessor:
    32-bit RISC CPU, 266 MHz
  • Operating System:
    QNX Real-Time Operating System
  • Power Supply:
    28 V DC
  • Channels:
    1 RS-485
  • Frame Rate:
    32 Hz
  • Network Ports:
    Dual 10/100 Mbps (Dual RJ-45)
  • Channels:
    1 RS-485
  • Connector:
    37-pin (direct connection to JPDV board)
  • Operating Temperature:
    -30°C to +65°C
  • HazLoc Rating:
    Class 1, Division 2 Hazardous Area Certification
  • Weight:
    0.35 kg
  • Estimated shipping dimensions:
    6x12.8x8.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Safety Installation Application Scenarios

Features:

  • A 266 MHz 32-bit RISC CPU combined with the QNX real-time operating system delivers dependable and deterministic communication performance.

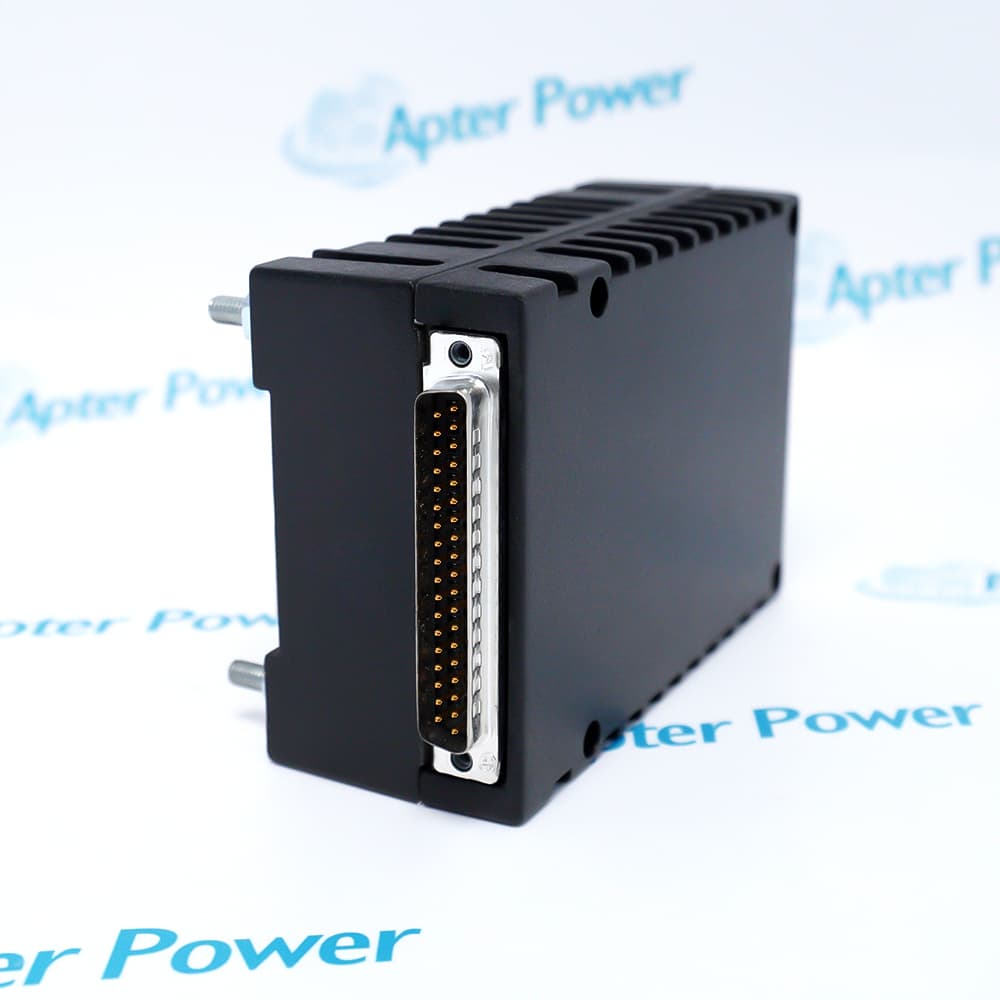

  • Direct installation through a 37-pin connector enables seamless integration with the JPDV board without conventional field wiring terminals.
  • Two independent 10/100 Mbps Ethernet interfaces improve communication reliability in redundant and triple-redundant network configurations.
Communication reliability is a critical requirement in modern industrial systems, and General Electric IS220PIOAH1A addresses that need through integrated processing and networking capabilities. The module contains an embedded processor board that independently handles communication tasks. Real-time operation is supported by the QNX operating system, providing predictable data exchange. One RS-485 channel and a frame rate of 32 Hz contribute to consistent information transfer. Such characteristics make the pack suitable for demanding control applications.

General Electric IS220PIOAH1A differs from traditional I/O devices because field wiring terminals are not part of the design. Instead, the unit employs a 37-pin connector that mates directly with the JPDV interface board. Functional expansion and network communication are accomplished through the associated board structure. A dedicated 3-pin power input supplies 28 VDC to the internal electronics. This arrangement supports efficient integration inside larger control assemblies.

Availability and maintenance features are also important advantages. Dual 10/100 Mbps Ethernet ports with RJ-45 connectors support redundant communication networks and help reduce the impact of cable failures. Six LED indicators provide immediate visual feedback regarding power and communication conditions. In addition, a hidden infrared interface enables maintenance activities without disconnecting the unit. General Electric IS220PIOAH1A is rated for temperatures from -30°C to +65°C and carries Class 1, Division 2 hazardous area approval, making it appropriate for harsh industrial installations.

The IS220PIOAH1A General Electric Comm Bridge I/O Pack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric IS220PIOAH1A Comm Bridge I/O Pack Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IS220PIOAH1A Comm Bridge I/O Pack Specs

General

  • Manufacturer General Electric
  • Model IS220PIOAH1A
  • Condition New Original ready stock
  • Product Family IS220PDIAH1A,IS220PPDAH1B,IS220PPRAH1A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Explosion-proof rating: Class 1, Division 2 hazardous area certification.
  • Hot-plugging: Do not disassemble the module while it is powered on.
  • Temperature monitoring: Built-in sensor triggers high-temperature over-limit alarm.
  • Grounding protection: Reliable grounding must be achieved through the terminal block.
  • Interface alignment: The 37-pin connector must be vertically aligned with the JPDV board.
  • Bolt fixing: Tighten the fixing bolts on both sides to ensure mechanical stability.
  • Network wiring: Insert two network cables into the RJ-45 jacks for redundancy.
  • Power connection: Insert the dedicated 3-pin 28V DC power connector.
  • Excitation System: Used for control and communication in the EX2100e system.
  • Data Bridging: Enables high-speed conversion between ARCNET and Ethernet.
  • Power Plant Control: Deployed in Mark VIe systems for large generator sets.
  • Industrial Networks: Used to build highly reliable, dual-redundancy networks.
Description
General Electric IS220PIOAH1A comm bridge I/O pack combines communication management and local processing functions in a compact industrial package. A 32-bit RISC processor running at 266 MHz works together with the QNX real-time operating system to deliver highly deterministic data conversion and dependable operation. The module supports one RS-485 communication channel and operates with a frame rate of 32 Hz, making it suitable for applications that require stable and predictable data transmission.

Unlike conventional modules that use terminal boards for direct field wiring, General Electric IS220PIOAH1A connects through a dedicated 37-pin interface and mounts directly onto the JPDV board. Network interaction and functional expansion are achieved through this specialized interface arrangement. The design eliminates traditional field wiring terminals and provides an integrated connection architecture that simplifies communication between associated hardware components.

Industrial network availability is enhanced through two independent 10/100 Mbps Ethernet ports with RJ-45 connectors. Such a configuration supports redundant or triple-redundant network structures and helps maintain communication even if one network cable becomes unavailable. General Electric IS220PIOAH1A receives power from a dedicated 3-pin 28 VDC input because of the processing requirements of the internal electronics. Six front-panel LEDs provide status indication for power, attention, and Ethernet activity, while a hidden infrared port allows maintenance personnel to perform low-level diagnostics or host naming procedures without removing the pack. Operating temperatures from -30°C to +65°C and Class 1, Division 2 hazardous area certification further extend the suitability of General Electric IS220PIOAH1A for demanding industrial environments.
Revisions

Revision Part #

Also known as

IS220PIOAH1AJ
IS220PIOAH1A-J, Series J, Rev J
Alternative Names
IS22OPIOAH1A IS220PIOAHIA IS220PDIAH1A IS220PPDAH1B IS220PPRAH1A IS220PPROS1B IS220PSFDH1A IS220PVIBH1AL
Technical notes
The General Electric IS220PIOAH1A functions as a high-performance communication bridge pack, leveraging a 266 MHz RISC processor to seamlessly bridge ARCNET and dual 10/100 Mbps Ethernet networks in Mark VIe systems.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does General Electric IS220PIOAH1A achieve real-time communication?
An embedded 266 MHz 32-bit RISC processor and the QNX real-time operating system provide deterministic processing and stable communication performance.
Can General Electric IS220PIOAH1A continue operating after a network cable failure?
Dual independent 10/100 Mbps Ethernet ports enable redundant network configurations, allowing communication to remain available when one cable becomes disconnected.
Which power source supports General Electric IS220PIOAH1A?
The module uses a dedicated 3-pin power input with a rated supply voltage of 28 VDC.
