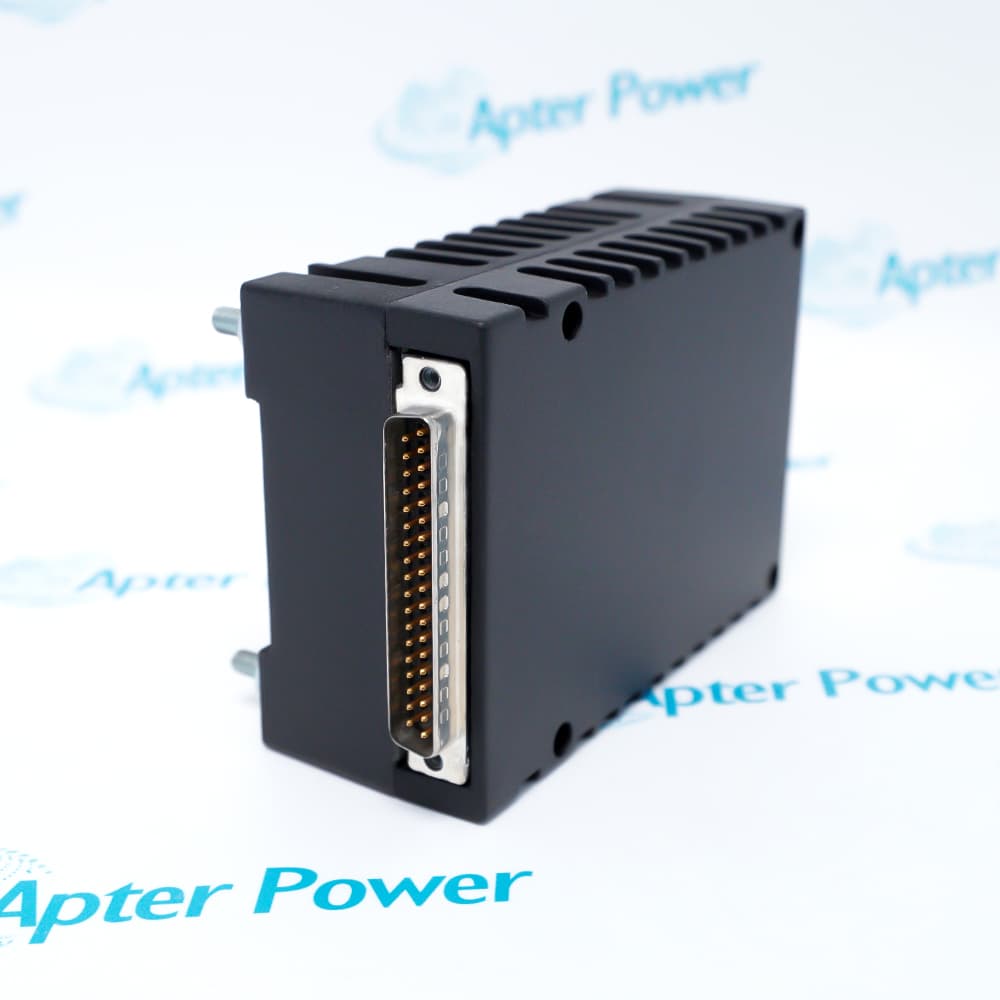

IS220YAICS1A

/ 4.9
1001 reviews | Need a Specific Revision?
IS220YAICS1A is a GE Mark VIeS safety analog I/O pack with 10 inputs, 4 outputs, 24V DC power, and hazardous location certification for turbine control systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for IS220YAICS1A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IS220YAICS1A

  • Manufacturer:
    General Electric
  • Part Number:
    IS220YAICS1A
  • Product Family:
    GE Mark VIe Distributed I/O
  • Product Type:
    Analog I/O Module
  • Stock:
    9
  • Power Supply Voltage:
    27.4 – 28.6 V dc (28.0 nominal)
  • Power Supply Current:
    ≤ 0.49 A dc
  • Analog Outputs Voltage:
    0 to 16.3 V dc
  • Analog Outputs Current:
    0 to 20 mA dc
  • Analog Transmitter Power Voltage:
    22.8 – 25.2 V dc (24.0 nominal)
  • Analog Transmitter Power Current:
    ≤ 21 mA dc
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    6x12.8x8.2cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware & Updates Configuration

Features:

  • S220YAICS1A provides 10 analog inputs and 4 analog outputs with configurable voltage/current ranges for safety applications.
  • Operates on 28V DC supply with 0.49A max current and includes 24V transmitter power up to 21mA.
  • Hazardous location certified with compatibility for Euro-style or barrier-type terminal boards in Mark VIeS systems.
The IS220YAICS1A delivers extensive analog signal processing capability for safety-critical turbine control applications. It features 10 analog input channels: the first eight channels are software-configurable for either voltage (-10V to +10V) or current (0-20mA) signals, allowing flexible connection to a wide variety of field sensors such as pressure transmitters, temperature transducers, and position feedback devices. The remaining two input channels (9-10) are dedicated to current signals (1-20mA), typically used for 4-20mA loop-powered transmitters.

The IS220YAICS1A includes an integrated analog transmitter power supply, eliminating the need for external power sources for 2-wire loop-powered transmitters. This built-in supply delivers a nominal 24.0V DC (with a range of 22.8V to 25.2V) and can provide up to 21mA of current, sufficient to power multiple transmitters connected to the analog input channels. This feature simplifies field wiring by allowing direct connection of 2-wire transmitters without requiring separate power supplies or external loop power modules. The integrated power supply also ensures that the loop power is properly referenced to the module's ground, improving common-mode noise rejection and measurement accuracy.

The IS220YAICS1A is specifically certified for installation in hazardous (classified) locations, making it suitable for use in explosive atmospheres such as refineries, chemical plants, and offshore platforms where flammable gases or vapors may be present. The module is approved for use with multiple terminal board options to accommodate different field wiring requirements. For Euro-style box-type terminal blocks, compatible boards include IS200STA1S1A, IS200STA1S2A, IS400STA1S1A, and IS400STA1S2A. For barrier-type terminal blocks, compatible boards include IS200TBAIS1C and IS400TBAIS1C. These terminal boards provide secure, vibration-resistant connections for field wiring.

The IS220YAICS1A GE Analog I/O Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

GE IS220YAICS1A Analog I/O Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
GE IS220YAICS1A Analog I/O Module Specs

General

  • Manufacturer GE
  • Model IS220YAICS1A
  • Condition New Original ready stock
  • Product Family IS220PDIAH1B,IS220PAICH1A,IS220PDOAH1A
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Emergency Shutdown (ESD) Systems: Monitored analog variables (e.g., pipeline pressure, storage tank levels) trigger automatic trip valves if thresholds cross safety limits.
  • Gas and Steam Turbine Protection: Monitors critical turbine metrics—such as combustion over-temperature, high casing vibrations, gas leakage, and fuel line hydraulic pressures.
  • Hazardous Environmental Monitoring: Installed inside wind turbine nacelles, chemical refineries, and offshore drilling rigs. Its hazardous area certification (HazLoc) permits safe deployment alongside explosive or toxic atmospheres.
  • Gas Detection Arrays: Configured as a high-density, low-latency node processing analog inputs from specialized industrial gas sensors and flame detectors.
  • Integrated Firmware Delivery: The module's active board-level firmware is packaged directly inside the overall GE ControlST™ / ToolboxST™ software suite updates. It cannot be flashed using third-party utility tools.
  • Update Execution via ToolboxST: Firmware updates are pushed from the engineering workstation to the pack over the dual-redundant IONet (I/O Network) fabric. The update wizard inside ToolboxST checks revision numbers to prevent unauthorized or corrupted binaries from flashing onto the safe processor.
  • Hardware Mapping: The card is bound via software to compatible safety terminal blocks, including the IS200STAIS1A, IS400STAIS1A, or IS200TBAIS1C. The network topology assigns unique IP addresses to map the 16 high-accuracy analog channels into the system database (SDB).
  • Channel Profile Templates: Engineers program individual channel variables using pre-configured loop templates inside ToolboxST. Parameters include signal type (e.g., 0-10 V DC or 4-20 mA), hardware filters, and scale mappings to Engineering Units (EU).
  • Advanced Safety Diagnostics Setup: Advanced thresholds are parameterized in software to monitor field loop health. Configuration allows the module to auto-detect and alarm on open-circuits, short-circuits, overcurrent states, and loop faults.
Description
The IS220YAICS1A is a safety-rated analog I/O pack from GE's Mark VIeS control system, designed for use in hazardous (classified) locations. This IS220YAICS1A module provides 10 analog input channels (8 configurable voltage/current, 2 dedicated current) and 4 analog output channels. The IS220YAICS1A operates on a nominal 28V DC supply (27.4-28.6V range) with a maximum current draw of 0.49A.

The IS220YAICS1A analog inputs support voltage ranges of -10V to +10V and current ranges of 0-20mA for channels 1-8, while channels 9-10 support 1-20mA current. The IS220YAICS1A analog outputs provide 0-16.3V voltage and 0-20mA current capabilities. The module also includes an analog transmitter power supply with nominal 24.0V output (22.8-25.2V range) at up to 21mA.

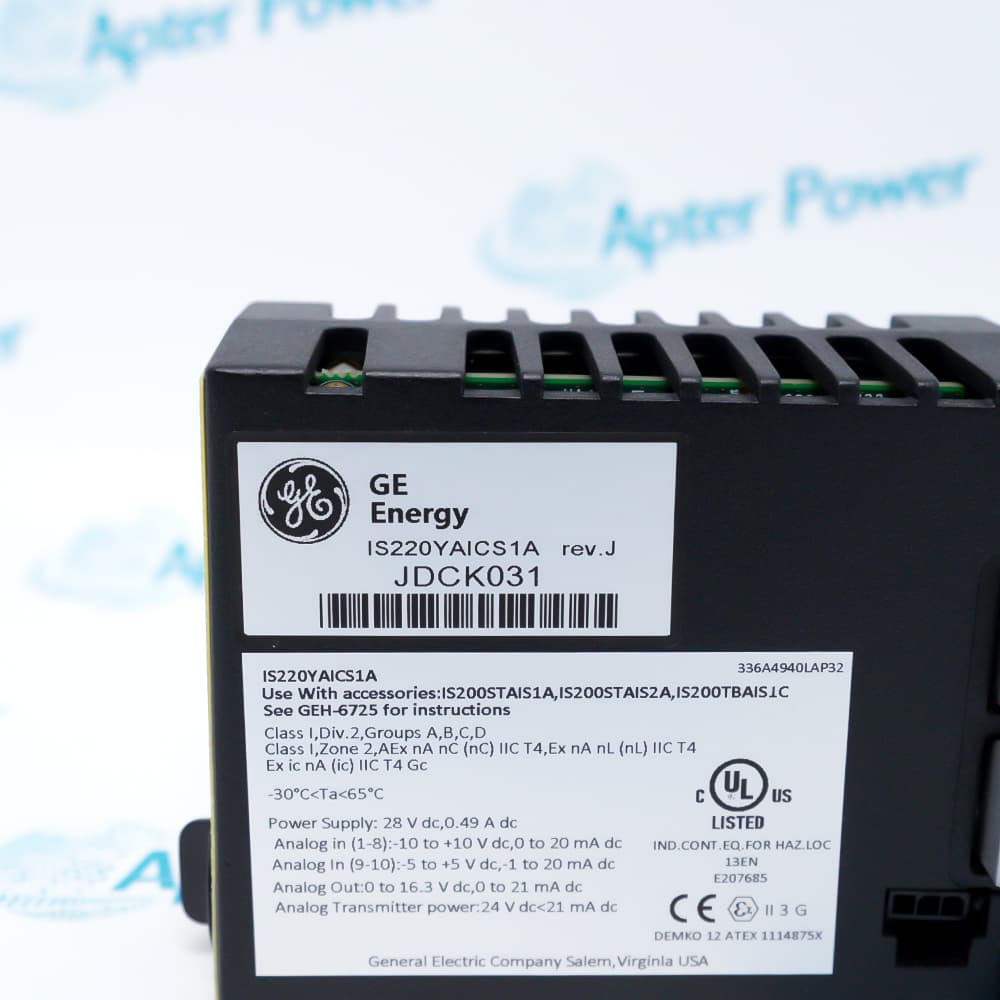

For field wiring, the IS220YAICS1A connects to ISx00STAI_1A or ISx00STAI_2A terminal boards using Euro-style box-type terminal blocks, or to ISx00TBAI_1C terminal boards using barrier-type terminal blocks. The IS220YAICS1A carries hazardous location certifications requiring adherence to all applicable conditions of safe use specified in the instruction guide.
Revisions

Revision Part #

Also known as

IS220YAICS1B
IS220YAICS1-B, Series -B, Rev -B
Alternative Names
IS22OYAICS1A IS220YAICSIA IS220PTURH1A IS220PDOAH1B IS220PRTDH1B IS220PRTDH1A IS220PTCCH1B IS220PAICH1A
Technical notes
The IS220YAICS1A is a Mark VIeS safety analog I/O pack with 10 inputs and 4 outputs. Nominal 28V DC supply, 0.49A max. Inputs: 8 configurable (±10V/0-20mA) plus 2 current (1-20mA). Outputs: 0-16.3V/0-20mA. Includes 24V transmitter supply (21mA). Hazardous location certified. Compatible with multiple terminal boards.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What systems use IS220YAICS1A?
IS220YAICS1A is used in GE Mark VIeS safety control systems for gas and steam turbines requiring hazardous location certification.
How many analog inputs does IS220YAICS1A have?
IS220YAICS1A provides 10 analog inputs: 8 configurable voltage/current (0-20mA, ±10V) plus 2 dedicated current (1-20mA) channels.
What power supply does IS220YAICS1A require?
IS220YAICS1A requires 27.4-28.6V DC (28V nominal) with maximum current draw of 0.49A.
Does IS220YAICS1A provide transmitter power?
Yes, IS220YAICS1A includes an analog transmitter power supply rated at 24V DC (22.8-25.2V) up to 21mA.
