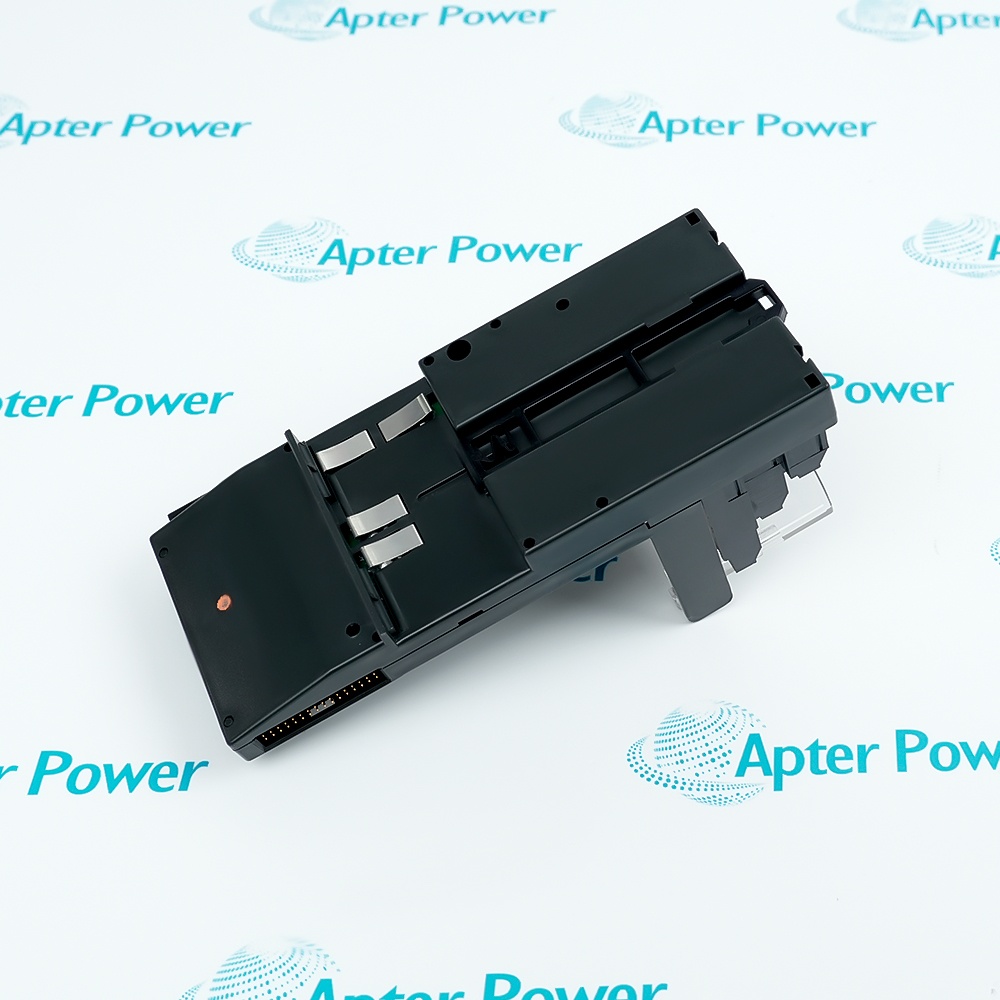

General Electric IC200CHS022 is a VersaMax compact I/O carrier with integrated local box-clamp termination for one vertically mounted I/O module.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for IC200CHS022
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200CHS022

  • Manufacturer:
    General Electric
  • Part Number:
    IC200CHS022
  • Product Family:
    GE VersaMax
  • Product Type:
    VersaMax Compact I/O Carrier, Local Box Clamp Connection Style
  • Stock:
    1
  • Field termination:
    Integrated
  • Module orientation:
    Vertical
  • Supported module position:
    One VersaMax I/O module
  • Adjacent-carrier connection:
    Snap-together VersaMax interface
  • Cables:
    Not required between adjacent compact carriers
  • Weight:
    0.529 lbs (0.24 kg)
  • Estimated shipping dimensions:
    16.5x6.5x7cm
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Termination Module Mounting Carrier Link Replacement

Features:

  • Integrated local box-clamp terminals retain field wiring on the carrier.
  • Vertical module mounting keeps the compact carrier footprint narrow.
  • Snap-together carrier connections extend the VersaMax station without inter-base cables.
The field connector and module seat are combined on IC200CHS022, so the wiring remains on the base when the I/O module is removed.

Vertical alignment places the module over the terminal area while the carrier latches to the 35 mm DIN rail and the neighboring base.

Keying and carrier contacts should be checked together during replacement because terminal style and base orientation are part-specific.

The General Electric IC200CHS022 VersaMax Compact I/O Carrier may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Use the verified IC200CHS022 carrier reference and product links below to confirm terminal style, mounting orientation, and model identity. Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
