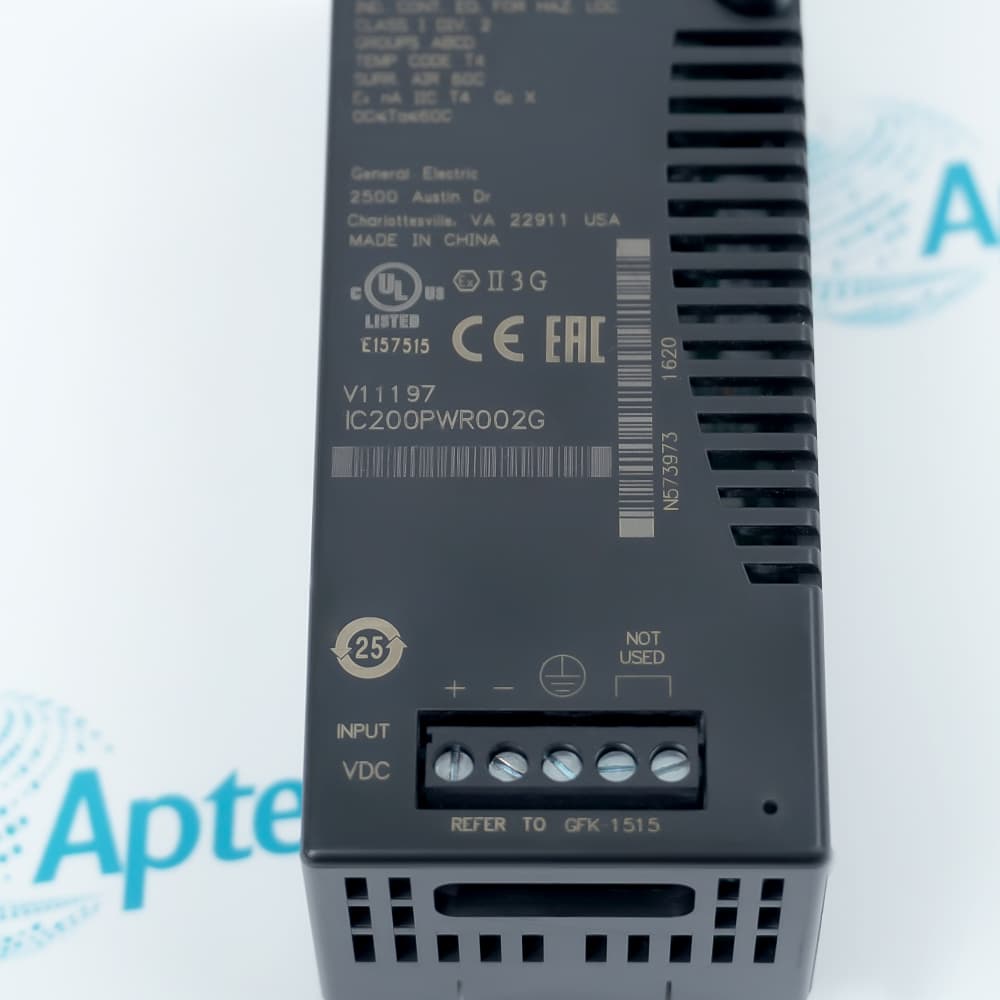

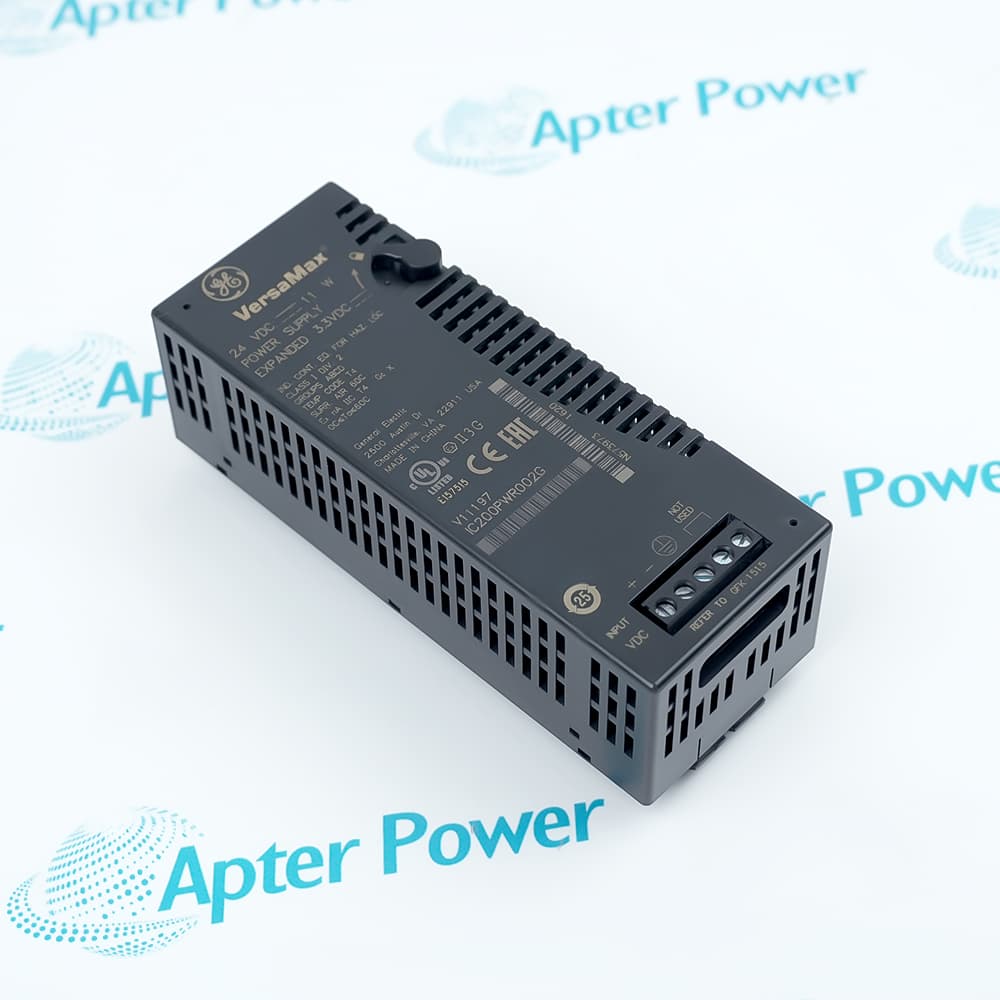

General Electric IC200PWR002G is a VersaMax 24 VDC power supply with expanded 3.3 V capacity for CPUs, network interface units, I/O modules, or a power-supply booster carrier.
In Stock
Ships by Friday, October 30
Get a quick price for IC200PWR002G
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for IC200PWR002G

  • Manufacturer:
    General Electric
  • Part Number:
    IC200PWR002G
  • Product Family:
    GE VersaMax
  • Product Type:
    VersaMax 24 VDC Expanded 3.3 V Power Supply
  • Stock:
    1
  • Input Voltage:
    18 to 30 VDC, 24 VDC nominal
  • Input Power:
    11 W
  • Holdup Time:
    10 ms
  • Inrush Current:
    20 A for 6 ms maximum at 24 VDC; 25 A for 6 ms maximum at 30 VDC
  • Output Voltage:
    5 VDC and 3.3 VDC
  • Total Output Current:
    1.5 A maximum
  • 3.3 V Output Current:
    1.0 A maximum
  • 5 V Output Current:
    1.5 A minus the 3.3 V current used
  • Protection:
    Short circuit, overload, reverse polarity
  • Grounding:
    DC- connected to frame or earth ground
  • Reference Manual:
    GFK-1504Q
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Control Safety

Features:

  • Accepts 18 to 30 VDC with 24 VDC nominal input.
  • Provides both 5 VDC and 3.3 VDC backplane outputs.
  • Supplies up to 1.5 A combined output current.
The current ordering configuration is IC200PWR002G, the VersaMax 24 VDC power supply with expanded 3.3 V output capacity documented in GFK-1504Q.

It powers supported VersaMax CPU, network interface, and I/O hardware, and it can also be installed on a power-supply booster carrier where the rack requires additional current.

Before commissioning, calculate the combined 5 V and 3.3 V load, ground DC- to frame or earth, and provide the required external MOV suppression at the enclosure or power-line input.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for General Electric IC200PWR002G: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
General Electric IC200PWR002G General Specifications

General

  • ManufacturerGeneral Electric
  • ModelIC200PWR002G
  • ConditionNew Original ready stock
  • Product FamilyGE VersaMax
  • Supplies backplane power to a VersaMax CPU or network interface unit.
  • Provides expanded 3.3 V capacity for supported VersaMax hardware.
  • Adds power through a VersaMax power-supply booster carrier.
  • The 3.3 V output can supply up to 1.0 A.
  • Available 5 V current equals 1.5 A minus the 3.3 V current used.
  • Calculate both output loads so their combined current remains within 1.5 A.
  • Connect DC- to frame or earth ground because the supply is internally grounded.
  • Do not use a floating external DC power source with this module.
  • Provide external MOV suppression for agency-compliant installation.
Description
IC200PWR002G is the General Electric VersaMax 24 VDC expanded 3.3 V power supply documented in GFK-1504Q. It accepts 18 to 30 VDC, with 24 VDC nominal input, and supplies 5 VDC and 3.3 VDC backplane power.

The module can serve a VersaMax CPU, network interface unit, I/O modules, or a power-supply booster carrier. Its combined output is limited to 1.5 A, including up to 1.0 A on the 3.3 V output.

Before installation, calculate the 5 V and 3.3 V current allocation, connect DC- to frame or earth ground, avoid a floating input supply, and apply the required external MOV suppression for agency compliance.
Revisions

Revision Part #

Also known as

IC200PWR002A
IC200PWR002-A, Series A, Rev A
IC200PWR002AE
IC200PWR002-AE, Series AE, Rev AE
IC200PWR002B
IC200PWR002-B, Series B, Rev B
IC200PWR002C
IC200PWR002-C, Series C, Rev C
IC200PWR002D
IC200PWR002-D, Series D, Rev D
IC200PWR002E
IC200PWR002-E, Series E, Rev E
IC200PWR002F
IC200PWR002-F, Series F, Rev F
IC200PWR002G
IC200PWR002-G, Series G, Rev G
IC200PWR002H
IC200PWR002-H, Series H, Rev H
IC200PWR002J
IC200PWR002-J, Series J, Rev J
Alternative Names
IC200PWR002G IC200PWR002 G VersaMax 3.3 V Power Supply
Technical notes
IC200PWR002G provides expanded 3.3 V VersaMax backplane power; total 5 V and 3.3 V output current must not exceed 1.5 A.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What input range is specified for IC200PWR002G?
The documented input range is 18 to 30 VDC, with 24 VDC nominal.
How is the 1.5 A output divided on IC200PWR002G?
Up to 1.0 A is available at 3.3 V; the available 5 V current equals 1.5 A minus the 3.3 V current used.
Where can IC200PWR002G be mounted in a VersaMax system?
It can mount on a VersaMax CPU, network interface unit, or power-supply booster carrier.
Can a floating DC source power IC200PWR002G?
No. The official wiring instructions require DC- to be grounded to frame or earth ground.
Which protective functions are built into IC200PWR002G?
The documented protections cover short circuit, overload, and reverse polarity.
Why is IC200PWR002G used with IC200CPUE05?
The VersaMax system manual identifies IC200CPUE05 as requiring an expanded 3.3 V power supply.
