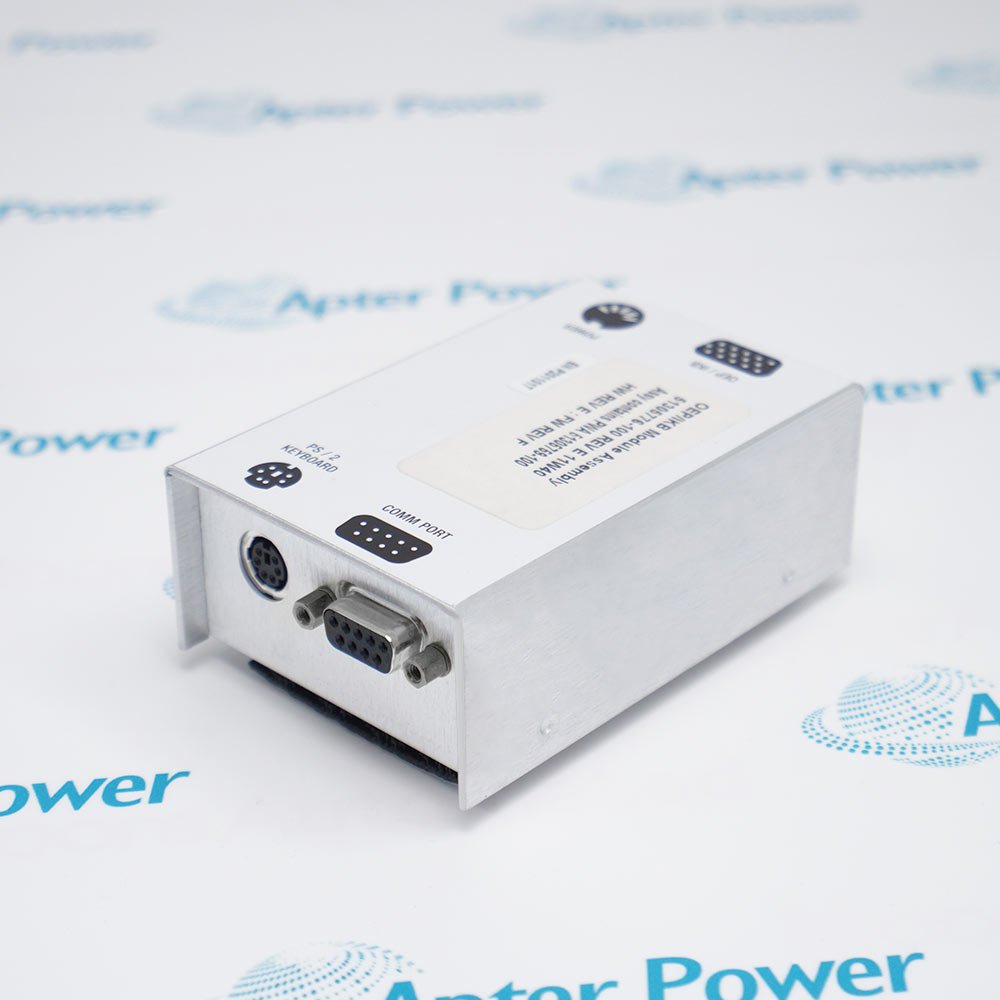

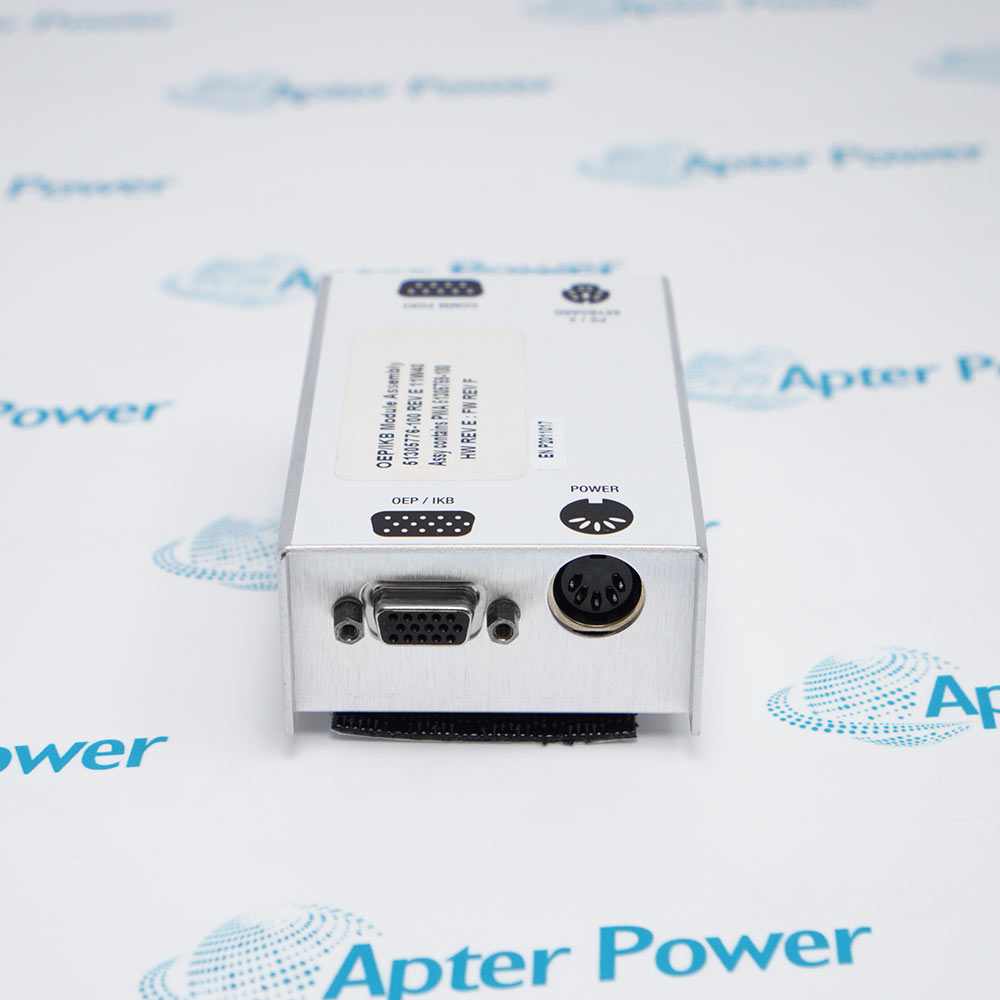

Honeywell 51305776-100 is an OEP/IKB Module Assembly used in Honeywell TDC 3000 and TCN systems. It functions as a communication interface between the Operator Entry Panel (OEP) and Industrial Keyboard (IKB), ensuring stable data exchange in industrial control environments.
Get a quick price for 51305776-100
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 51305776-100

  • Manufacturer:
    Honeywell
  • Part Number:
    51305776-100
  • Product Family:
    Honeywell DCS
  • Product Type:
    OEP/IKB Module Assembly
  • Power Supply:
    24 VDC
  • Communication Interface:
    RS-485 (system communication interface)
  • Data Transmission Rate:
    9600 bps
  • Power Consumption:
    ≤ 30 mA
  • Operating Temperature:
    -40°C to +85°C
  • Protection Level:
    IP67
  • Weight:
    0.12 kg
  • Estimated shipping dimensions:
    10.2x6.7x4cm
  • Tariff Code:
    8406812000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Communication Architecture Application

Features:

  • Provides RS-485 communication with a fixed 9600 bps transmission rate for stable and reliable data exchange.
  • Operates on 24 VDC power with low consumption of ≤ 30 mA for efficient system integration.
  • Supports IP67 protection and a wide operating temperature range of -40°C to +85°C for harsh industrial environments.
Honeywell 51305776-100 is an interface module used in Honeywell TDC 3000 and TCN control systems. It connects the Operator Entry Panel and Industrial Keyboard to ensure stable operator communication. The module plays an important role in maintaining smooth interaction between human input devices and the control system. It is commonly used in distributed control environments where reliable operation is required.

In industrial applications, Honeywell 51305776-100 ensures consistent data transmission through RS-485 communication at 9600 bps. This stable communication structure helps reduce signal disruption and supports reliable system operation. It is designed to integrate easily into standard 24 VDC control architectures. Its low power consumption also contributes to efficient system performance.

Honeywell 51305776-100 is built for harsh environments, operating between -40°C and +85°C with IP67 protection. This makes it suitable for industrial sites where dust, moisture, or temperature fluctuations are common. It provides dependable performance in long-term control system operation. Overall, it supports stable and efficient operator interface connectivity in Honeywell automation systems.

The 51305776-100 Honeywell OEP/IKB Module Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 51305776-100 OEP/IKB Module Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell 51305776-100 OEP/IKB Module Assembly Specs

General

  • Manufacturer Honeywell
  • Model 51305776-100
  • Condition New Original ready stock
  • Product Family 51303979-100,51304487-100,51304485-100
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Signal Relay Bridge: Primarily a core component of the Honeywell OEP/IKB system, enabling seamless data exchange between the Operator Interface (OI) and Engineer Interface (EI).
  • Peripheral Integration Connection: Specifically designed to connect the Operator Input Panel (OEP) and the Industrial Smart Keyboard (IKB), ensuring accurate transmission of operating commands.
  • Flexible Protocol Conversion: Supports adaptation to DB9 communication interfaces and PS/2 keyboard interfaces, compatible with various older industrial computer platforms.
  • Real-time Status Feedback: Provides a stable data channel, enabling operators to monitor variables such as temperature, pressure, and flow rate in the production process in real time.
  • Deep System Compatibility: Designed specifically for classic DCS environments such as TDC 3000 and Total Control Network (TCN).
  • Compact Space Layout: Features a compact design (approximately 10.2 x 6.7 x 4 cm), facilitating integration into limited control cabinet space.
  • Industrial-Grade Protection: Possesses excellent vibration resistance and temperature resistance (operating temperature range from -40°C to 70°C), adaptable to harsh factory environments.
  • Low-power operation: Supports standard 24V DC power supply and employs a highly reliable circuit design to reduce system heat generation.
  • Oil Refining and Chemical Industry: Serves as a communication hub between operator stations and control networks in the central control rooms of large-scale refineries and chemical plants.
  • Power Energy Monitoring: Used in HPM/TDC systems in power plants to assist operators in managing complex generator set operating parameters.
  • Less-established System Maintenance: Provided as a critical spare part by suppliers such as Western Process Computers to extend the service life of legacy systems such as the TDC 2000.
  • Industrial Automation Production Lines: Serves as a signal adaptation unit for the human-machine interface in automated monitoring systems in manufacturing.
Description
Honeywell 51305776-100 OEP/IKB Module Assembly is an interface component designed for Honeywell TDC 3000 and TCN distributed control systems. It is used to connect the Operator Entry Panel (OEP) with the Industrial Keyboard (IKB), enabling reliable operator input communication within the system architecture.

The module operates using an RS-485 communication interface with a fixed data transmission rate of 9600 bps, ensuring stable and consistent signal exchange. It is powered by a 24 VDC supply and features a low power consumption of ≤ 30 mA, making it suitable for integration into standard industrial control environments without additional power complexity.

Honeywell 51305776-100 is designed to operate in harsh industrial conditions, with an operating temperature range from -40°C to +85°C. It also provides an IP67 protection level, ensuring resistance against dust and water ingress, which improves reliability in demanding field applications.

In system application, Honeywell 51305776-100 ensures smooth communication between operator interface devices and the control system, supporting stable operation of TDC 3000 and TCN platforms. Its robust communication design helps maintain consistent performance in industrial automation processes where reliable operator interaction is required.
Alternative Names
51305759-100 51304540-100 51204126-001 51305776-200 51403519-160
