8C-PAOHA1 51454469-275

/ 4.9
1001 reviews | Need a Specific Revision?

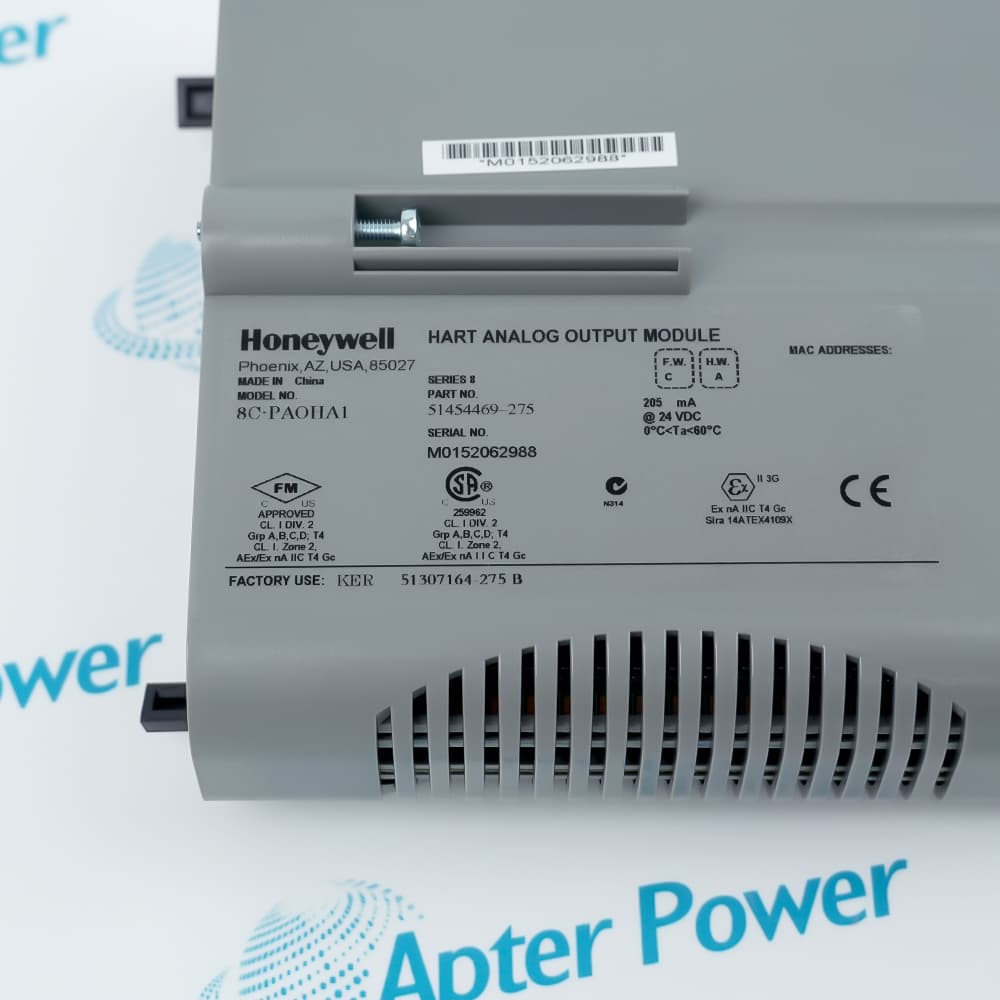

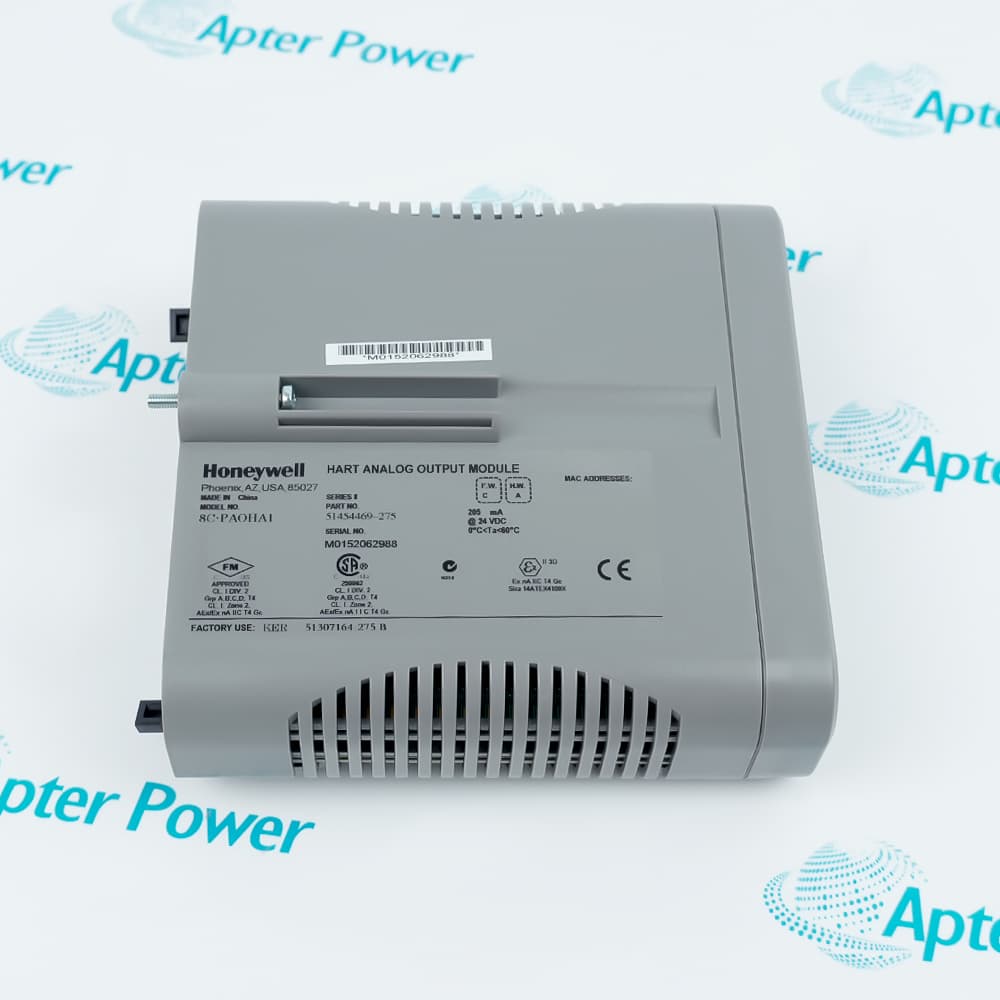

Honeywell 8C-PAOHA1 51454469-275 is a coated 16-channel 4-20 mA analog output module with HART communication, open-wire detection, and configurable safe-state behavior.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 8C-PAOHA1 51454469-275
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 8C-PAOHA1 51454469-275

  • Manufacturer:
    Honeywell
  • Part Number:
    8C-PAOHA1 51454469-275
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Analog Output Module
  • Stock:
    1
  • Output Type:
    4-20 mA
  • Output Channels:
    16
  • Output Ripple:
    < 100 mV peak-to-peak at power-line frequency across a 250 Ω load
  • Output Temperature Drift:
    0.005% of full scale/°C
  • Output Current Linearity:
    ±0.05% of full scale nominal
  • Load Resistance:
    50-800 Ω with a 22-28 VDC supply
  • Voltage Rating:
    24 VDC
  • Module Current Rating:
    205 mA
  • Resolution:
    ±0.05% of full scale
  • Calibrated Accuracy:
    ±0.2% of full scale at 25 °C, including linearity
  • Directly Settable Output Current Range:
    2.9 mA to 21.1 mA
  • Maximum Output Compliance Voltage:
    16 V with a 22-28 VDC supply
  • Maximum Open-Circuit Voltage:
    22 V
  • Response Time:
    Settles within 1% of final value in 80 ms
  • Redundant Switchover Output Gap:
    10 ms maximum
  • Removal and Insertion Under Power:
    Supported
  • Estimated shipping dimensions:
    6x15.6x14.3cm
  • Tariff Code:
    8419110000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Connectivity Monitoring & Control Diagnostics & Protection

Features:

  • HART communication carried on each 4-20 mA output loop
  • Output settles within 1% of its final value in 80 ms
  • Independent FAILOPT action for every channel
8C-PAOHA1 51454469-275 combines the analog command and HART data on the same field pair, allowing compatible smart instruments to exchange device information without interrupting the control current.

The directly settable span extends from 2.9 to 21.1 mA. With a 22-28 VDC supply, the output can work across a 50-800 ohm loop resistance while maintaining its specified response.

Each channel can hold its last command or move to a configured safe value through FAILOPT. An electronics failure forces the affected output to zero current, and an open loop is reported as a Channel Soft Failure.
The Honeywell 8C-PAOHA1 51454469-275 Analog Output Module is listed as Active / Available from OEM. Apter Power can assist with purchasing inquiries and access to available Honeywell product documentation.
Honeywell 8C-PAOHA1 51454469-275 Analog Output with HART, Coated Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Termination choices:

  • Standard base: 8C-TAOXA1 is the coated 6-inch non-redundant IOTA for 8C-PAOHA1 51454469-275.
  • Redundant base: 8C-TAOXB1 is the coated 12-inch IOTA for a redundant output arrangement.
  • Transfer interval: The zero-current gap during redundant switchover is 10 ms maximum.
  • Service method: Removal and insertion of the output module under power is supported.

Smart-device interaction:

  • Overlay communication: HART data shares the same current loop used by 8C-PAOHA1 51454469-275.
  • Device scope: The interface supports compatible HART-capable and multivariable instruments.
  • Loop monitoring: An open field wire is annunciated as a Channel Soft Failure.
  • Channel handling: Diagnostics identify the affected loop without changing the other output channels.

Current-loop performance:

  • Channel format: 8C-PAOHA1 51454469-275 provides sixteen 4-20 mA analog outputs.
  • Command range: Output current can be set directly from 2.9 mA to 21.1 mA.
  • Load range: A 22-28 VDC supply supports 50-800 Ω loop resistance.
  • Settling: The output reaches within one percent of its final value in 80 ms.

Fault-response controls:

  • Self-checking: 8C-PAOHA1 51454469-275 performs internal diagnostics for output integrity.
  • Hold option: FAILOPT can retain the last commanded value on an individual channel.
  • Shed option: FAILOPT can instead drive the channel to its configured safe value.
  • Electronics failure: Loss of IOM electronics forces the affected output to zero current.
Description
8C-PAOHA1 51454469-275 mounts on the coated 8C-TAOXA1 six-inch IOTA for a single output path or the 8C-TAOXB1 twelve-inch IOTA when redundancy is required. The IOTA choice determines the termination layout while the removable IOM retains the same HART analog-output function.

In a redundant arrangement, transfer between modules produces a maximum zero-current gap of 10 ms. Removal and insertion under power are supported, allowing an IOM to be serviced without dismantling the field termination assembly.

Output quality is specified at +/-0.2% of full scale calibrated accuracy at 25 degrees C, with nominal linearity of +/-0.05% of full scale and ripple below 100 mV peak-to-peak across a 250-ohm load. These limits define how closely the current command is reproduced at the field loop.
Alternative Names
8C-PAOHA1 8C PAOHA1 51454469 275 8CPAOHA1 51454469275 Honeywell 8C-PAOHA1 51454469-275 HON 8C-PAOHA1 51454469-275 Honeywell 8C PAOHA1 51454469 275 Honeywell Series 8 8C-PAOHA1 Series 8 HART Analog Output 8C-PAOHA1
Technical notes
Honeywell 8C-PAOHA1 51454469-275 is a coated 16-channel 4-20 mA HART output module for actuators and indicating devices.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which IOTA assemblies pair with 8C-PAOHA1 51454469-275?
8C-PAOHA1 51454469-275 pairs with the coated 8C-TAOXA1 6-inch non-redundant IOTA or 8C-TAOXB1 12-inch redundant IOTA.
How does HART operate with 8C-PAOHA1 51454469-275?
8C-PAOHA1 51454469-275 carries HART communication on its 4-20 mA loops for compatible smart and multivariable field devices.
What load resistance can 8C-PAOHA1 51454469-275 drive?
With a 22 to 28 VDC supply, 8C-PAOHA1 51454469-275 supports a load resistance from 50 to 800 Ω.
How does 8C-PAOHA1 51454469-275 report an open field wire?
8C-PAOHA1 51454469-275 detects an open loop and annunciates the affected channel with a Channel Soft Failure indication.
What does FAILOPT do on 8C-PAOHA1 51454469-275?
FAILOPT lets each 8C-PAOHA1 51454469-275 channel hold its last value or shed to a configured safe value.
What happens during redundant switchover on 8C-PAOHA1 51454469-275?
For redundant 8C-PAOHA1 51454469-275 operation, the zero-current output gap during switchover is specified at 10 ms maximum.
What should be checked when an 8C-PAOHA1 51454469-275 loop does not reach its command?
For 8C-PAOHA1 51454469-275, check loop continuity, HART wiring, load resistance, 24 VDC supply, FAILOPT state, IOTA seating, and channel diagnostics.
