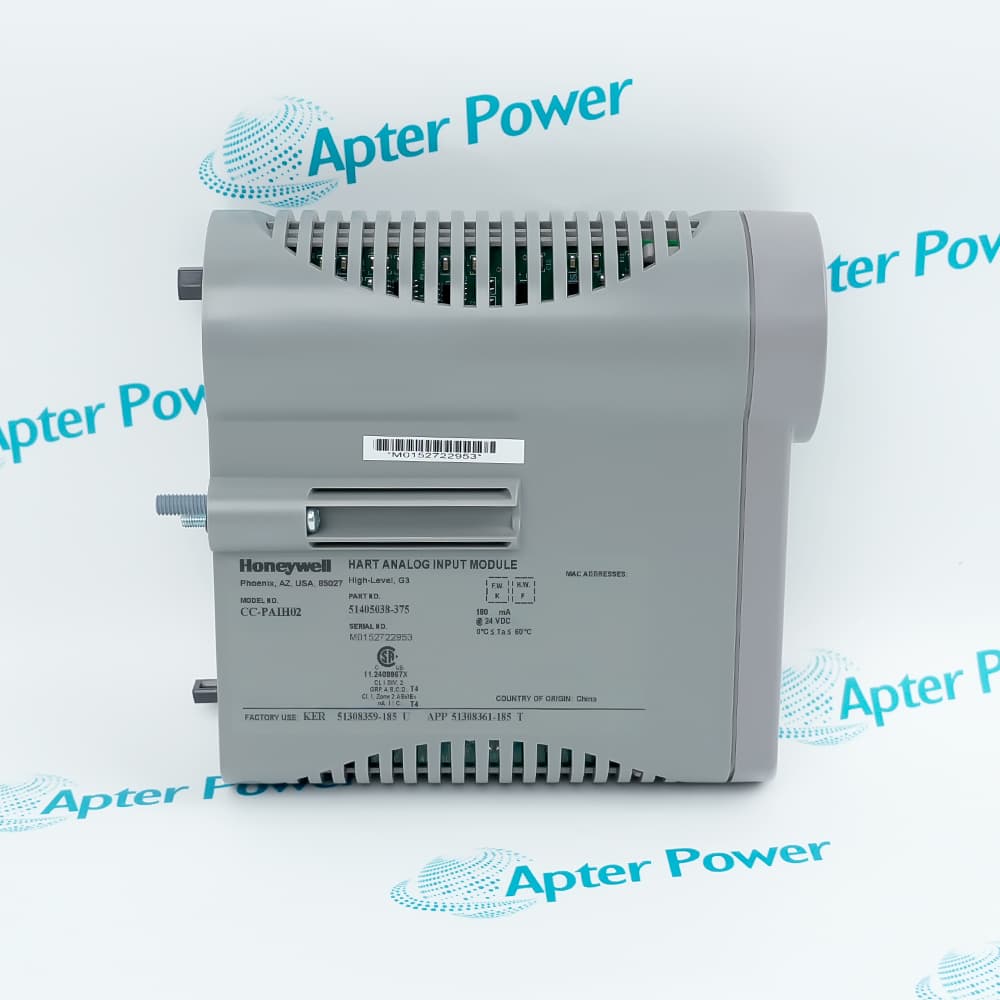

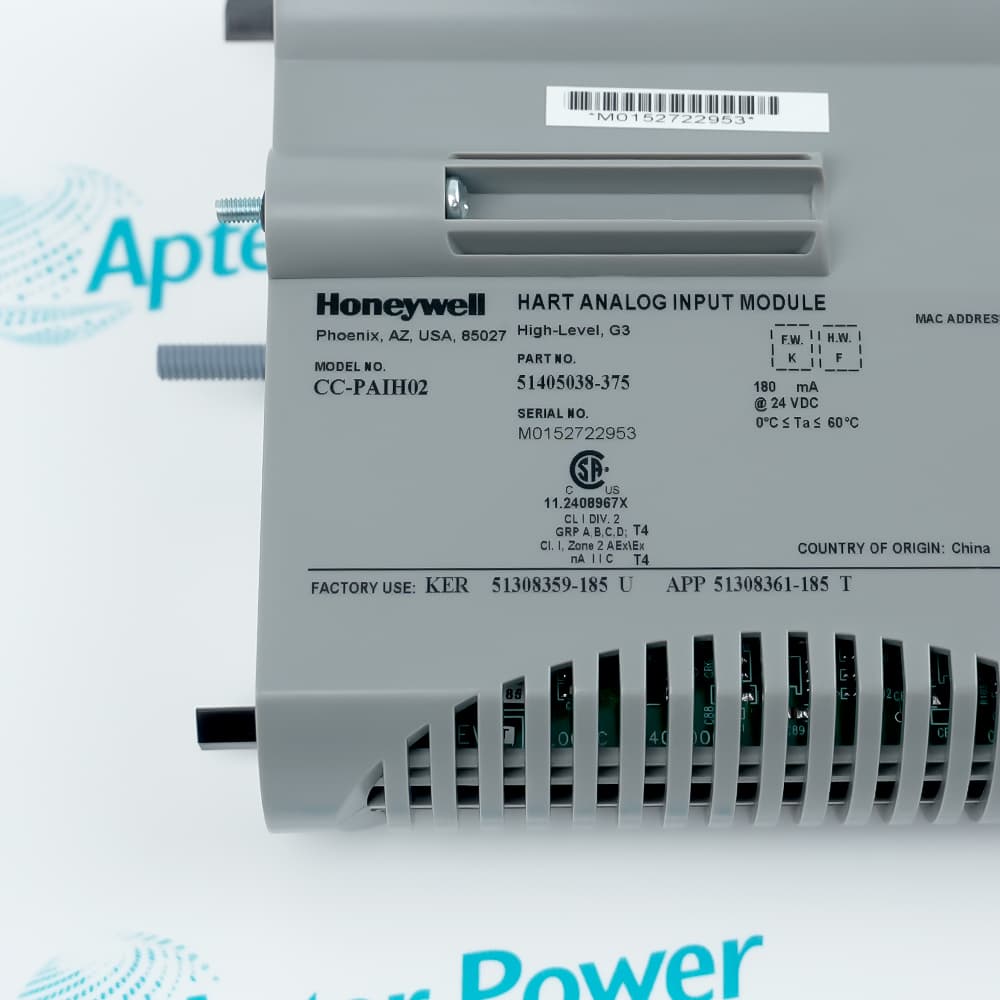

CC-PAIH02 51405038-375

/ 4.9
1001 reviews | Need a Specific Revision?
The CC-PAIH02 51405038-375 is a Honeywell Series C 16-channel analog input module with HART, supporting 4-20 mA and voltage inputs, 0.075% accuracy, 50 ms scan rate, and non-incendive field power.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for CC-PAIH02 51405038-375
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-PAIH02 51405038-375

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-PAIH02 51405038-375
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Analog Input Module
  • Stock:
    1
  • Input Channels:
    16 (differential)
  • Input Types:
    4-20 mA, 0-5V, 1-5V, 0.4-2V
  • A/D Converter Resolution:
    16 bits
  • Hardware Accuracy (23.5°C):
    ±0.075% of full scale
  • Hardware Accuracy (0-60°C):
    ±0.15% of full scale
  • Input Scan Rate:
    50 ms
  • Common Mode Rejection:
    70 dB (dc to 60 Hz)
  • Normal Mode Rejection (60 Hz):
    19 dB
  • Input Impedance (voltage):
    >10 MΩ
  • Maximum Input Voltage:
    ±30V (no damage)
  • HART Modems:
    Multiple for fast variable collection
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    5.5x16.5x14.5cm
  • Tariff Code:
    8517795000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware & Update Configuration

Features:

  • HART communication with multiple modems for fast collection of control variables from smart transmitters.
  • Open-wire detection with Bad PV Detection, non-incendive field power, and optional redundancy for high availability.
  • 16 channels of 4-20 mA or voltage input with 16-bit resolution, 0.075% accuracy, and 50 ms scan rate.
The CC-PAIH02 51405038-375 packs 16 analog input channels into a single Series C module, saving rack space while delivering 16-bit resolution and 0.075% accuracy at room temperature. The 50 ms scan rate means all 16 channels are updated every 50 milliseconds—fast enough for most process control loops. Inputs can be configured for 4-20 mA current (with built-in 250Ω load resistor) or voltage (0-5V, 1-5V, or 0.4-2V). For differential operation on channels 13-16, a jumper on the IOTA can be cut to enable differential inputs, subject to common mode voltage limits.

The CC-PAIH02 51405038-375 includes multiple HART modems, allowing fast collection of control variables from HART-enabled transmitters. Unlike external HART multiplexers that scan devices sequentially, this module's multiple modems can communicate with several devices simultaneously, reducing overall scan time. You can access device status, perform diagnostics, read multivariable data (such as pressure, temperature, and flow from a single transmitter), and even re-range the device—all without additional wiring.

The CC-PAIH02 51405038-375 includes open-wire detection that identifies broken field wiring and reports it as a Bad PV. When a wire breaks, the module sets the process variable to a bad value, preventing the control system from acting on invalid data—a critical safety feature. The module also supplies non-incendive field power with individually protected current limiting circuits, eliminating the need for external fuses in Class 1, Division 2 hazardous locations. For critical loops requiring continuous operation, optional redundancy is available using 12" IOTAs (DC-TAIX11 or DC-TAID11).

The CC-PAIH02 51405038-375 HONEYWELL Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PAIH02 51405038-375 Analog Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HONEYWELL CC-PAIH02 51405038-375 Analog Input Module Specs

General

  • Manufacturer HONEYWELL
  • Model CC-PAIH02 51405038-375
  • Condition New Original ready stock
  • Product Family CC-PAIH01 51405040-175,CC-PAIH51 51405040-275,CC-PAIX02 51405040-176
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Industry Monitoring: Widely used in the petroleum, chemical, power, and pharmaceutical industries for connecting pressure transmitters, flow meters, level gauges, and temperature transmitters.
  • Asset Management and Diagnostics: Utilizes the HART protocol to obtain instrument status, serial numbers, and calibration data, supporting remote device management with Honeywell FDM (Field Device Manager).
  • Safety-Related Applications: In production environments requiring high availability, collects key process parameters for control logic calculations.
  • Online Download: Firmware is typically provided with the Experion PKS software package. When the controller (C300) is upgraded, the system checks if the firmware version of the I/O modules matches.
  • Firmware Update Path: Engineers can perform a "Load Firmware" operation on the modules using Configuration Studio or Monitoring Studio.
  • Version Compatibility: Version 51405038-375 is a later hardware version and usually requires a newer version of the Experion system (such as R410 or later) to achieve optimal performance.
  • HART Enable: HART communication can be enabled or disabled channel by channel (enabling it will slightly increase scan time).
  • PV Source Selection: Analog values ​​or HART digital variables can be selected as the primary variable (PV).
  • Alarm Settings: High/low range overflow, open-wire detection, and HART status alarms can be configured at the module level.
  • Software Association: In the C300 control strategy, the module's channels can be directly accessed via the AI ​​Channel Block. Engineers only need to connect the channels to the corresponding control algorithms (such as PID blocks).
Description
The CC-PAIH02 51405038-375 is a high-level analog input module with HART communication for Honeywell Series C I/O systems. It accepts 4-20 mA current or voltage inputs (0-5V, 1-5V, 0.4-2V) from transmitters and sensing devices. The module provides 16 differential input channels with 16-bit A/D converter resolution.

The CC-PAIH02 51405038-375 includes multiple HART modems for fast collection of control variables from smart transmitters. The module supplies non-incendive field power with individually protected current limiting circuits for Class 1, Division 2 hazardous locations—no fusing required.

The CC-PAIH02 51405038-375 offers flexible IOTA configurations: DC-TAIX01 (6" non-redundant), DC-TAIX11 (12" redundant), DC-TAID01 (9" non-redundant), or DC-TAID11 (12" redundant). Channels 13-16 support differential inputs when used with DC-TAIXx1 IOTA by cutting a wire jumper.

This analog input module solves the pain point of integrating smart HART devices with high-density, high-accuracy analog measurement. The CC-PAIH02 51405038-375's open-wire detection with bad PV detection prevents false process values from broken loops.
Alternative Names
CC-PAIH01 51405040-175 CC-PAIH51 51405040-275 CC-PAIX01 51405040-175 CC-PAIX02 51405040-176 CCPAIH02 51405038375 CC-PAIHO2 514O5O38-375 51405038-375 CC-PAIH02
Technical notes
The Honeywell CC-PAIH02 (P/N 51405038-375) is a high-density, 16-channel HART-enabled Analog Input Module engineered for seamless integration with the Experion® PKS C300 Controller and Series C I/O architecture. This module supports a versatile range of input signals, including 4-20 mA and 1-5 VDC, utilizing a sophisticated 16-bit A/D converter to deliver exceptional hardware accuracy of ±0.075% and a rapid 50 ms scan rate. Designed for mission-critical industrial environments, it features bi-directional HART digital communication for advanced device diagnostics and predictive maintenance, alongside robust G3 conformal coating for superior protection against corrosive atmospheres.
