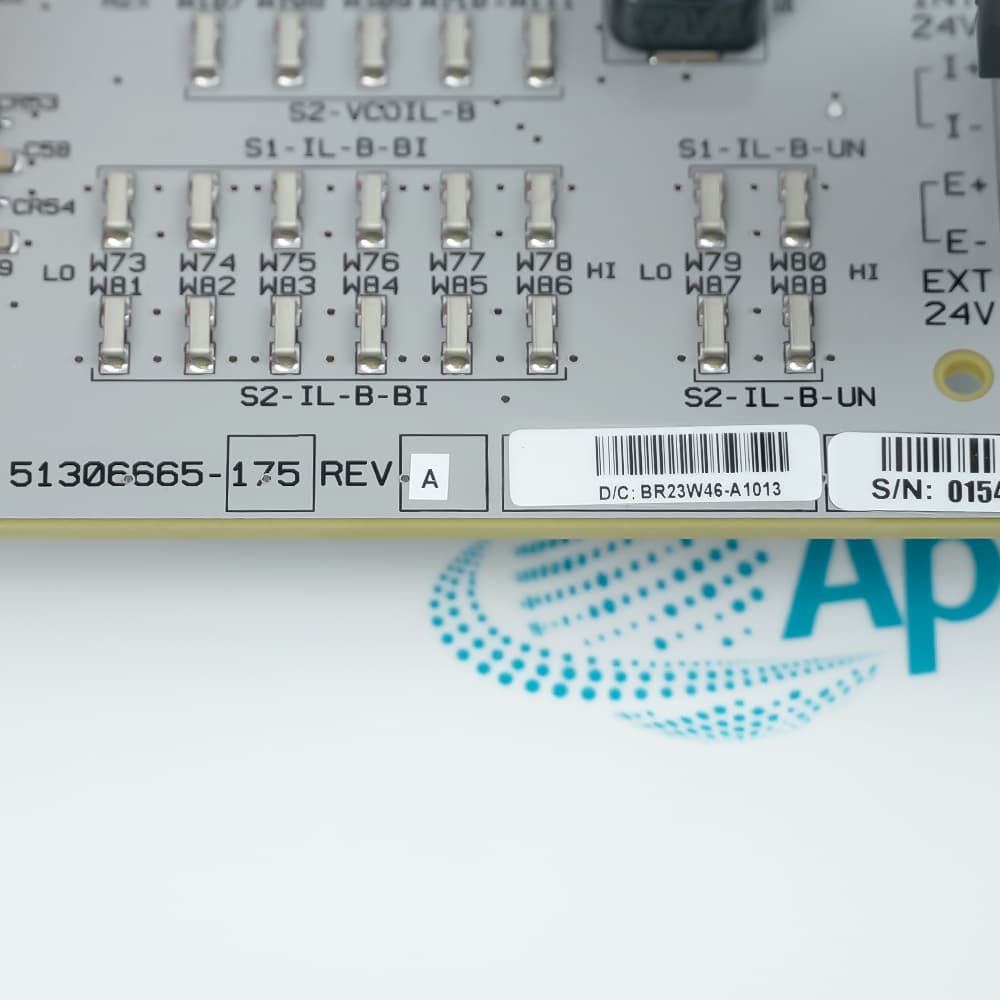

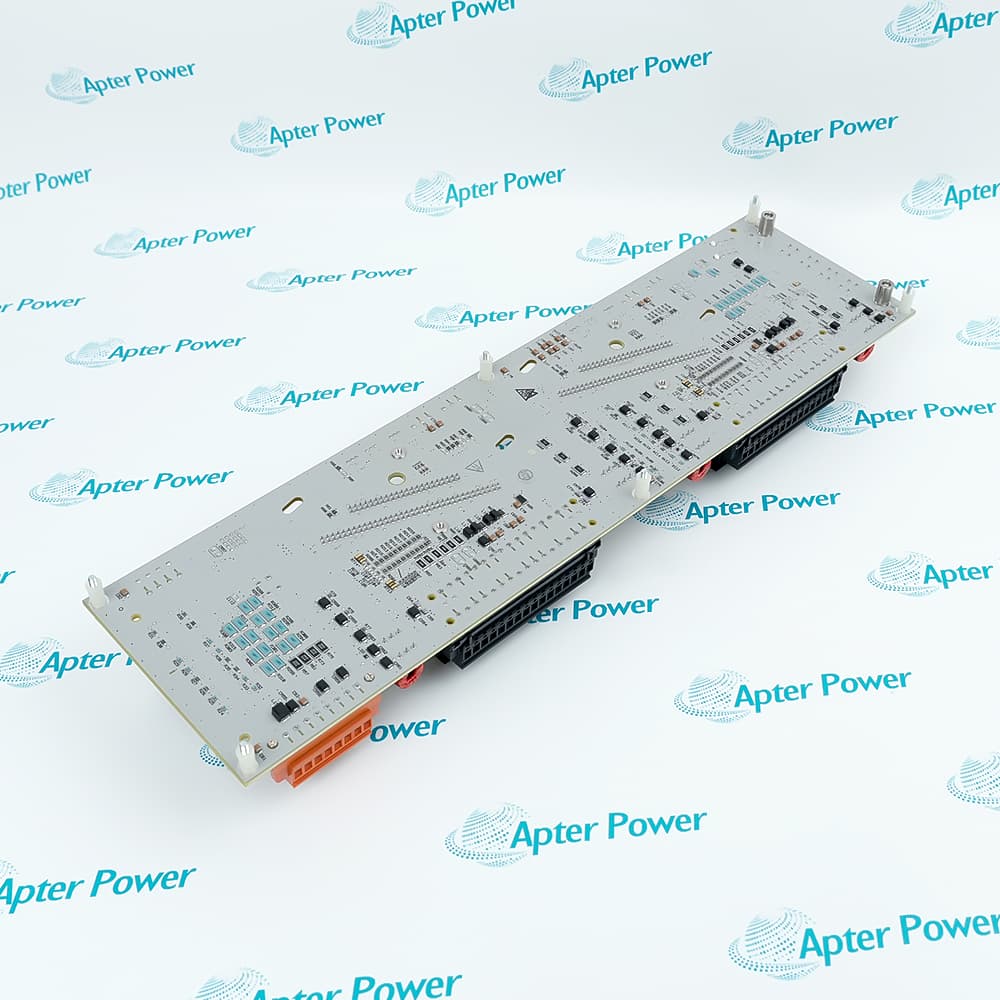

The HONEYWELL CC-TSV211 51306665-175 is a dedicated servo valve positioner IOTA (Input/Output Terminal Assembly) for the Honeywell Experion Series C platform. As a redundant base for the CC-PSV201 IOM, it provides a highly available servo valve positioning solution for turbine machinery control applications.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for CC-TSV211 51306665-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-TSV211 51306665-175

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-TSV211 51306665-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Servo Valve Positioner Module
  • Stock:
    3
  • Output current linearity:
    ±0.05% full scale
  • Resolution:
    ±0.05% full scale
  • Calibration accuracy (25°C):
    ±0.35% full scale (including linearity)
  • Output temperature drift:
    0.005% full scale/°C
  • Output ripple:
    <100 mV (250 Ω load)
  • Directly configurable output range:
    0 mA, 2.9 mA to 21.1 mA
  • Maximum resistive load (24V supply):
    760 Ω
  • Maximum output voltage:
    16 V
  • Operating temperature:
    0 to 60°C
  • Storage temperature:
    -40 to 85°C
  • Weight:
    0.7 kg
  • Estimated shipping dimensions:
    12.7×3.5×14.7cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Performance & Efficiency

Features:

  • High-availability redundant architecture
  • Precision closed-loop positioning control
  • Comprehensive field diagnostic capabilities
Supports dual IOM redundancy configuration. Redundancy can be achieved by directly inserting two modules into one IOTA, eliminating the need for external wiring and dedicated redundant control equipment. Switching interruption time is a maximum of only 15 ms, ensuring continuous process control.

Integrates onboard PID positioning closed-loop, coupled with 16-bit DAC resolution, providing a 10 ms overall cycle delay. Supports bidirectional/unidirectional servo current output (10-320 mA / 50-300 mA), meeting the requirements of high-precision valve positioning.

Provides functions such as servo output open-circuit detection, LVDT signal failure detection, AI open-circuit detection, LVDT excitation frequency drift check, and current readback diagnostics, supporting predictive maintenance and reducing the risk of unplanned downtime.

The CC-TSV211 51306665-175 HoneywellServo Valve Positioner Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL CC-TSV211 51306665-175 Servo Valve Positioner Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HONEYWELL CC-TSV211 51306665-175 Servo Valve Positioner Module

General

  • Manufacturer HONEYWELL
  • Model CC-TSV211 51306665-175
  • Condition New Original ready stock
  • Product Family CC-PSV201,CC-PSP401,CC-TSP411
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Oil and Gas Industry
  • Power Generation Industry
  • Chemical and Petrochemical Industry
  • Special Applications for Turbine Machinery
  • Safety Failure Protection Mechanism: Upon detecting control anomalies or communication failures, the drive servo output can be configured to a preset safety value to prevent valve malfunction and process accidents.
  • Comprehensive Electrical Isolation Protection: The LVDT interface provides ±500 VDC current isolation, effectively preventing field interference from entering the control system and improving system noise immunity and safety performance.
  • Non-Incendive Field Power Supply: Complies with non-incendive field wiring specifications, reducing explosion-proof requirements and compliance costs for installation in hazardous areas.
  • Redundant Architecture for High Availability: Supports IOM redundancy configuration, automatically switching in case of single module failure to ensure continuous availability of safety interlocking loops, meeting high availability process safety requirements.
  • Ultra-Low Latency Closed-Loop Control: Onboard PID positioning closed-loop total delay ≤10 ms, LVDT signal scan cycle 2.5 ms, meeting the stringent real-time requirements of turbine machinery.
  • High-resolution precision output: A 16-bit DAC provides 0.325% current linearity and supports bidirectional/unidirectional multi-range servo output, ensuring millimeter-level accuracy in valve positioning.
  • Digital jitter compensation technology: Provides 25-60 Hz, 0-10% full-scale digital jitter output, effectively overcoming servo valve static friction and improving valve response smoothness and control efficiency.
Description
The HONEYWELL CC-TSV211 51306665-175 is an 18-inch redundant IOTA (Integrated Device Over-Equipment) unit that supports dual IOM (Integrated Oscillator) module insertion for full redundancy. Powered by the base's built-in 24 VDC bus, redundancy switching can be completed without external rack cabling, maximizing availability for applications such as turbine machinery and other critical process control systems.

The HONEYWELL CC-TSV211 51306665-175 provides two servo output channels and two LVDT/RVDT feedback input channels, supporting 3/4/5/6-wire LVDT connections. Its channel design allows for flexible, mutually exclusive configurations between AI and LVDT, and AO and servo signals, while also being compatible with 4-20 mA analog signal inputs, adapting to a variety of industrial field sensors.

With the help of the matching CC-PSV201 module's 16-bit DAC and onboard PID positioning closed loop, the HONEYWELL CC-TSV211 51306665-175 achieves a total cycle delay of 10 ms and a point processing cycle of 2.5 ms. Its comprehensive field diagnostic functions, including servo/LVDT open circuit detection, LVDT core detachment monitoring, and current readback diagnostics, significantly improve system maintainability.
Alternative Names
CC-TSV211 513O6665-175 CC-TSV2II 5I306665-I75 CC TSV211 51306665 175 CC-TCF901 51308301-175 CC-TCNT01 51308307-175 CC-TAON01 51306519-175 CC-TAIX11 51308365-175 CC-TAOX11 51308353-175
Technical notes
The HONEYWELL CC-TSV211 51306665-175 supports an LVDT interface with an adjustable excitation frequency in the range of 2.5-3.2 kHz and provides ±500 VDC current isolation protection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What types of feedback sensors does the HONEYWELL CC-TSV211 51306665-175 support?
It supports LVDT (Linear Variable Differential Transformer) and RVDT (Rotary Variable Differential Transformer) position feedback signals, and can also be configured to accept 4-20 mA analog input signals.
What is the response time of the HONEYWELL CC-TSV211 51306665-175?
The maximum interrupt time from input change to output switching is 15 ms. The overall cycle delay of the PID positioning closed loop is within 10 ms, and the LVDT signal point processing cycle is 2.5 ms.
What field diagnostic functions does the HONEYWELL CC-TSV211 51306665-175 support?
Supports servo coil open-circuit detection, LVDT signal open-circuit detection, LVDT core detachment detection, 4-20 mA AI open-circuit detection, and LVDT excitation frequency offset checking.
Does the HONEYWELL CC-TSV211 51306665-175 support field hot-swappable maintenance?
Yes. In a redundant configuration, a single IOM can be directly hot-swapped for replacement while the other module continues to operate, ensuring uninterrupted operation.
