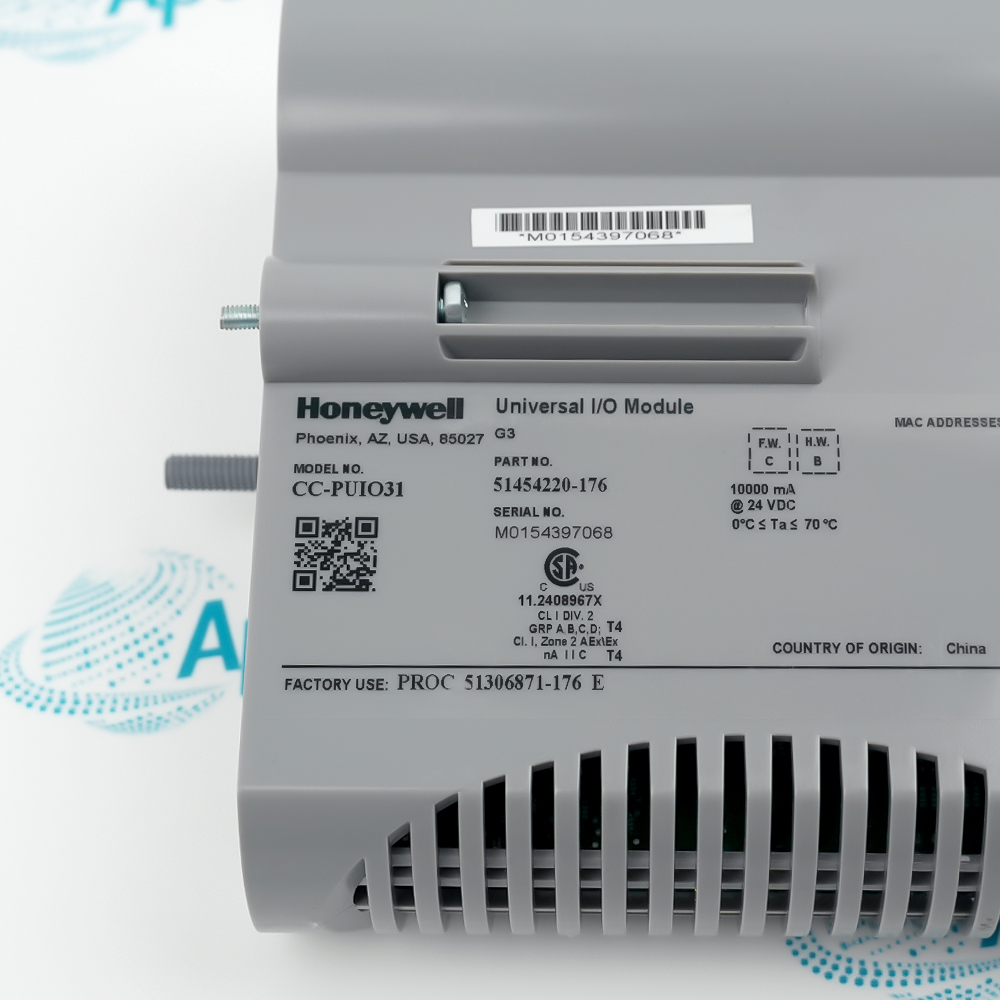

        Honeywell CC-PUIO31 51454220-176
        Honeywell CC-PUIO31 51454220-176
        Honeywell CC-PUIO31 51454220-176
        Honeywell CC-PUIO31 51454220-176
        Honeywell CC-PUIO31 51454220-176
        Honeywell CC-PUIO31 51454220-176
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

           Active / Available from OEM
          Apter Power sources premium Honeywell automation hardware, supplying factory-authentic 51454220-176 modules to maintain the peak operational reliability of your mission-critical process loops.

        CC-PUIO31 51454220-176

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The Honeywell CC-PUIO31 51454220-176 general purpose input/output module plays a crucial role in enabling communication between field instruments and control systems.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for CC-PUIO31 51454220-176
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for CC-PUIO31 51454220-176

        • Manufacturer:
          Honeywell
        • Part Number:
          CC-PUIO31 51454220-176
        • Product Family:
          Honeywell Experion PKS ( C200, C300 )
        • Product Type:
          Universal Input Output module
        • Stock:
          1
        • Input type:
          Current (2, 3, or 4 wire devices)
        • Input Channels:
          32 Maximum per module (with or without open wire detect)
        • A/D Converter Resolution:
          16 bit
        • Input Range:
          0-20 mA or 4-20 mA
        • Normal Mode Rejection Ratio:
          18 dB at 50 Hz, 20 dB at 60 Hz
        • Input Filter Response:
          Single pole, -3dB @ 6 Hz
        • Crosstalk, dc to 60 Hz (channel-to-channel):
          60 dB
        • Input Impedance:
          250 Ω
        • Weight:
          0.32 kg
        • Estimated shipping dimensions:
          6x18.8x14.5cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Communication & Connectivity Environmental Ratings Use Cases

        Features:

        • Interface Between Field Devices and Control System Backplane
        • Combines Capability of Universal Signal Processing with Configurable Channel Architecture
        • Operates in Conjunction with Distributed Control Systems and Process Automation Platforms
        The CC-PUIO31 51454220-176 operates as the Universal Input Output Module in an industrial control system, providing flexible signal interface capabilities to all modules within the system. It continuously processes various field signal types (Analog Input, Analog Output, Digital Input, Digital Output, and Pulse Input) and transmits this data through the rack backplane to support steady state operation of all control and monitoring modules. Seamless signal integration is standard with the CC-PUIO31 51454220-176, however using its configurable channel architecture will allow seamless reconfiguration of individual channels in the event of process requirement changes. The CC-PUIO31 51454220-176 has made improvements in several areas over previous I/O module designs in addition to incorporating universal channel configuration capability within the control system rack.

        The CC-PUIO31 51454220-176 provides essential I/O functions common to the entire rack, and is a critical component of the control path, directly affecting the proper, normal operation of the overall automation system. One or multiple CC-PUIO31 51454220-176 modules are required per rack depending on the desired I/O capacity. The CC-PUIO31 51454220-176 occupies a standard slot in the rack and can be located in various positions based on system architecture requirements.

        For applications requiring high-density signal integration, the control system requires additional CC-PUIO31 51454220-176 Universal Input Output Modules installed in available slots. In addition to standard single module operation, the high-density configuration also performs automatic diagnostics. The CC-PUIO31 51454220-176 high-density configuration executes monitoring using the internal circuitry specified in the module options. Using this method, the diagnostic system continually monitors the health of all channels. If the system detects that a specific channel is no longer providing stable signal (outside configured parameters/tolerance levels), it will automatically flag the condition and place an event in the System Event List.

        The CC-PUIO31 51454220-176 Honeywell Universal Input Output Module may still be available for purchase and support from authorized distributors beyond End-Of-Life (EOL) by the manufacturer (OEM).

        HONEYWELL CC-PUIO31 51454220-176 Universal Input Output module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HONEYWELL CC-PUIO31 51454220-176 Universal Input Output module

        General

        • Manufacturer HONEYWELL
        • Model CC-PUIO31 51454220-176
        • Condition New Original ready stock
        • Product Family CC-PUIO01,CC-TUIO31,CC-TUIO41
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • HART 7 Support: Provides HART 7 protocol support for analog inputs and outputs, with an integrated HART modem per channel for fast performance.
        • Channel Flexibility: Each of the 32 channels can be independently configured as Analog Input (AI), Analog Output (AO), Digital Input (DI), or Digital Output (DO).
        • Specialized Modes: Supports Sequence of Events (DISOE), Pulse Input (up to 4 channels), and Open Wire Detection.
        • Series C Architecture: Plugs into an I/O Termination Assembly (IOTA), eliminating the need for a separate chassis.
        • Operating Temperature: 0°C to +70°C for standard use; some specifications indicate an extended range of -40°C to +70°C.
        • Hazardous Area Certifications: Rated for Class I, Division 2, Groups A, B, C, D; T4 and Class I, Zone 2 AEx/Ex nA IIC T4.
        • Humidity: Operates in 0% to 95% relative humidity, non-condensing.
        • Protection: Features electronic short-circuit protection and configurable safe-state (FAILOPT) behaviors.
        • Industrial Automation: Primarily used in Experion PKS Distributed Control Systems for monitoring and controlling industrial processes.
        • Remote I/O and Marshalling: Ideal for universal marshalling solutions where field signals vary widely, reducing spare parts inventory by using one module type for multiple signal types.
        • Harsh Environments: Suitable for both onshore and offshore applications due to its rugged hazardous area certifications.
        • Mixed Signal Integration: Used in scenarios requiring fast scanning and high-accuracy data acquisition for a mix of digital and analog field devices.
        Description
        Honeywell CC-PUIO31 51454220-176 Universal Input Output Module is a highly integrated industrial control module designed to interface with various types of field devices in modern automation systems. The module provides a flexible solution for connecting analog input, analog output, digital input, and digital output signals within a single hardware platform. As a universal I/O interface device, CC-PUIO31 51454220-176 plays a key role in enabling communication between field instruments and the control system, ensuring stable signal acquisition and control command transmission in complex industrial environments.

        A significant feature of the Honeywell CC-PUIO31 51454220-176 Universal Input Output Module is its highly configurable channel architecture. Each channel can be configured by the user to operate as an Analog Input, Analog Output, Digital Input, or Digital Output depending on system requirements. In addition, up to four channels can be configured as Pulse Inputs for applications requiring frequency or pulse signal measurement. The module also supports DISOE (Sequence of Events) recording with 1 millisecond SOE resolution and a 20 millisecond process variable scan rate. These capabilities allow CC-PUIO31 51454220-176 to capture rapid event changes accurately, which is particularly valuable in process control environments where precise event tracking is essential.

        In terms of practical application scenarios, Honeywell CC-PUIO31 51454220-176 is specifically designed to address the challenge of integrating multiple types of field signals within a single I/O module. In industrial facilities, field devices often include temperature transmitters, pressure sensors, valve actuators, and digital switching devices that generate different signal formats. By using CC-PUIO31 51454220-176, engineers can manage these diverse signals through a unified interface, reducing the number of separate I/O modules required in the control cabinet. This design helps simplify system architecture and improves operational efficiency. The module is commonly applied in industries such as oil and gas processing, power generation plants, petrochemical facilities, metallurgical production lines, and large-scale manufacturing automation systems.

        The CC-PUIO31 51454220-176 Universal Input Output Module also incorporates several built-in diagnostic and protection features that enhance operational reliability. The module supports Open Wire Detection, allowing the system to detect broken field wiring connections. It also provides electronic short circuit protection, which helps protect both the module and connected devices in the event of abnormal electrical conditions. Additionally, CC-PUIO31 51454220-176 supports HART 7 communication for analog I/O channels and includes a dedicated HART modem on each channel, enabling faster communication with intelligent field instruments and improving device diagnostics and configuration capabilities.

        From an installation and integration perspective, Honeywell CC-PUIO31 51454220-176 is designed for deployment inside industrial control cabinets and can be integrated into distributed control systems (DCS) or other process automation platforms. The module supports Fast Scan functionality (Priority I/O Module Scan), allowing faster update rates for time-critical control applications. It also operates within an extended ambient temperature range of -40°C to +70°C, making CC-PUIO31 51454220-176 suitable for installation in demanding industrial environments where temperature conditions may vary significantly.

        Regarding system maintenance and upgrade flexibility, CC-PUIO31 51454220-176 allows safe-state behaviors (FAILOPT) for analog and digital outputs to be configured on a per-channel basis. This feature ensures that each output channel can be defined to enter a predetermined safe state in the event of system faults or communication interruptions. When automation systems require expansion or process adjustments, engineers can reconfigure the channels of Honeywell CC-PUIO31 51454220-176 Universal Input Output Module to support new signal types or control strategies without replacing the hardware. This flexible configuration capability enables the module to adapt to evolving process requirements while maintaining system stability and reducing long-term maintenance costs.
        Alternative Names
        CC-PUIO31 CC-PUIO01 CC-PUI031 51454220-176 CC-TUIO31 CC-TUIO41
        Technical notes
        The HONEYWELL CC-PUIO31 51454220-176 features a flexible design, with each channel configurable by the user to support a variety of signal types, including standard analog input/output, digital input/output, pulse input functionality for any four channels, and high-speed digital input event sequence (DISOE) with 1 ms event resolution and 20 ms process variable scan rate.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What type of module is the Honeywell CC-PUIO31 51454220-176?
        The Honeywell CC-PUIO31 51454220-176 is a highly integrated industrial control module, classified as a Universal Input Output Module, designed to interface with various types of field devices in modern automation systems. The CC-PUIO31 51454220-176 serves as a universal I/O interface device, playing a key role in enabling communication between field instruments and the control system.
        What signal types can the CC-PUIO31 51454220-176 handle?
        The Honeywell CC-PUIO31 51454220-176 is capable of connecting analog input, analog output, digital input, and digital output signals within a single hardware platform, providing a flexible solution for multiple signal types.
        What field devices can be connected using the CC-PUIO31 51454220-176?
        Through the Honeywell CC-PUIO31 51454220-176, engineers can manage diverse signals from temperature transmitters, pressure sensors, valve actuators, and digital switching devices through a unified interface.
        Does the CC-PUIO31 51454220-176 support HART communication?
        Yes, the Honeywell CC-PUIO31 51454220-176 supports HART 7 communication for analog I/O channels and includes a dedicated HART modem on each channel, enabling faster communication with intelligent field instruments.
