Features:
- Identifies FSC faults by module type, rack number, and module position, with a flashing indication when a system fault is detected.
- Displays RTC data, internal Central Part temperatures, the 5 V supply level, and battery voltage through the front-panel interface.
- Provides 0.5 Ah rechargeable battery backup for RAM used by compatible FSC CPU, MEM, and COM modules.
The Honeywell 10006/2/1 provides a local diagnostic interface for the FSC Central Part. Its displays identify the reported fault category, rack, and module position, while the flashing indication alerts operators to an active system fault. The front switch selects diagnostic or system information, and the display returns to its normal time indication after inactivity.
The Honeywell 10006/2/1 incorporates a real-time clock that supplies date and time information readable by the application program. It also displays readings from two Central Part temperature sensors, the 5 V supply level, and battery voltage. Configurable temperature alarm and shutdown limits are managed through the FSC DBM configuration.

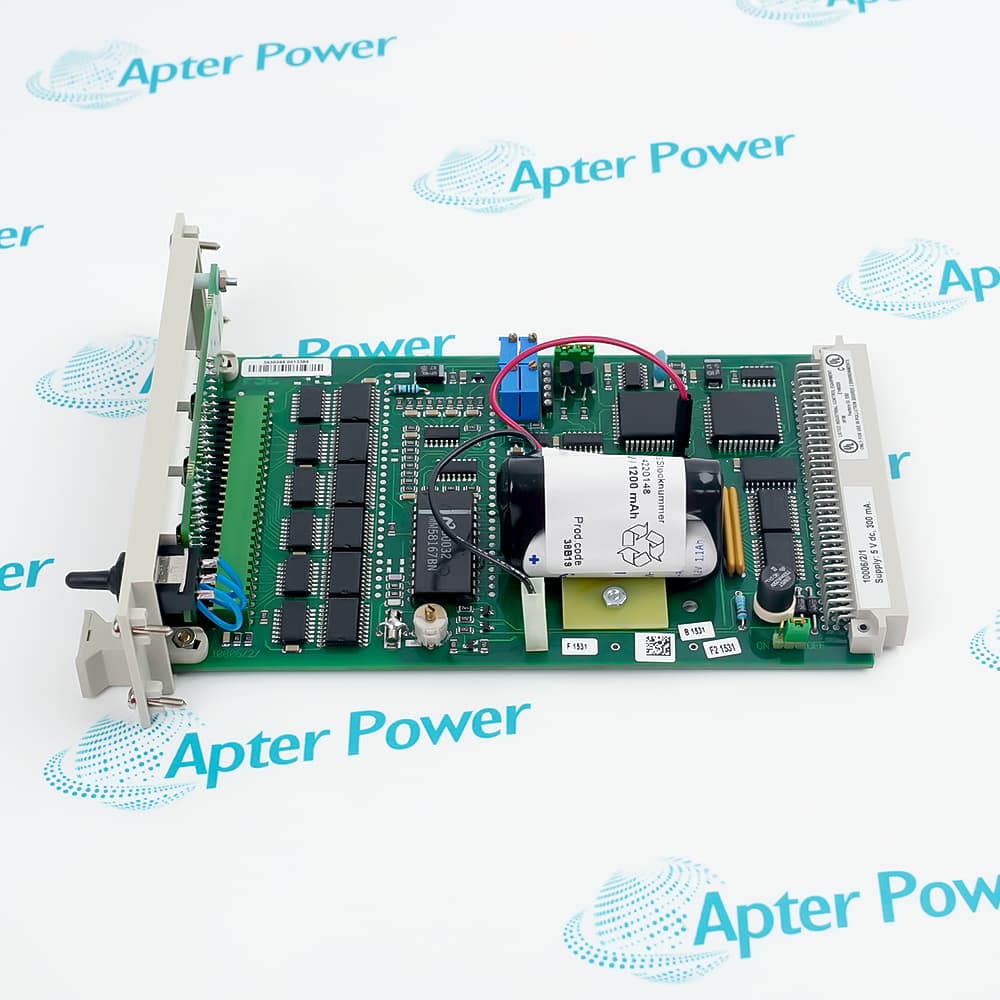

The Honeywell 10006/2/1 contains rechargeable batteries for retaining RAM contents in compatible CPU, MEM, and COM modules. Jumper J1 selects whether the batteries are isolated for storage or connected for operation. Honeywell documentation recommends periodic battery replacement, typically every four years.
The 10006/2/1 HONEYWELL Diagnostic And Battery Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL 10006-2-1 10006/2/1 Diagnostic And Battery Module Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
HONEYWELL 10006/2/1 Diagnostic And Battery Module Specs
General
- Manufacturer HONEYWELL
- Model 10006/2/1
- Condition New Original ready stock
- Product Family 10006/1/1, 10006/2/1, 10006/2/2
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Emergency Shutdown Systems: The Honeywell 10006/2/1 supports maintenance and local diagnostics within FSC controllers used for emergency shutdown applications; it does not execute the shutdown logic independently.
- Burner Management Systems: In FSC-based burner management installations, the module provides diagnostic identification, system information, RTC functions, and memory-retention support for compatible Central Part modules.
- Fire and Gas Systems: The module helps operators identify FSC module faults and review local system status in FSC controllers used for fire and gas protection.
- Process Safeguarding: The Honeywell 10006/2/1 supports diagnostic visibility and retained-memory protection in FSC systems deployed for high-integrity process safeguarding.
- FSC Installation: Install the Honeywell 10006/2/1 only in the designated FSC Central Part position and in accordance with the applicable FSC hardware installation instructions.

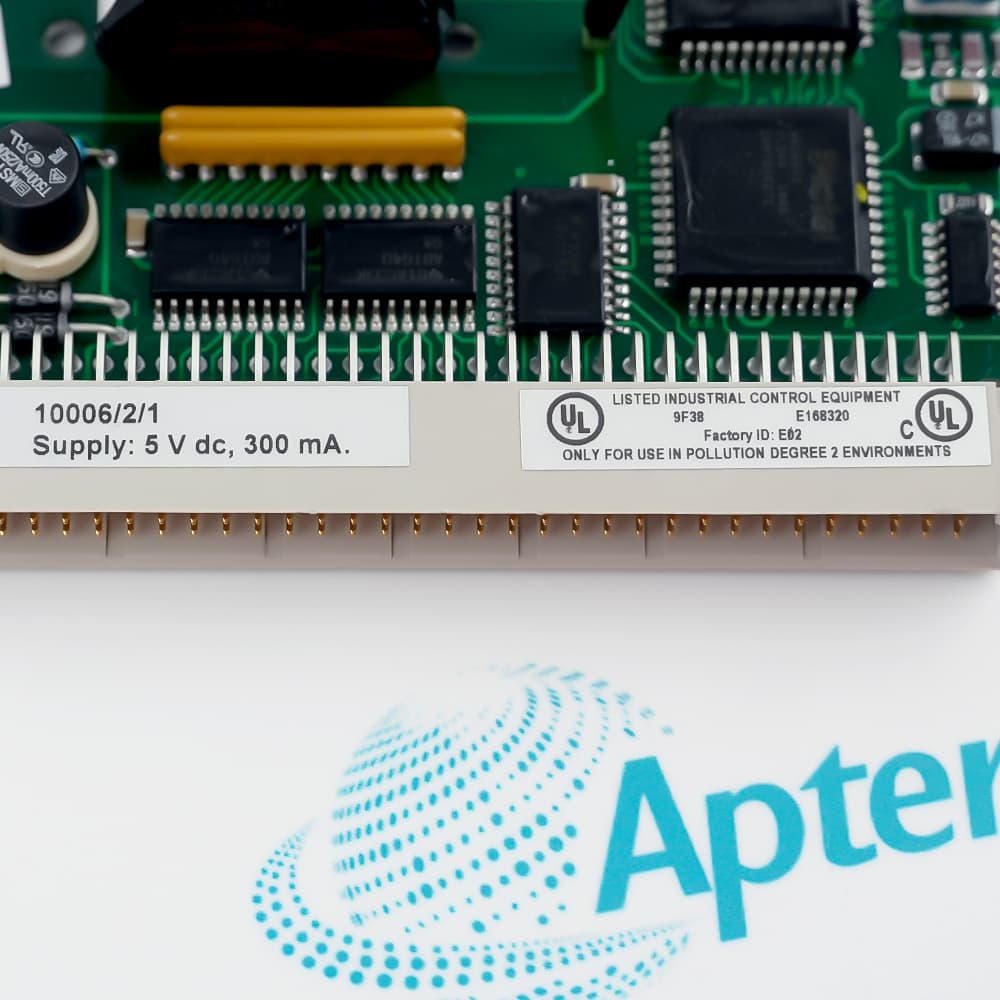

- Power Quality: Provide a regulated 5 V DC supply at 300 mA, with ripple maintained below 50 mV peak-to-peak.
- Storage Setting: Set jumper J1 to the battery-isolated position before prolonged storage or transport, following the applicable Honeywell maintenance procedure.
- Cabinet Conditions: Maintain the environmental limits specified for the installed FSC cabinet and system revision; verify site-specific temperature and humidity limits in the applicable Honeywell project documentation.
- Fault Identification: The front-panel displays identify the reported fault category, rack number, and module position, supporting faster location of faults within the FSC system.
- System Indication: A flashing display alerts operators when an FSC system fault is present, while the front switch selects diagnostic or system information.
- Condition Monitoring: The Honeywell 10006/2/1 displays values from two Central Part temperature sensors, together with the 5 V supply level and battery voltage.
- Clock Information: The integrated RTC provides date and time information that can be read by the FSC application program, with a specified drift below one second per day.
