FC-TPSU-2430 CC V1.1

/ 4.9
1001 reviews | Need a Specific Revision?

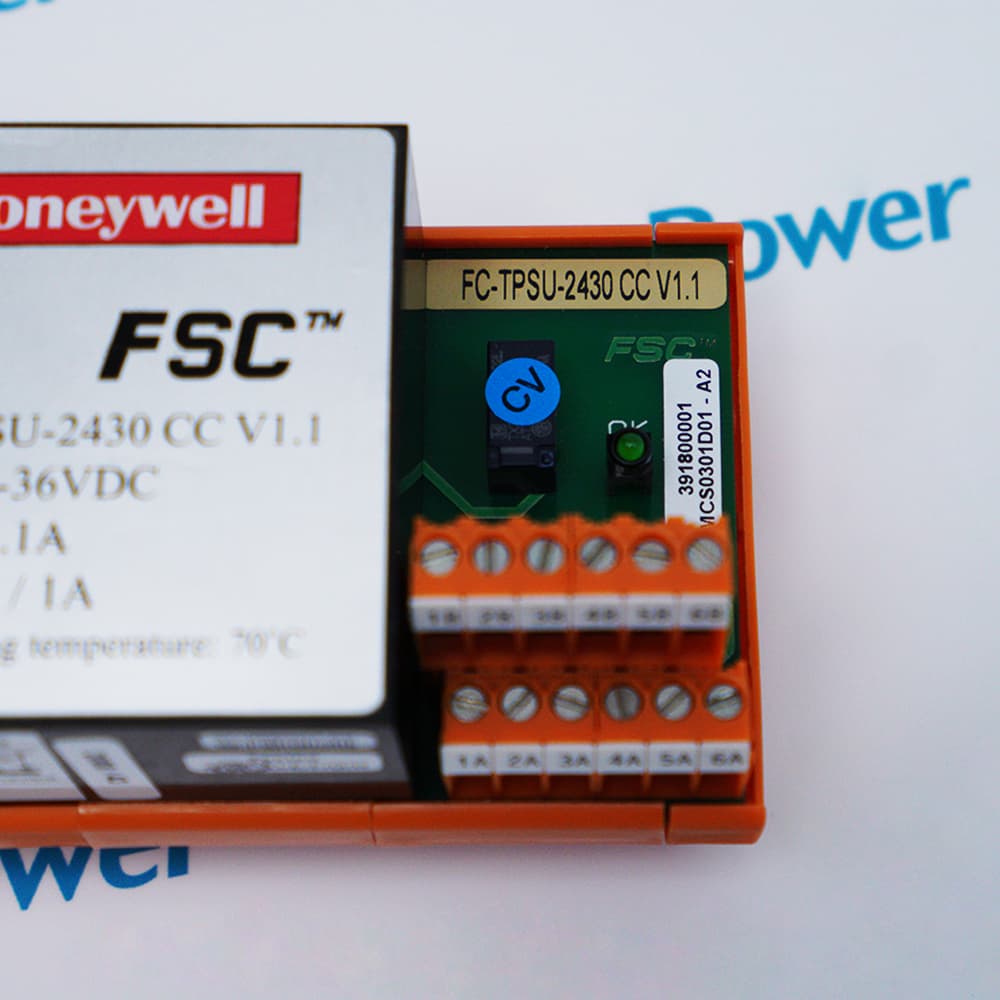

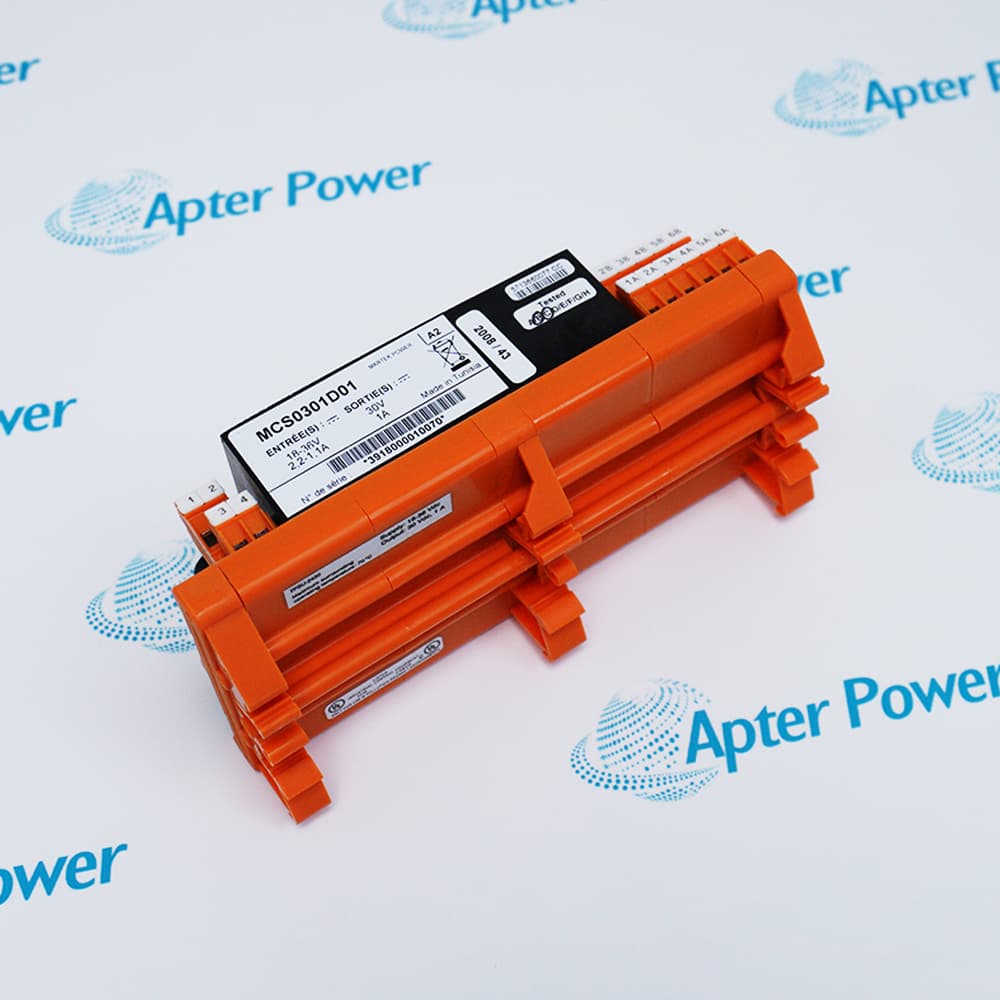

The Honeywell FC-TPSU-2430 CC V1.1 is a DC/DC power converter module designed to convert 24 VDC input into a regulated 30 VDC output. It is used within the Honeywell Safety Manager system architecture to support power delivery for field terminal block applications.
Get a quick price for FC-TPSU-2430 CC V1.1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-TPSU-2430 CC V1.1

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-TPSU-2430 CC V1.1
  • Product Family:
    Honeywell FSC Series
  • Product Type:
    DC/DC Power Converter Module
  • Input voltage:
    18–36 VDC (nominal 24 VDC)
  • Maximum current:
    2.2 A
  • Output voltage:
    30 VDC / 1A
  • Operating temperature:
    -5°C to 70°C
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    15x7x6.8cm
  • Tariff Code:
    8480719090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Connectivity Certifications

Features:

  • Provides stable DC/DC conversion from 24 VDC input to 30 VDC output
  • Supports integration within Safety Manager system power architecture
  • Designed for controlled power delivery to field terminal block interfaces
The Honeywell FC-TPSU-2430 CC V1.1 is a DC/DC power converter module designed for use in industrial safety system architectures. It operates with an input range of 18–36 VDC and a nominal 24 VDC supply, providing a regulated 30 VDC output. The Honeywell FC-TPSU-2430 CC V1.1 is commonly integrated into system-level power distribution structures where stable voltage conversion is required.

Within the Honeywell Safety Manager (SM) architecture, the Honeywell FC-TPSU-2430 CC V1.1 serves as a dedicated power conversion element. It is responsible for converting standard system supply voltage into a controlled output used for specific subsystem requirements. The Honeywell FC-TPSU-2430 CC V1.1 ensures defined electrical conversion for field terminal block support within the system design.

The Honeywell FC-TPSU-2430 CC V1.1 also operates under specified electrical and environmental limits, including a maximum input current of 2.2 A and an operating temperature range of -5°C to 70°C. The Honeywell FC-TPSU-2430 CC V1.1 is categorized as a DC/DC power converter module, designed to maintain consistent voltage transformation behavior in structured industrial environments.

The FC-TPSU-2430 CC V1.1 Honeywell DC/DC Power Converter Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell FC-TPSU-2430 CC V1.1 DC/DC Power Converter Module Specs

General

  • Manufacturer Honeywell
  • Model FC-TPSU-2430 CC V1.1
  • Condition New Original ready stock
  • Product Family FC-TPSU-2430,FC-TPSU-2430 CC V2.0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Core Power Supply for Safety Systems: Specifically designed for Honeywell Safety Manager systems, converting the control cabinet's 24V bus power supply to an isolated 30V power supply.
  • Analog Card Adaptation: Provides precise power support for safety input/output modules such as the TSAI-1620m that require 30V operating voltage.
  • High-Risk Process Isolation: Prevents field interference from entering the core control layer in SIS (Safety Instrumented System) loops requiring strict electrical isolation.
  • Redundant Power Supply Architecture: Supports use in redundant power distribution units, ensuring the safety system does not trigger false tripping in the event of a single power supply failure.
  • Pluggable Terminal Block Design: Employs standard 4-pin screw terminals (input +/-, output +/-), supporting quick field wiring and module replacement.
  • DIN Rail Compatibility: The module base is designed for standard 35mm DIN rail mounting, allowing seamless integration into various industrial control cabinet layouts.
  • Rack Backplane Communication: Connects to the Safety Manager rack via a dedicated interface on the bottom, enabling real-time monitoring and feedback of voltage status.
  • Remote Status Feedback: Built-in isolated dry contacts allow for physical connection to alarm indicator lights or a host computer, enabling remote closed-loop monitoring of power status.
  • SIL3 Rating Certification: Rigorously tested by third-party organizations such as TUV, meeting the SIL3 safety integrity level under the IEC 61508 standard.
  • G3 Corrosion Resistance: "CC" (Conformal Coating) in the model name indicates a G3 coating, conforming to the ISA-S71.04 standard, suitable for highly corrosive environments.
  • Explosion-proof Safety Standards: Certified by ATEX and IECEx, allowing installation in Zone 2 hazardous areas in industries such as petrochemicals.
  • Global Electrical Compliance: Certified by CE, UL, and CSA, ensuring compliance and versatility in industrial projects worldwide.
Description
The Honeywell FC-TPSU-2430 CC V1.1 is a DC/DC power converter module designed for voltage conversion within industrial safety system architectures. It operates with an input range of 18–36 VDC, with a nominal 24 VDC supply, and provides a stabilized 30 VDC / 1A output. The Honeywell FC-TPSU-2430 CC V1.1 is engineered to support internal system power distribution requirements.

In system integration, the Honeywell FC-TPSU-2430 CC V1.1 functions as part of the Honeywell Safety Manager (SM) architecture. It is used to convert standard 24 VDC power into an isolated 30 VDC output level. The Honeywell FC-TPSU-2430 CC V1.1 is intended for supplying specific field terminal blocks (FTAs) within the system design.

From an operational specification perspective, the Honeywell FC-TPSU-2430 CC V1.1 supports a maximum current of 2.2 A on the input side and operates within a temperature range of -5°C to 70°C. The Honeywell FC-TPSU-2430 CC V1.1 is identified as a DC/DC power converter module with defined electrical conversion characteristics for controlled system environments.
Alternative Names
FC-TPSU-2430 FC-TPSU-2430 CC V2.0
Technical notes
Honeywell FC-TPSU-2430 CC V1.1 DC/DC power converter module, input voltage 18–36 VDC (nominal 24 VDC), maximum input current 2.2 A, output voltage 30 VDC / 1A, operating temperature -5°C to 70°C, used within Honeywell Safety Manager system architecture, converting 24 VDC input to isolated 30 VDC output for field terminal block (FTA) power supply applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does temperature affect FC-TPSU-2430 CC V1.1 operation?
The module operates within a defined ambient range of -5°C to 70°C for stable performance.
What is the input current specification of this module?
It operates with a maximum input current of 2.2 A under defined system conditions.
What is the primary role of FC-TPSU-2430 CC V1.1?
It converts a standard 24 VDC input into a regulated 30 VDC output, enabling stable power distribution within the system architecture.
What makes the output of FC-TPSU-2430 CC V1.1 significant?
The module provides a fixed 30 VDC / 1A output suitable for powering designated field terminal blocks.
