Features:
- 16 analog channels
- 0-4.1 v direct and readback paths
- Matched with SAI-1620m safe analog input module

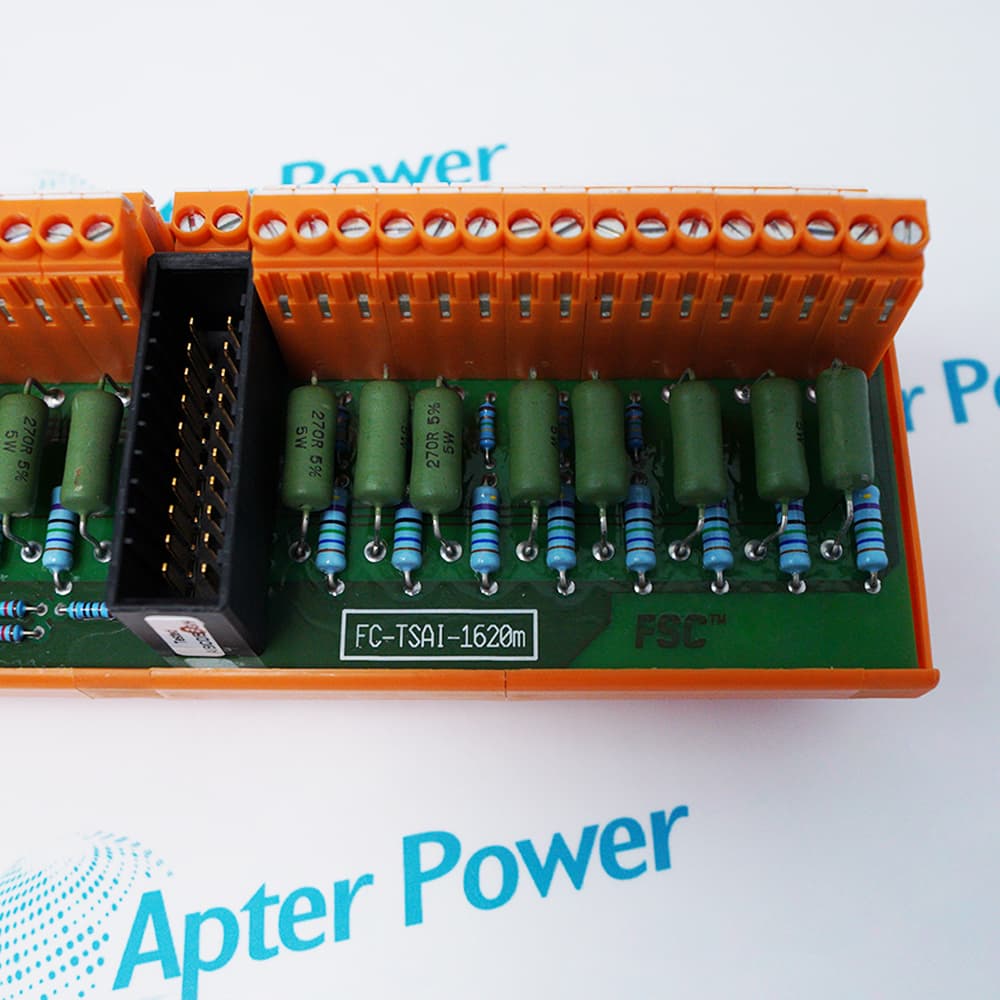

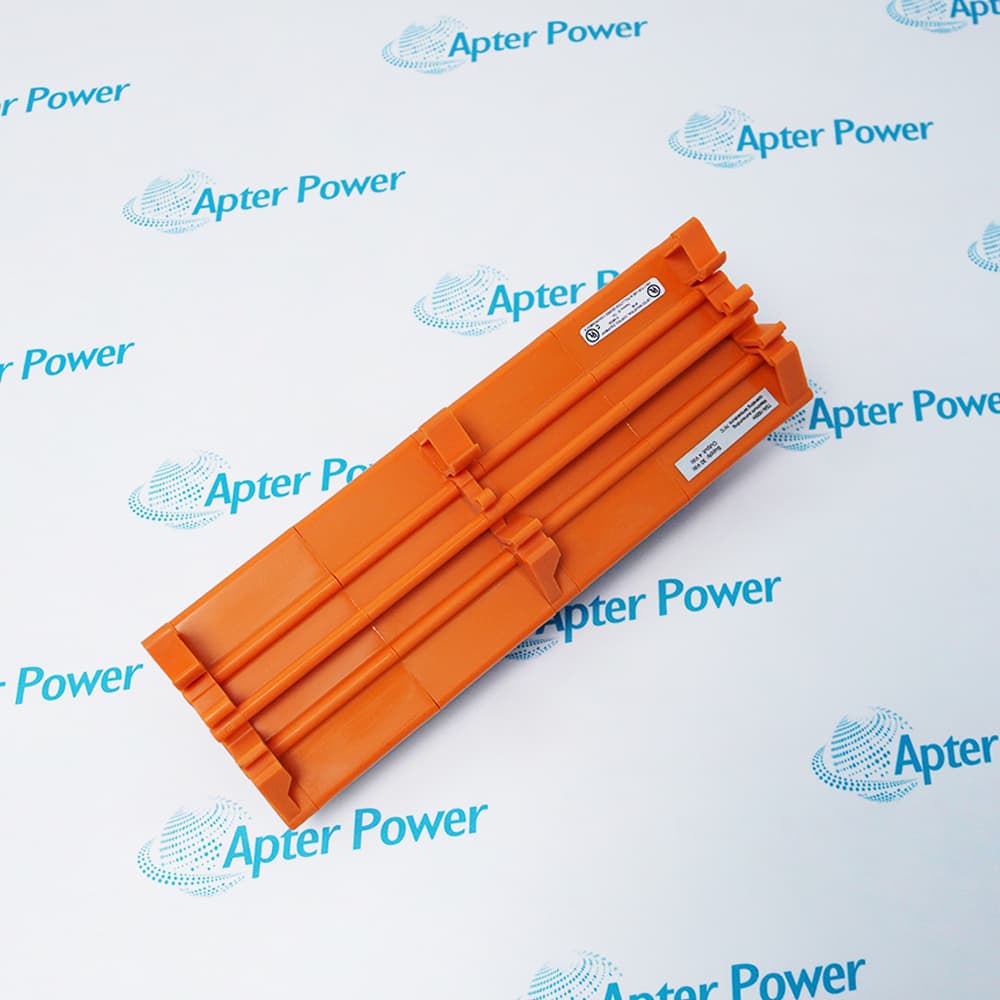

FC-TSAI-1620m provides field termination and signal conversion for safe analog transmitters in a Honeywell Safety Manager installation.
Its conformal-coated fc construction and the documented 0-4.1 V direct and readback paths must match the cabinet and field design.
Verify loop power, scaling and independent readback and the complete connected path before the equipment is released to operation.
The Honeywell FC-TSAI-1620m 16-Channel Safe Analog Input FTA is available for quotation and technical support from Apter Power.
Verified resources for FC-TSAI-1620m:
Signal Data:
- 16 analog channels
- 0-4.1 V direct and readback paths
- System role: field termination and signal conversion for safe analog transmitters
Use the documented FC-TSAI-1620m electrical limits when calculating the complete connected circuit.
Diagnostics:
- Loop power, scaling and independent readback
- Check channel and system alarms
- Document normal and fault-state results
Resolve all FC-TSAI-1620m wiring, power, communication and system diagnostics before release to operation.
Compatibility:
- Matched hardware: SAI-1620m safe analog input module
- Construction: Conformal-coated FC construction
- Confirm firmware and hardware revision
Match FC-TSAI-1620m to the approved cabinet, cable, termination and field-device arrangement.
Installation Check:
- Verify power, polarity and grounding
- Confirm terminal allocation and cable identification
- Prove the complete end-to-end function
Record the final configuration and all functional-test results after installing FC-TSAI-1620m.
