Features:
- Supports 32-channel 24 Vdc digital input processing for industrial control signal acquisition.
- Provides 1500 Vac rms or ±1500 Vdc galvanic isolation between field devices and PM/APM/HPM systems.
- Integrates surge withstand capability with 2.0 ms maximum filter and isolation delay for stable signal handling.

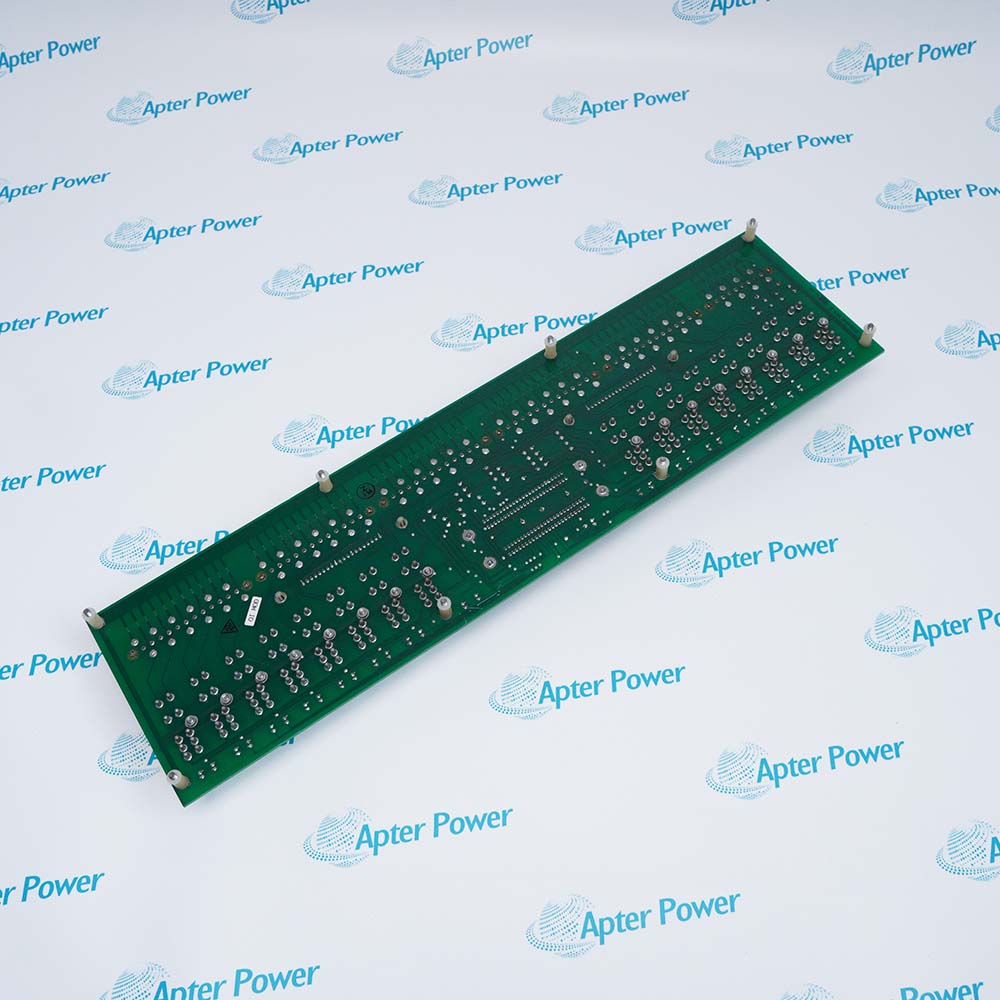

Honeywell MU-TDID12 51304441-125 is designed for industrial systems requiring dependable digital input signal collection and monitoring. The module supports 32 independent input channels within a 24 Vdc operating structure. Stable low-frequency signal handling up to 15 Hz allows consistent monitoring of discrete field device status. The unit also incorporates defined switching thresholds for controlled ON and OFF signal recognition. Type C termination and mounting configuration support standardized installation within compatible control cabinets.
Honeywell MU-TDID12 51304441-125 includes galvanic isolation between the field side and PM/APM/HPM systems to maintain electrical separation during operation. Isolation capability is rated at 1500 Vac rms or ±1500 Vdc to support reliable signal integrity in industrial environments. The module processes ON-condition signals with a minimum sense current of 4.5 mA while maintaining OFF-condition current at 2.8 mA maximum. Pick up and drop out voltage specifications are clearly defined to support stable input transition performance. Integrated filtering also helps maintain controlled signal processing timing.
Honeywell MU-TDID12 51304441-125 is built with surge withstand capability according to ANSI/IEEE C37.90.1-1978 requirements. The module maintains an absolute delay across input filtering and isolation of 2.0 ms maximum for responsive input handling. Operation within a 20–30 Vdc power range supports compatibility with common industrial digital input systems. Honeywell MU-TDID12 51304441-125 is suitable for applications requiring organized field input management and reliable control system communication. The compact C mounting size further supports efficient cabinet integration in industrial automation assemblies.
The MU-TDID12 51304441-125 Honeywell Digital Input 24 Vdc FTA may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell MU-TDID12 51304441-125 Digital Input 24 Vdc FTA Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell MU-TDID12 51304441-125 Digital Input 24 Vdc FTA Specs
General
- Manufacturer Honeywell
- Model MU-TDID12 51304441-125
- Condition New Original ready stock
- Product Family MU-TDIA62 51304431-225,MU-TDID52 51304441-225,MU-TDID72 51303928-100
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Optical Isolation to Block High Voltage: The onboard channels and core logic layer employ opto-isolation technology up to 1500 Vac rms, effectively preventing power surges or transient high voltages from harsh external environments from damaging the core control system.
- Anti-Jitter Filter: An integrated hardware filtering mechanism at the input eliminates spark noise and high-frequency glitches generated when field mechanical contacts close, ensuring that only stable signal levels trigger logic changes.
- Surge Compliance: The circuit design fully complies with industrial-grade surge protection standards, providing strong absorption and suppression capabilities against line surges caused by lightning strikes and the start-up and shutdown of high-power equipment.
- Intrinsically Safe Barrier Support: In hazardous area applications, it supports installation in conjunction with external isolation barriers or safety barriers to limit input current and prevent field contacts from generating sparks sufficient to ignite the environment.
- Transmitter status monitoring: Receives over-limit alarm statuses from various two-wire or four-wire pressure and flow transmitters on process pipelines, synchronizing in real-time to large DCS systems such as Experion for interlocking responses.
- Valve limit switch acquisition: Captures "fully open" or "fully closed" travel limit contact signals from field electric valves and pneumatic shut-off valves in real-time via a 24 Vdc loop, providing operators with accurate valve position feedback.
- Emergency Stop System Trigger: In critical installations such as petrochemical and power plants, the red emergency stop button or explosion-proof pressure switch connected to the site will immediately trigger the safety protection interlock logic once the contact is opened.
- Pump and Machine Operation Status Feedback: This feed is connected to the closed status of auxiliary contacts in the field motor control center (MCC) to monitor the actual start-up and shutdown status of high-power rotating machinery such as pumps and fans.

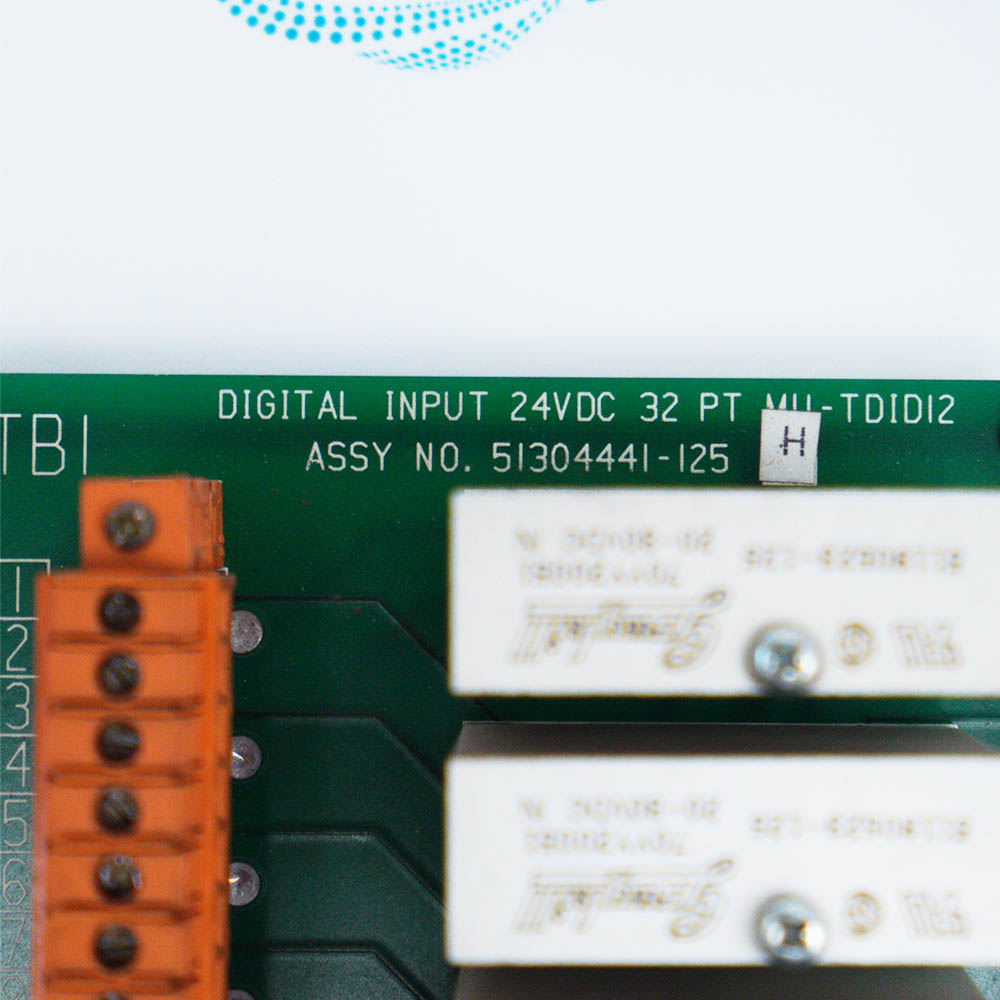

- High-Capacity Crimped Terminals: Equipped with industrial-grade crimped terminal blocks, it can directly accept field conductors up to 14 AWG (approximately 1.6 mm), ensuring a secure electrical connection and reducing contact resistance.
- Long-distance prefabricated cabling: Dedicated shielded cables enable lossless interconnection with the upper-level I/O processor, supporting cabling distances up to 50 meters while ensuring signal integrity.
- Unified bus power distribution: The board features an internal vertical power bus structure, providing centralized 24 Vdc power to 32 dry contacts or sensors in the field, simplifying external wiring circuits.
- Plug-in isolation components for maintenance: Removable plug-in isolation components connect the field terminals to the internal logic circuits, allowing for quick replacement in case of physical damage to a single channel without dismantling the entire field wiring.
