CSNK500M-600

/ 4.9
1001 reviews | Need a Specific Revision?

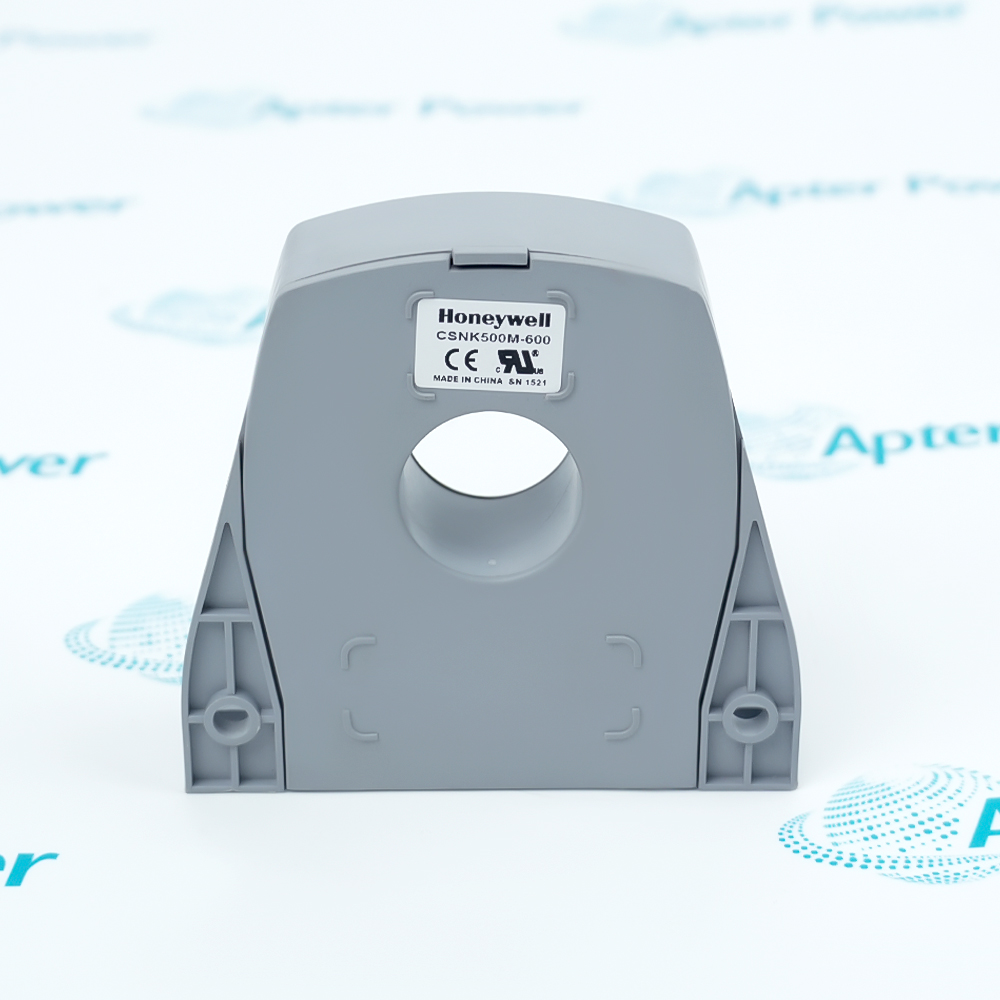

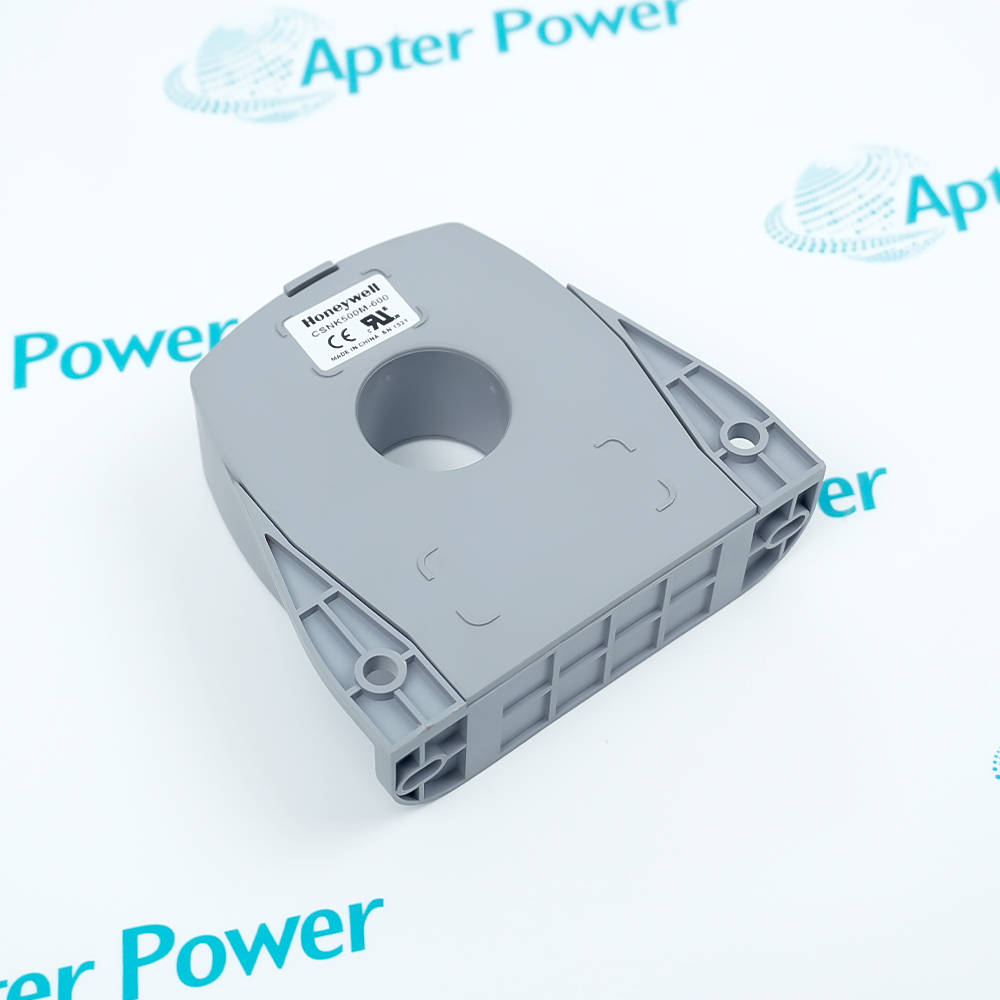

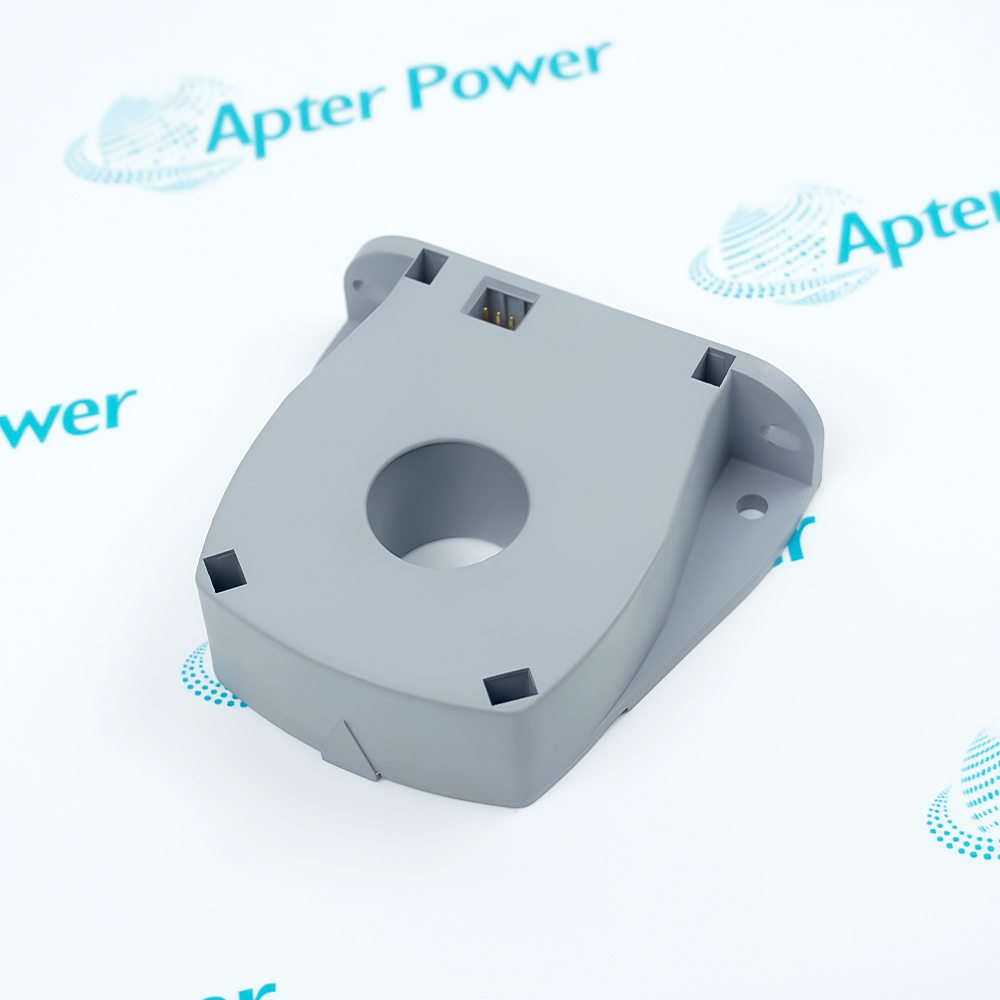

Honeywell CSNK500M-600 is a closed-loop current sensor with a 500 A nominal primary-current rating and -600 connector configuration.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CSNK500M-600
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CSNK500M-600

  • Manufacturer:
    Honeywell
  • Part Number:
    CSNK500M-600
  • Product Family:
    Honeywell
  • Product Type:
    Closed-Loop Current Sensor
  • Stock:
    1
  • Nominal primary current:
    500 A
  • Measurement range:
    0 to ±1200 A-turns
  • Secondary turns:
    5000
  • Nominal secondary output:
    100 mA
  • Supply voltage:
    ±18 VDC
  • Response time:
    Less than 1 µs
  • Mating connector:
    RSD-46607-001 for -600 version
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Selection Tasks Connector Match Installation Applications

Features:

  • Current rating: 500 A nominal primary-current measurement.
  • Output principle: Closed-loop secondary current for an external burden resistor.
  • Connector build: The -600 suffix identifies the documented connector configuration.
The exact suffix matters because the mating-connector arrangement is part of the installation interface.

The measurement chain must retain the documented supply polarity, secondary-current direction and burden-resistor value.

Primary conductor placement and secondary wiring should be checked against the approved panel drawing before commissioning.

Apter Power supports Honeywell CSNK500M-600 Closed-Loop Current Sensor quotations, documentation and configuration review.
Honeywell CSNK500M-600 Closed-Loop Current Sensor Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Current envelope: Compare continuous and peak ampere-turn demand with the sensor limits.
  • Primary turns: Include every conductor pass through the aperture in the ampere-turn calculation.
  • Waveform: Identify whether the measurement includes DC, AC or impulse current.
  • Dynamic response: Check that the required measurement bandwidth fits the documented sensor response.
  • Suffix: Retain -600 in the complete ordering identity.
  • Mating part: Verify RSD-46607-001 or the documented equivalent interface.
  • Polarity: Check supply and secondary-current polarity before connection.
  • Harness retention: Include the connector latch and strain-relief arrangement in the wiring review.
  • Primary path: Route the measured conductor through the documented sensor opening.
  • Current direction: Align the conductor direction with the housing indication.
  • Supply routing: Provide the positive and negative supply rails shown in the approved circuit.
  • Clearance: Maintain the panel clearances required by the primary circuit.
  • Variable-speed drives: Supports current measurement in variable-speed drive systems.
  • Servo systems: Supports current feedback in servo motors and drives.
  • Power supplies: Supports AC, DC and impulse-current measurement in power supplies.
  • Protection: Supports ground-fault detection and overcurrent-protection applications.
Description
CSNK500M-600 is a Honeywell closed-loop current sensor rated for 500 A nominal primary current. The sensor reproduces the primary-current waveform as a reduced secondary current for measurement through an external burden resistor.

For AC, DC and impulse-current measurement, CSNK500M-600 covers a documented zero-to-plus-or-minus 1200 ampere-turn range. Its 5000-turn secondary produces a nominal 100 mA output at the rated primary current.

The -600 build of CSNK500M-600 uses the connector arrangement identified in the Honeywell drawing. Selection should confirm the bipolar supply, mating connector, conductor route and burden-resistor design before energization.
Alternative Names
CSNK500M600 CSNK500M 600 CSNK 500M-600 CSNK 500M 600 Honeywell CSNK500M-600 Honeywell CSNK500M 600 CSNK500M-600 current sensor CSNK500M 600 closed loop sensor
Technical notes
CSNK500M-600 provides a secondary current rather than a voltage output. A voltage-input design therefore depends on an external burden resistor whose value sets the usable voltage span and dissipation; Apter Power can help compare the expected secondary current, receiver range and resistor rating for the installed measurement chain.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What tolerance should be used when CSNK500M-600 disagrees with a commissioning reference?
Use Honeywell’s ±0.5% of nominal current maximum at 25 °C, then verify the receiver and burden before rejecting the sensor.
Why can a CSNK500M-600 output clip near maximum measured current?
Its supply must cover 20 mA sensor consumption plus the secondary output current; insufficient current capacity can limit the output.
Does the 6 kV isolation test for CSNK500M-600 define the permitted working voltage?
No. It is a one-minute dielectric test value; the primary-circuit insulation design still determines the permitted working voltage.
How should a small CSNK500M-600 zero shift be assessed after cabinet warm-up?
Compare it with ±0.2 mA at 25 °C and ±0.3 mA drift from 0 °C to 70 °C before recalibrating.
Can CSNK500M-600 remain energized in a cabinet expected to reach -35 °C or +80 °C?
Those temperatures are inside the -40 °C to +85 °C operating range, but every connected component must also remain within rating.
What should be checked when CSNK500M-600 misses fast current-pulse peaks?
Confirm the sensor’s DC-to-100 kHz bandwidth and >50 A/µs response, then check receiver bandwidth and sampling rate.
