    Apter Power offers cable-label review, procurement support and output-position matching for Trusted maintenance.

TC-308-02-2M5

/ 4.9
1001 reviews | Need a Specific Revision?

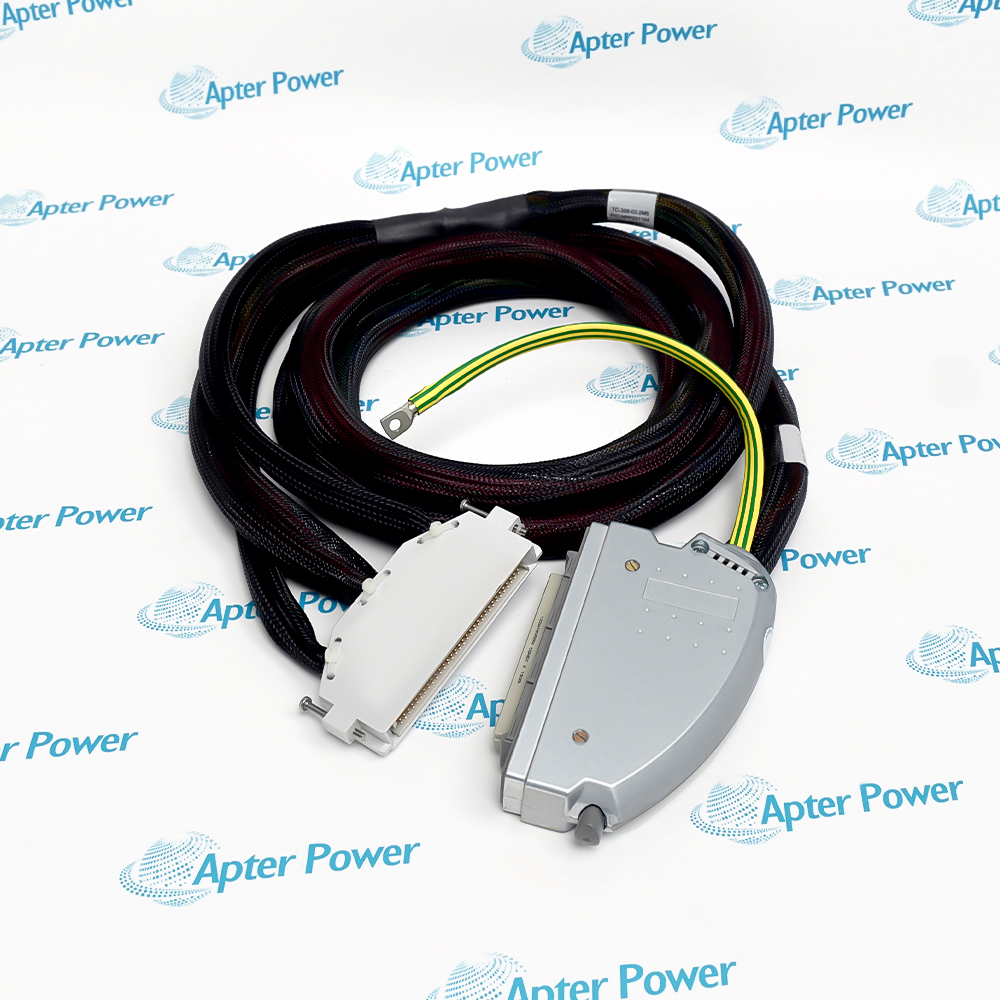

ICS Triplex TC-308-02-2M5 is a 2.5 m Trusted output SmartSlot jumper designed for a 40-channel digital output module. A 56-way LSZH harness links the field position to the module occupying the SmartSlot.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for TC-308-02-2M5
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TC-308-02-2M5

  • Manufacturer:
    ICS Triplex
  • Part Number:
    TC-308-02-2M5
  • Product Family:
    Trusted Communications Cables
  • Product Type:
    Output SmartSlot Jumper Cable
  • Stock:
    1
  • Jumper length:
    2.5 m
  • Output harness count:
    56-way
  • Cable material:
    LSZH
  • Mechanical protection:
    Megamide sleeving
  • Termination finish:
    Heat-shrink
  • SmartSlot-side connector:
    96-way type C
  • Connector hood width:
    Single-width
  • Protective bonding:
    Earth braid
  • Field-position connector:
    96-way type R
  • Field-position hood:
    Special-to-type plastic hood
  • Output module class:
    Trusted digital output
  • Supported channel count:
    40 channels
  • Channel voltage ceiling:
    60 V
  • Channel current ceiling:
    2 A
  • Hazardous-area approvals:
    HazLoc, ATEX and IECEx
  • Weight:
    1.94 kg
  • Estimated shipping dimensions:
    36x27x6cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Monitoring Integration Compliance

Features:

  • A 2.5 m LSZH assembly carries Trusted output signals through a 56-way jumper harness.
  • The SmartSlot interface uses a type C connector with a double-width hood and earth braid.
  • The displaced output position is reached through a type R connector and special plastic hood.
ICS Triplex TC-308-02-2M5 identifies the 2.5 m output SmartSlot jumper finished with Megamide sleeving and heat-shrink protection.

The cable extends the field connection from the original output location to a supported module installed in the SmartSlot of a Trusted chassis.

Confirm the output-module grouping, 56-way connector arrangement and permitted same-bay route, then prove every affected output before operation resumes.

Supply is checked using the full TC-308-02-2M5 ordering code.
Verified resources for ICS Triplex TC-308-02-2M5:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Transfers the field-output connection to a SmartSlot module during recovery of a failed normal position.
  • Serves Trusted analogue and digital output maintenance within the cable reach of one enclosure bay.
  • Enables controlled restoration of the output path after module, slot and field-circuit checks are completed.
  • Output response must be observed at the intended field circuit while the jumper path is commissioned.
  • Channel state and diagnostic indications should be compared before and after the SmartSlot transfer.
  • Unexpected output behavior requires isolation and investigation before control authority is restored.
  • The 56-way harness integrates the replacement SmartSlot position with the original output field connector.
  • Double-width hood clearance and cable bend radius must be accommodated inside the selected chassis bay.
  • Earth braid termination and connector locking should follow the documented Trusted enclosure arrangement.
  • Use in hazardous locations depends on the certified Trusted system assembly and its installation conditions.
  • The fitted LSZH wire and protective sleeving must remain intact to preserve the specified cable construction.
  • Proof testing and change control are required under the applicable Trusted safety lifecycle procedure.
Description
Built as the LSZH member of the Trusted output-jumper range, ICS Triplex TC-308-02-2M5 combines a 2.5 m reach with a 56-way wire harness. Megamide sleeving provides mechanical protection, and the heat-shrunk sheath ends resist fraying during cabinet work.

Its purpose is to preserve the output connection when a faulty 40-channel digital output module is moved to a SmartSlot position in a Trusted Controller or Expander chassis. The cable routes the output channels from the original field connector to the substitute module location without redefining the field termination.

The SmartSlot side terminates in a 96-way type C connector, single-width hood and earth braid; the field-position side uses a 96-way type R connector under a special plastic hood. Selection must follow the output-module type and voltage application, and the jumper requires proof testing before operation.
Alternative Names
TC-308-02-2M5 TC308022M5 TC 308 02 2M5 TC-308-02 2M5 ICS Triplex TC-308-02-2M5 Rockwell Automation TC-308-02-2M5 Trusted TC-308-02-2M5 Output SmartSlot Jumper Cable TC-308-02-2M5 Trusted Communications Cable
Technical notes
TC-308-02-2M5 is restricted to the documented Trusted output SmartSlot function and must be proved before use. It is not an equivalent for an input jumper or a dedicated 120 Vac output jumper.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does a Trusted Zone Interface configured for outputs use ICS Triplex TC-308-02-2M5?
Rockwell SmartSlot guidance treats a Zone Interface used as outputs as an output application, so the output-type jumper and its corresponding channel grouping are required.
What service sequence applies after a healthy module is installed with ICS Triplex TC-308-02-2M5?
After the replacement module has assumed the SmartSlot role and the repair is complete, follow the Trusted maintenance procedure to restore the primary position rather than moving wiring while channels are uncontrolled.
What construction detail separates ICS Triplex TC-308-02-2M5 from another cable-material variant?
The -02 ordering variant uses LSZH wires inside Megamide sleeving with heat-shrunk sheath ends. The material suffix must match the site cable specification.
Is ICS Triplex TC-308-02-2M5 suitable for a 120 Vac digital output position?
No. Rockwell lists a separate jumper family for 120 Vac output applications; use the cable specified for the installed module and field voltage.
Which official reference shows the end connections for ICS Triplex TC-308-02-2M5?
The Trusted Communications Cables publication ICSTT-RM312N-EN-P documents the type C SmartSlot end, type R field-position end and 56-way output harness.
How can a buyer authenticate ICS Triplex TC-308-02-2M5 before purchase?

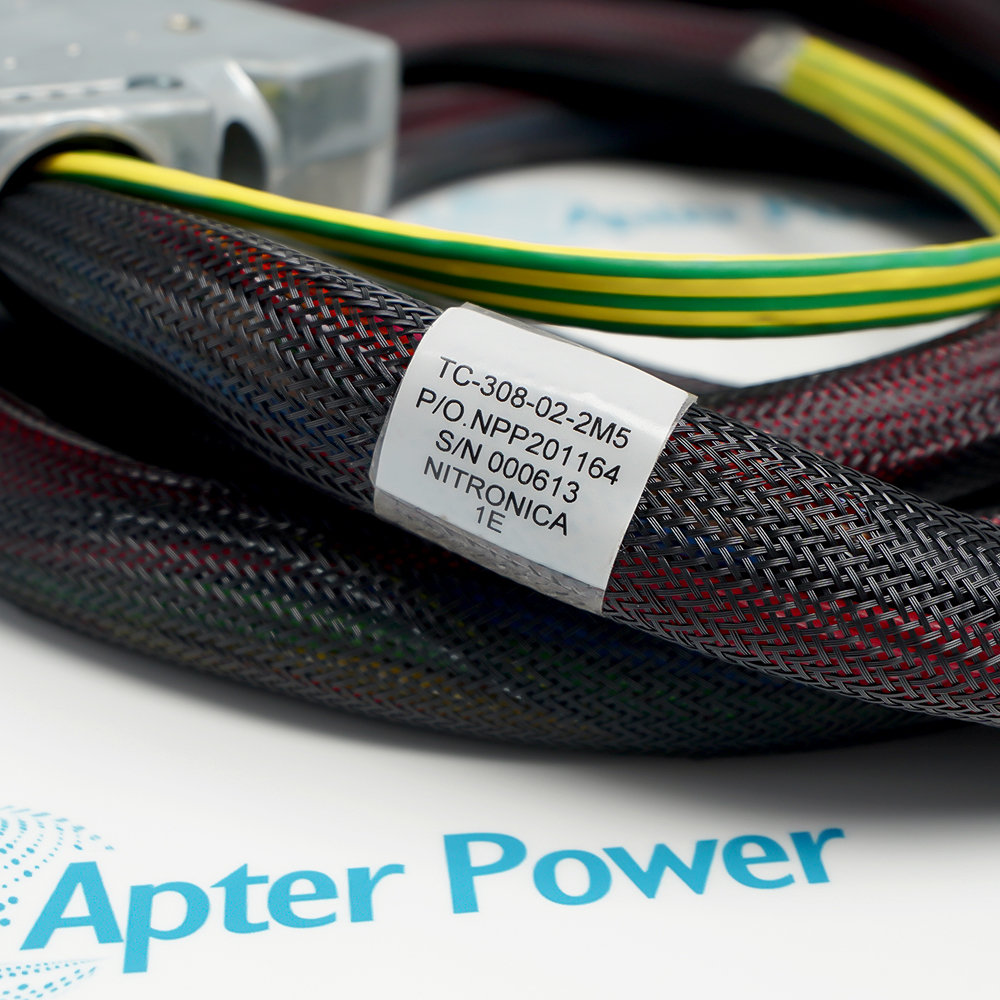

Check that the label includes the complete -02-2M5 code and compare connector photographs, cable length and 56-way harness construction with the official ordering description.
