II5910

/ 4.9
1001 reviews | Need a Specific Revision?

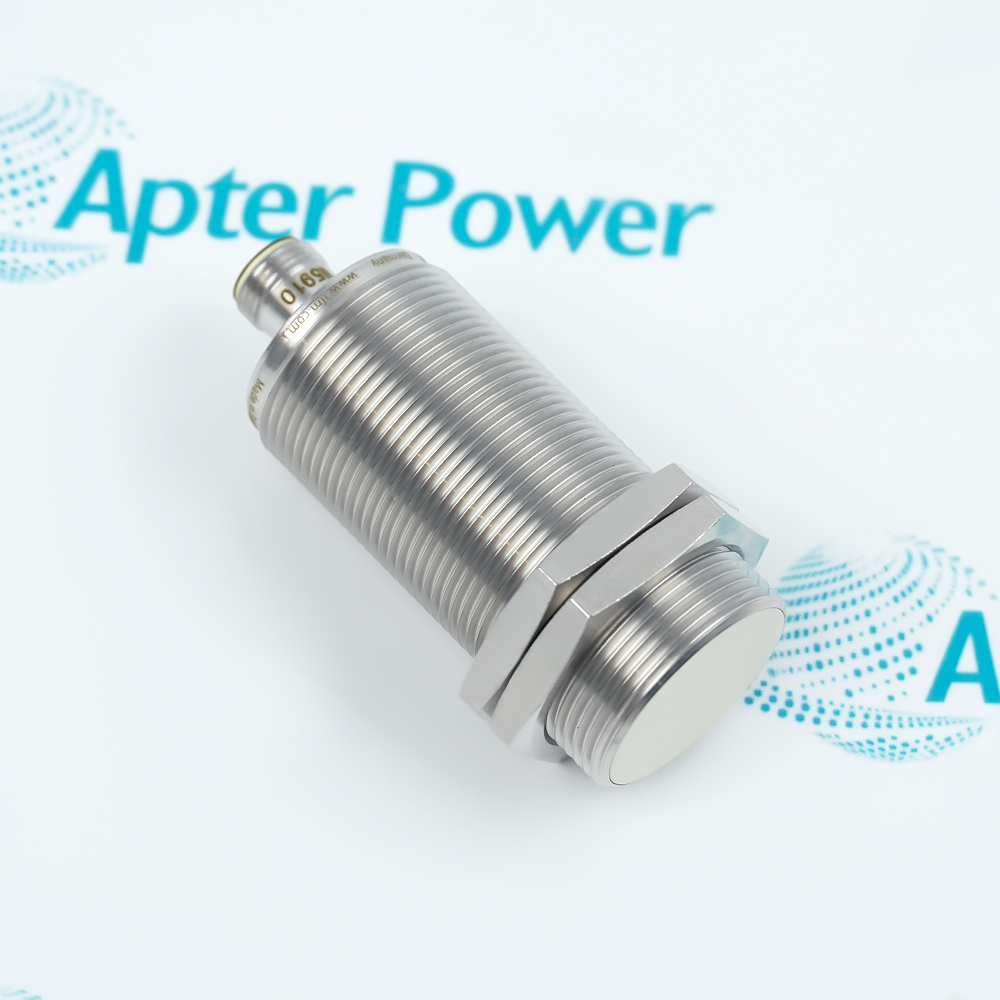

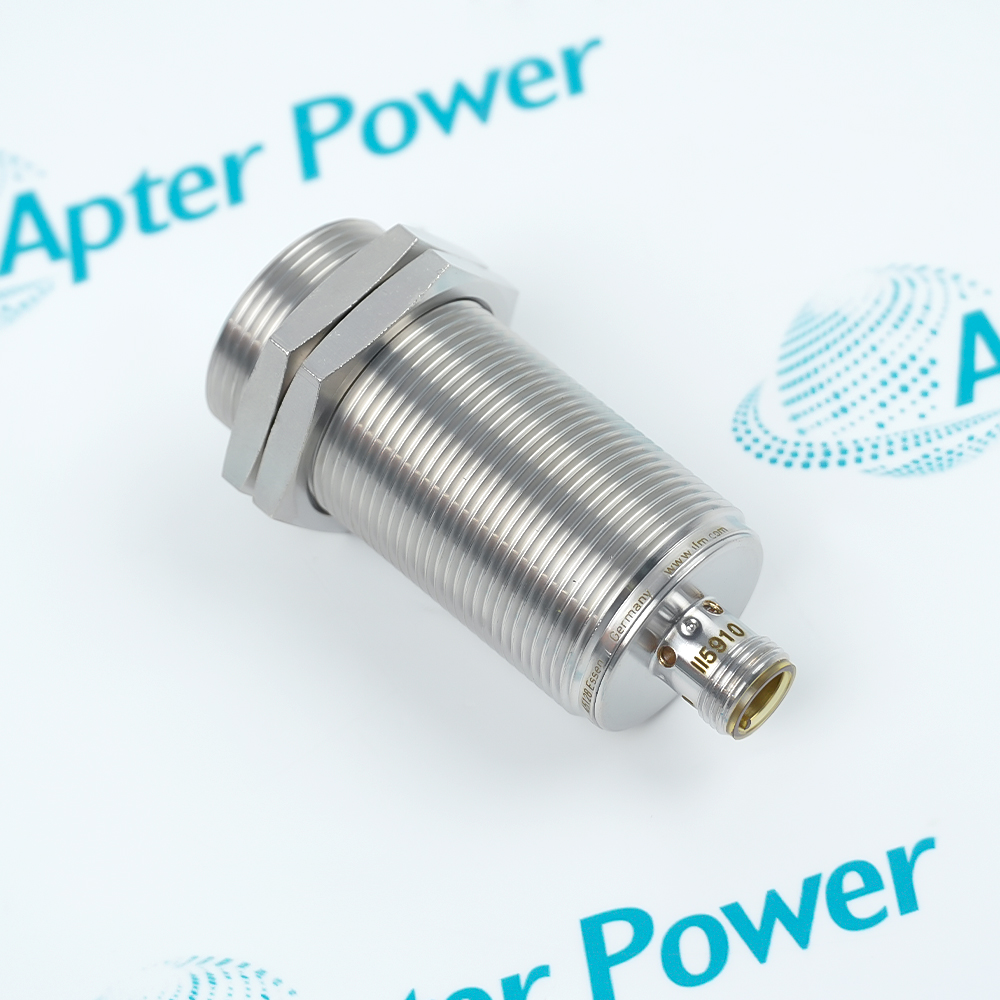

II5910 is the IFM IIA3015BBPKG/US-104 inductive sensor. It provides PNP normally open detection, a 15 mm nominal sensing range, M30 threaded flush mounting, IP67 protection, and gold plated contacts for factory automation.
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for II5910
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for II5910

  • Manufacturer:
    Ifm
  • Part Number:
    II5910
  • Product Family:
    Ifm
  • Product Type:
    PNP normally open inductive sensor
  • Electrical design:
    PNP
  • Output function:
    normally open
  • Sensing range:
    15 mm
  • Operating voltage:
    10 to 32 V DC
  • Current consumption:
    10 mA
  • Maximum voltage drop:
    2.5 V DC
  • Permanent switching output current:
    200 mA
  • Switching frequency:
    100 Hz DC
  • Short circuit protection:
    pulsed
  • Real sensing range:
    15 mm plus or minus 10 percent
  • Operating distance:
    0 to 12.15 mm
  • Ambient temperature:
    minus 40 to plus 70 degrees C
  • Protection:
    IP67
  • Housing and mounting:
    threaded, flush mountable
  • Thread and length:
    M30 x 1.5, L equals 75 mm
  • Included accessories:
    two lock nuts
  • Weight:
    0.13 kg
  • Tariff Code:
    8536500000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Target and mounting Output and wiring Environment and diagnostics Application
  • IFM identifies II5910 as the IIA3015BBPKG/US-104 inductive sensor.
  • It provides a PNP normally open output with a 15 mm nominal sensing range.

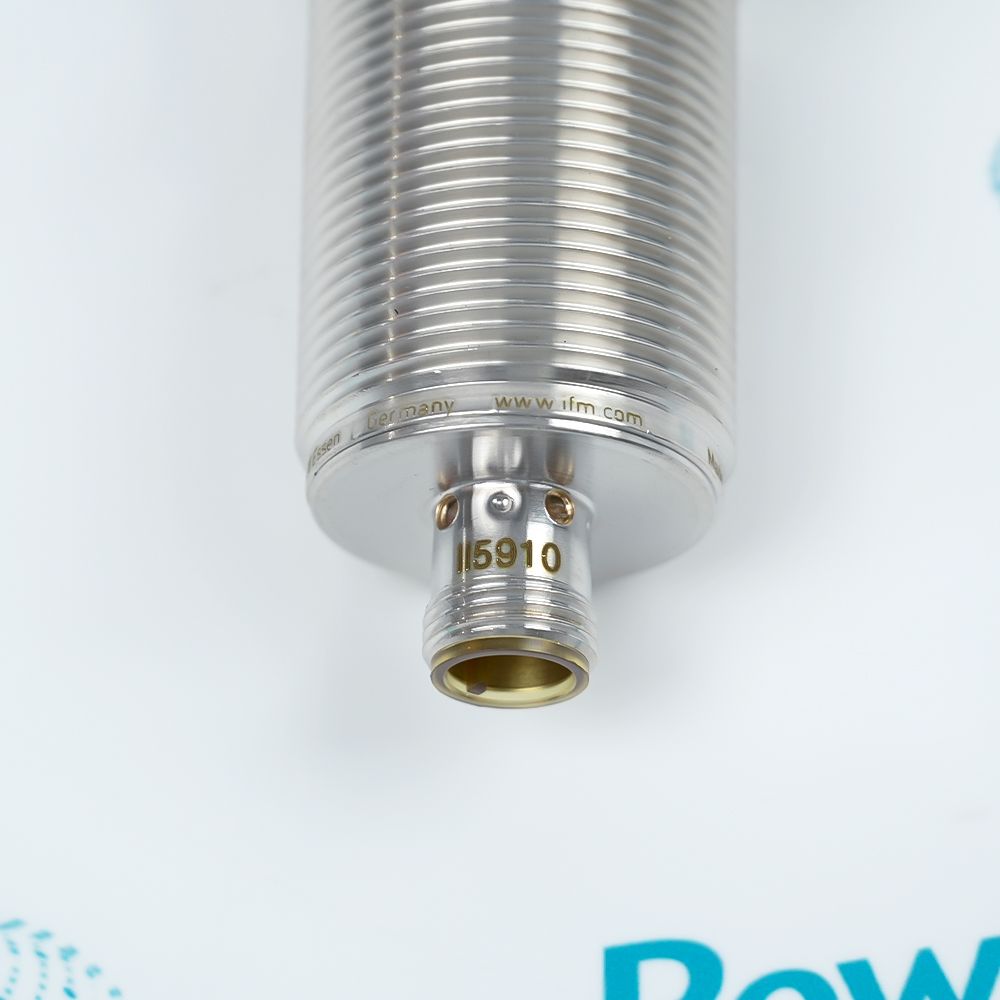

  • The M30 flush-mountable housing uses an M12 connector, gold-plated contacts and IP67 protection.

II5910 is an IFM threaded inductive sensor for industrial and factory-automation applications.

It operates from 10 to 32 V DC, has a 0 to 12.15 mm operating distance and supplies a 200 mA continuous switching output through a three-contact A-coded M12 connection.

Before replacement, verify flush mounting, target-material correction factors, connector pinout, load current and the supplied pair of lock nuts; the documented housing is M30 × 1.5 with an overall length of 75 mm.

Availability, condition, price, and shipping time for II5910 are confirmed during quotation.

II5910 Inductive Sensor Manuals, Datasheets, Links

Important Notice: Other accessories, cables, calibration data, software, and related items are not included unless listed in the stock item description. All prices are shown in USD.

  • The M30 threaded body is designed for flush mounting.
  • Target material and correction factor affect the usable sensing distance.
  • Use the lock nuts to secure alignment without obstructing the sensing face.
  • II5910 uses a PNP normally open output.
  • Match the A coded M12 connector and pin assignment.
  • Check load current, voltage drop, and short circuit protection in the input circuit.
  • IP67 protection is documented for the sensor housing.
  • The documented ambient range is minus 40 to plus 70 degrees C.
  • Use status indication and wiring checks to investigate intermittent switching.
  • Industrial object presence detection.
  • Factory automation machine position sensing.
  • Metal target detection on automated equipment.
Description
II5910 is an IFM PNP normally open inductive sensor for industrial and factory automation.

The sensor combines a 10 to 32 V DC supply, 15 mm sensing range, short circuit and overload protection, yellow status LEDs, gold plated contacts, and a threaded brass housing.

Before installation, confirm target material, flush mounting, sensing distance, M12 connector pinout, load current, EMC environment, and the supplied lock nuts.
Alternative Names
II5910 IFM II5910 ifm electronic II5910 IIA3015BBPKG/US-104 IIA3015BBPKG/US-104 II5910 IFM inductive sensor II5910
Technical notes
II5910 is the IFM IIA3015BBPKG/US-104 inductive sensor. Verify target correction, PNP wiring, flush mounting, connector, and load before installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should II5910 be selected for a metal target?
Check the target material, the IFM correction factor, the real sensing range, and the required mounting distance before ordering.
Will II5910 integrate with my existing machine input and cable system?
Confirm the PLC input type, connector and pin assignment, cable route, load behavior, and available mounting space with the machine drawings before ordering.
What should I check before replacing an installed II5910?
Record the existing sensor position, target material, alignment, connector, wiring, controller point, and alarm behavior so the replacement can be commissioned without changing the machine setup.
How can I reduce nuisance switching from II5910 in a production line?
Check target alignment and repeatability, sensor seating, cable shielding and routing, supply stability, nearby switching devices, and the PLC input response.
What should be checked if II5910 switches intermittently?
Check target correction, distance, alignment, supply stability, load current, connector condition, and nearby electromagnetic interference.
What maintenance concerns should be considered for II5910?
Plan inspection of the sensing face, lock nuts, connector seal, cable jacket, alignment, and switching indication during scheduled machine maintenance.
What information should I request when sourcing a replacement II5910?
Request confirmation of the exact model, connector and cable scope, condition, traceability, return terms, and whether the unit has been tested in a compatible input circuit.
