FBM207

/ 4.9
1001 reviews | Need a Specific Revision?

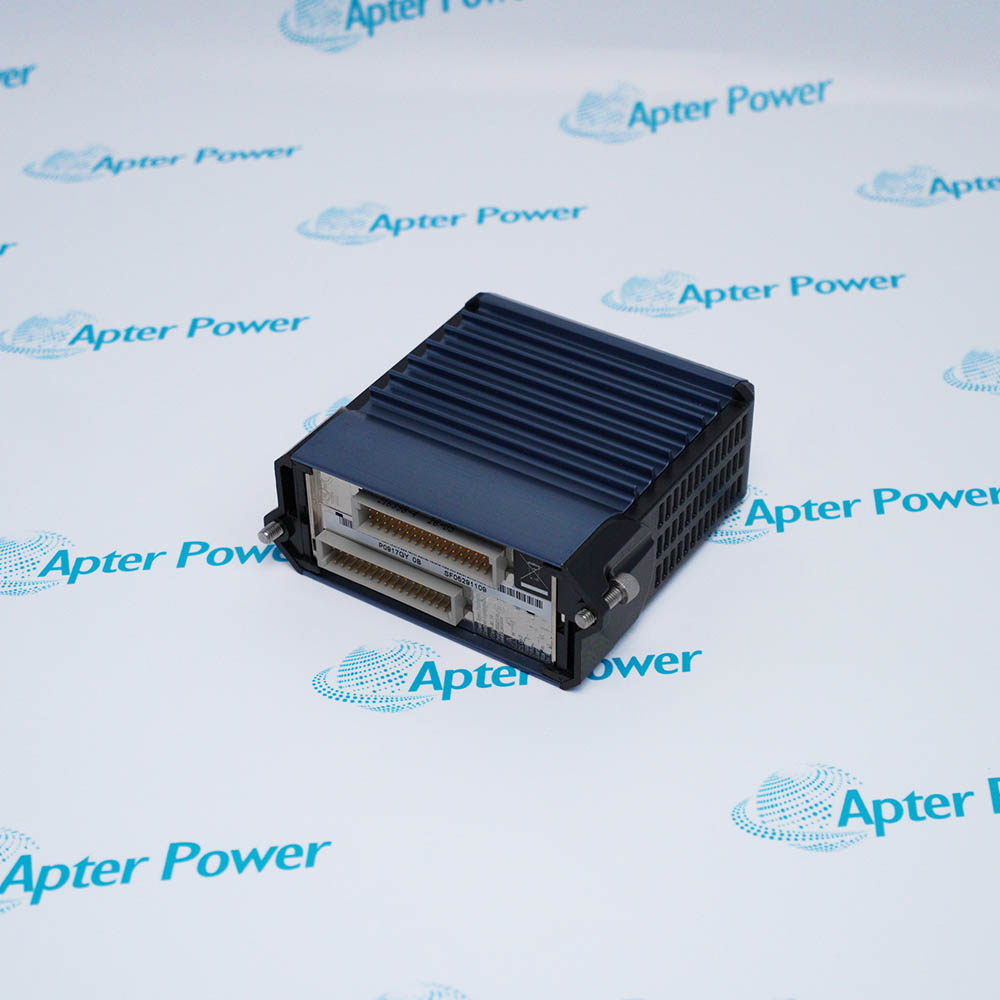

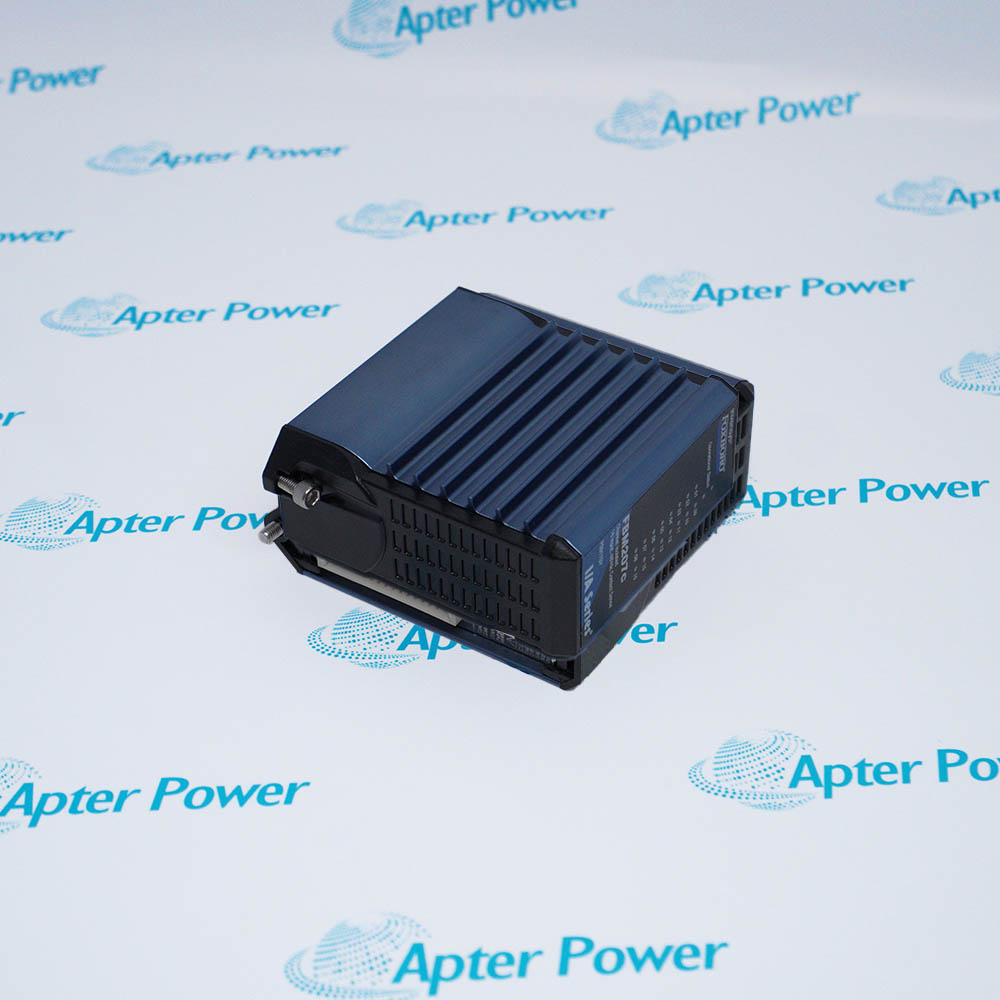

Foxboro FBM207 is a 16-channel isolated DC voltage-monitor input module for standard 200 Series DCS stations.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for FBM207
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FBM207

  • Manufacturer:
    Invensys
  • Part Number:
    FBM207
  • Product Family:
    Foxboro
  • Product Type:
    16-Channel Voltage Monitor Input Module
  • Stock:
    1
  • Input channels:
    16 isolated and independent
  • Voltage monitor on-state:
    15 to 60 VDC
  • Voltage monitor off-state:
    0 to 5 VDC
  • Pulse count accuracy:
    No missing pulses from 0 to 250 Hz
  • Filter / debounce:
    No filtering, 4, 8, 16 or 32 ms
  • Power consumption:
    3 W
  • Module Fieldbus:
    Redundant 2 Mbps
  • Dimensions:
    4.5 × 10.2 × 10.4 cm
  • Heat dissipation:
    5.5 W, including contribution from the field power supply
  • Channel isolation test:
    600 VAC for 1 minute between any channel and ground, or between any two channels
  • Operating temperature:
    -20 to +70°C
  • Storage temperature:
    -40 to +70°C
  • Relative humidity:
    5 to 95%, non-condensing
  • Vibration:
    0.75 g from 5 to 500 Hz
  • Weight:
    0.185 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Behavior Termination Selection Diagnostics Application
  • Use FBM207 for 15–60 VDC voltage-monitor circuits, not as a generic contact-sense module
  • Verify RH914TD as the exact current module part number
  • Select the TA for field voltage, excitation and terminal style

Foxboro FBM207 is the functional designation for a 16-channel isolated voltage-monitor input module.

The official exact module part number is RH914TD; FBM207b and FBM207c are different contact-sense variants with their own part numbers.

Before replacement, identify the TA, field-voltage range, excitation source, filter settings, channel mapping and any redundant adapter.

Availability, condition, price, and shipping time for FBM207 are confirmed during quotation.

Foxboro FBM207 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Sixteen channels are isolated and independent
  • Voltage-monitor operation distinguishes documented on and off states
  • Configurable debounce supports noisy contact or voltage circuits
  • TA choice must match voltage range and field-excitation method
  • Type 4 cables connect the module baseplate to DIN-rail TAs
  • Redundant installations use the documented adapter and adjacent slots
  • Test channel isolation before reconnecting unknown field circuits
  • Compare terminal voltage with the database state during troubleshooting
  • Validate filter timing and safe logic after replacement
  • DC field-voltage status monitoring
  • Isolated discrete-state acquisition
  • Redundant status-input service with the documented adapter
Description
Foxboro FBM207 monitors sixteen independent DC field-voltage inputs and transfers their states over the redundant Module Fieldbus.

Each channel is isolated from the others and ground, while configurable debounce allows the database to reject short disturbances according to the application.

The module is used for reliable equipment-status and interlock inputs where field voltage rather than internally wetted contact sensing is required.
Alternative Names
FBM207 FBM 207 Foxboro FBM207 Invensys Foxboro FBM207 I/A Series FBM207 Foxboro Evo FBM207 Invensys FBM207
Technical notes
FBM207 is the voltage-monitor functional model and RH914TD is its exact module part number. Do not substitute FBM207b/RH914WH or FBM207c/RH917GY without redesigning the field circuits.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be checked before replacing Foxboro FBM207?
Before replacing Foxboro FBM207, verify the termination assembly, interface cable, mounting position, channel wiring, system configuration, and saved voltage-monitor settings match the existing installation.
Can Foxboro FBM207 replace FBM207b or FBM207c directly?
No. FBM207 is a field-voltage monitor, while the b and c variants provide contact-sense excitation; their input circuits and module part numbers differ.
Which TA should be paired with Foxboro FBM207?
Select from the official matrix according to input voltage, external-excitation method, isolation and terminal style; do not select by connector appearance alone.
Why can Foxboro FBM207 show an input off when field voltage is present?
Measure voltage at the TA and module path, then check polarity, source resistance, cable continuity, terminal assignment, debounce and the channel database mapping.
Can Foxboro FBM207 be installed as a redundant pair?
Yes, with the documented RH926ZY redundant adapter and modules in supported adjacent odd/even baseplate positions, plus the appropriate control configuration.
What must be preserved before removing Foxboro FBM207?
Record the exact slot, RH914TD label, TA and cable numbers, input voltage range, channel map, debounce, redundancy relationship, forcing and interlock use.
What commissioning checks are required for Foxboro FBM207?
Prove each field voltage at the TA and in the database, verify channel isolation and debounce behavior, test redundancy where used, and confirm every interlock safely.
