Features:
- Selectable input voltage (100/120/220/240 VAC) enables global deployment without region-specific power supply variants.
- 39 VDC regulated output matches the precise power requirements of Foxboro I/A Series field devices and controllers.
- Front-panel status LEDs provide immediate visual feedback for power presence, output health, and fault conditions.
The IPM2-P0904HA solves a fundamental logistics challenge for international projects by supporting four input voltages in a single module. An internal switch allows the user to select 100, 120, 220, or 240 VAC—covering the major industrial power standards found across North America, Europe, Asia, and other regions. For engineering and procurement teams, this means stocking a single power module for facilities worldwide rather than maintaining separate inventories for different voltage requirements.
The 39 VDC output of the IPM2-P0904HA is specifically calibrated to meet the power requirements of Foxboro I/A Series field devices, controllers, and communication components. This voltage is not arbitrary—it matches the exact specifications of the system’s input stages, ensuring that connected equipment receives stable, regulated power within its optimal operating range. By delivering clean DC power, the module helps maintain signal integrity for analog inputs and outputs, reduces heat generation in downstream components, and extends the service life of field devices.

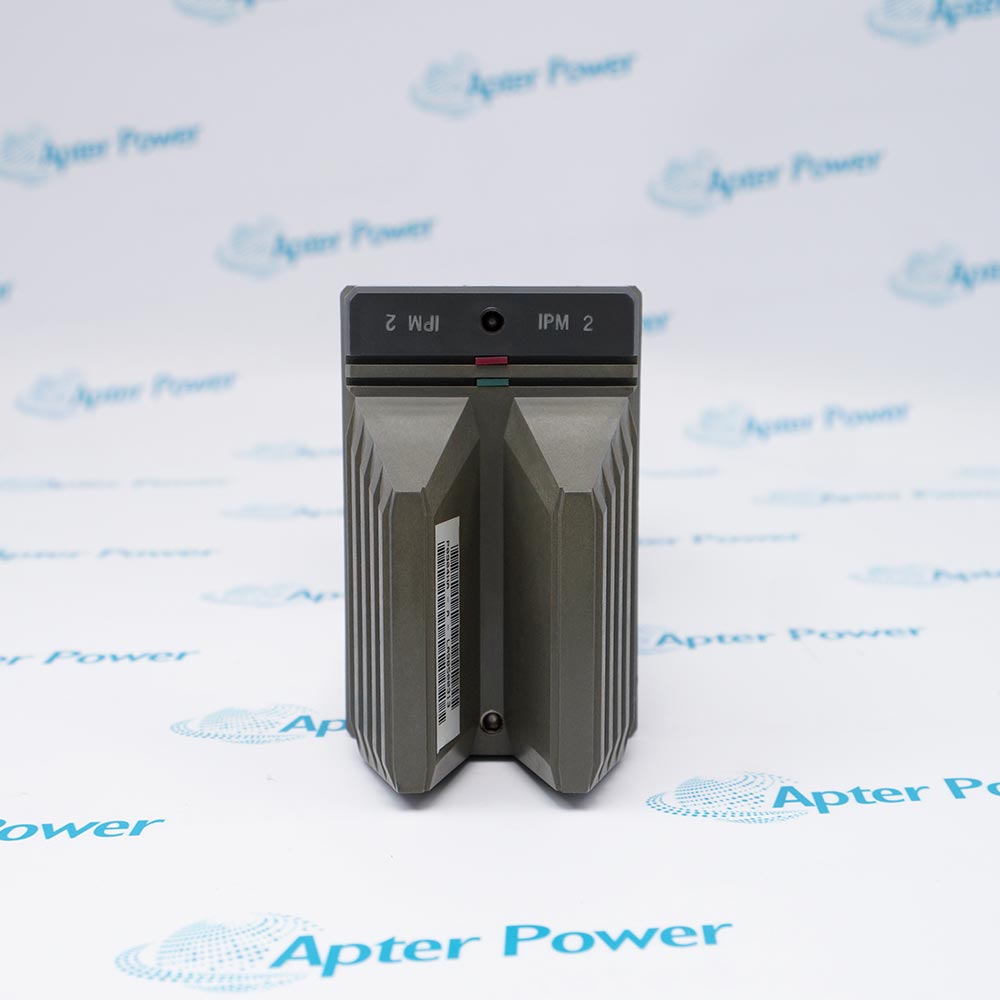

The IPM2-P0904HA incorporates front-panel status LEDs that provide instant visibility into power system health without requiring a meter or software connection. Green indicators confirm input power present and output voltage within specification; amber alerts signal marginal conditions; red indicates faults requiring immediate attention. This visual feedback enables operators to quickly verify power status during startup checks, isolate issues during troubleshooting, and confirm proper operation after maintenance. In facilities where process uptime is measured in months or years, the ability to spot power issues at a glance reduces mean time to repair and helps avoid unplanned shutdowns caused by undetected power anomalies.
The IPM2-P0904HA Foxboro Industrial Power Module may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro IPM2-P0904HA Industrial Power Module Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
Foxboro IPM2-P0904HA Industrial Power Module Specs
General
- Manufacturer Foxboro
- Model IPM2-P0904HA
- Condition New Original ready stock
- Product Family
IPM2-P0902HA,IPM2-P0906HA,IPM2-P0901HA
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Oil and Gas Exploration and Refining: Used for oil well pressure monitoring, and pressure management of refinery reactors and pipelines.
- Chemical and Petrochemical Industries: Monitoring chemical reaction processes in corrosive or high-pressure environments.
- Power Industry: Monitoring boiler feedwater pressure, steam pressure, and cooling systems.
- Explosion-proof Certification: Typically ATEX, IECEx, and FM/CSA certified, supporting intrinsically safe or explosion-proof installation.
- Safety Integrity Class (SIL): Designed to typically meet SIL 2 certification (IEC 61508), suitable for critical circuits in Safety Instrumented Systems (SIS).
- Protection Rating: Enclosures typically meet IP66/IP67 or NEMA 4X standards, resisting harsh outdoor weather and washing environments.
- HART Protocol: The most common configuration, supporting 4-20 mA analog signal overlay with digital signal, compatible with various handheld communicators (such as Emerson 475) or management software.
- FoxCom/Fieldbus/Profibus: Some variants may support Foxboro's proprietary FoxCom protocol or Foundation Fieldbus/Profibus PA.
- coStruxure Foxboro DCS: Deeply integrated with Schneider's control systems, providing remote configuration, self-diagnostics, and equipment asset management functions.
