P0916VL

/ 4.9
1001 reviews | Need a Specific Revision?

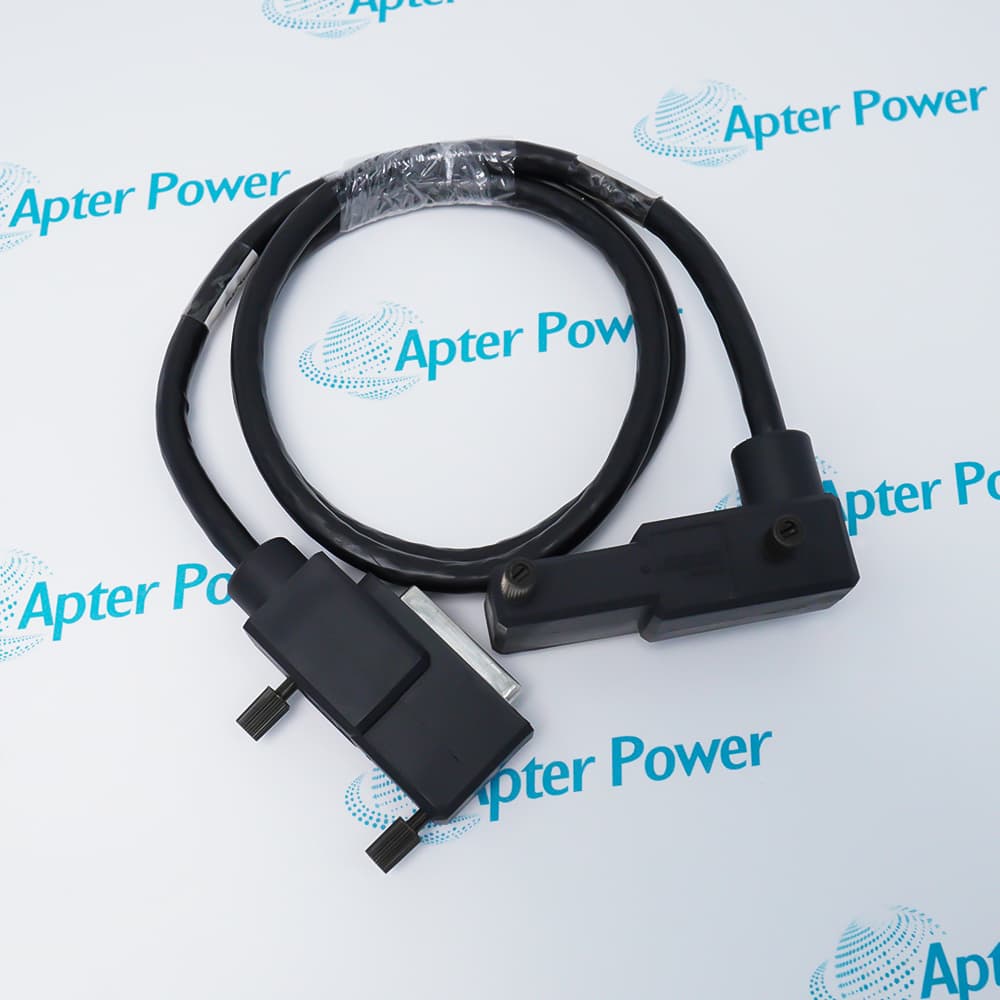

Foxboro P0916VL is a 1 meter termination cable featuring Hypalon outer sheath and XLPE (cross-linked polyethylene) conductor insulation for stable industrial signal connectivity.
Get a quick price for P0916VL
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for P0916VL

  • Manufacturer:
    Invensys
  • Part Number:
    P0916VL
  • Product Family:
    Foxboro
  • Product Type:
    Termination Cable
  • Length:
    1 meter (1 m)
  • Material:
    Hypalon outer sheath / XLPE core insulation
  • Insulation Material:
    Polyurethane
  • Temperature:
    -40°C to +90°C
  • Outer Jacket Material:
    Hypalon
  • Primary Conductor Insulation Material:
    XLPE (cross-linked polyethylene)
  • Cable Type:

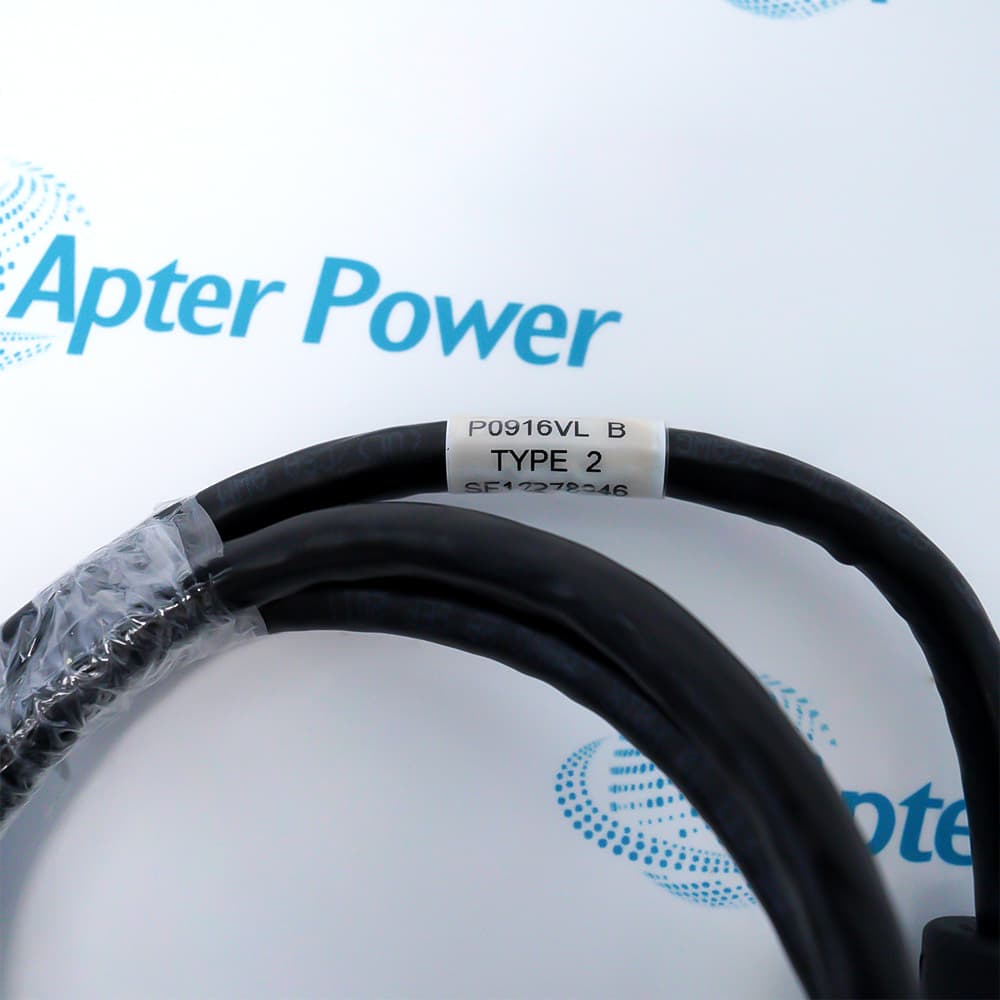

    H/XLPE (derived from Type 2 or Type 4 series)
  • Wire Gauge:
    Typically 26 AWG
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    16x18x6cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Efficiency Standards Use Cases

Features:

  • Hypalon outer sheath provides durable environmental resistance for industrial termination use
  • XLPE insulated conductors ensure stable electrical isolation and signal integrity
  • Compact 1 meter configuration supports efficient installation in control and automation systems
The Foxboro P0916VL is widely applied in industrial control environments where compact termination wiring is required. Its structural design supports stable integration between system interfaces and field wiring points. The combination of Hypalon and XLPE materials allows the cable to maintain performance in demanding operational conditions.

In automation systems, the Foxboro P0916VL is used to ensure reliable signal continuity within control cabinets and equipment assemblies. The 26 AWG conductor size contributes to consistent transmission characteristics in short-distance connections. This makes it suitable for dense wiring environments where stability and insulation quality are essential.

Across industrial installations, the Foxboro P0916VL supports long-term operational reliability under varying temperature conditions. Its robust material selection helps maintain mechanical and electrical integrity over time. As a result, it is often chosen for termination tasks in process control and instrumentation systems.

The P0916VL Foxboro Termination Cable may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro P0916VL Termination Cable Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Foxboro P0916VL Termination Cable Specs

General

  • Manufacturer Foxboro
  • Model P0916VL
  • Condition New Original ready stock
  • Product Family P0916VM,P0916WG
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Plug and Play: Pre-fabricated double-ended connectors eliminate the need for manual wire stripping and crimping on-site, significantly reducing system wiring and commissioning time.
  • Zero Signal Delay: Utilizes low-impedance pure copper core wire, ensuring millisecond-level lossless real-time transmission of analog and digital signals.
  • Low Maintenance Costs: Hypalon material's excellent anti-aging and abrasion resistance effectively reduces downtime due to wiring deterioration.
  • High Space Utilization: Compact wire diameter and highly flexible design facilitate high-density bending and routing within dense control cabinets.
  • Flame Retardant Standards: Meets stringent industrial-grade flame retardant and low-smoke halogen-free requirements, ensuring electrical fire safety in control rooms and cabinets.
  • Interface Specifications: Fully compliant with Foxboro I/A Series proprietary bus interface physical specifications, ensuring tight and secure plug-and-play connections.
  • Environmental Compliance: Meets RoHS environmental directives and related industrial equipment safety standards for chemical corrosion resistance and UV resistance.
  • Quality System: Passes rigorous electrical continuity and high-voltage insulation withstand voltage tests by the original manufacturer, achieving a 100% factory pass rate.
  • Refinery and Petrochemical Units: Used to safely transmit field transmitter signals from highly corrosive and high-temperature areas to the DCS central control room via FBM2xx modules.
  • Coal Power Plants: Deployed in high-vibration, high-electromagnetic-interference environments such as turbine control and boiler monitoring to ensure stable transmission of critical data.
  • Rack Centralization: Used as standard jumpers for high-speed connections between field terminal blocks (TAs) and main control cards in system integration workshops with multiple control cabinets arranged side-by-side.
  • Legacy System Upgrades: Used for spare parts replacement of older Foxboro I/A Series systems or seamless migration and expansion to the EcoStruxure Foxboro DCS platform.
Description
The Foxboro P0916VL termination cable is constructed with a focus on durable insulation and stable signal handling in industrial environments. It uses a Hypalon outer sheath combined with XLPE insulated conductors, forming a robust H/XLPE cable structure derived from Type 2 or Type 4 series design principles. With a 1 meter length and 26 AWG wire gauge, this Foxboro P0916VL provides compact and precise termination connectivity for control system applications. The Foxboro P0916VL is suitable for installations requiring consistent mechanical protection and electrical insulation performance.

In practical deployment, the Foxboro P0916VL is commonly used where reliable termination wiring is required between system interfaces and field connections. Its Hypalon jacket enhances resistance in demanding operating conditions, while the XLPE insulation supports stable conductor performance across varying electrical environments. The Foxboro P0916VL maintains stable structural integrity across a temperature range of -40°C to +90°C, making it suitable for both low-temperature and elevated-temperature industrial settings. The Foxboro P0916VL ensures consistent signal continuity in compact automation layouts.

From a materials and construction perspective, the Foxboro P0916VL emphasizes insulation reliability through its cross-linked polyethylene conductor insulation system. The 26 AWG conductor size provides controlled signal transmission characteristics in termination applications. Designed as a short-length cable assembly, the Foxboro P0916VL simplifies integration in dense control cabinet environments. Overall, the Foxboro P0916VL delivers a balanced combination of flexibility, insulation strength, and environmental resistance for industrial termination tasks.
Alternative Names
PO916VL P09I6VL P0916VM P0916WG P0926GQ P0916AA P0916CC P0916DB
Technical notes
The Foxboro P0916VL is a reliable 1-meter Hypalon-jacketed termination cable engineered for seamless interconnection between FBM2xx modules and TAs within Foxboro DCS environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What application scenarios are suitable for Foxboro P0916VL termination cable?
Foxboro P0916VL is commonly used in industrial termination wiring where compact 1 m signal connections are required between system interfaces and field points.
How does Foxboro P0916VL maintain stable performance in harsh environments?
Foxboro P0916VL uses a Hypalon outer sheath combined with XLPE insulation, helping it withstand demanding industrial conditions.
Why does Foxboro P0916VL use 26 AWG conductor design?
Foxboro P0916VL adopts 26 AWG wiring to support controlled and stable signal transmission in termination applications.
Can Foxboro P0916VL operate under extreme temperature conditions?
Foxboro P0916VL supports reliable performance across a temperature range from -40°C to +90°C.
What materials improve durability in Foxboro P0916VL cable structure?
Foxboro P0916VL integrates Hypalon outer jacket and cross-linked polyethylene insulation for enhanced mechanical and electrical stability.
